Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10878 - EXZ RHD FUEL TANK 400L
▶
5 - Frame, Cab Mounting
▶

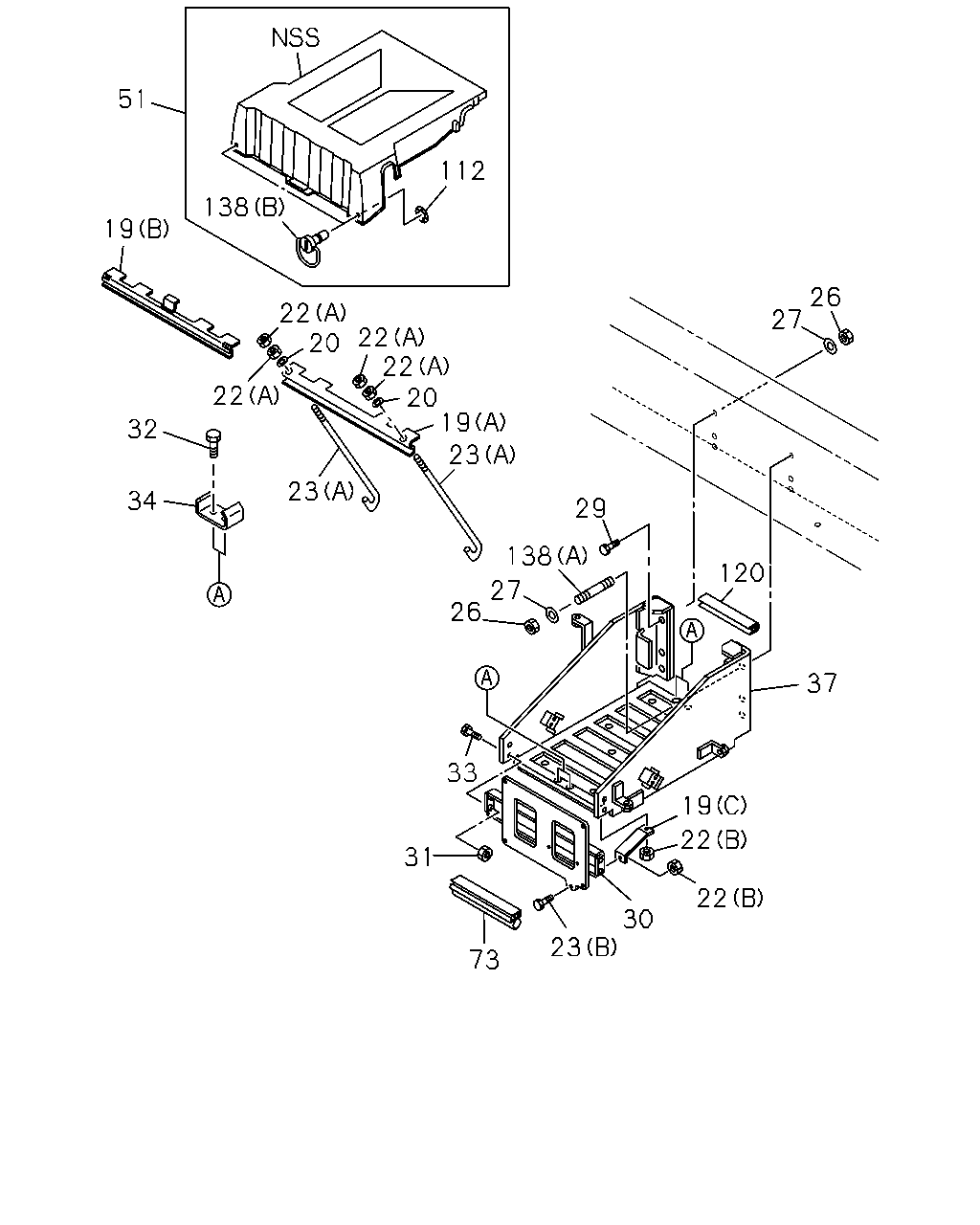

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#12020) — 36 parça
51
112
138
19
22
20
22
22
20
19
23
29
27
26
120
37
19
22
22
30
23
73
31
33
26
27
138
23
34
32
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(C)
1-53618-061-0
01
1
0105-
19
STAY; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> (B)
1-53618-059-1
01
1
0105-
19
STAY; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> (A)
1-53618-039-2
01
1
0105-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0105-0605
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
22
NUT; STAY
(B) M8 FLANGE
0-91150-108-0
02
1
0105-0602
22
NUT; STAY
(B) M8 FLANGE
0-91180-108-0
02
1
0603-
22
NUT; STAY
(A) M8
9-09110-408-0
04
1
0105-0512
22
NUT; STAY
(A) M8
0-91110-508-0
04
1
0601-
23
BOLT; STAY
(B) M8X20 FLANGE
0-28680-820-0
01
1
0105-0512
23
BOLT; STAY
(B) M8X20 FLANGE
0-28650-820-0
01
1
0601-
23
BOLT; STAY
(A) L=250
1-53616-108-0
02
1
0105-
26
NUT; BRKT
M14
9-99110-514-0
04
1
0105-0512
26
NUT; BRKT
M14
0-91110-514-0
04
1
0601-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0105-0603
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0604-
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
02
1
0105-0512
29
BOLT; BRKT TO FRAME
M14X40
0-20851-440-0
02
1
0601-
30
PLATE; BATTERY
1-53619-128-1
01
1
0105-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
02
1
0204-0602
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
02
1
0603-
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
0105-0512
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28050-816-0
04
1
0601-
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
0105-0512
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28050-816-0
04
1
0601-
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
0105-
37
BRACKET; BATTERY
1-53610-152-0
01
1
0105-0105
37
BRACKET; BATTERY
1-53610-153-0
01
1
0105-
51
COVER; BATTERY
1-53612-065-1
01
1
0105-0105
51
COVER; BATTERY
1-53612-067-0
01
1
0105-
73
RUBBER; CUSHION,PLATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=100
8-94272-502-0
01
1
0105-0105
112
RETAINER; BATTERY
1-53616-139-0
02
1
0105-
120
PROTECTOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=150
1-76710-004-0
01
1
0105-0105
138
STUD
(A) M14X48 L=75
1-09300-094-0
02
1
0105-
138
STUD
(B)
1-53616-137-0
02
1
0105-0105
138
STUD
(B)
1-53616-142-0
02
1
0105-
