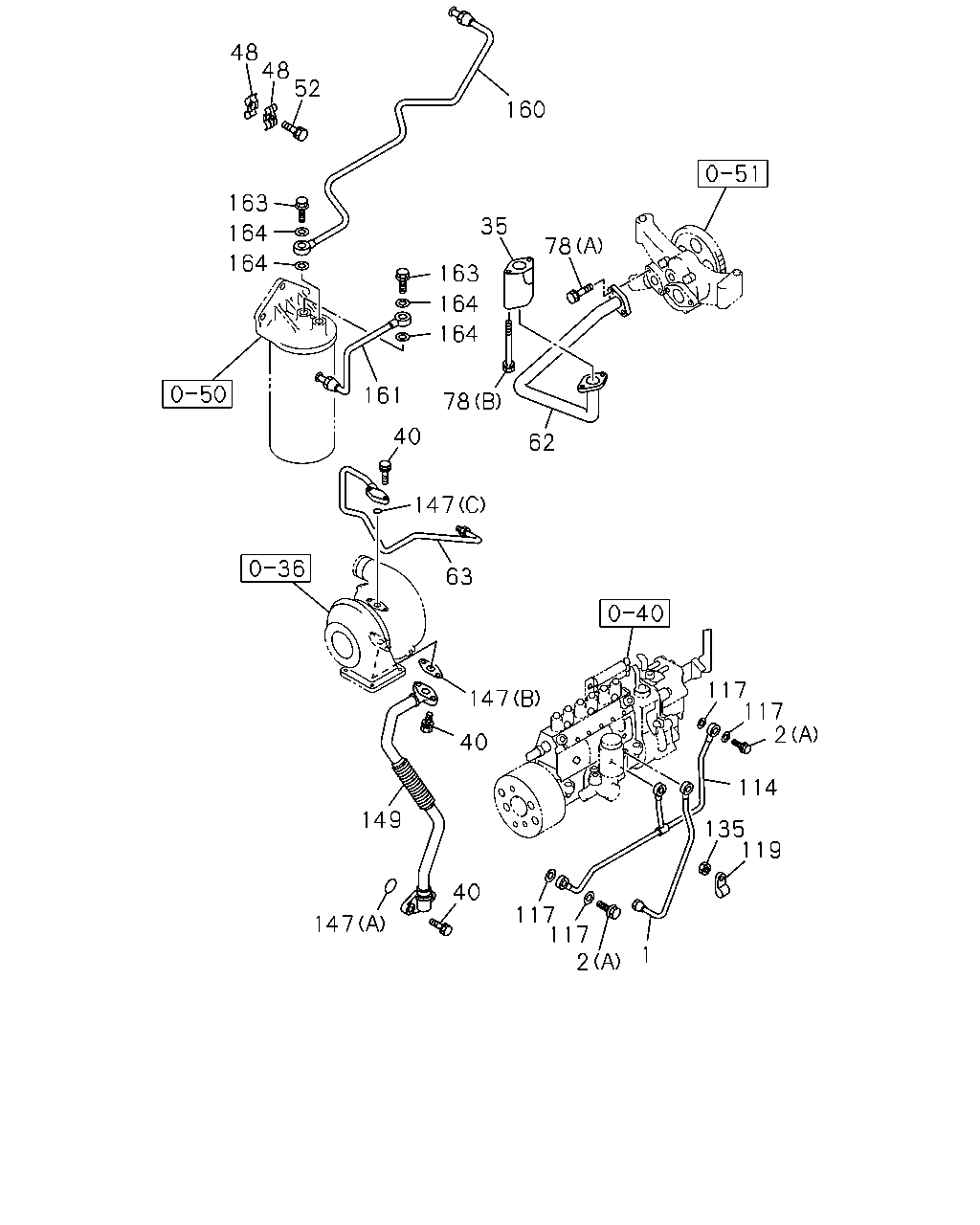

0-52 — OIL AND VACUUM PIPING; ENGINE (#1202) — 67 parça

48 48 52 160 163 35 164 78 164 163 164 164 161 78 40 62 147 63 117 117 2 147 40 114 149 135 119 40 117 117 2 147 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	1-13312-747-0	01	1	9202-9212	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-351-0	01	1	9301-	●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94399-415-0	01	1	9202-9307			●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9308-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9202-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9202-			●
35	VALVE ASM; DRAIN BACK	1-13260-086-0	01	1	9202-	●	●
40	BOLT; OIL PIPE M8X25 W/LK WASHER	0-50040-825-0	02	1	9306-		●
40	BOLT; OIL PIPE M8X32 W/LK WASHER	0-50040-832-0	02	1	9306-		●
40	BOLT; OIL PIPE M10X35 W/LK WASHER	0-50051-035-0	02	1	9306-		●
48	CLIP; OIL PIPE ID=10 & 6 L=20	1-09700-404-0	02	1	9202-	●	●
48	CLIP; OIL PIPE ID=10 & 6 L=20 W/NUT	1-09700-405-0	02	1	9202-	●	●
52	BOLT; OIL PIPE CLIP M6X20 W/LK WASHER	9-01900-620-0	02	1	9202-9204	●
52	BOLT; OIL PIPE CLIP M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-	●	●
62	PIPE; OIL,PUMP TO C/BL	1-13312-337-0	01	1	9202-9404	●
62	PIPE; OIL,PUMP TO C/BL EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	1-13312-337-0	01	1	9405-	●
62	PIPE; OIL,PUMP TO C/BL	1-13312-338-0	01	1	9306-9404		●
62	PIPE; OIL,PUMP TO C/BL ENG OIL PUMP HEAVY DUTY<Q1V>	1-13312-338-0	01	1	9405-	●
62	PIPE; OIL,PUMP TO C/BL	1-13312-338-0	01	1	9405-		●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-389-0	01	1	9306-		●
78	BOLT; OIL PIPE,PUMP TO BODY (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9202-	●	●
78	BOLT; OIL PIPE,PUMP TO BODY (B) M8X100 W/LK&PL WASHER	0-50140-800-0	02	1	9202-	●	●
114	PIPE ASM; OIL,BODY	1-13312-349-0	01	1	9202-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9202-	●	●	●
119	CLIP; OIL PIPE,BODY TO CMPR ID=14.5	9-09917-208-1	02	1	9202-	●	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9202-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-297-0	01	1	9306-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-09623-481-0	01	1	9306-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09637-055-0	01	1	9306-9510		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B)	1-09637-058-1	01	1	9511-		●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13312-502-0	01	1	9306-		●
160	PIPE; OIL,PARTIAL FILTER FEED	1-13313-165-0	01	1	9202-	●	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13312-265-0	01	1	9202-9212	●
161	PIPE; OIL,PARTIAL FILTER RETURN	1-13313-352-0	01	1	9301-	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9202-	●	●
163	BOLT; EYE,OIL PIPE,PARTIAL FILTER M12X27 FLANGE	1-09675-160-0	01	1	9202-	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9202-	●	●
164	GASKET; EYE BOLT,OIL PIPE,FILTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	9202-	●	●

448 279 278 276 448 430 449 315 279 277 434 449 276 434 449

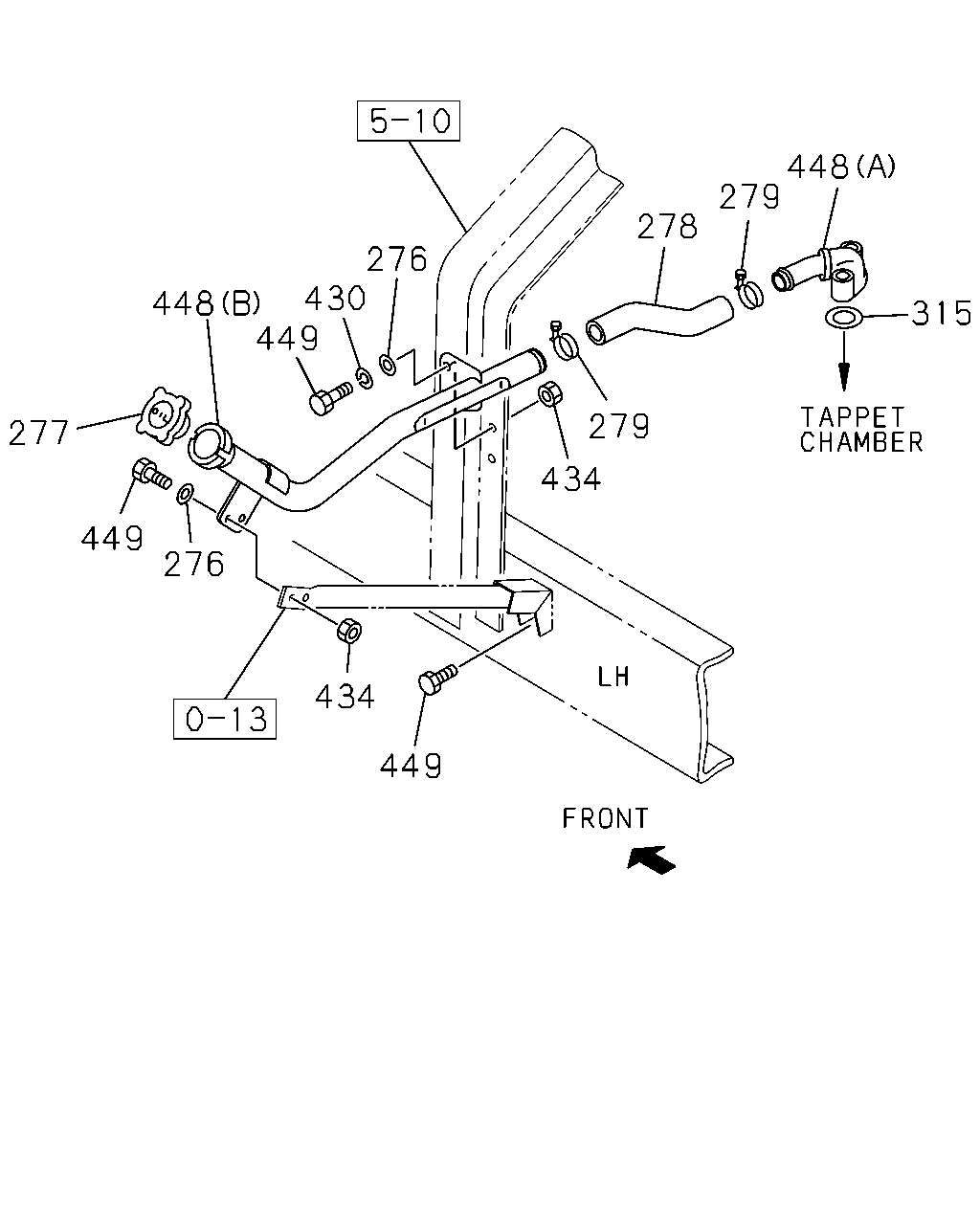

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
276	WASHER; PL,OIL FILTER CAB BACK OIL FILLER<E2J> ID=8.4 OD=18	9-09160-608-0	04	1	9202-9312	●	●
277	CAP; OIL FILLER CAB BACK OIL FILLER<E2J>	1-11750-020-0	01	1	9202-	●	●
278	HOSE; RUBBER,OIL FILLER CAB BACK OIL FILLER<E2J>	1-09360-812-0	01	1	9202-	●	●
279	CLIP; RUBBER HOSE CAB BACK OIL FILLER<E2J> ID=42	9-09915-042-1	02	1	9202-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). CAB BACK OIL FILLER<E2J> ID=35.7	1-09623-026-0	01	1	9202-	●
430	WASHER; LK,BRKT,OIL FILLER CAB BACK OIL FILLER<E2J> ID=8.4 OD=18	9-09164-608-0	01	1	9202-	●
434	NUT; OIL FILLER CAB BACK OIL FILLER<E2J> M8	9-09110-408-0	05	1	9202-9312	●	●
434	NUT; OIL FILLER CAB BACK OIL FILLER<E2J> M8 FLANGE	0-91150-108-0	05	1	9401-	●	●
448	FILLER; OIL CAB BACK OIL FILLER<E2J> (A)	1-11741-108-0	01	1	9202-	●
448	FILLER; OIL CAB BACK OIL FILLER<E2J> (B)	1-11741-143-1	01	1	9202-	●	●
449	BOLT; OIL FILLER CAB BACK OIL FILLER<E2J> M8X50	0-10805-850-0	01	1	9202-	●
449	BOLT; OIL FILLER CAB BACK OIL FILLER<E2J> WO/PLWASHER M8X25 FLANGE	0-28080-825-0	05	1	9202-9312	●	●
449	BOLT; OIL FILLER CAB BACK OIL FILLER<E2J> WO/PLWASHER M8X25 FLANGE	0-28080-825-0	02	1	9401-	●	●
449	BOLT; OIL FILLER CAB BACK OIL FILLER<E2J> W/PLWASHER M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9202-	●
449	BOLT; OIL FILLER CAB BACK OIL FILLER<E2J> M8X20 FLANGE	0-28080-820-0	03	1	9401-	●	●

117 117 44 117 2 115 1 117 2 452 3 261 3 2

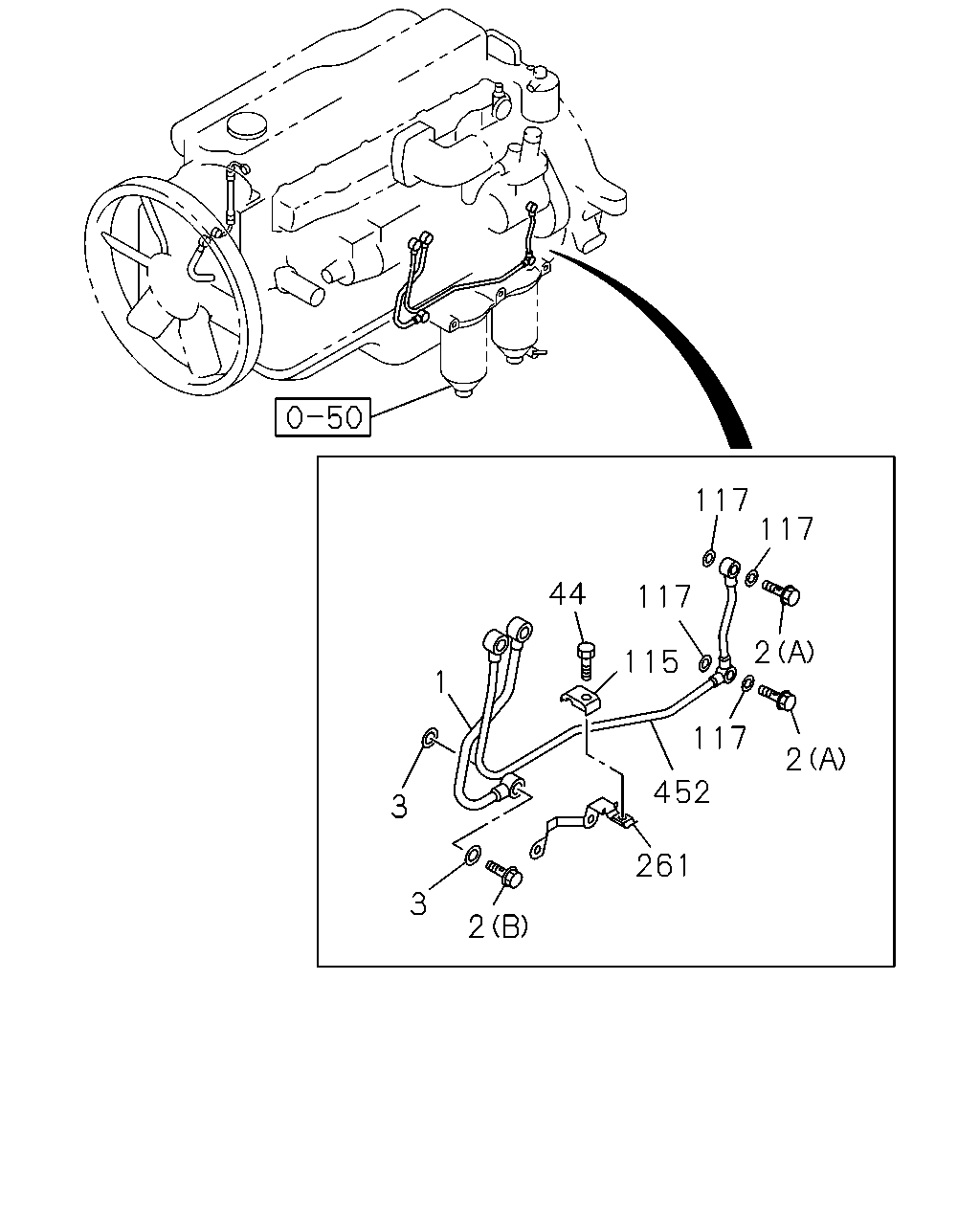

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	1-13312-747-0	01	1	9202-9212	●
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-351-0	01	1	9301-	●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94399-415-0	01	1	9202-9307			●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9308-			●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9202-	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9202-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	02	1	9202-			●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28210-622-0	01	1	9202-9204			●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28280-622-0	01	1	9205-9305			●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9306-			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9202-			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	9202-	●	●	●
261	BRACKET; CLIP,OIL PIPE	8-94396-695-0	01	1	9202-			●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94397-462-0	01	1	9202-			●
