3-55 — BRAKE PIPING; OIL,REAR (#120199) — 11 parça

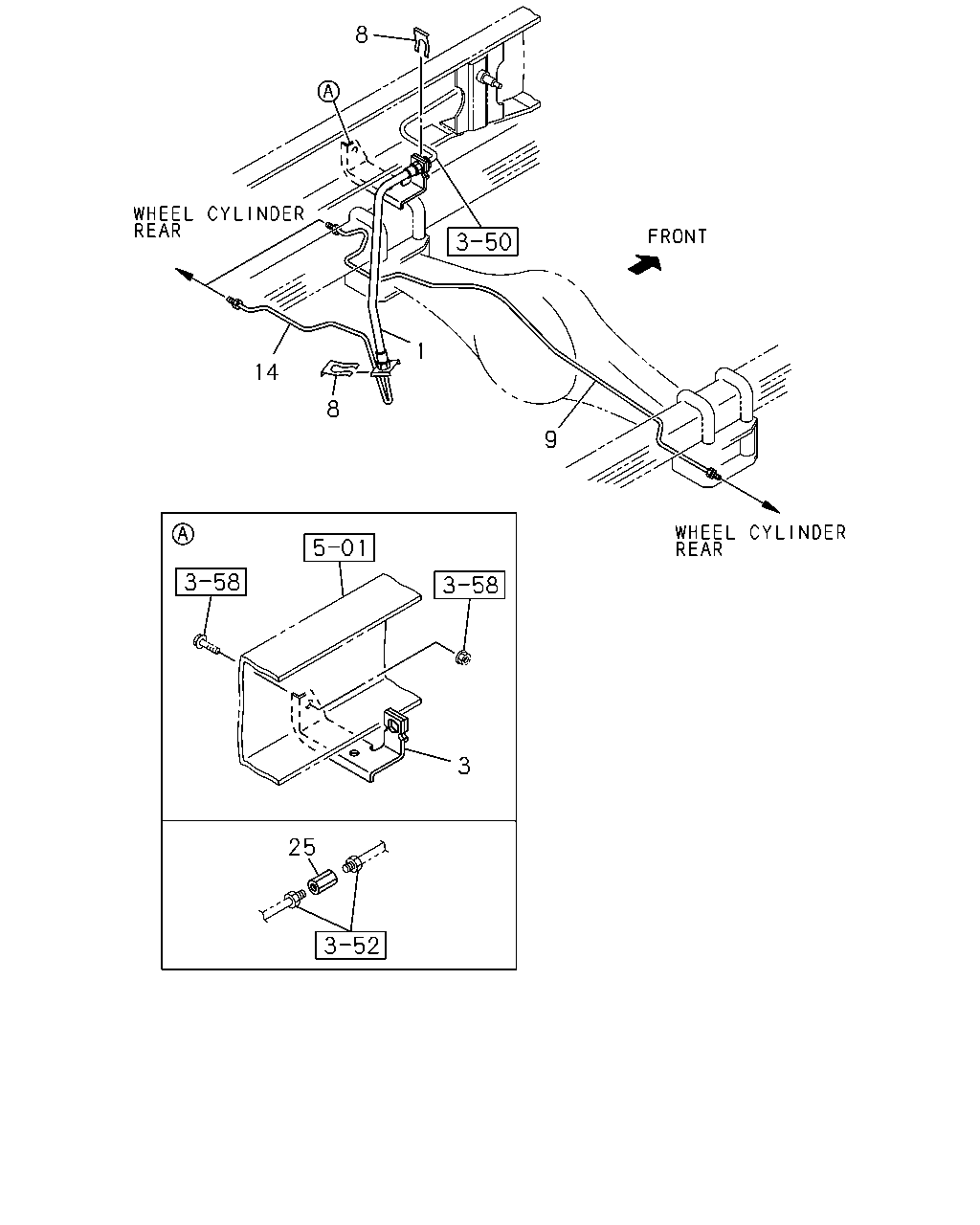

çizim 350891

8 14 1 8 9 3 25

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	HOSE; FLEX,RR BRK THA	8-97308-913-0	01	1	1304-	●	●
	3	BRACKET; FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> IMA	8-97205-714-1	01	1	1304-	●	●
	8	CLIP; RR BRK IMA	8-97360-054-0	02	1	1304-	●	●
	9	PIPE; BRK,RR AXLE THA	8-98026-057-0	01	1	1304-	●	●
	14	PIPE; BRK,FLEX HOSE TO WHEEL CYL THA	8-97359-746-0	01	1	1304-	●
	14	PIPE; BRK,FLEX HOSE TO WHEEL CYL THA	8-97359-748-0	01	1	1304-		●
	25	CONNECTOR FRAME STRAIGHT TYPE<7KJ> M10 STRAIGHT IMA	0-92107-005-0	01	1	1304-	●	●

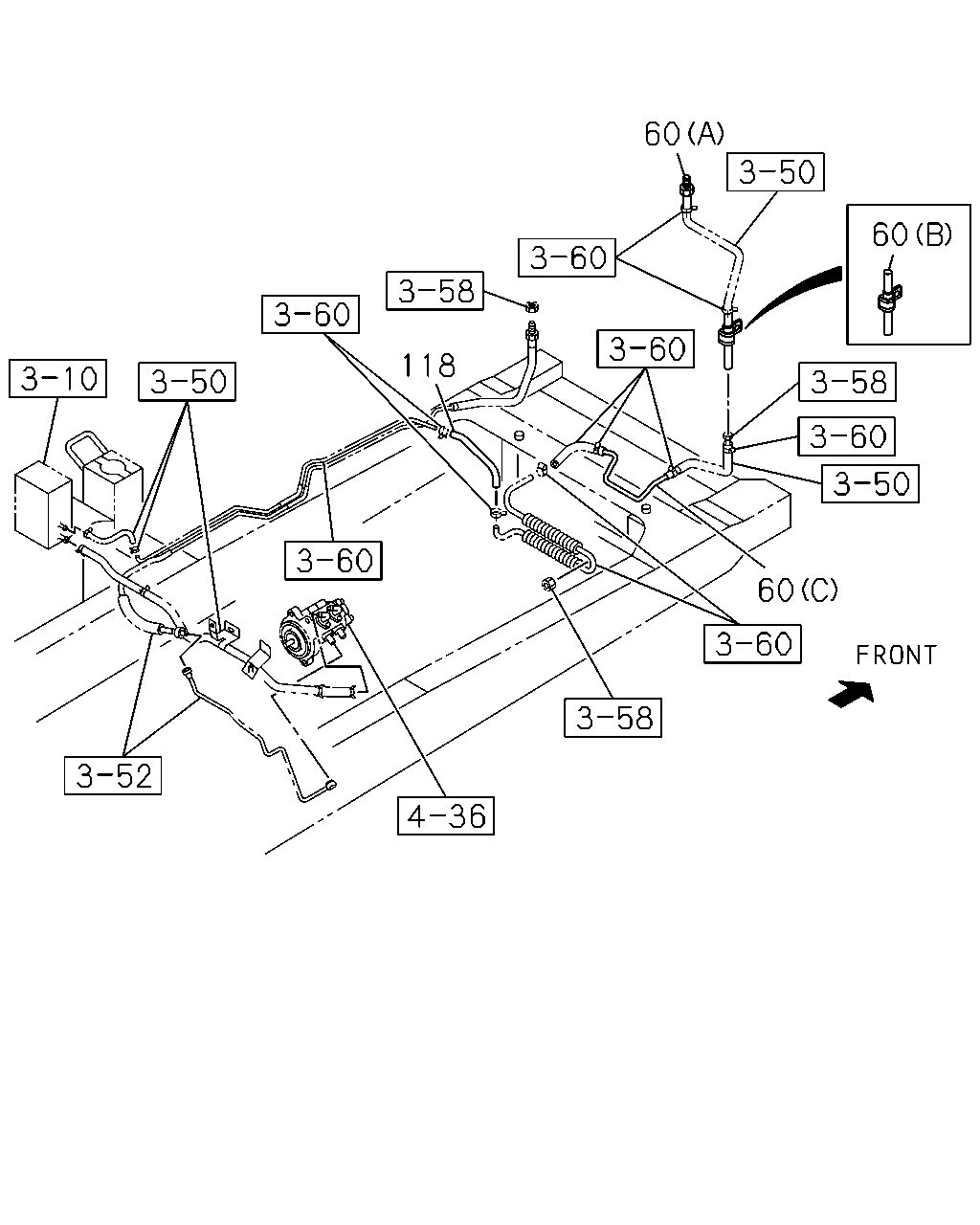

çizim 352450

60 60 118 60

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	60	PIPE ASM; BRK FRAME STRAIGHT TYPE<7KJ> (C) THA	8-98041-326-1	01	1	1304-		●
	60	PIPE ASM; BRK FRAME STRAIGHT TYPE<7KJ> (A) IMA	8-98080-549-0	01	1	1304-		●
	60	PIPE ASM; BRK FRAME STRAIGHT TYPE<7KJ> (B) THA	8-98088-313-1	01	1	1304-		●
	118	HOSE; PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> IMA	8-98158-200-0	01	1	1304-		●
