◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#120196) — 96 parça

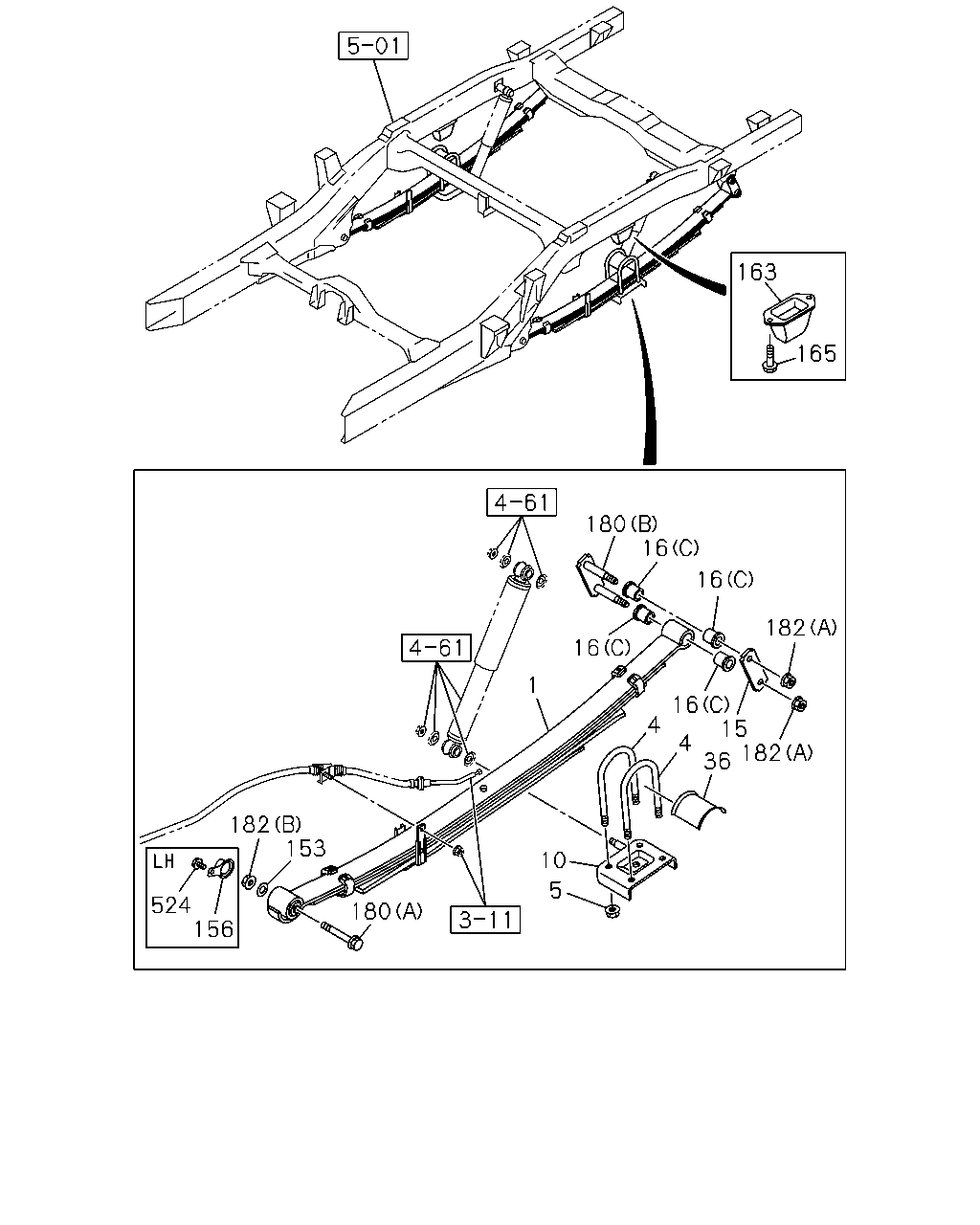

çizim 351135
180 16 16 182 182 15 16 16 4 4 36 10 5 180 153 182 524 156 163 165 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 		8-98218-543-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC) 		8-98218-543-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) 		8-98218-556-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98218-556-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98218-545-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98218-549-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98218-549-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98218-549-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98218-548-0 02 1 1305- ●
4 U-BOLT; RR SPR
L=175 		8-97947-045-0 04 1 1305- ●
4 U-BOLT; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) L=175 		8-97947-045-0 04 1 1305- ●
4 U-BOLT; RR SPR
HIGH RIDE SUSPENSION(7YC) L=170 		8-97946-550-0 04 1 1305- ●
4 U-BOLT; RR SPR
L=170 		8-97946-550-0 04 1 1305- ● ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE 		8-97245-635-0 08 1 1305- ● ● ● ●
10 CLAMP; LWR,RR SPR 8-98160-070-0 01 1 1305- ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-070-0 01 1 1305- ●
10 CLAMP; LWR,RR SPR 8-98160-083-0 01 1 1305- ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-083-0 01 1 1305- ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-98165-850-1 01 1 1305- ●
10 CLAMP; LWR,RR SPR 8-98165-850-1 01 1 1305- ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-98165-851-1 01 1 1305- ●
10 CLAMP; LWR,RR SPR 8-98165-851-1 01 1 1305- ● ●
15 SHACKLE; RR SPR 8-98005-815-0 02 1 1305- ●
15 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-815-0 02 1 1305- ●
15 SHACKLE; RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97946-551-1 02 1 1305- ●
15 SHACKLE; RR SPR 8-97946-551-1 02 1 1305- ● ●
16 BUSHING; SHACKLE,RR SPR
(C) 		8-97357-492-0 08 1 1305- ●
16 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97357-492-0 08 1 1305- ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC) (A) 		8-97357-492-0 04 1 1305- ●
16 BUSHING; SHACKLE,RR SPR
(A) 		8-97357-492-0 04 1 1305- ● ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-545-0 04 1 1305- ●
16 BUSHING; SHACKLE,RR SPR
(B) 		8-97946-545-0 04 1 1305- ● ●
36 SEAT; HELPER RUBBER,RR SPR 8-98005-878-0 02 1 1305- ●
36 SEAT; HELPER RUBBER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-878-0 02 1 1305- ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-98005-921-0 02 1 1305- ● ● ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP 8-97947-363-0 01 1 1305- ● ● ● ●
163 RUBBER; HELPER,RR SPR 8-97946-803-1 02 1 1305- ●
163 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-803-1 02 1 1305- ●
163 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97946-549-3 02 1 1305- ●
163 RUBBER; HELPER,RR SPR 8-97946-549-3 02 1 1305- ● ●
165 BOLT; HELPER RUBBER
M10X30 FLANGE 		0-28661-030-0 04 1 1305- ●
165 BOLT; HELPER RUBBER
EXC. HIGH RIDE SUSPENSION(7YC) M10X30 FLANGE 		0-28661-030-0 04 1 1305- ●
180 PIN; RR SPR
(A) 		8-97947-078-0 02 1 1305- ● ● ● ●
180 PIN; RR SPR
(B) 		8-98005-814-0 02 1 1305- ●
180 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-814-0 02 1 1305- ●
180 PIN; RR SPR
HIGH RIDE SUSPENSION(7YC) (C) 		8-97946-547-1 02 1 1305- ●
180 PIN; RR SPR
(C) 		8-97946-547-1 02 1 1305- ● ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE 		0-91180-114-0 04 1 1305- ● ● ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE 		8-97245-651-0 02 1 1305- ● ● ● ●
524 BOLT; RR SPR
M8X20 FLANGE 		0-28650-820-0 01 1 1305- ● ● ● ●

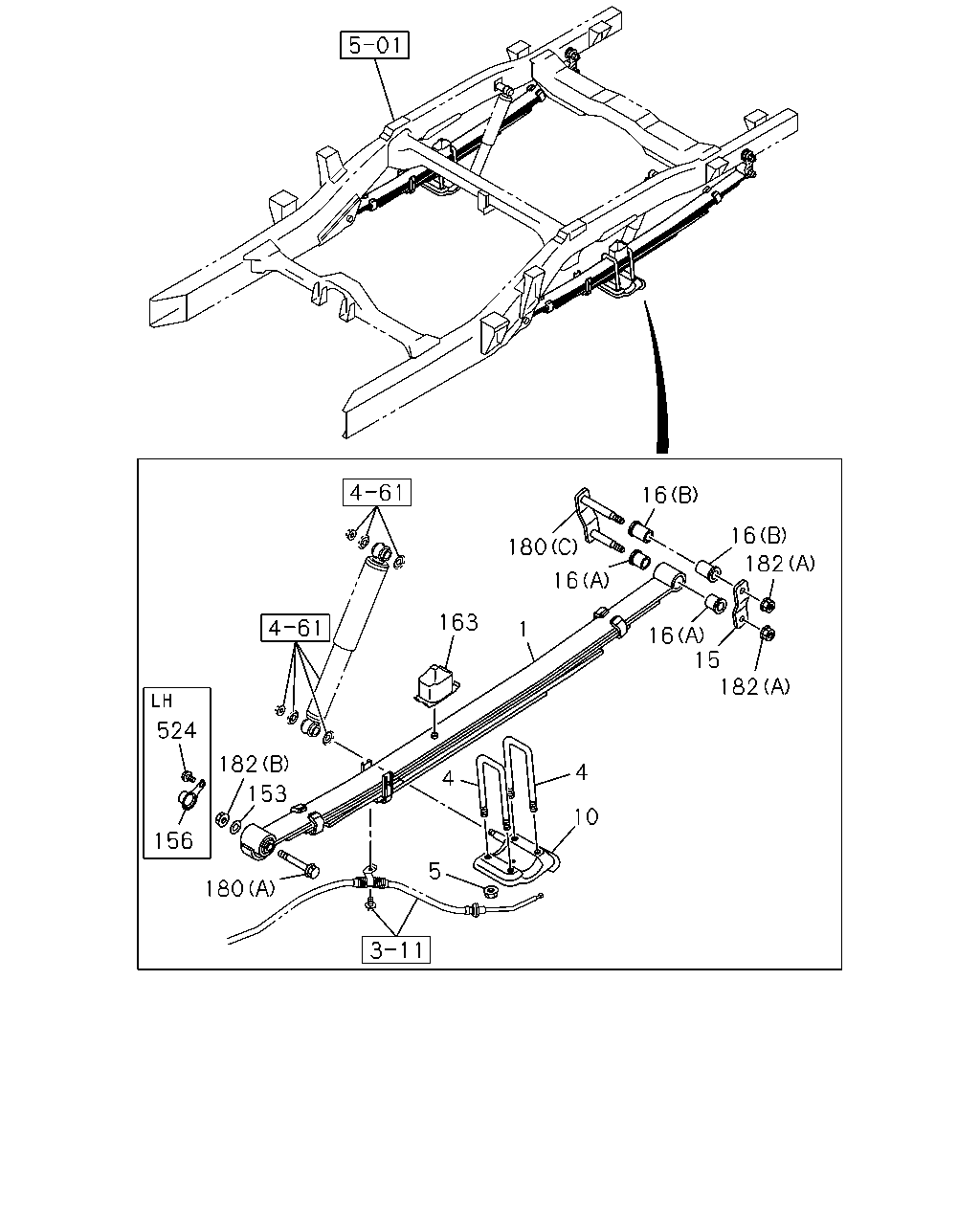

çizim 351136
16 16 182 182 15 16 16 180 163 182 153 180 156 524 5 4 4 10 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 		8-98218-543-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1>,HIGH RIDE SUSPENSION(7YC) 		8-98218-543-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> HIGH RIDE SUSPENSION(7YC) 		8-98218-556-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98218-556-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98218-545-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HIGH RIDE SUSPENSION(7YC) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98218-549-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98218-549-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98218-549-0 02 1 1305- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 		8-98218-548-0 02 1 1305- ●
4 U-BOLT; RR SPR
L=175 		8-97947-045-0 04 1 1305- ●
4 U-BOLT; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) L=175 		8-97947-045-0 04 1 1305- ●
4 U-BOLT; RR SPR
HIGH RIDE SUSPENSION(7YC) L=170 		8-97946-550-0 04 1 1305- ●
4 U-BOLT; RR SPR
L=170 		8-97946-550-0 04 1 1305- ● ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE 		8-97245-635-0 08 1 1305- ● ● ● ●
10 CLAMP; LWR,RR SPR 8-98160-070-0 01 1 1305- ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-070-0 01 1 1305- ●
10 CLAMP; LWR,RR SPR 8-98160-083-0 01 1 1305- ●
10 CLAMP; LWR,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98160-083-0 01 1 1305- ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-98165-850-1 01 1 1305- ●
10 CLAMP; LWR,RR SPR 8-98165-850-1 01 1 1305- ● ●
10 CLAMP; LWR,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-98165-851-1 01 1 1305- ●
10 CLAMP; LWR,RR SPR 8-98165-851-1 01 1 1305- ● ●
15 SHACKLE; RR SPR 8-98005-815-0 02 1 1305- ●
15 SHACKLE; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98005-815-0 02 1 1305- ●
15 SHACKLE; RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97946-551-1 02 1 1305- ●
15 SHACKLE; RR SPR 8-97946-551-1 02 1 1305- ● ●
16 BUSHING; SHACKLE,RR SPR
(C) 		8-97357-492-0 08 1 1305- ●
16 BUSHING; SHACKLE,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97357-492-0 08 1 1305- ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC) (A) 		8-97357-492-0 04 1 1305- ●
16 BUSHING; SHACKLE,RR SPR
(A) 		8-97357-492-0 04 1 1305- ● ●
16 BUSHING; SHACKLE,RR SPR
HIGH RIDE SUSPENSION(7YC) (B) 		8-97946-545-0 04 1 1305- ●
16 BUSHING; SHACKLE,RR SPR
(B) 		8-97946-545-0 04 1 1305- ● ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-98005-921-0 02 1 1305- ● ● ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP 8-97947-363-0 01 1 1305- ● ● ● ●
163 RUBBER; HELPER,RR SPR 8-97946-803-1 02 1 1305- ●
163 RUBBER; HELPER,RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-803-1 02 1 1305- ●
163 RUBBER; HELPER,RR SPR
HIGH RIDE SUSPENSION(7YC) 		8-97946-549-3 02 1 1305- ●
163 RUBBER; HELPER,RR SPR 8-97946-549-3 02 1 1305- ● ●
180 PIN; RR SPR
(A) 		8-97947-078-0 02 1 1305- ● ● ● ●
180 PIN; RR SPR
(B) 		8-98005-814-0 02 1 1305- ●
180 PIN; RR SPR
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98005-814-0 02 1 1305- ●
180 PIN; RR SPR
HIGH RIDE SUSPENSION(7YC) (C) 		8-97946-547-1 02 1 1305- ●
180 PIN; RR SPR
(C) 		8-97946-547-1 02 1 1305- ● ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE 		0-91180-114-0 04 1 1305- ● ● ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE 		8-97245-651-0 02 1 1305- ● ● ● ●
524 BOLT; RR SPR
M8X20 FLANGE 		0-28650-820-0 01 1 1305- ● ● ● ●
