1-11 — RADIATOR HOSE AND SUB TANK (#120193) — 14 parça

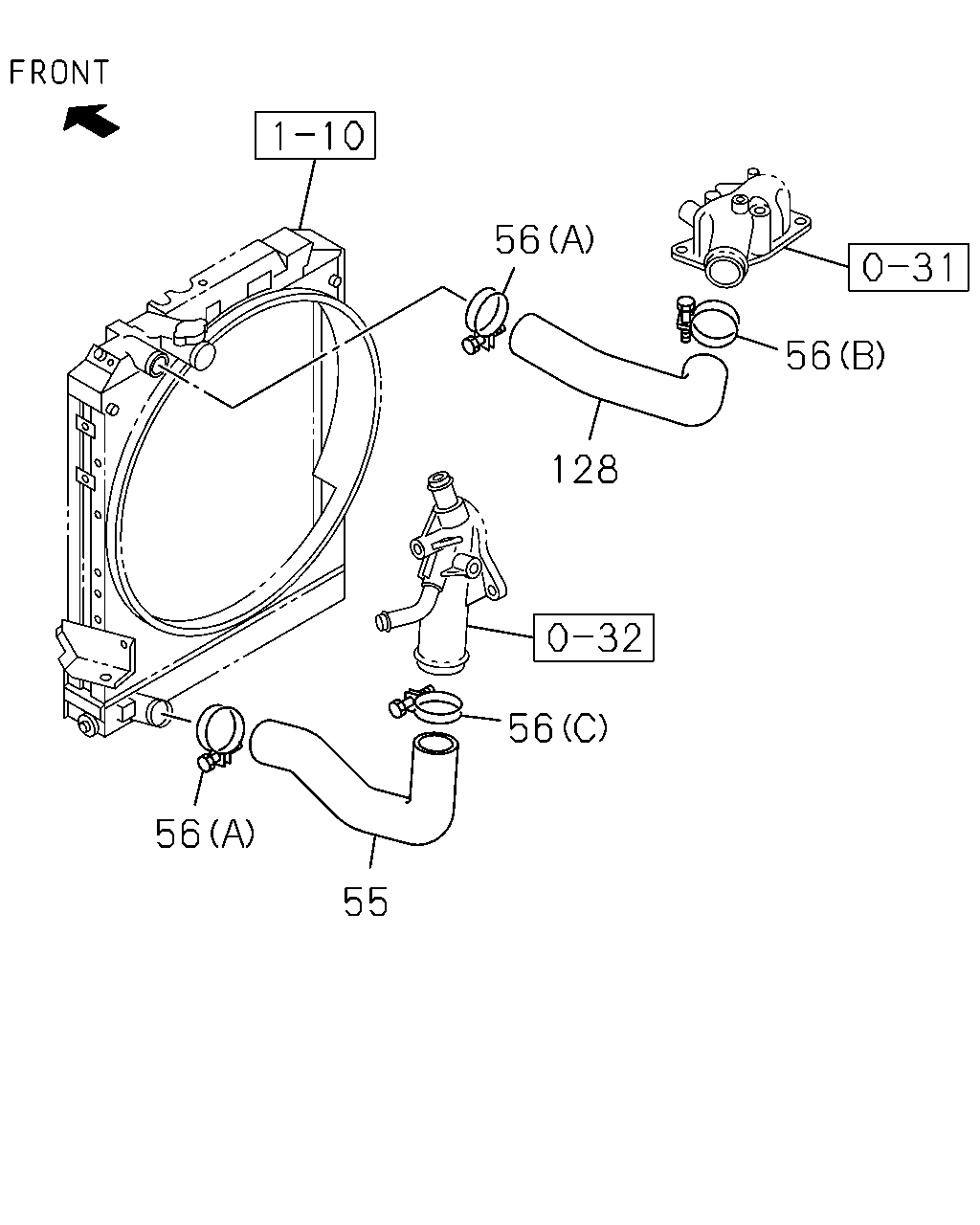

çizim 350445

56 56 128 56 55 56

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	55	HOSE; WATER,RAD OUTLET THA	8-97924-136-0	01	1	1304-	●	●
	56	CLIP; WATER HOSE,RAD (B) ID=52 IMA	1-09704-057-0	01	1	1304-	●	●
	56	CLIP; WATER HOSE,RAD (A) ID=48 IMA	8-98133-956-0	02	1	1304-	●	●
	56	CLIP; WATER HOSE,RAD (C) ID=62 IMA	8-98133-957-0	01	1	1304-	●	●
	128	HOSE; WATER,RAD INL THA	8-98006-452-0	01	1	1304-	●	●

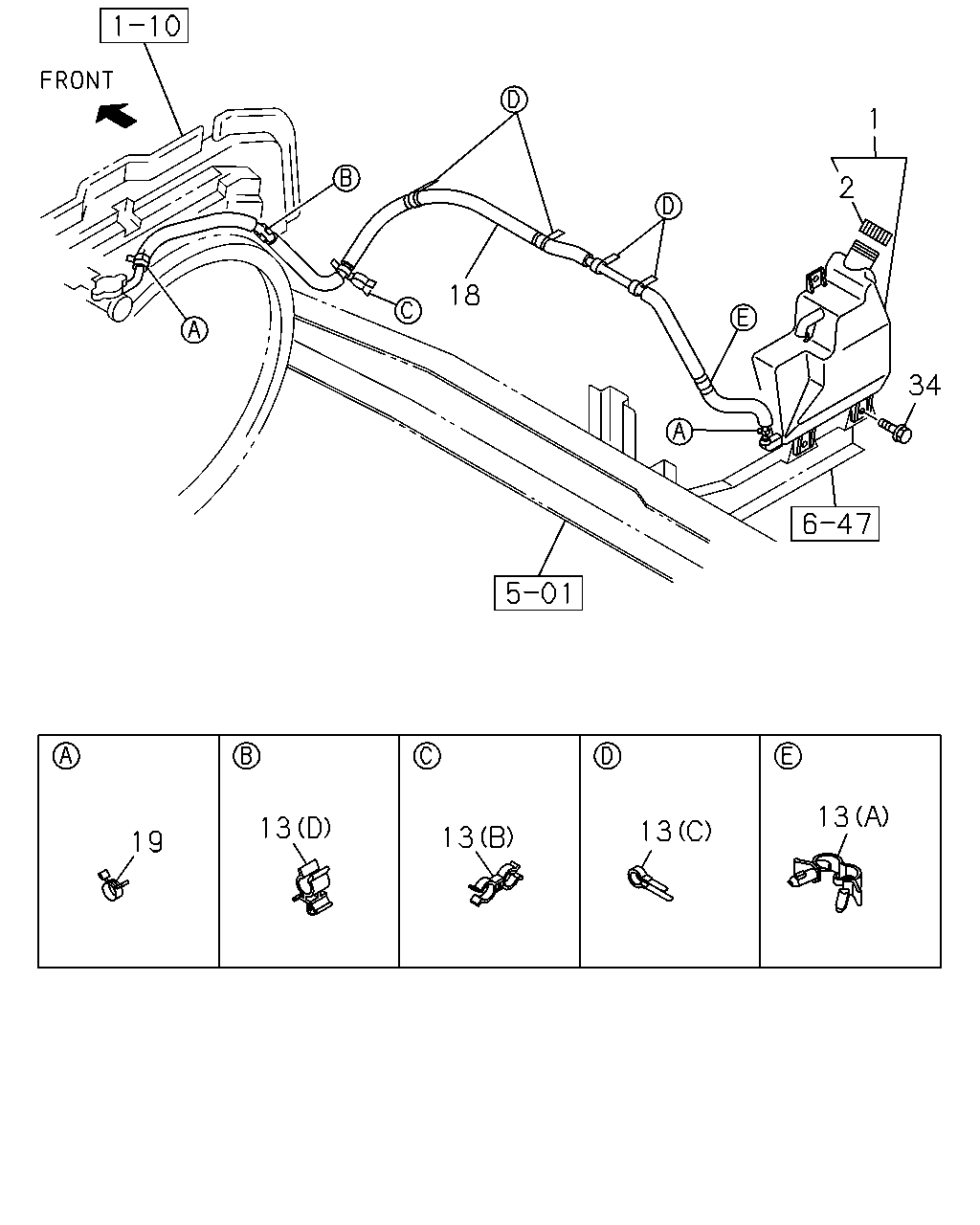

çizim 352277

13 13 13 13 19 18 1 2 34

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	TANK; SURGE,RAD IMA	8-98178-179-0	01	1	1304-	●	●
	2	CAP; SURGE TANK IMA	8-98178-074-0	01	1	1304-	●	●
	13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5 IMA	1-09709-290-0	01	1	1304-	●	●
	13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11 IMA	8-94438-996-0	01	1	1304-	●	●
	13	CLIP; HOSE,SURGE TANK (D) ID=12 IMA	8-98029-256-0	01	1	1304-	●	●
	13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 IMA	5-09700-319-0	04	1	1304-	●	●
	18	HOSE; RAD TO SURGE TANK L=1690 THA	8-98006-525-0	01	1	1304-	●	●
	19	CLIP; HOSE,SURGE TANK ID=12 IMA	8-98150-358-0	02	1	1304-	●	●
	34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER IMA	1-09030-042-0	03	1	1304-	●	●
