0-66 — GENERATOR (#120190) — 10 parça

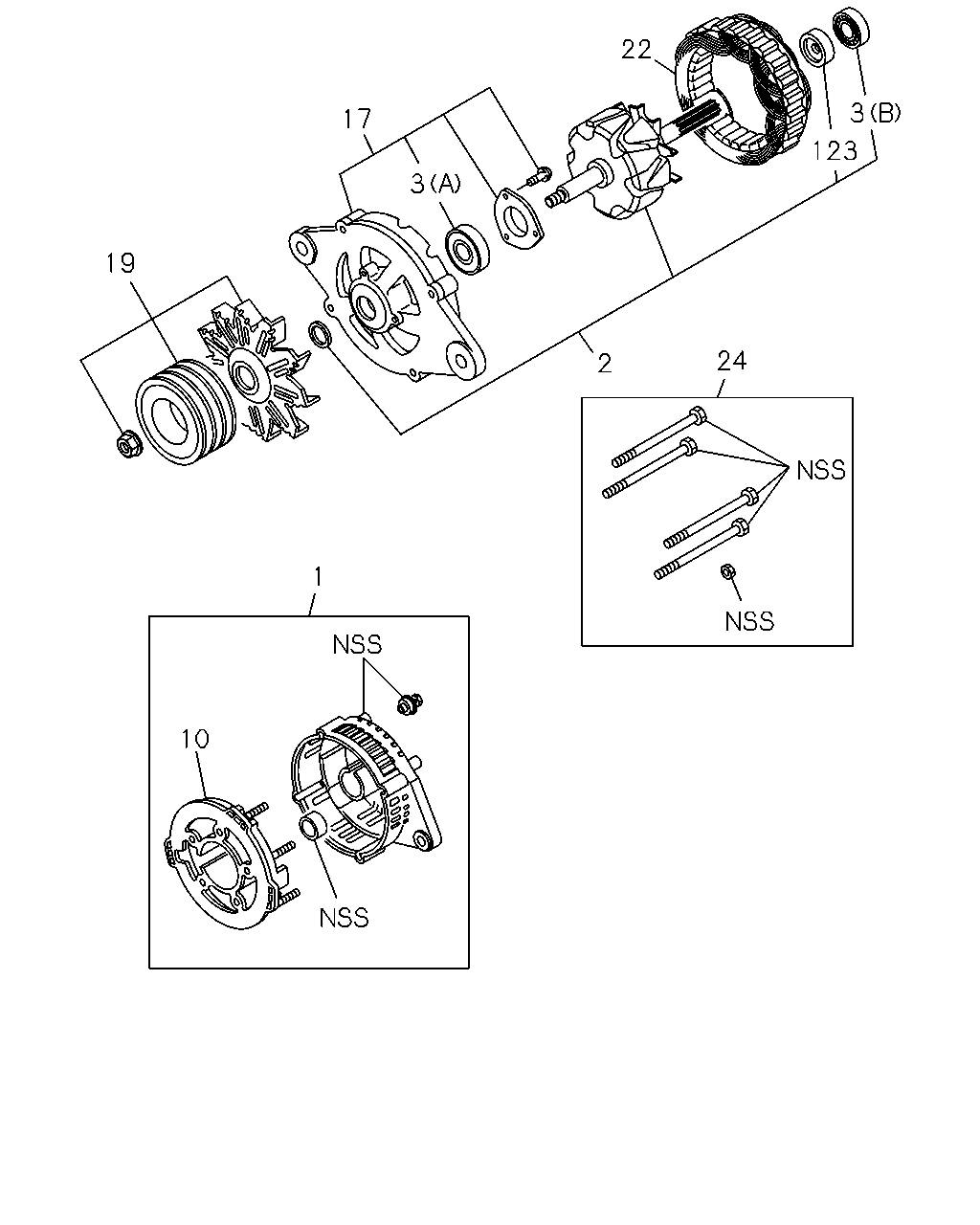

çizim 350001
19 17 22 3 123 2 24 1 3 10
BalonParca AdiParca NoAdetTipApplied Date
1 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2 		8-98230-316-0 01 1 -
2 ROTOR; GEN
ASM PART: A = 8-98029-887-2 		8-98038-914-0 01 1 -
3 BEARING; ROTOR,GEN
(B), IMA ASM PART: A = 8-98029-887-2 		8-97062-744-0 01 1 -
3 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98029-887-2 		8-97161-473-0 01 1 -
10 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2 		8-98230-326-0 01 1 -
17 COVER ASM; FRT,GEN
ASM PART: A = 8-98029-887-2 		8-98038-922-0 01 1 -
19 PULLEY; GEN
ASM PART: A = 8-98029-887-2 		8-98038-925-0 01 1 -
22 STATOR; GEN
ASM PART: A = 8-98029-887-2 		8-97192-850-0 01 1 -
24 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98029-887-2 		8-98038-927-0 01 1 -
123 GUIDE; BRUSH
ASM PART: A = 8-98029-887-2 		8-97062-644-0 01 1 -
