Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

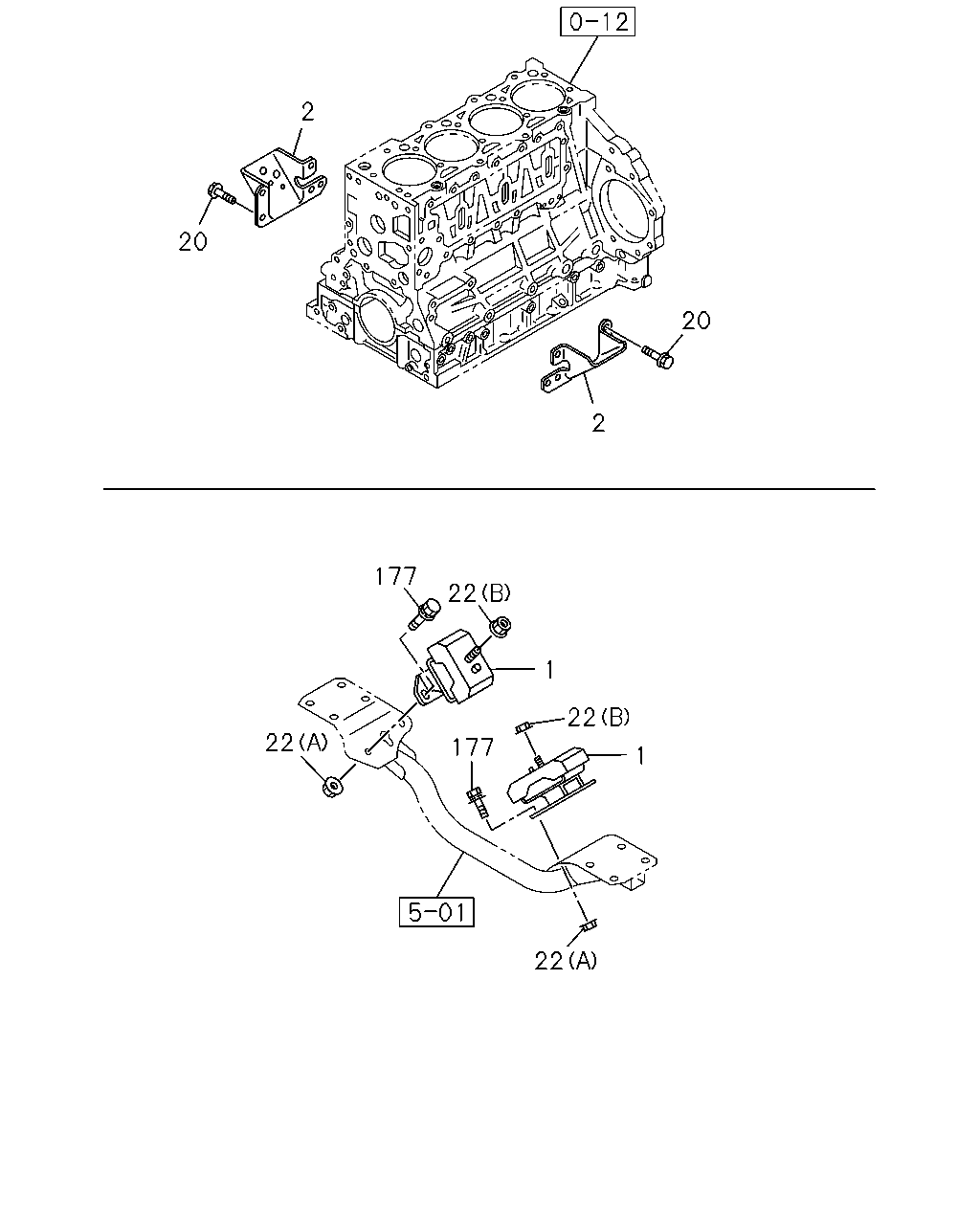

0-22 — ENGINE MOUNTING
(#120189) — 18 parça
◀
[022A] REAR (11 parça)
[022A] FRONT (7 parça)
▶
87
84
76
71
134
134
76
76
52
78
71
67
67
76
71
76
76
71
78
134
52
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
RUBBER; CUSHION,ENG MTG,RR
IMA
8-97039-277-0
02
1
1304-
67
BRACKET; SUPPORT,ENG MTG,RR
IMA
8-97180-457-0
01
1
1304-
67
BRACKET; SUPPORT,ENG MTG,RR
IMA
8-97180-458-0
01
1
1304-
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE THA
0-91180-110-0
04
1
1304-
76
STOPPER; ENG MTG RUBBER
(B) IMA
8-94111-904-0
02
1
1304-
76
STOPPER; ENG MTG RUBBER
(A) IMA
8-97039-947-1
04
1
1304-
78
BRACKET; ENG MTG,RR
IMA
8-97211-475-0
01
1
1304-
78
BRACKET; ENG MTG,RR
IMA
8-97234-719-0
01
1
1304-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 IMA
0-91614-810-0
04
1
1304-
87
NUT; ENG MTG RR
M10 FLANGE THA
0-91180-110-0
04
1
1304-
134
BOLT; SUPPORT BRKT
M12X25 FLANGE IMA
0-28751-225-0
06
1
1304-
2
20
20
2
177
22
1
22
1
177
22
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
8-98203-633-0
01
1
1304-
1
RUBBER; ENG FOOT,FRT
8-98203-634-0
01
1
1304-
2
FOOT; ENG
IMA
8-97228-669-2
02
1
1304-
20
BOLT; ENG FOOT
M10X20 FLANGE IMA
0-28161-020-0
08
1
1304-
22
NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE THA
0-91180-112-0
02
1
1304-
22
NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE THA
0-91180-210-0
04
1
1304-
177
BOLT; BRKT TO CUSHION RUBBER
M10X37.5 IMA
8-94468-733-1
04
1
1304-
