Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#120187) — 24 parça
Tümü
A - NPR5SN
B - NPR5SS
◀

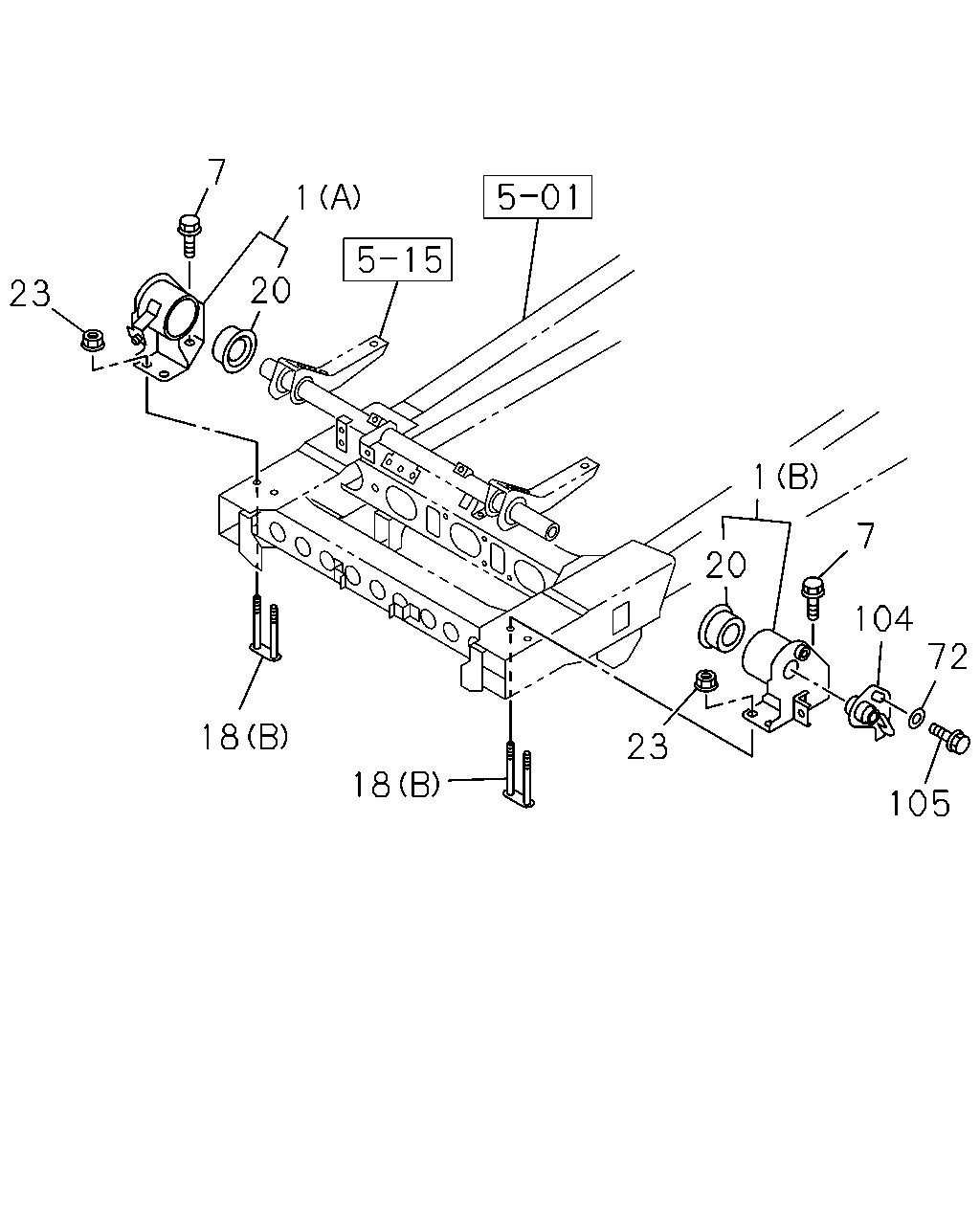

[510A] CAB MTG BRKT FRONT (11 parça)
[510A] CAB MTG BRKT REAR (13 parça)
▶
23
18
18
23
105
7
1
20
20
1
7
104
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; CAB MTG
(B) IMA
8-98020-467-5
01
1
1304-
●
●
1
BRACKET; CAB MTG
(A) IMA
8-98074-798-2
01
1
1304-
●
●
7
BOLT; BRKT,CAB TILT
M14X40 FLANGE IMA
0-28661-440-0
02
1
1304-
●
●
18
PLATE; MTG BRKT FIX
(A) IMA
8-97034-139-2
02
1
1304-
●
●
18
PLATE; MTG BRKT FIX
(B) IMA
8-98029-285-1
02
1
1304-
●
●
20
RUBBER; MTG,CAB BRKT
IMA
8-98007-037-1
01
1
1304-
●
●
20
RUBBER; MTG,CAB BRKT
IMA
8-98007-037-1
01
1
1304-
●
●
23
NUT; MTG BRKT
M14 IMA
8-98039-989-0
04
1
1304-
●
●
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36 IMA
0-91614-714-0
01
1
1304-
●
●
104
BRACKET; CAB FRAME,CAB FRT MTG
IMA
8-97383-788-1
01
1
1304-
●
●
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE IMA
0-28661-435-0
01
1
1304-
●
●
159
199
168
149
300
199
151
156
159
199
300
168
149
199
151
156
199
191
191
192
199
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
PLATE; MTG BRKT FIX
(A) IMA
8-97034-139-2
02
1
1304-
●
●
18
PLATE; MTG BRKT FIX
(B) IMA
8-98029-285-1
02
1
1304-
●
●
149
RUBBER; MTG,CAB,UPR RR
IMA
8-98021-561-1
02
1
1304-
●
●
151
WASHER; CAB MTG,RR UPR
ID=17 OD=62 IMA
8-97359-042-1
02
1
1304-
●
●
156
NUT; CAB MTG RR
M16 THA
0-91111-516-0
02
1
1304-
●
●
159
RUBBER; CUSHION,CAB MTG
IMA
8-97113-340-0
04
1
1304-
●
●
168
NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE THA
0-91180-108-0
04
1
1304-
●
●
191
BOLT; BRKT FIX
M12X40 FLANGE IMA
0-28651-240-0
08
1
1304-
●
●
192
NUT; BRKT FIX
M12 FLANGE THA
0-91180-112-0
08
1
1304-
●
●
199
BRACKET; CAB RR MTG
(A) IMA
8-98178-618-1
01
1
1304-
●
●
199
BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (C) IMA
8-98178-617-1
01
1
1304-
●
●
199
BRACKET; CAB RR MTG
(B) IMA
8-98036-883-0
02
1
1304-
●
●
300
BOLT; MTG RUBBER
M10X20 FLANGE THA
0-28651-020-0
08
1
1304-
●
●
