◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#120185) — 51 parça

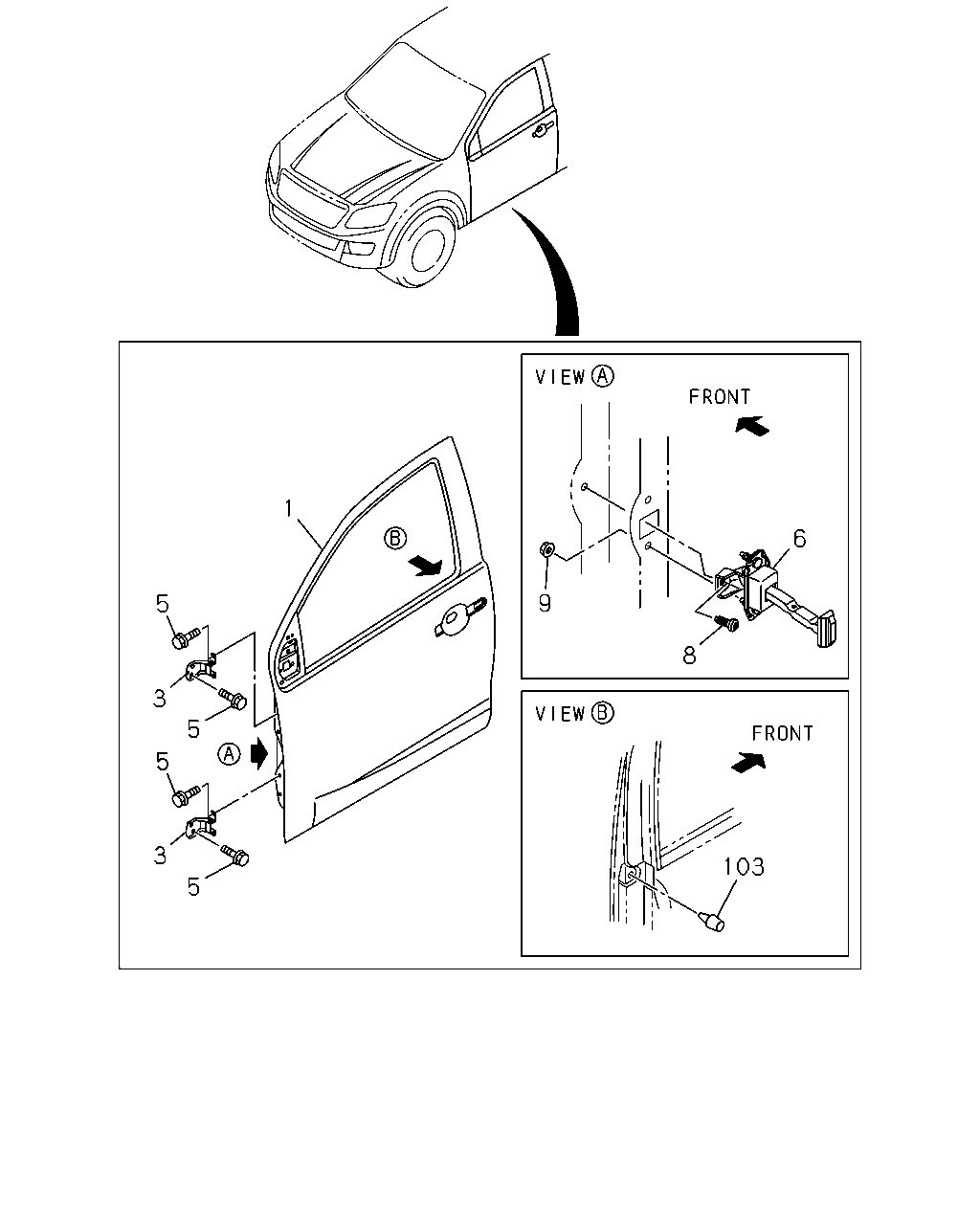

çizim 352561
1 5 3 5 5 3 5 9 8 6 103
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DOOR ASM; FRT,WO/TRIM
INTERIOR BASIC(RBA) DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98268-836-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR BASIC(RBA) DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98268-837-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98268-838-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> 		8-98268-838-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98268-839-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> 		8-98268-839-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM 8-98162-202-2 01 1 1305-1409 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98268-843-0 01 1 1410- ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98162-203-2 01 1 1305-1409 ● ●
1 DOOR ASM; FRT,WO/TRIM 8-98268-842-0 01 1 1410- ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98162-200-2 01 1 1305-1409 ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-844-0 01 1 1410- ● ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> HIGH RIDE SUSPENSION(7YC) 		8-98268-844-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98162-201-2 01 1 1305-1409 ● ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-845-0 01 1 1410- ● ●
1 DOOR ASM; FRT,WO/TRIM
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> HIGH RIDE SUSPENSION(7YC) 		8-98268-845-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98162-198-2 01 1 1305-1409 ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-847-0 01 1 1410- ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> 		8-98162-199-2 01 1 1305-1409 ●
1 DOOR ASM; FRT,WO/TRIM
DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> 		8-98268-846-0 01 1 1410- ●
3 HINGE; DOOR FRT
UPR RH & LWR LH 		8-98105-296-0 02 1 1305-1409 ● ●
3 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> DOOR MIRROR<RT9> UPR RH & LWR LH 		8-98105-296-0 02 1 1305-1409 ●
3 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> UPR RH & LWR LH 		8-98105-296-0 02 1 1305-1409 ●
3 HINGE; DOOR FRT
UPR RH & LWR LH 		8-98105-296-0 02 1 1410- ● ●
3 HINGE; DOOR FRT
INTERIOR BASIC(RBA) DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) UPR RH & LWR LH 		8-98105-296-0 02 1 1410- ●
3 HINGE; DOOR FRT
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> UPR RH & LWR LH 		8-98105-296-0 02 1 1410- ●
3 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> UPR RH & LWR LH 		8-98105-296-0 02 1 1410- ●
3 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> UPR RH & LWR LH 		8-98105-296-0 02 1 1410- ●
3 HINGE; DOOR FRT
LWR RH & UPR LH 		8-98105-297-0 02 1 1305-1409 ● ●
3 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> DOOR MIRROR<RT9> LWR RH & UPR LH 		8-98105-297-0 02 1 1305-1409 ●
3 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> LWR RH & UPR LH 		8-98105-297-0 02 1 1305-1409 ●
3 HINGE; DOOR FRT
LWR RH & UPR LH 		8-98105-297-0 02 1 1410- ● ●
3 HINGE; DOOR FRT
INTERIOR BASIC(RBA) DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) LWR RH & UPR LH 		8-98105-297-0 02 1 1410- ●
3 HINGE; DOOR FRT
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> LWR RH & UPR LH 		8-98105-297-0 02 1 1410- ●
3 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> LWR RH & UPR LH 		8-98105-297-0 02 1 1410- ●
3 HINGE; DOOR FRT
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> LWR RH & UPR LH 		8-98105-297-0 02 1 1410- ●
5 BOLT; HINGE
M8X23 FLANGE 		8-98005-842-0 08 1 1305-1409 ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE 		8-98005-842-0 08 1 1305-1409 ● ●
5 BOLT; HINGE
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> DOOR MIRROR<RT9> M8X23 FLANGE 		8-98005-842-0 08 1 1305-1409 ●
5 BOLT; HINGE
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> M8X23 FLANGE 		8-98005-842-0 08 1 1305-1409 ●
5 BOLT; HINGE
M8X23 FLANGE 		8-98005-842-0 08 1 1410- ● ● ● ●
5 BOLT; HINGE
M8X23 FLANGE 		8-98005-842-0 08 1 1410- ●
5 BOLT; HINGE
INTERIOR BASIC(RBA) DOOR MIRROR<RT9> EQUIPMENT IMPACT<EPS> EXC. HIGH RIDE SUSPENSION(7YC) M8X23 FLANGE 		8-98005-842-0 08 1 1410- ●
5 BOLT; HINGE
INTERIOR CUSTOM(RBD) DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EQUIPMENT IMPACT<EPS> M8X23 FLANGE 		8-98005-842-0 08 1 1410- ●
5 BOLT; HINGE
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIRROR<RT9> EXC. EQUIPMENT IMPACT<EPS> M8X23 FLANGE 		8-98005-842-0 08 1 1410- ●
5 BOLT; HINGE
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> M8X23 FLANGE 		8-98005-842-0 08 1 1410- ●
6 ARM; CHECK,FRT DOOR 8-98103-030-5 02 1 1305- ● ● ● ●
8 BOLT; CHECK ARM
M8X23 		8-98166-694-0 02 1 1305- ● ● ● ●
9 NUT; CHECK ARM
M6 FLANGE 		8-98049-362-0 04 1 1305- ● ● ● ●
103 PROTECTOR; FRT DOOR 8-98202-864-0 04 1 1305- ● ● ● ●
çizim 352804
106
BalonParca AdiParca NoAdetTipApplied Date A B C D
106 GROMMET; PROTECTOR 8-94279-724-0 02 1 1305- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
