Isuzu WW
▶
TRUCKS
▶
CYH
▶
11539 - CYH CHINA EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

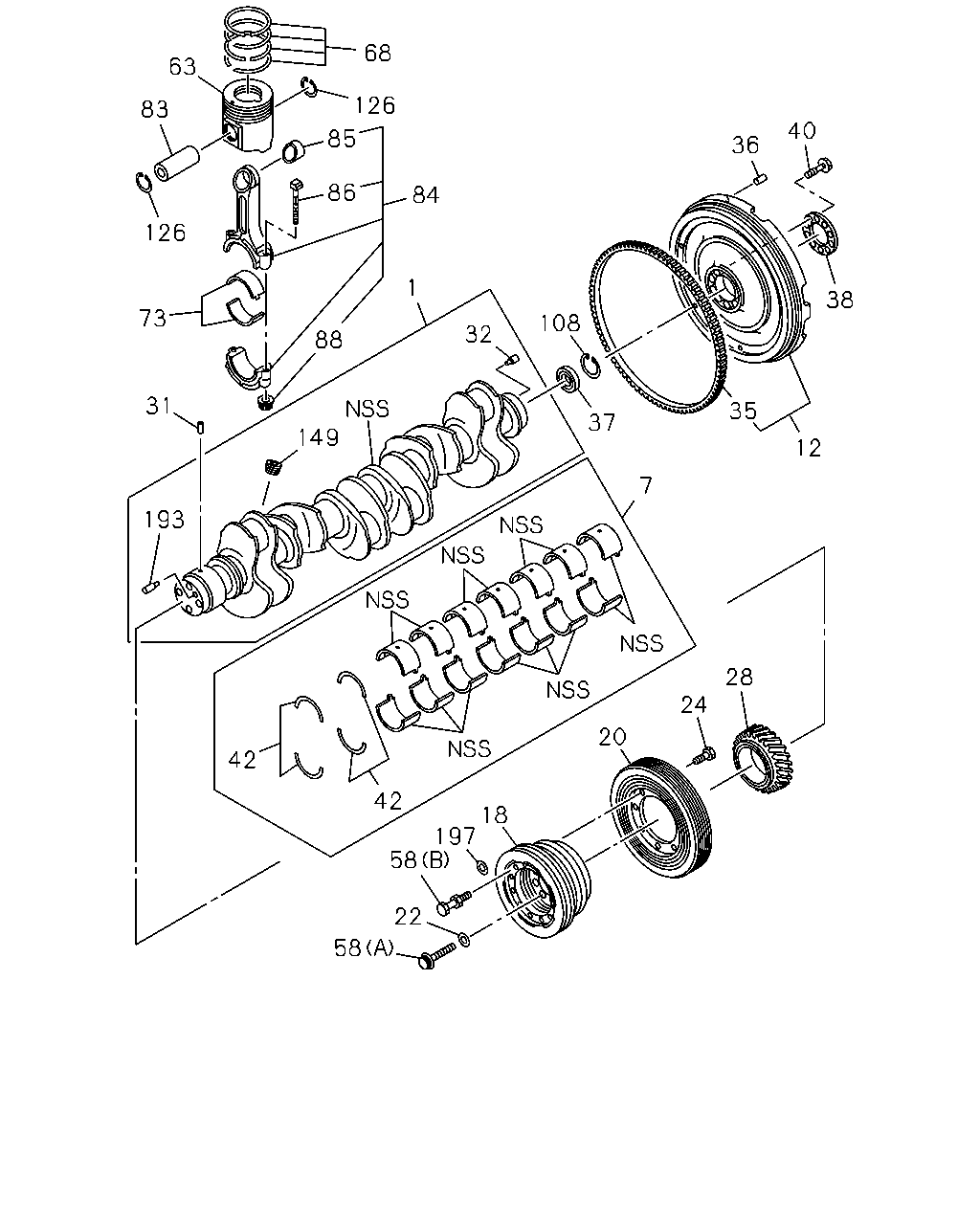

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#120182) — 34 parça
Tümü
A - 6WG1 TC-N
B - 6WG1 TC-R
36
40
38
88
32
108
37
149
193
31
73
126
86
85
83
63
68
126
84
7
35
24
20
28
18
197
58
58
42
42
12
22
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CRANKSHAFT
8-98172-014-0
01
1
1305-
●
●
7
METAL KIT; CRANKSHAFT,STANDARD
8-98151-849-1
01
1
1305-
●
●
12
FLYWHEEL
8-97610-231-0
01
1
1305-
●
12
FLYWHEEL
8-98021-390-0
01
1
1305-
●
12
FLYWHEEL
8-97610-230-0
01
1
1305-
●
18
PULLEY; CR/SHF
1-GROOVE
1-12371-420-3
01
1
1305-
●
●
20
DAMPER; CR/SHF
8-98147-154-0
01
1
1305-
●
●
22
PLATE; PULLEY
ID=18
9-09851-862-0
04
1
1305-
●
●
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
1305-
●
●
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
1305-
●
●
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
1305-
●
●
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
1305-
●
●
35
GEAR; RING
Z=139
1-12333-013-1
01
1
1305-
●
●
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
1305-
●
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
1305-
●
●
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-158-0
01
1
1305-
●
●
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
1305-
●
●
40
BOLT; FLYWHEEL
1-09070-017-1
10
1
1305-
●
●
42
WASHER; THRUST,CR/SHF
8-98151-850-0
02
1
1305-
●
●
58
BOLT; CR/SHF PULLEY
(B)
1-09029-073-0
06
1
1305-
●
●
58
BOLT; CR/SHF PULLEY
(A)
1-09070-017-1
04
1
1305-
●
●
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98028-808-2
06
1
1305-
●
●
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-1
06
1
1305-
●
●
73
METAL SET; CONN ROD,STANDARD
1-12271-096-0
06
1
1305-
●
●
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
1305-
●
●
84
ROD ASM; CONN
8-98115-948-0
06
1
1305-
●
●
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98115-959-0
06
1
1305-
●
●
86
BOLT; CONNROD
1-12235-036-3
12
1
1305-
●
●
88
NUT; CONNROD
1-12239-005-1
12
1
1305-
●
●
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
1305-
●
●
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
1305-
●
●
149
PLUG
PT1
1-09605-021-1
06
1
1305-
●
●
193
PIN; FLANGE
OD=8 L=20
9-08160-820-0
01
1
1305-
●
●
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
1305-
●
●
