8-75 — CONDENSER
(#120179) — 29 parça
◀

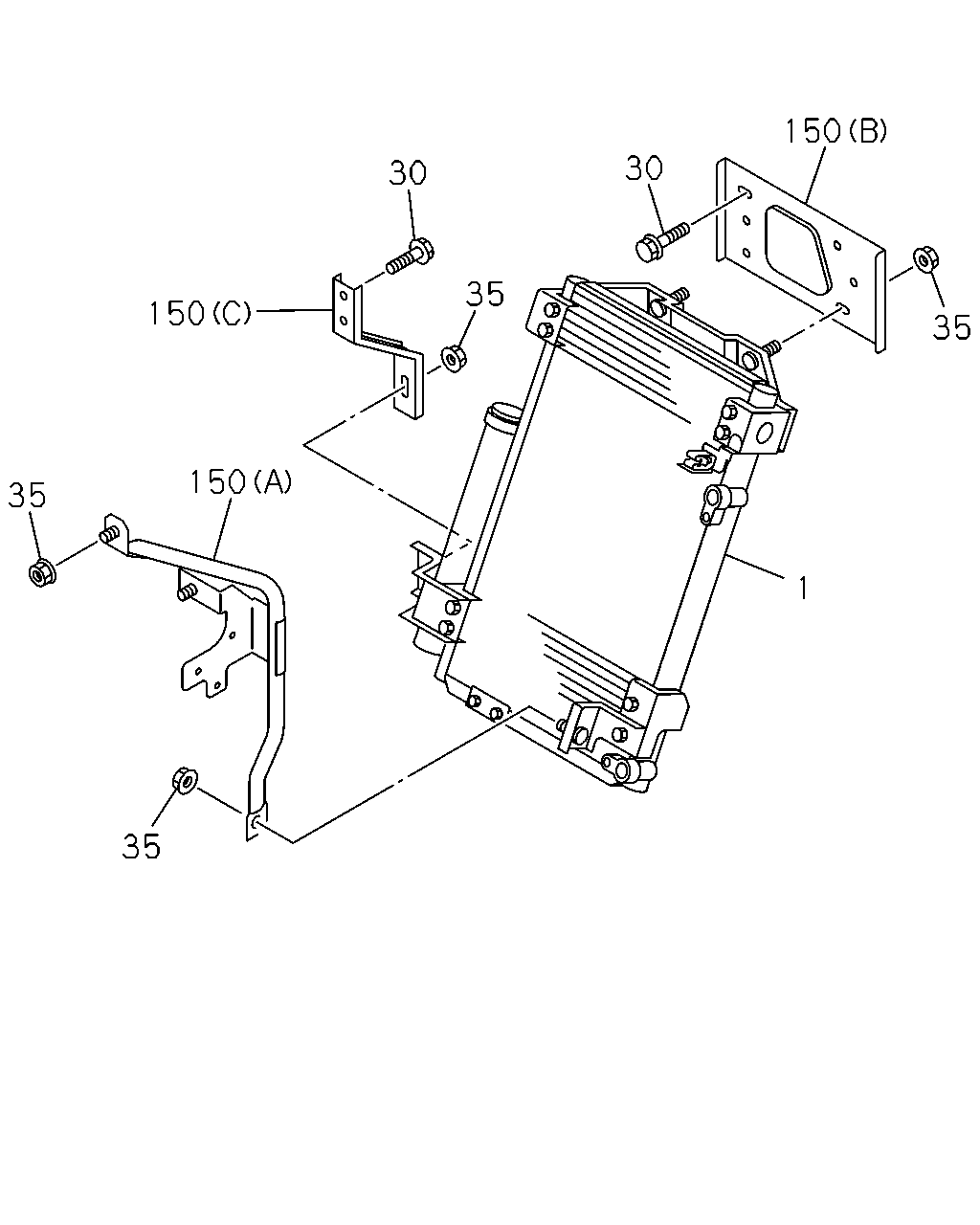

[875A] FIXING (6 parça)
[875A] COMPONENT (23 parça)
▶
1
35
150
30
35
30
150
150
35
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98220-337-0
01
1
1305-
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER
8-98059-720-0
04
1
1305-
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
05
1
1305-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-136-0
01
1
1305-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83573-137-0
01
1
1305-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83573-138-0
01
1
1305-
188
129
187
4
65
187
5
29
9
60
29
29
9
29
1
12
15
18
29
27
29
29
29
29
22
201
27
9
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-98220-337-0
01
1
1305-
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60)
8-98304-642-0
01
1
1305-
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98076-093-0
01
1
1305-
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X16
8-97096-525-0
04
1
1305-
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25
8-97178-770-0
02
1
1305-
12
BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-314-0
03
1
1305-
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60)
8-98076-092-0
01
1
1305-
18
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83539-313-0
01
1
1305-
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83534-245-1
01
1
1305-
26
BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-205-0
01
1
1305-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) M6X16
8-97096-525-0
04
1
1305-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83573-010-0
03
1
1305-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83573-125-0
01
1
1305-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-83573-126-0
01
1
1305-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (D)
1-83573-204-0
01
1
1305-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (F)
1-83573-213-0
01
1
1305-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (E)
8-97180-263-0
02
1
1305-
60
CLIP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60)
1-83574-266-0
01
1
1305-
65
BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16
8-97096-525-0
01
1
1305-
129
BRACKET; UPR
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-129-1
01
1
1305-
187
NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6
1-83539-354-0
04
1
1305-
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60)
8-98228-443-0
01
1
1305-
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83535-098-0
01
1
1305-
