6-01 — FRONT BUMPER (#120177) — 60 parça

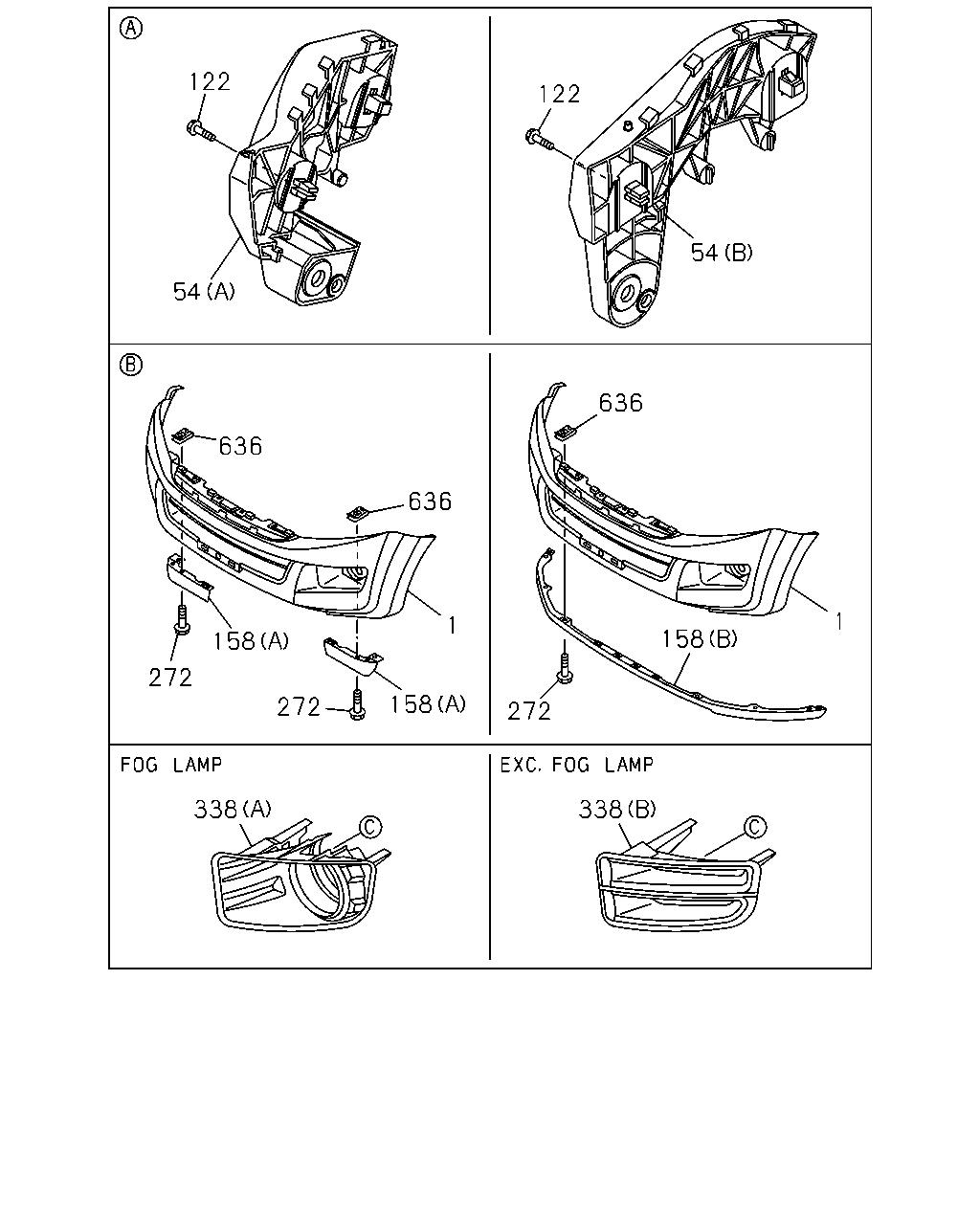

çizim 351237
122 54 122 54 636 636 272 158 272 158 1 636 158 1 272 338 338
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BUMPER ASM; FRT
4JA1-T ENG(LP0) KD-PREPARATORY PACK VAR4<7TV> 		8-98193-444-2 01 1 1305- ●
1 BUMPER ASM; FRT
4JA1-T ENG(LP0) EXC. COLOR KEYED BUMPER(VT4),KD-PREPARATORY PACKVAR4<7TV> 		8-98193-444-2 01 1 1305- ●
1 BUMPER ASM; FRT
KD-PREPARATORY PACK VAR4<7TV> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1305- ●
1 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),KD-PREPARATORY PACKVAR4<7TV>,HIGH RIDE SUSPENSION(7YC) 		8-98193-444-2 01 1 1305- ●
1 BUMPER ASM; FRT
KD-PREPARATORY PACK VAR4<7TV> HIGH RIDE SUSPENSION(7YC) 		8-98193-447-2 01 1 1305- ●
1 BUMPER ASM; FRT
HIGH RIDE SUSPENSION(7YC) EXC. COLOR KEYED BUMPER(VT4),KD-PREPARATORY PACKVAR4<7TV> 		8-98193-447-2 01 1 1305- ●
1 BUMPER ASM; FRT
4JK1-TCX ENG(LR0) KD-PREPARATORY PACK VAR4<7TV> 		8-98193-447-2 01 1 1305- ● ●
1 BUMPER ASM; FRT
4JK1-TCX ENG(LR0) EXC. COLOR KEYED BUMPER(VT4),KD-PREPARATORY PACKVAR4<7TV> 		8-98193-447-2 01 1 1305- ● ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV>,HIGH RIDE SUSPENSION(7YC) PRIMER 		8-98196-570-2 01 1 1305- ● ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) HIGH RIDE SUSPENSION(7YC) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER MAL 		8-98196-573-2 01 1 1305- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER MAL 		8-98196-573-2 01 1 1305- ● ●
54 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1305- ● ● ● ●
54 RETAINER; FRT BUMPER
(D) 		8-98050-462-0 06 1 1305- ● ● ● ●
54 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1305- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1305- ●
54 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1305- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1305- ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1305- ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1305- ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1305- ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1305- ● ●
122 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1305- ● ● ● ●
158 EXTENSION; FRT BUMPER
(B) 		8-98099-823-1 01 1 1305- ●
158 EXTENSION; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98099-823-1 01 1 1305- ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-950-0 01 1 1305- ●
158 EXTENSION; FRT BUMPER
(A) 		8-98101-950-0 01 1 1305- ● ●
158 EXTENSION; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98101-951-0 01 1 1305- ●
158 EXTENSION; FRT BUMPER
(A) 		8-98101-951-0 01 1 1305- ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1305- ●
272 BOLT; BUMPER TO EXT
EXC. HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 10 1 1305- ●
272 BOLT; BUMPER TO EXT
HIGH RIDE SUSPENSION(7YC) M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1305- ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1305- ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> (A) 		8-98099-824-1 01 1 1305- ● ● ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> (A) 		8-98099-825-1 01 1 1305- ● ● ● ●
338 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) 		8-98099-827-1 01 1 1305- ● ● ● ●
338 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) 		8-98099-828-1 01 1 1305- ● ● ● ●
636 NUT; EXT,FRT BUMPER 8-98072-786-0 10 1 1305- ●
636 NUT; EXT,FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 10 1 1305- ●
636 NUT; EXT,FRT BUMPER
HIGH RIDE SUSPENSION(7YC) 		8-98072-786-0 04 1 1305- ●
636 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1305- ● ●

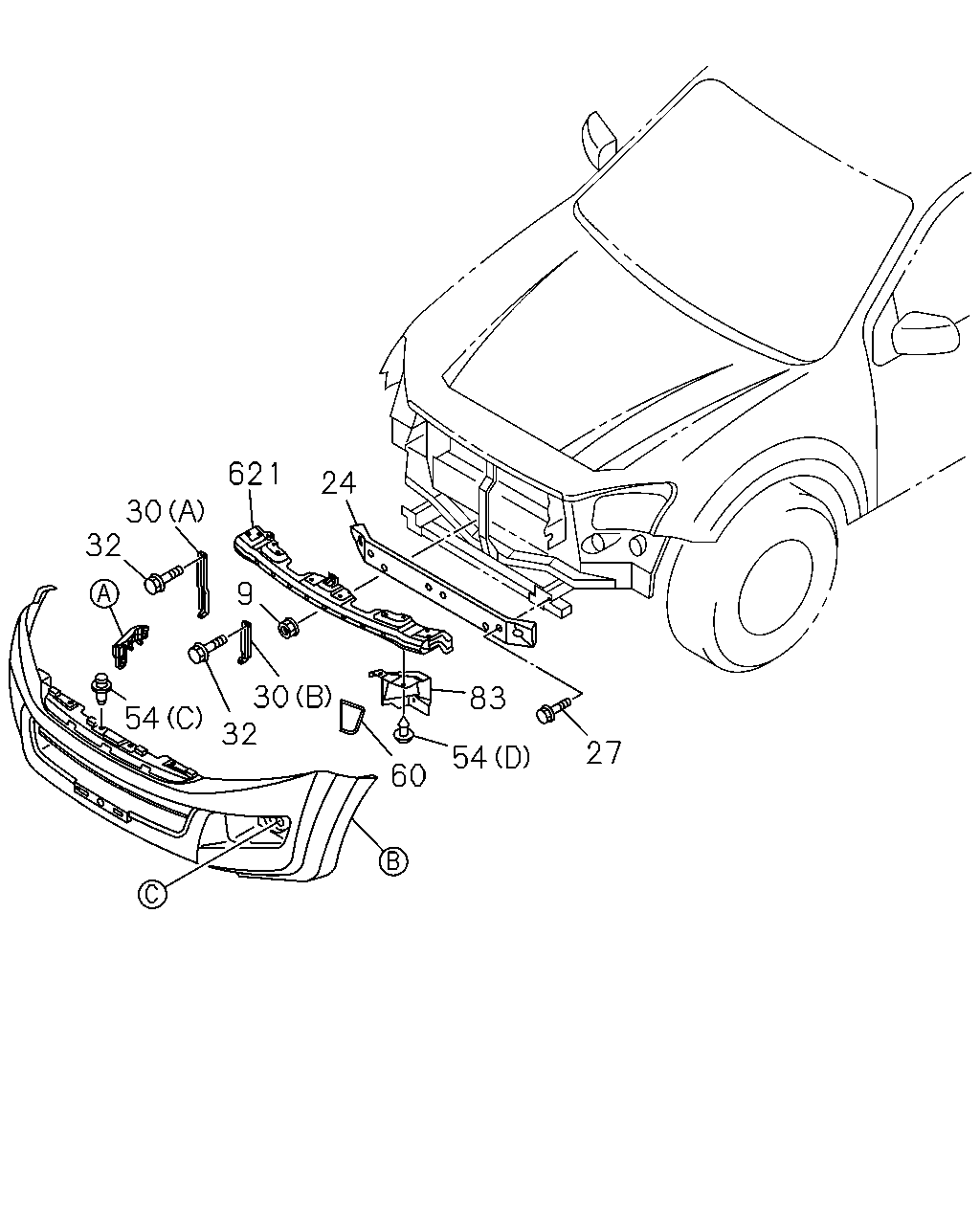

çizim 351239
621 30 32 54 32 30 9 24 83 60 54 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 NUT; REINF,FRT BUMPER
M6 FLANGE 		0-91180-106-0 06 1 1305- ● ● ● ●
24 BAR; FRT BUMPER 8-98165-112-1 01 1 1305- ● ● ● ●
27 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1305- ● ● ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1305- ● ● ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1305- ● ● ● ●
32 BOLT; BRKT,BUMPER
M6X16 FLANGE 		0-28650-616-0 06 1 1305- ● ● ● ●
54 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1305- ● ● ● ●
54 RETAINER; FRT BUMPER
(D) 		8-98050-462-0 06 1 1305- ● ● ● ●
54 RETAINER; FRT BUMPER
(B) 		8-98074-256-3 01 1 1305- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-256-3 01 1 1305- ●
54 RETAINER; FRT BUMPER
(B) 		8-98074-257-3 01 1 1305- ●
54 RETAINER; FRT BUMPER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98074-257-3 01 1 1305- ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-258-4 01 1 1305- ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1305- ● ●
54 RETAINER; FRT BUMPER
HIGH RIDE SUSPENSION(7YC) (A) 		8-98074-259-4 01 1 1305- ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1305- ● ●
60 SPACER; FRT BUMPER 8-98140-340-1 01 1 1305- ● ● ● ●
83 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1305- ● ● ● ●
83 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1305- ● ● ● ●
621 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1305- ● ● ● ●
