◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51492 - NPR BUS CHAS(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#120174) — 9 parça

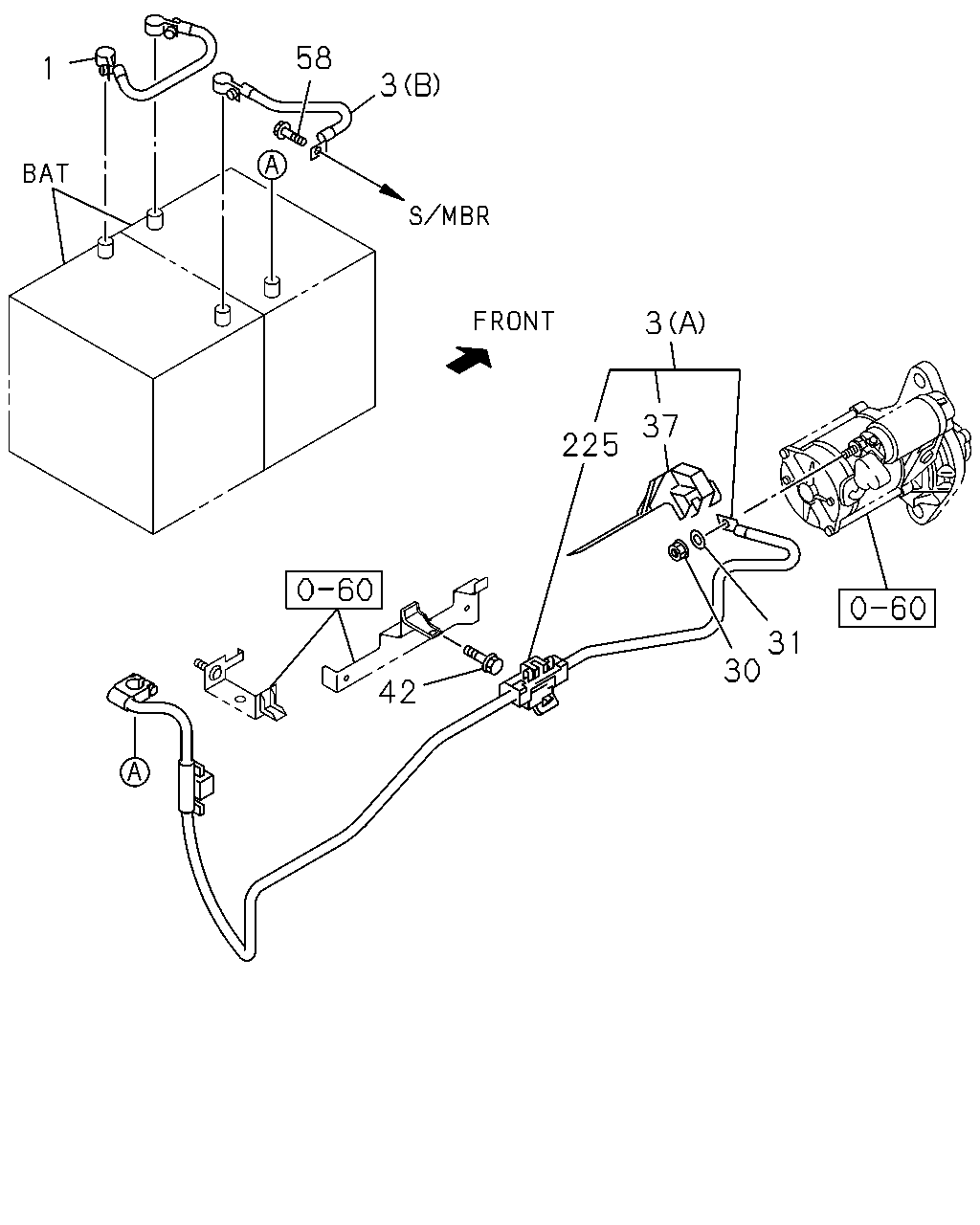

çizim 350349
31 30 42 225 1 58 3 37 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 THA 		8-97922-383-0 01 1 1304-
3 HARNESS; CABLE,BATTERY TO STARTER
(B) THA 		8-97922-384-0 01 1 1304-
3 HARNESS; CABLE,BATTERY TO STARTER
(A) 		8-97924-686-0 01 1 1304-
30 NUT; CABLE,STARTER TO BATTERY
M8 IMA 		0-91110-508-0 01 1 1304-
31 WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA 		0-91510-808-0 01 1 1304-
37 CAP; TERMINAL,BATTERY CABLE
THA 		8-98042-507-0 01 1 1304-
42 BOLT; BRKT,BATTERY CABLE
M6X16 FLANGE IMA 		8-97329-599-0 01 1 1304-
58 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER IMA 		8-98141-256-1 01 1 1304-
225 BLOCK; TERMINAL
THA 		8-98029-689-0 01 1 1304-
