Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#120163) — 17 parça
◀
[840A] DUCT (14 parça)
[840A] OTHER PARTS (3 parça)
▶

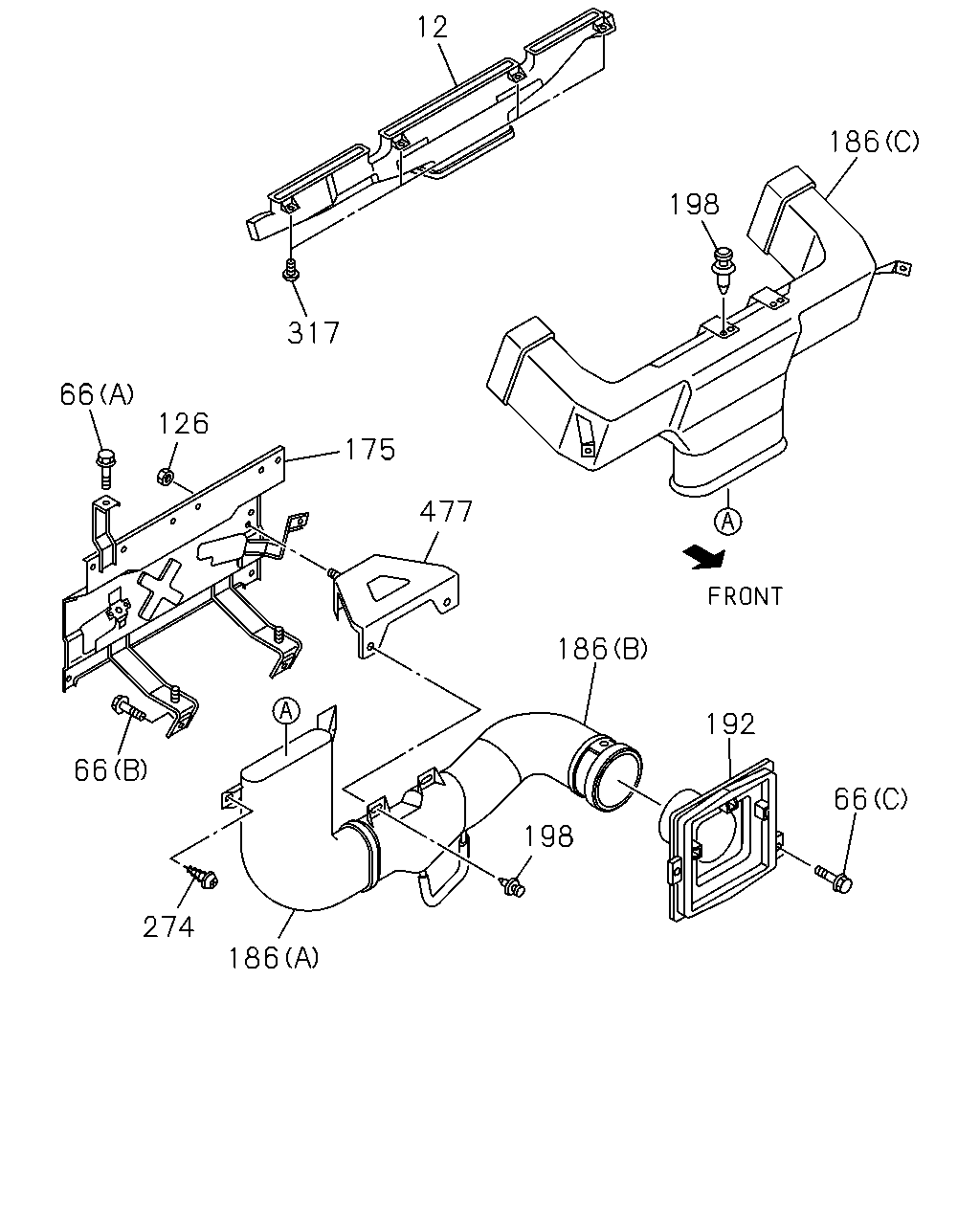

12
198
186
186
192
66
198
186
274
66
66
126
175
477
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
IMA
8-97585-480-4
01
1
1304-
66
BOLT; DUCT
(A) M6X16 FLANGE THA
0-28650-616-0
02
1
1304-
66
BOLT; DUCT
(C) M6X20 W/LK&PL WASHER IMA
8-98081-030-0
02
1
1304-
66
BOLT; DUCT
(B) M6X20 W/LK&PL WASHER IMA
8-98081-175-0
02
1
1304-
126
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1304-
175
BRACKET; HTR DUCT
8-98221-688-0
01
1
1304-
186
DUCT; VENTILATOR
(C)
8-98054-363-0
01
1
1304-
186
DUCT; VENTILATOR
(A)
8-98054-371-0
01
1
1304-
186
DUCT; VENTILATOR
(B)
8-98054-379-2
01
1
1304-
192
DUCT; RAM AIR
8-98054-386-4
01
1
1304-
198
CLIP; DUCT
IMA
1-09987-144-0
05
1
1304-
274
SCREW; VENT DUCT
T25 M5X16 TAPPING HEXALOBULAR IMA
0-72180-516-0
02
1
1304-
317
SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR IMA
0-72180-516-0
04
1
1304-
477
BRACKET; DUCT
8-98091-304-0
01
1
1304-

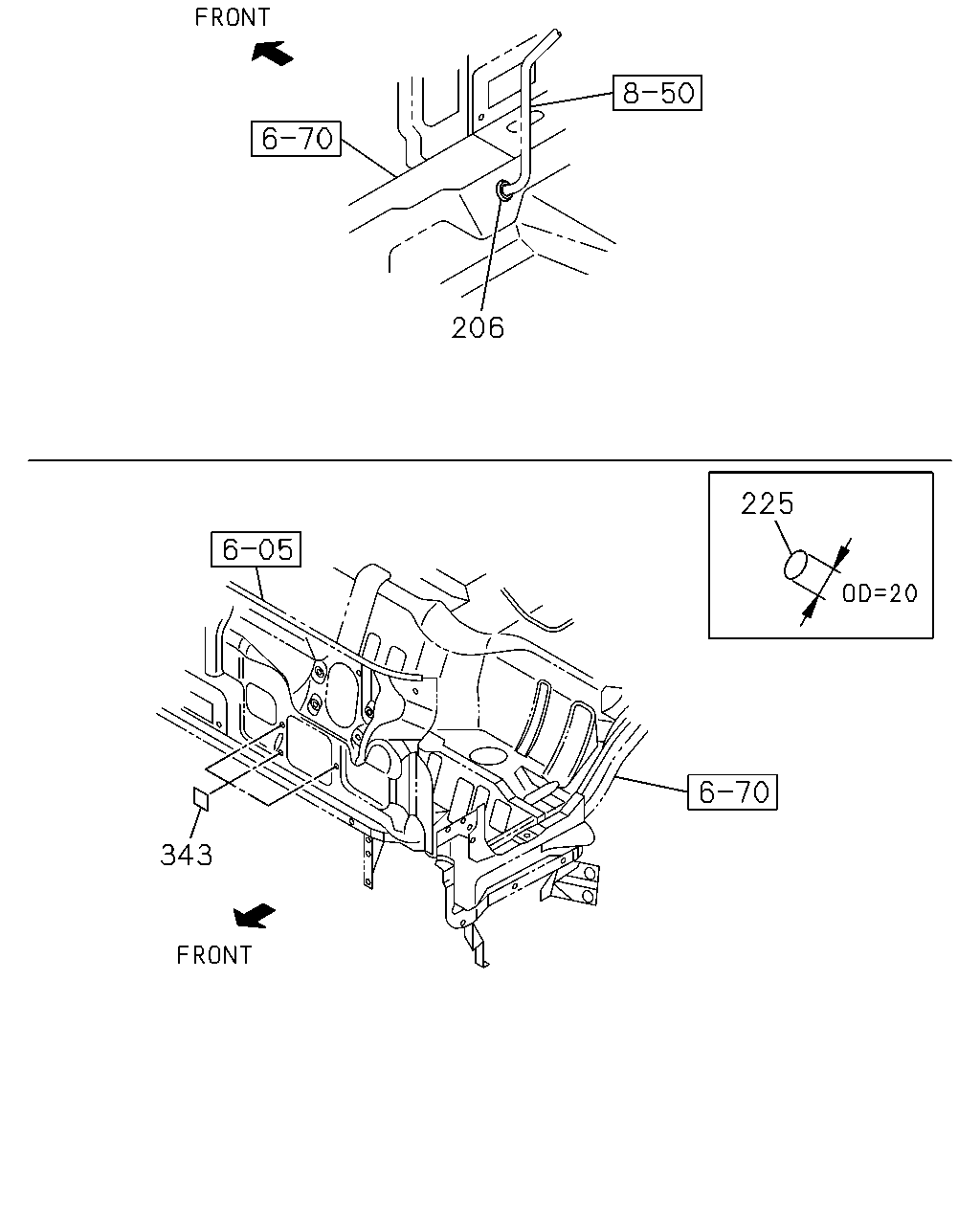

206
225
343
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
206
GROMMET; A/C PIPE TO BLOWER UNIT
IMA
8-98019-649-0
01
1
1304-
225
SEAL; WATER
OD=20 T=0.05 BLACK IMA
5-76777-036-0
01
1
1304-
343
SEAL; AIR DUCT
IMA
8-97856-616-0
02
1
1304-
