Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#120160) — 48 parça

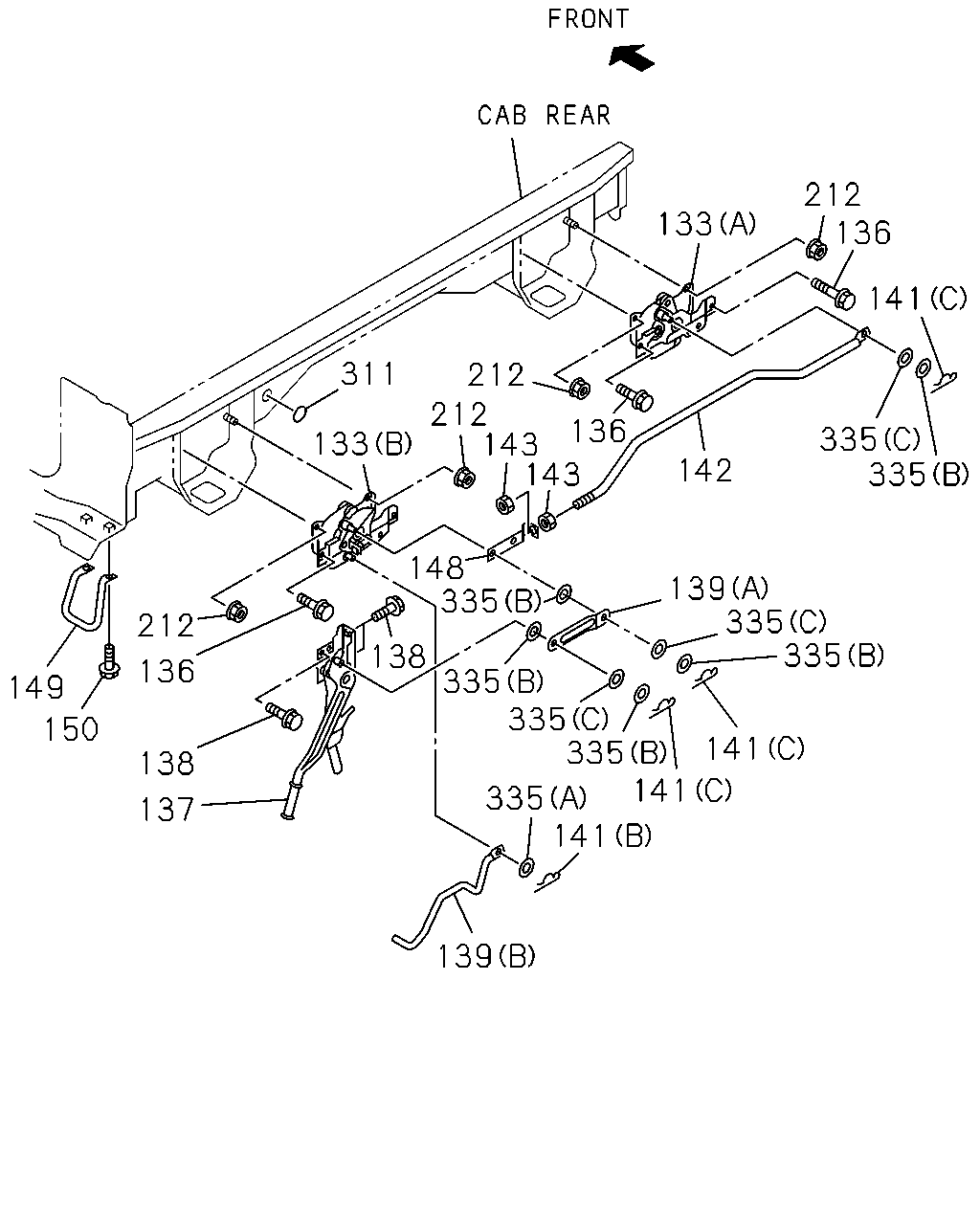

335 335 139 335 335 142 141 136 212 133 136 143 143 212 212 311 133 148 335 335 335 141 335 138 212 149 138 136 150 137 139 141 141 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (B) IMA	8-97410-270-2	01	1	1304-	●	●
133	LOCK ASM; CAB (A) IMA	8-98182-353-0	01	1	1304-	●	●
136	BOLT; CAB LK M8X20 FLANGE THA	0-28650-820-0	04	1	1304-	●	●
137	CONTROL UNIT; CAB LOCK IMA	8-97584-469-3	01	1	1304-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE THA	0-28650-820-0	03	1	1304-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (A) IMA	8-97584-483-2	01	1	1304-	●	●
139	ROD; CAB LOCK,LEVER TO HOOK (B) IMA	8-98128-202-0	01	1	1304-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6 IMA	1-09987-142-0	01	1	1304-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3 IMA	8-98039-045-1	01	1	1304-	●	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34 IMA	8-98039-426-1	03	1	1304-	●	●
142	ROD; HOOK TO HOOK IMA	8-97410-633-0	01	1	1304-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10 THA	0-91110-510-0	02	1	1304-	●	●
148	JOINT; JAW,HOOK TO HOOK IMA	8-97410-736-0	01	1	1304-	●	●
149	HANDLE; TILT IMA	8-98067-938-0	01	1	1304-	●	●
150	BOLT; TILT HANDLE M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
212	NUT; BRKT,CAB LOCK M8 FLANGE THA	0-91180-108-0	04	1	1304-	●	●
311	SEAL; CAB LOCK OD=32 BLACK IMA	8-98031-126-0	01	1	1304-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=22 IMA	0-91610-512-0	05	1	1304-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=14 IMA	5-09550-002-0	01	1	1304-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22 IMA	8-98060-839-0	03	1	1304-	●	●

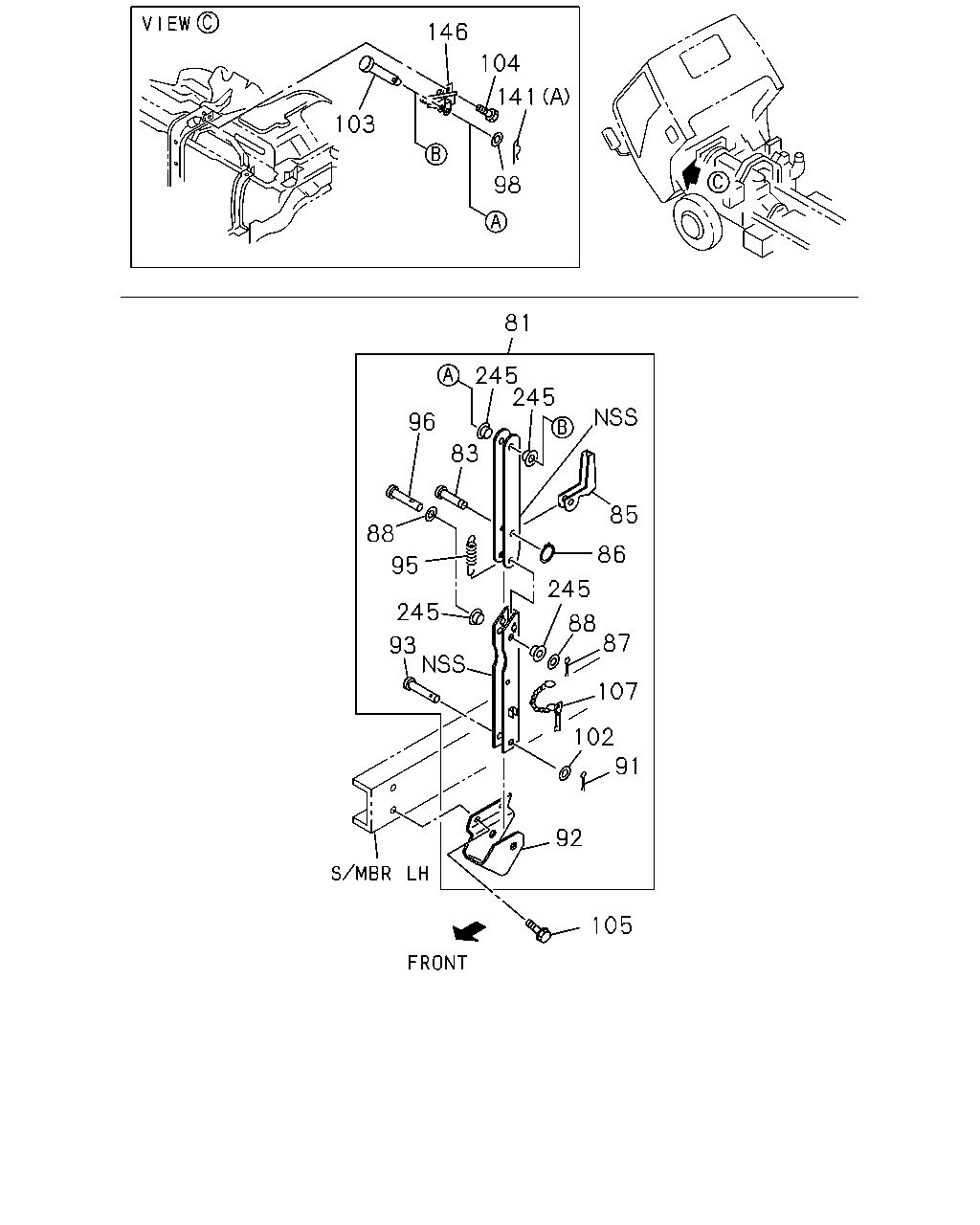

245 245 81 98 141 104 146 103 96 85 86 245 88 87 107 102 91 92 105 93 95 88 83 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	STAY ASM; CAB TILT FRAME STRAIGHT TYPE<7KJ> IMA	8-98123-310-0	01	1	1304-	●	●
83	PIN; JOINT,CAB STAY FRAME STRAIGHT TYPE<7KJ> IMA	8-98122-493-0	01	1	1304-	●	●
85	LEVER; LOCK,CAB STAY FRAME STRAIGHT TYPE<7KJ> IMA	8-94331-481-0	01	1	1304-	●	●
86	RING; SNAP,LOCK LEVER,CAB STAY FRAME STRAIGHT TYPE<7KJ> ID=6 IMA	0-91805-506-0	01	1	1304-	●	●
87	PIN; SPLIT,CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> OD=2.8 L=20 IMA	0-81123-020-0	01	1	1304-	●	●
88	WASHER; PL,CAB STAY PIN FRAME STRAIGHT TYPE<7KJ> ID=10.5 OD=22 T=1.6 IMA	0-91610-610-0	02	1	1304-	●	●
91	PIN; SPLIT,CAB STAY FRAME STRAIGHT TYPE<7KJ> OD=3.7 L=20 IMA	0-81124-020-0	01	1	1304-	●	●
92	BRACKET; CAB STAY TO FRAME FRAME STRAIGHT TYPE<7KJ> IMA	8-98011-317-0	01	1	1304-	●	●
93	PIN; CAB STAY FRAME STRAIGHT TYPE<7KJ> IMA	8-98122-498-0	01	1	1304-	●	●
95	SPRING; RETURN,CAB STAY FRAME STRAIGHT TYPE<7KJ> IMA	8-94160-167-2	01	1	1304-	●	●
96	PIN; JOINT FRAME STRAIGHT TYPE<7KJ> IMA	8-98123-513-0	01	1	1304-	●	●
98	WASHER; CAB STAY ID=10.5 T=2.0 IMA	1-09985-183-0	01	1	1304-	●	●
102	WASHER; PL,CAB STAY FRAME STRAIGHT TYPE<7KJ> ID=12.5 OD=26 IMA	0-91610-612-0	01	1	1304-	●	●
103	PIN; JOINT,CAB STAY OD=10 L=48 IMA	1-09744-107-0	01	1	1304-	●	●
104	BOLT; CAB STAY BRKT M8X20 FLANGE IMA	0-28660-820-0	03	1	1304-	●	●
105	BOLT; CAB STAY M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
107	PIN; LK LEVER FRAME STRAIGHT TYPE<7KJ> IMA	8-94331-482-0	01	1	1304-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=32.6 IMA	1-09987-142-0	01	1	1304-	●	●
141	PIN; SNAP,CAB LOCK ROD (B) L=25.3 IMA	8-98039-045-1	01	1	1304-	●	●
141	PIN; SNAP,CAB LOCK ROD (C) L=34 IMA	8-98039-426-1	03	1	1304-	●	●
146	BRACKET ASM; CAB STAY UPR IMA	8-97387-328-2	01	1	1304-	●	●
245	BUSHING; CAB STAY FRAME STRAIGHT TYPE<7KJ> IMA	1-62500-587-0	04	1	1304-	●	●

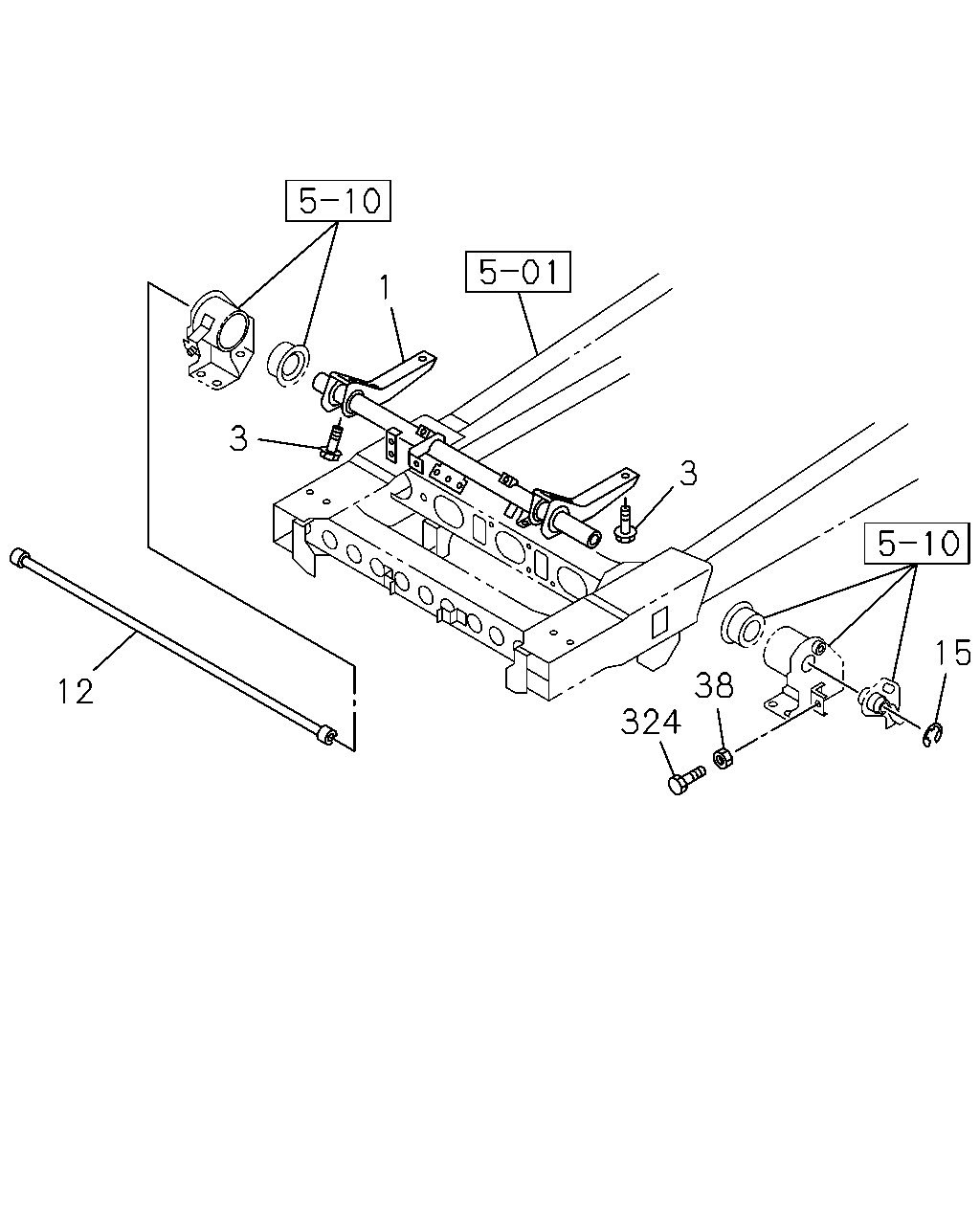

12 3 1 3 15 38 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER; TORSION BAR IMA	8-98074-174-1	01	1	1304-	●	●
3	BOLT; LEVER M12X37 W/LK&PL WASHER IMA	8-97359-033-0	06	1	1304-	●	●
12	BAR; TORSION,UPR IMA	8-98166-027-0	01	1	1304-	●	●
15	RING; SNAP,TORSION BAR IMA	8-97359-034-0	01	1	1304-	●	●
38	NUT; LK M14 IMA	8-98039-988-0	01	1	1304-	●	●
324	BOLT; ADJUST M14X55 IMA	8-98004-319-1	01	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
