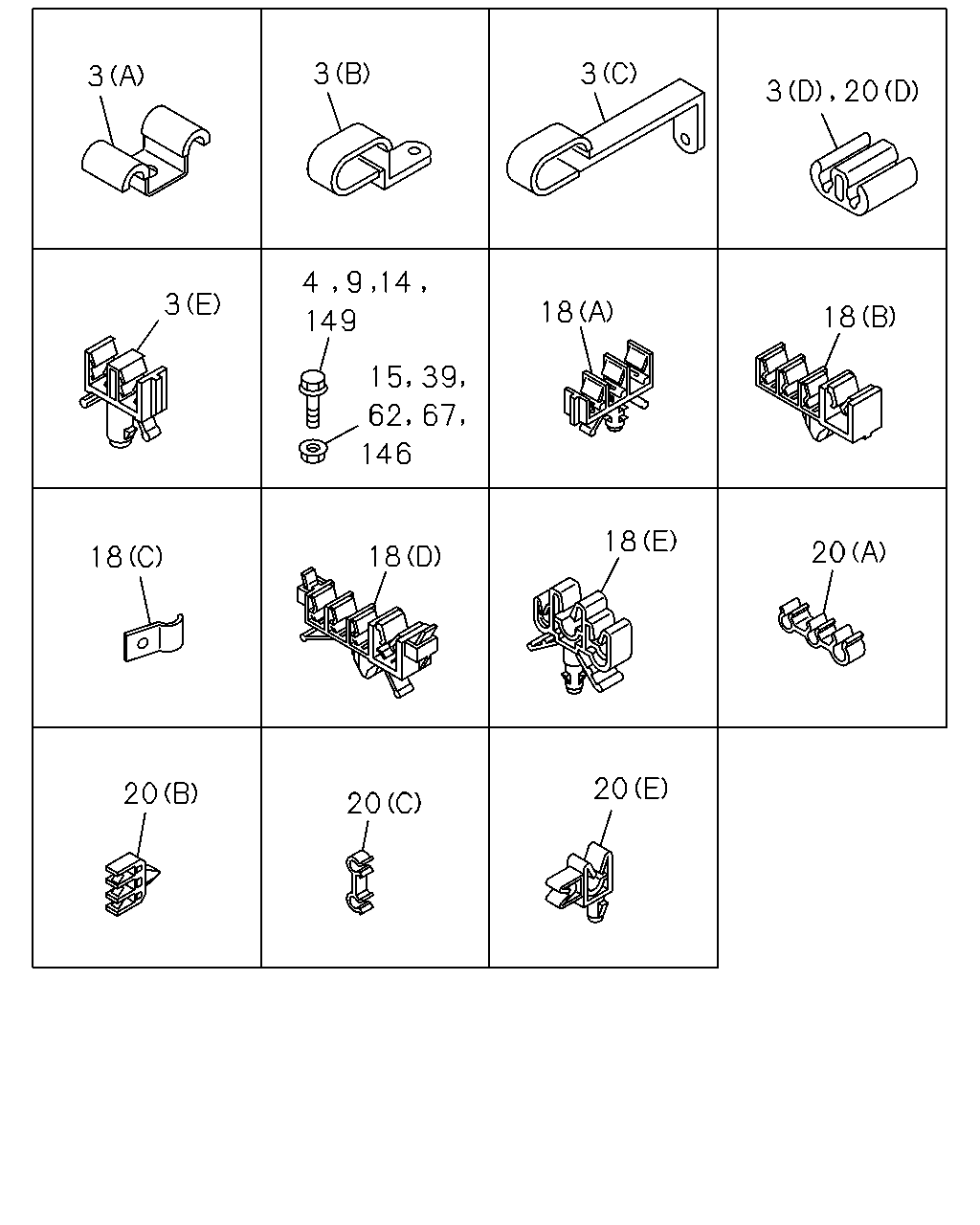

3 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=13 & 13 L=16 & 16
IMA
|
1-09700-072-0 |
01 |
1 |
1304- |
● |
|
| |
3 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(B)
ID=14X29 H=15 L=20
IMA
|
1-09700-744-0 |
01 |
1 |
1304- |
● |
|
| |
3 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(C)
ID=14X29 H=30 L=25
IMA
|
1-09701-101-0 |
01 |
1 |
1304- |
● |
|
| |
3 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10X2 H=22
THA
|
8-94252-455-2 |
04 |
1 |
1304- |
● |
|
| |
3 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(E)
ID=10X2 H=37.5
IMA
|
8-97018-546-0 |
03 |
1 |
1304- |
● |
|
| |
4 |
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ>
M8X25 FLANGE
THA
|
0-28650-825-0 |
02 |
1 |
1304- |
● |
● |
| |
4 |
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ>
M10X25 FLANGE
THA
|
0-28651-025-0 |
01 |
1 |
1304- |
● |
|
| |
9 |
BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ>
M8X25 FLANGE
THA
|
0-28650-825-0 |
01 |
1 |
1304- |
● |
● |
| |
14 |
BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
M8X25 FLANGE
THA
|
0-28650-825-0 |
02 |
1 |
1304- |
● |
● |
| |
15 |
NUT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ>
M8 FLANGE
THA
|
0-91180-108-0 |
02 |
1 |
1304- |
● |
● |
| |
18 |
CLIP; BRK PIPE
(A)
ID=10 & 6.4 & 4.8
IMA
|
8-97064-484-1 |
01 |
1 |
1304- |
● |
● |
| |
18 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(A)
ID=10 & 6.4 & 4.8
IMA
|
8-97064-484-1 |
01 |
1 |
1304- |
● |
● |
| |
18 |
CLIP; BRK PIPE
WHEEL BASE 3400MM<34W>
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 & 4.76X3
IMA
|
8-97326-158-1 |
04 |
1 |
1304- |
● |
● |
| |
18 |
CLIP; BRK PIPE
WHEEL BASE 3800MM<38W>
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 & 4.76X3
IMA
|
8-97326-158-1 |
05 |
1 |
1304- |
|
● |
| |
18 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(C)
B=18 L=20
IMA
|
1-09700-372-0 |
02 |
1 |
1304- |
● |
● |
| |
18 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(B)
ID=10 & 4.76X3
IMA
|
8-97168-819-0 |
03 |
1 |
1304- |
● |
● |
| |
18 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(E)
ID=12 & 6.35 & 4.76
IMA
|
8-97202-954-1 |
03 |
1 |
1304- |
● |
● |
| |
18 |
CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 & 4.76X3
IMA
|
8-97326-158-1 |
07 |
1 |
1304- |
● |
● |
| |
18 |
CLIP; BRK PIPE
WHEEL BASE 4100MM<41W>
FRAME STRAIGHT TYPE<7KJ>
(D)
ID=10 & 4.76X3
IMA
|
8-97326-158-1 |
06 |
1 |
1304- |
● |
|
| |
20 |
CLIP; BRK PIPE
(A)
ID=6.4 & 4.8X2
IMA
|
8-94146-043-0 |
01 |
1 |
1304- |
|
● |
| |
20 |
CLIP; BRK PIPE
(C)
IMA
|
8-94338-104-0 |
01 |
1 |
1304- |
|
● |
| |
20 |
CLIP; BRK PIPE
(B)
ID=6.35 & 4.76X2
IMA
|
8-94250-923-2 |
01 |
1 |
1304- |
● |
● |
| |
20 |
CLIP; BRK PIPE
(D)
ID=6.35 & 6.35
IMA
|
8-94474-113-0 |
03 |
1 |
1304- |
● |
|
| |
20 |
CLIP; BRK PIPE
(E)
ID=12 & 6.35
IMA
|
8-97215-437-0 |
01 |
1 |
1304- |
● |
|
| |
39 |
NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ>
M8 FLANGE
THA
|
0-91180-108-0 |
01 |
1 |
1304- |
● |
● |
| |
62 |
NUT
FRAME STRAIGHT TYPE<7KJ>
M10 FLANGE
THA
|
0-91180-110-0 |
02 |
1 |
1304- |
● |
|
| |
67 |
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ>
M14
IMA
|
0-91111-514-0 |
01 |
1 |
1304- |
● |
|
| |
67 |
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ>
M10 FLANGE
THA
|
0-91180-110-0 |
01 |
1 |
1304- |
● |
|
| |
146 |
NUT; PIPE
FRAME STRAIGHT TYPE<7KJ>
M8 FLANGE
THA
|
0-91180-108-0 |
01 |
1 |
1304- |
● |
|
| |
146 |
NUT; PIPE
FRAME STRAIGHT TYPE<7KJ>
M10 FLANGE
THA
|
0-91180-110-0 |
02 |
1 |
1304- |
● |
|
| |
149 |
BOLT; HOSE
FRAME STRAIGHT TYPE<7KJ>
M6X20 FLANGE
THA
|
0-28650-620-0 |
01 |
1 |
1304- |
● |
|
