0-12 — CYLINDER BLOCK (#120148) — 96 parça

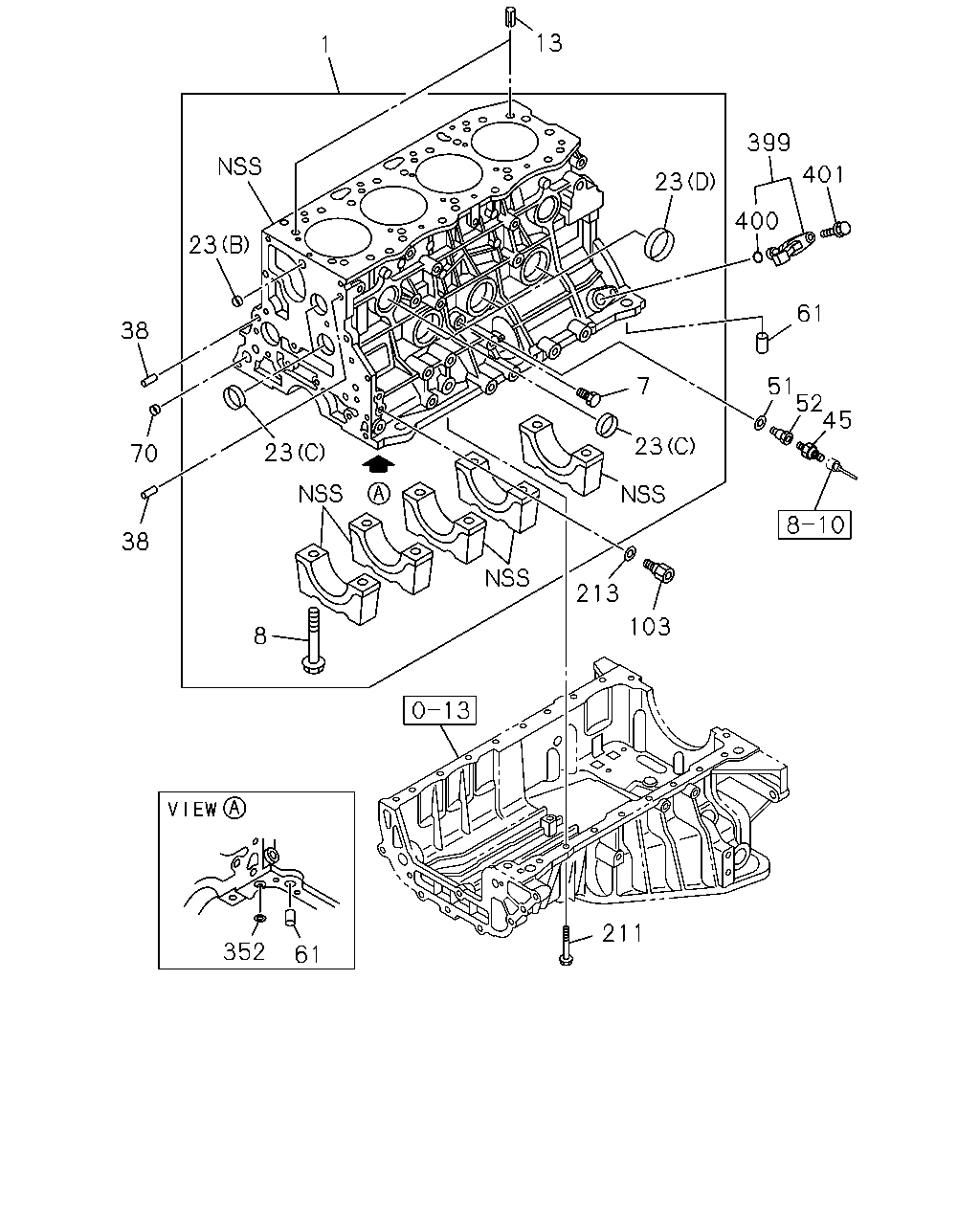

1 13 23 38 70 38 8 213 103 23 23 23 399 400 61 51 7 52 45 211 352 61 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97374-139-1	01	1	1305-	●
1	BLOCK ASM; CYL	8-98243-797-1	01	1	1305-		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1305-	●	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1305-	●	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1305-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	03	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	02	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1305-	●	●
38	PIN; TIMING GEAR CASE OD=10 L=20	8-97135-423-0	02	1	1305-		●
45	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1305-		●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1305-	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	1305-1501	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	1502-	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	1305-1501		●
61	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	01	1	1305-	●
61	PIN; STRAIGHT L=31	9-09878-597-0	02	1	1305-		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	1305-	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	1305-		●
103	NIPPLE; OIL FEED	8-94469-596-0	01	1	1305-		●
211	BOLT; CRANKCASE M8X30 FLANGE	0-28050-830-0	05	1	1305-		●
211	BOLT; CRANKCASE M8X25 FLANGE	0-28650-825-0	14	1	1305-		●
211	BOLT; CRANKCASE M8X40 FLANGE	0-28650-840-0	01	1	1305-		●
213	GASKET; NIPPLE,OIL FEED ID=10.2 OD=16.0	9-09571-410-0	01	1	1305-		●
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	1305-		●
399	SENSOR; CRANKSHAFT POSITION	8-97312-108-1	01	1	1305-		●
400	GASKET; CRANKSHAFT POSITION SENSOR ID=14.2 OD=18.8	8-97369-404-0	01	1	1305-		●
401	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	1305-		●

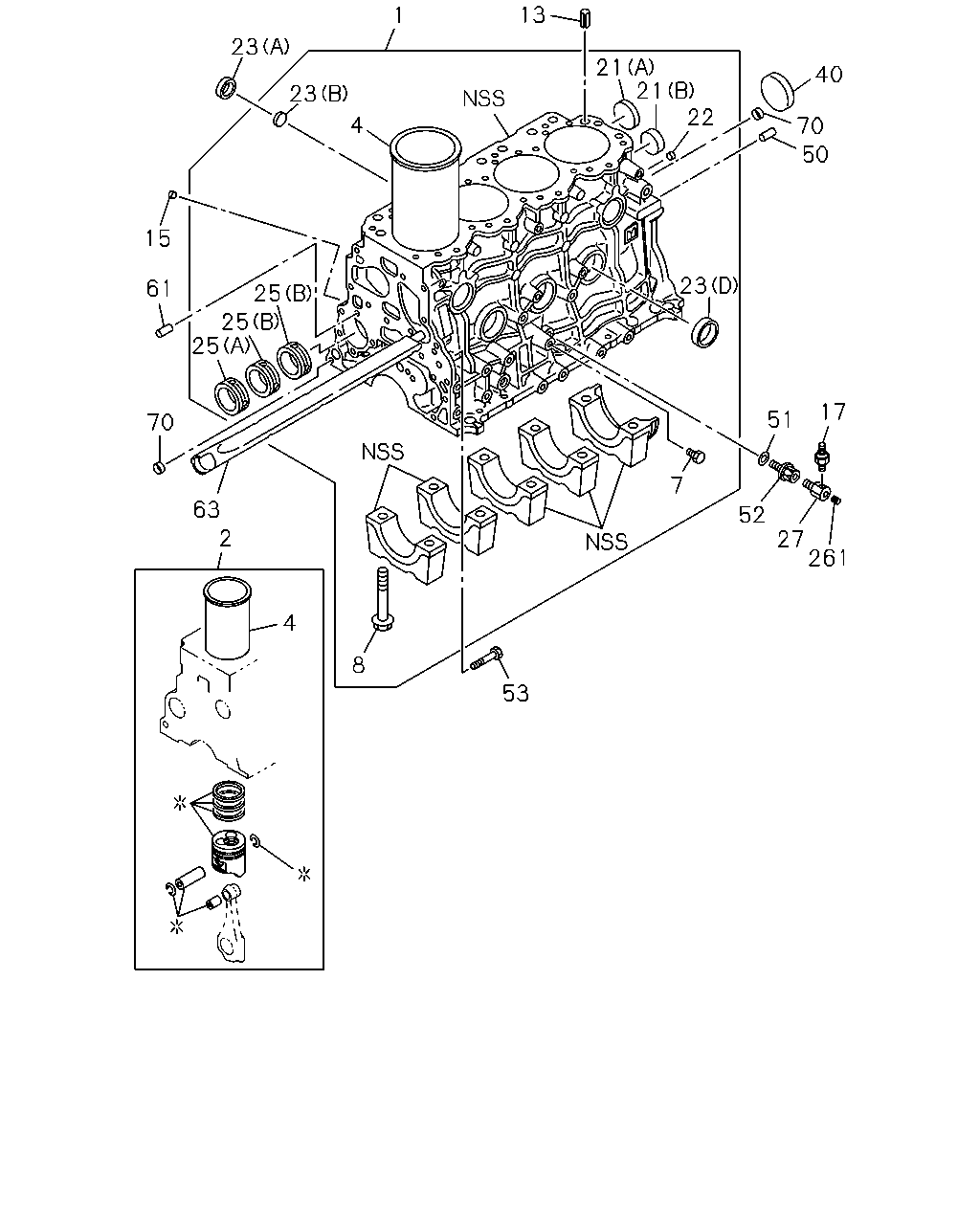

1 13 21 21 22 70 40 50 23 23 15 61 25 25 25 63 70 53 7 51 17 261 27 52 8 4 2 23 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97374-139-1	01	1	1305-	●
1	BLOCK ASM; CYL	8-98243-797-1	01	1	1305-		●
2	LINER SET; ENG CYL GRADE=1	5-87814-401-2	04	1	1305-	●
2	LINER SET; ENG CYL GRADE=2	5-87814-402-2	04	1	1305-	●
2	LINER SET; ENG CYL GRADE=3	5-87814-403-2	04	1	1305-	●
2	LINER SET; ENG CYL GRADE=4	5-87814-404-2	04	1	1305-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	1305-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	1305-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	1305-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	1305-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	1305-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	1305-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	1305-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	1305-	●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1305-	●	●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1305-	●	●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	1305-	●	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	1305-	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1305-		●
17	SWITCH; OIL PRESSURE	9-82720-209-3	01	1	1305-	●
21	CUP; SEALING,RR (C) OD=12.3	5-09600-013-0	01	1	1305-		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1305-	●	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1305-	●	●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	03	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	02	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1305-	●	●
25	METAL; CM/SHF (B)	8-97378-147-0	02	1	1305-	●
25	METAL; CM/SHF (A)	8-97378-148-0	01	1	1305-	●
27	NIPPLE; OIL GALLERY	8-98005-299-1	01	1	1305-	●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-1	01	1	1305-	●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32	9-08161-032-0	01	1	1305-	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1305-	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	1305-1501	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-750-2	01	1	1502-	●	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-98089-872-0	01	1	1305-1501		●
53	BOLT; REAMER M10X52	9-09806-020-0	01	1	1305-	●
61	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	01	1	1305-	●
61	PIN; STRAIGHT L=31	9-09878-597-0	02	1	1305-		●
63	DUCT; WATER,C/BL	8-94419-436-2	01	1	1305-	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	1305-	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	1305-		●
261	PLUG; OIL PRESS UNIT PT1/8	1-09605-050-0	01	1	1305-	●

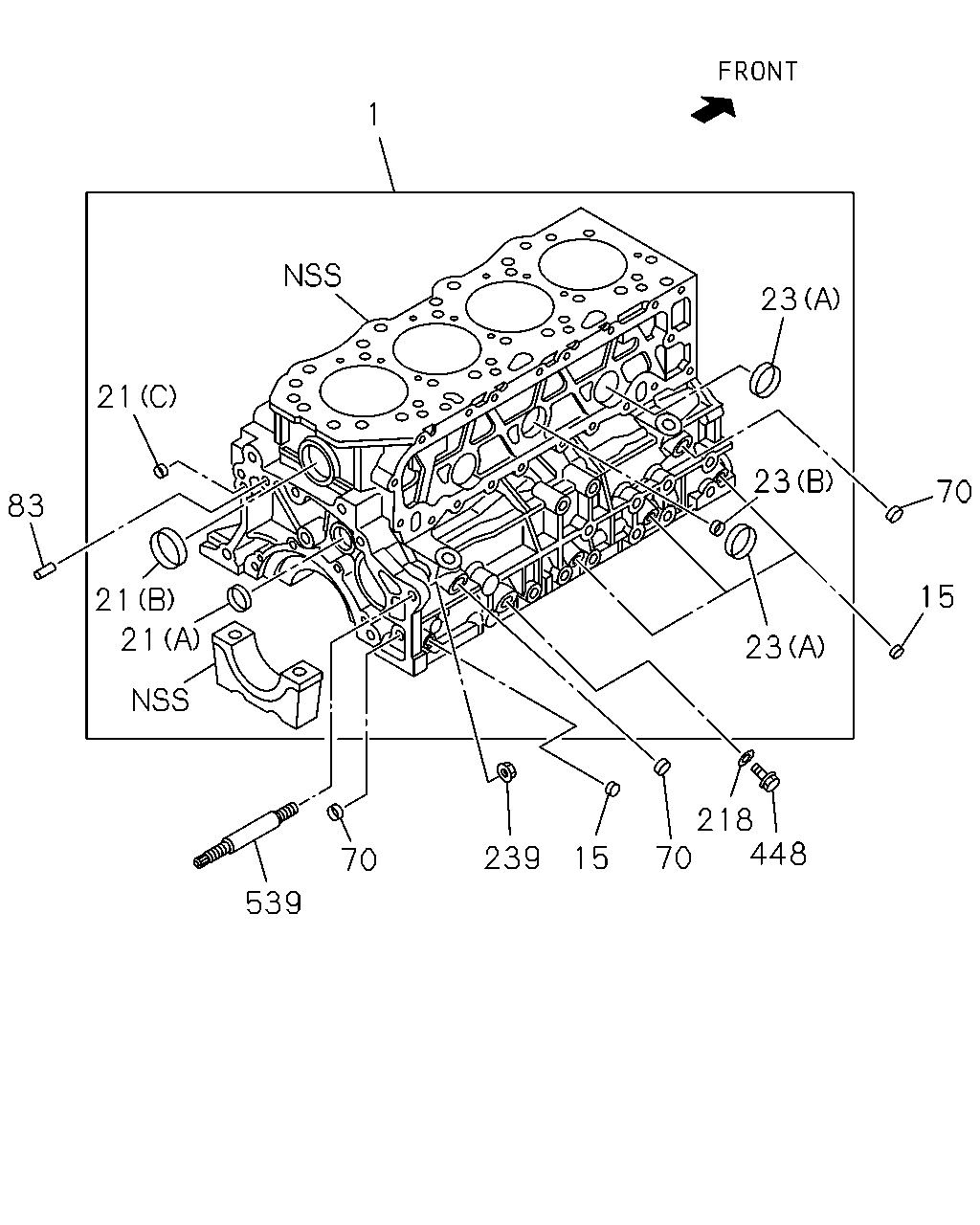

21 83 21 70 539 239 15 70 448 218 23 15 70 23 23 21 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97374-139-1	01	1	1305-	●
1	BLOCK ASM; CYL	8-98243-797-1	01	1	1305-		●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	1305-	●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	1305-		●
21	CUP; SEALING,RR (C) OD=12.3	5-09600-013-0	01	1	1305-		●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1305-	●	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1305-	●	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	03	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	03	1	1305-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=36	5-11219-018-0	02	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=18	5-11219-008-0	02	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (C) OD=32	5-11219-015-0	04	1	1305-		●
23	CUP; SEALING,C/BL FRT & RR (D) OD=45	8-97036-550-1	03	1	1305-	●	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	1305-	●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	06	1	1305-		●
83	PIN; FLYWHEEL HSG M/T MUA 5 SPEED 5H(MWQ) OD=10 L=32	9-08161-032-0	01	1	1305-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	01	1	1305-		●
239	NUT; STUD,C/BL M/T MUA 5 SPEED 5H(MWQ) M10 FLANGE	0-91180-210-0	01	1	1305-		●
448	PLUG; C/BL M14X14	8-94152-613-0	01	1	1305-		●
539	STUD; REAMER M/T MUA 5 SPEED 5H(MWQ) M10X40 L=75.5	8-97371-842-1	01	1	1305-		●
