Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶
3-08 — PARKING BRAKE
(#120146) — 23 parça
◀

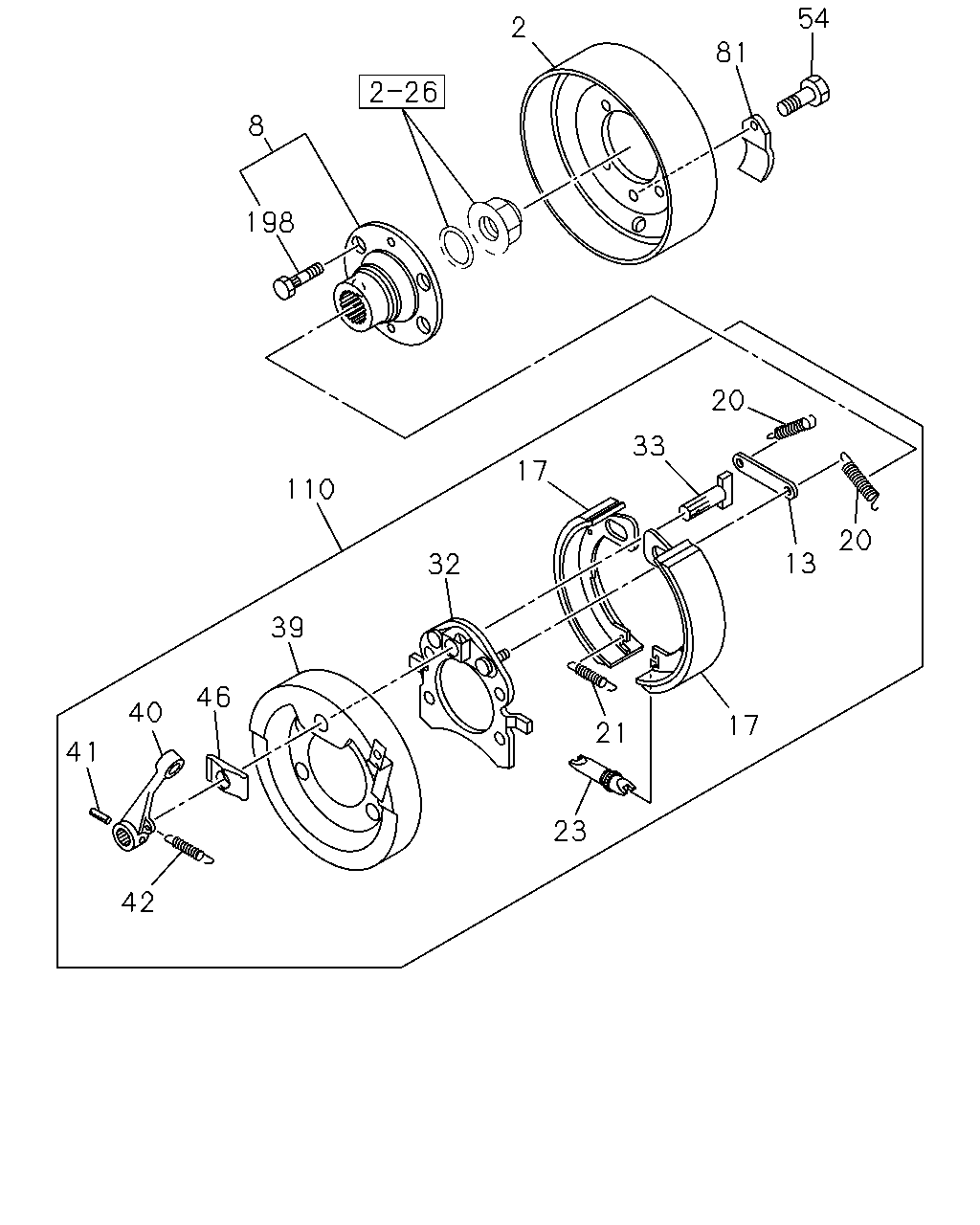

[308A] NO.2 (18 parça)

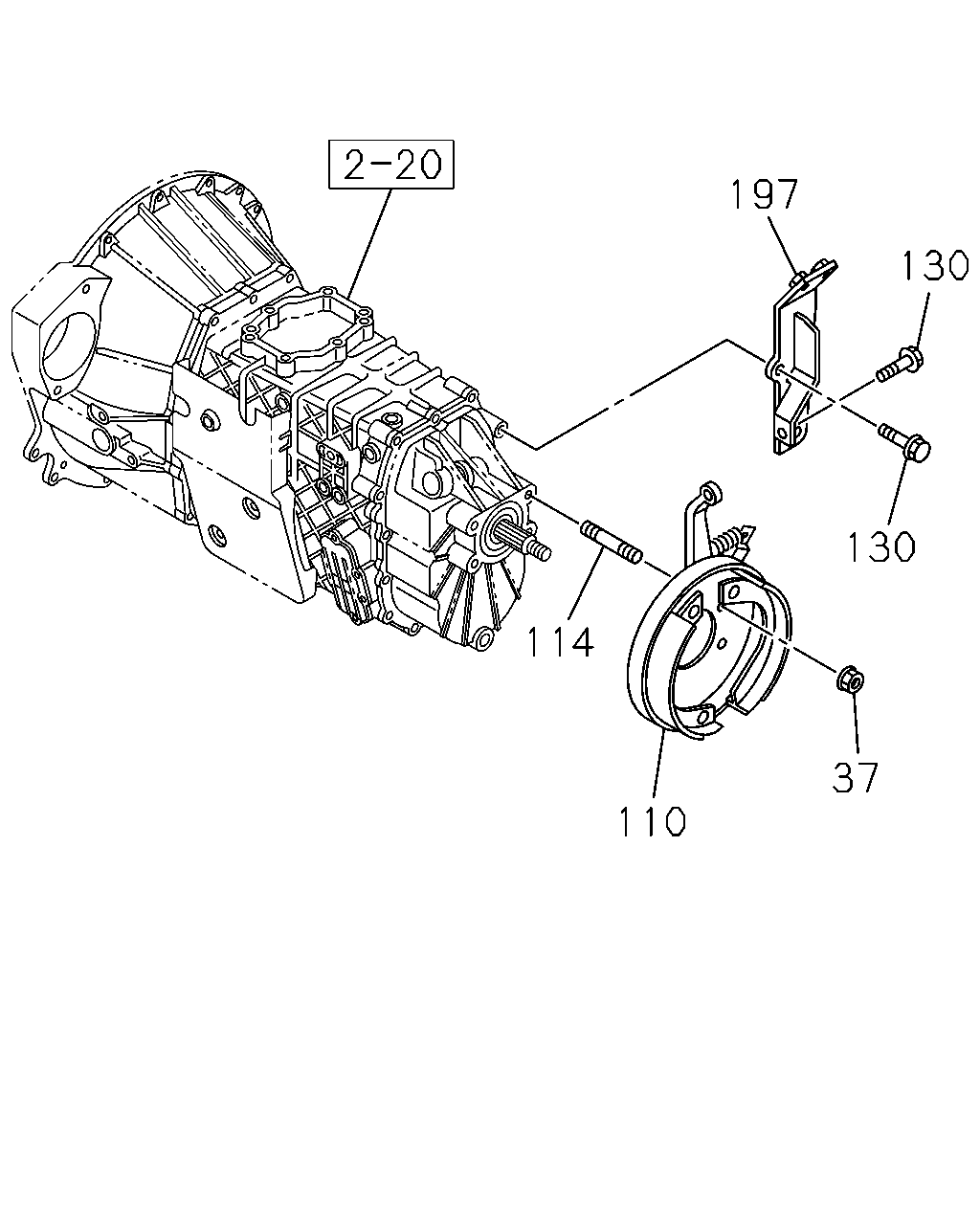

[308A] NO.1 (5 parça)
▶
39
46
40
41
42
32
17
110
33
20
13
20
23
21
198
2
81
54
17
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-057-1
01
1
1304-
8
FLANGE; PARKING BRK
IMA
8-98044-142-0
01
1
1304-
13
BRACE; PARKING BRK
IMA
1-46239-003-0
01
1
1304-
17
SHOE; PARKING BRK
IMA
8-97042-934-1
02
1
1304-
20
SPRING; RETURN,SECONDARY,PARKING BRK
IMA
1-09586-002-0
02
1
1304-
21
SPRING; RETURN,PARKING BRK SHOE
IMA
1-09583-280-0
01
1
1304-
23
SCREW; ADJ,PARKING BRK SHOE
IMA
8-98043-963-0
01
1
1304-
32
PLATE; SUPPORT,PARKING BRK
IMA
1-46213-069-0
01
1
1304-
33
SHAFT; CAM,PARKING BRK
IMA
8-98043-961-0
01
1
1304-
39
COVER; DUST,PARKING BRK
IMA
1-46213-075-0
01
1
1304-
40
LEVER; CM/SHF,PARKING BRK
IMA
8-98047-550-0
01
1
1304-
41
PIN; KNOCK,LEVER
IMA
9-09878-594-0
01
1
1304-
42
SPRING; RETURN,LEVER
IMA
1-09583-041-0
01
1
1304-
46
WASHER; LEVER
IMA
1-09509-057-0
01
1
1304-
54
BOLT; COVER
M8X20 W/LK&PL WASHER IMA
0-50640-820-0
02
1
1304-
81
COVER; CHECK HOLE,PARKING BRK
IMA
8-98031-861-0
02
1
1304-
110
BRAKE ASM; PARKING
IMA
8-98034-305-0
01
1
1304-
198
BOLT; KNURL
M12X39 IMA
8-97365-446-0
04
1
1304-
197
130
130
37
110
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
NUT; SUPPORT PLATE
M14 FLANGE IMA
8-97365-444-0
04
1
1304-
110
BRAKE ASM; PARKING
IMA
8-98034-305-0
01
1
1304-
114
STUD; SUPPORT PLATE
M14X22.5 L=42.5 IMA
8-97365-445-0
04
1
1304-
130
BOLT; BRKT
M10X25 FLANGE THA
0-28151-025-0
03
1
1304-
197
BRACKET; CENTER BRAKE CABLE
IMA
8-97244-812-0
01
1
1304-
