◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11500 - FYH(THAILAND)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#120144) — 73 parça

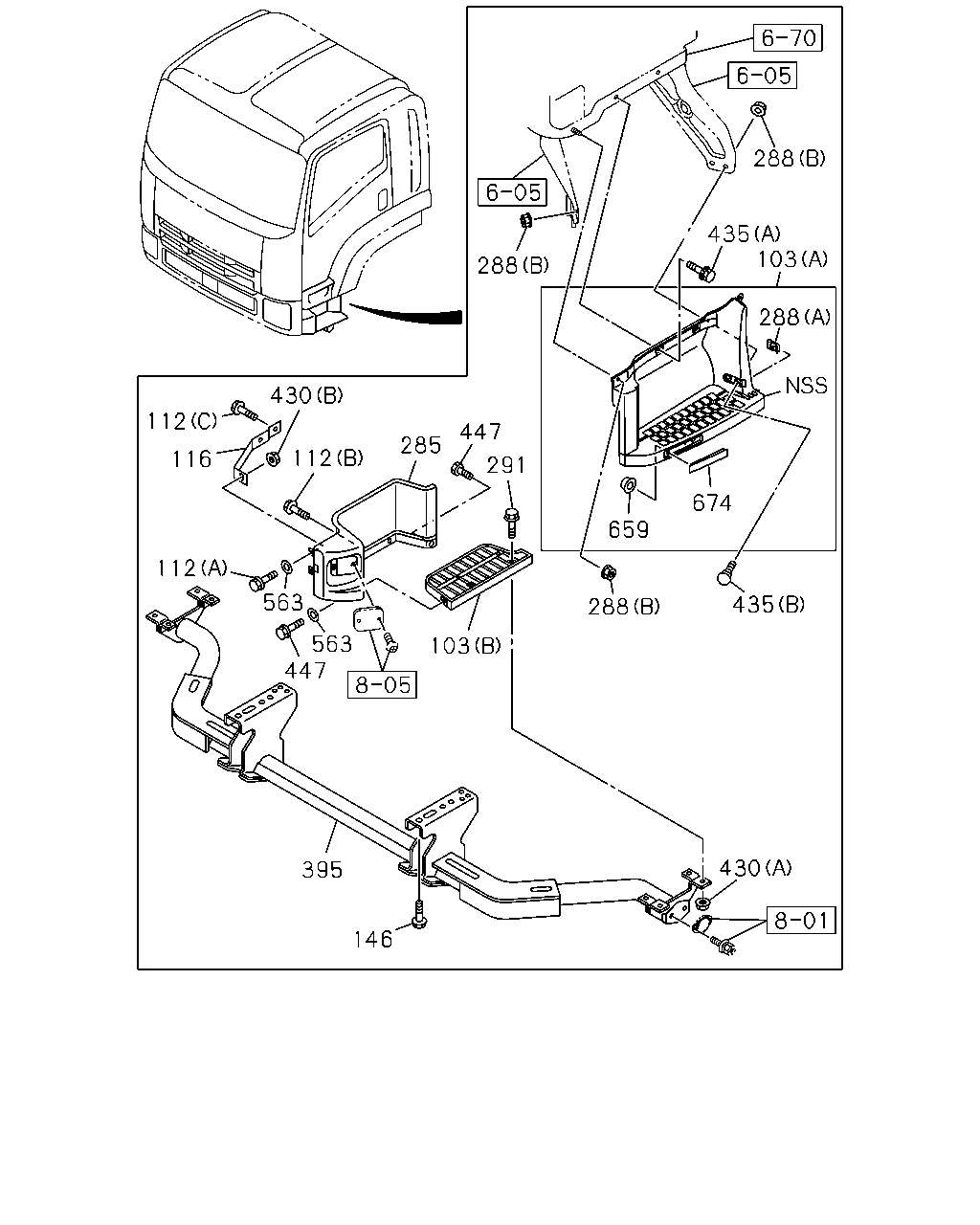

çizim 350052
430 146 395 103 447 563 112 116 112 430 112 285 447 291 563 288 288 435 103 288 674 659 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
(B) THA 		8-97924-110-0 01 1 1305-
103 PLATE; STEP
(A) 		8-98069-977-2 01 1 1305-
103 PLATE; STEP
(B) THA 		8-97924-109-0 01 1 1305-
103 PLATE; STEP
(A) 		8-98069-976-2 01 1 1305-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1305-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1305-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE THA 		0-28050-812-0 04 1 1305-
116 STAY; 1ST STEP,FRT
THA 		8-98196-756-0 02 1 1305-
146 BOLT; STEP BRKT
M16X40 		0-20851-640-0 02 1 1305-
146 BOLT; STEP BRKT
M16X50 		0-20851-650-0 06 1 1305-
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1305-
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1305-
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1305-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1305-
291 BOLT; STEP PLATE
M8X40 FLANGE THA 		0-28650-840-0 08 1 1305-
395 BRACKET; SIDE STEP
THA 		8-98182-923-2 01 1 1305-
430 NUT; PANEL
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1305-
430 NUT; PANEL
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1305-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1305-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1305-
447 BOLT; PANEL
M6X12 FLANGE THA 		0-28050-612-0 06 1 1305-
563 WASHER; PL
ID=6.4 OD=18 		0-91610-706-0 10 1 1305-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1305-
674 COVER; REFLECTOR 8-98092-734-0 01 1 1305-
674 COVER; REFLECTOR 8-98092-733-0 01 1 1305-

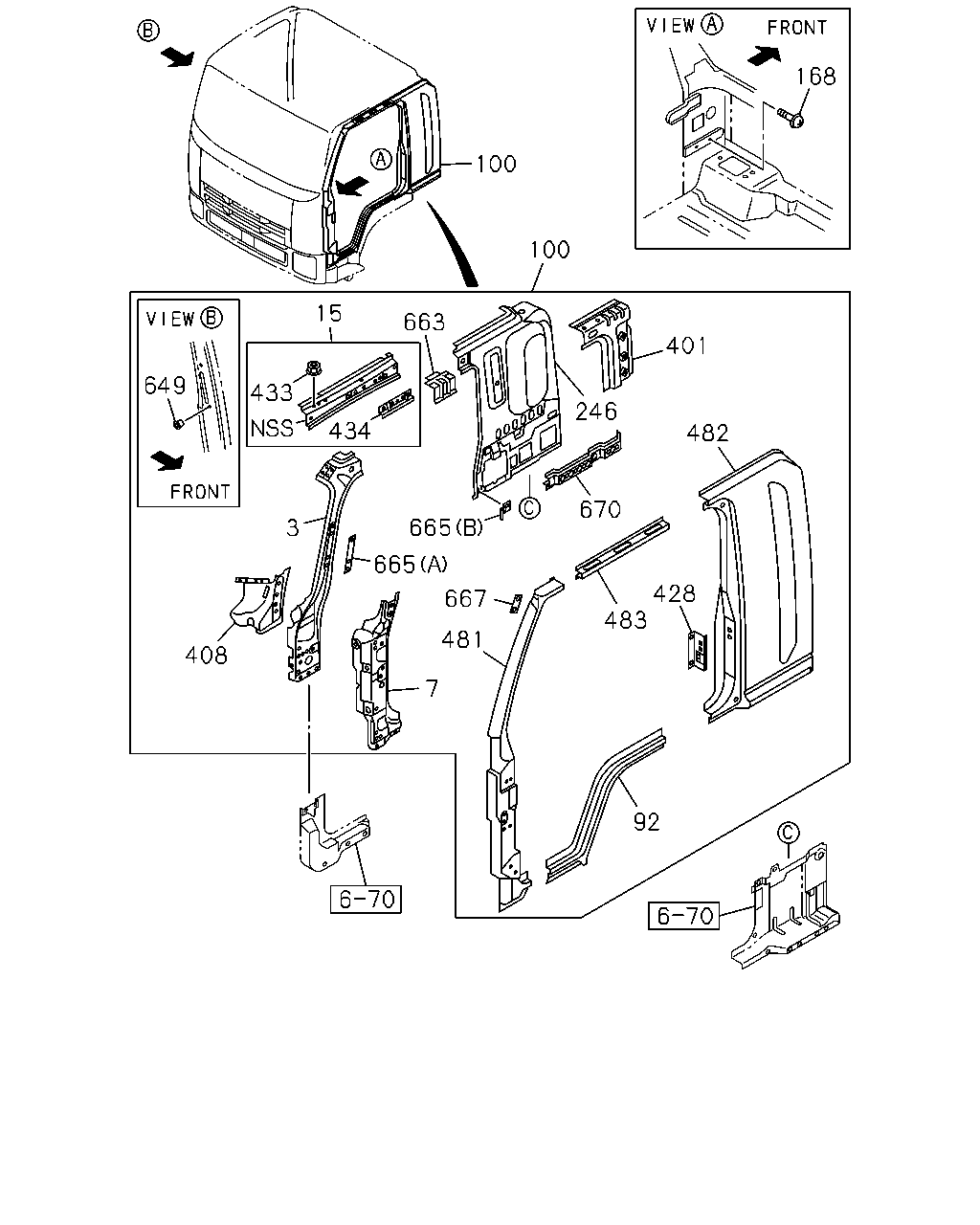

çizim 351292
100 100 401 482 246 670 483 428 92 7 665 665 667 481 408 3 434 663 15 649 433 168
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1305-
3 PANEL; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98058-237-1 01 1 1305-
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 1305-1312
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1401-
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97585-244-4 01 1 1305-1312
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97927-059-0 01 1 1401-
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1305-
15 PANEL; CANT RAIL SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97585-293-2 01 1 1305-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1305-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1305-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-073-9 01 1 1305-1306
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-575-1 01 1 1307-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98166-303-0 01 1 1305-1306
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-570-1 01 1 1307-
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98122-095-1 01 1 1305-1306
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-568-1 01 1 1307-
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1305-
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1305-
246 PANEL; RR PILLAR,INNER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-158-5 01 1 1305-
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1305-
401 PATCH; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-161-2 01 1 1305-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1305-
408 GUSSET; PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-194-2 01 1 1305-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1305-
428 REINFORCEMENT; DOOR STRIKER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-261-4 01 1 1305-
433 NUT; HEADER SHELF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6 THA 		9-09114-086-0 04 1 1305-
433 NUT; HEADER SHELF
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6 THA 		9-09114-086-0 02 1 1305-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1305-
434 PATCH; ASSIST GRIP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98039-020-0 01 1 1305-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-453-0 01 1 1305-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-471-0 01 1 1305-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1305-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1305-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1305-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1305-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1305-
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1305-
663 BRACKET; AIR 8-97585-207-2 01 1 1305-1306
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1307-
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-208-2 01 1 1305-1306
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-278-0 01 1 1307-
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-97585-314-0 02 1 1305-
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98012-287-1 02 1 1305-
665 REINFORCEMENT; GRIP,ASSIST
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-97585-314-0 01 1 1305-
665 REINFORCEMENT; GRIP,ASSIST
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98012-287-1 01 1 1305-
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 03 1 1305-
670 STIFFENER; PANEL,SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98015-044-1 02 1 1305-
670 STIFFENER; PANEL,SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98015-044-1 01 1 1305-
