Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#120143) — 51 parça
◀

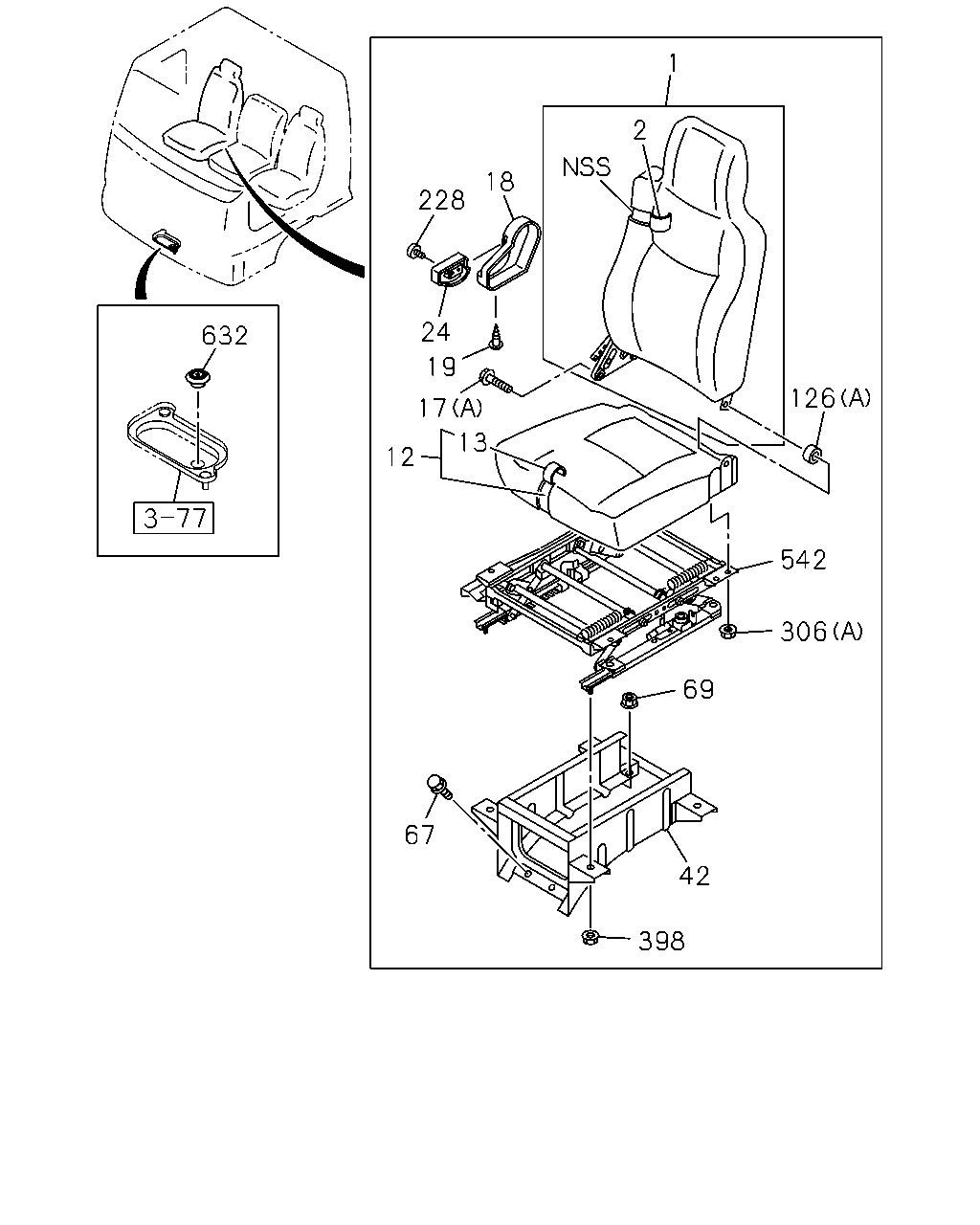

[750A] DRIVER (20 parça)

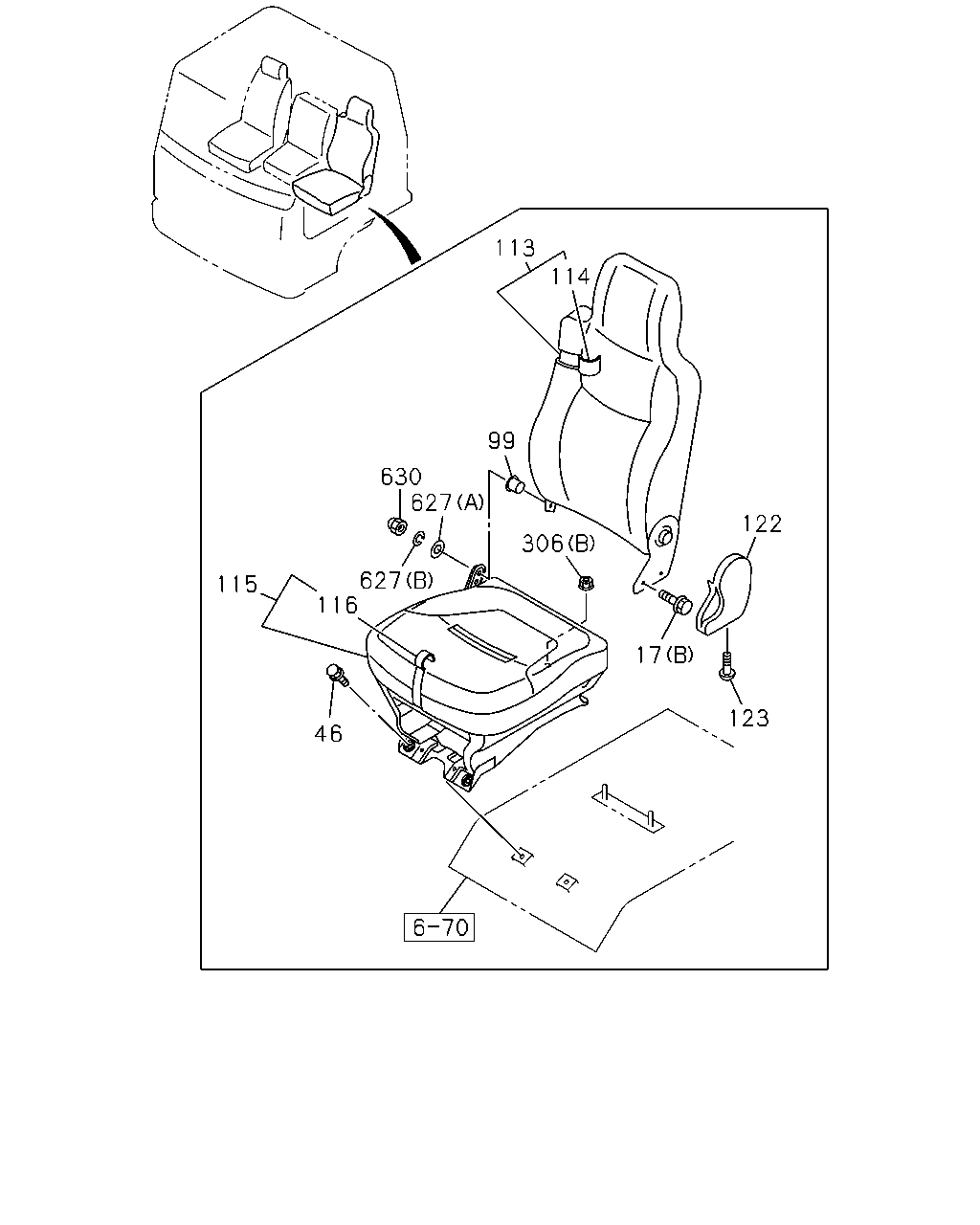

[750A] PASSENGER (15 parça)

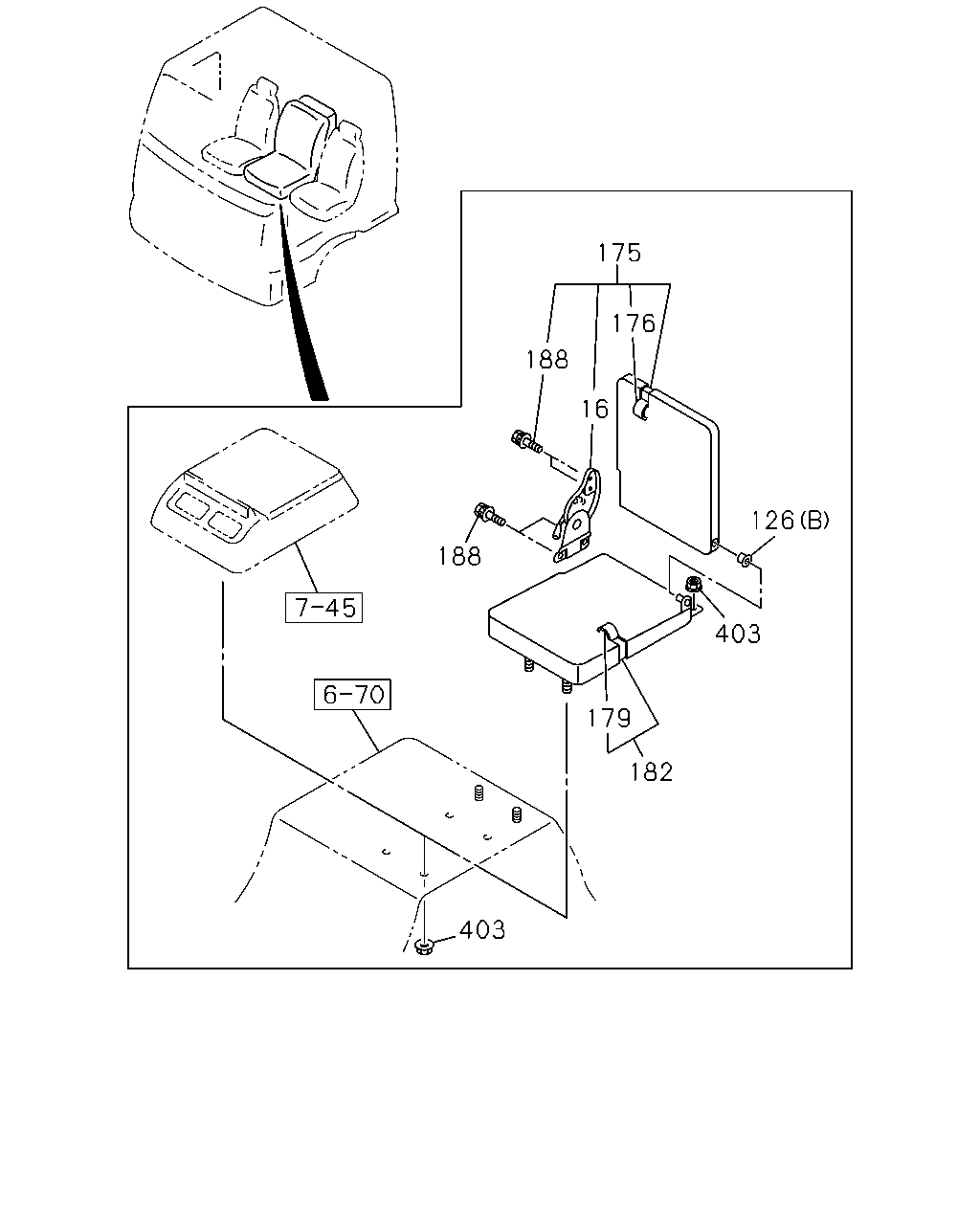

[750A] CENTER (9 parça)

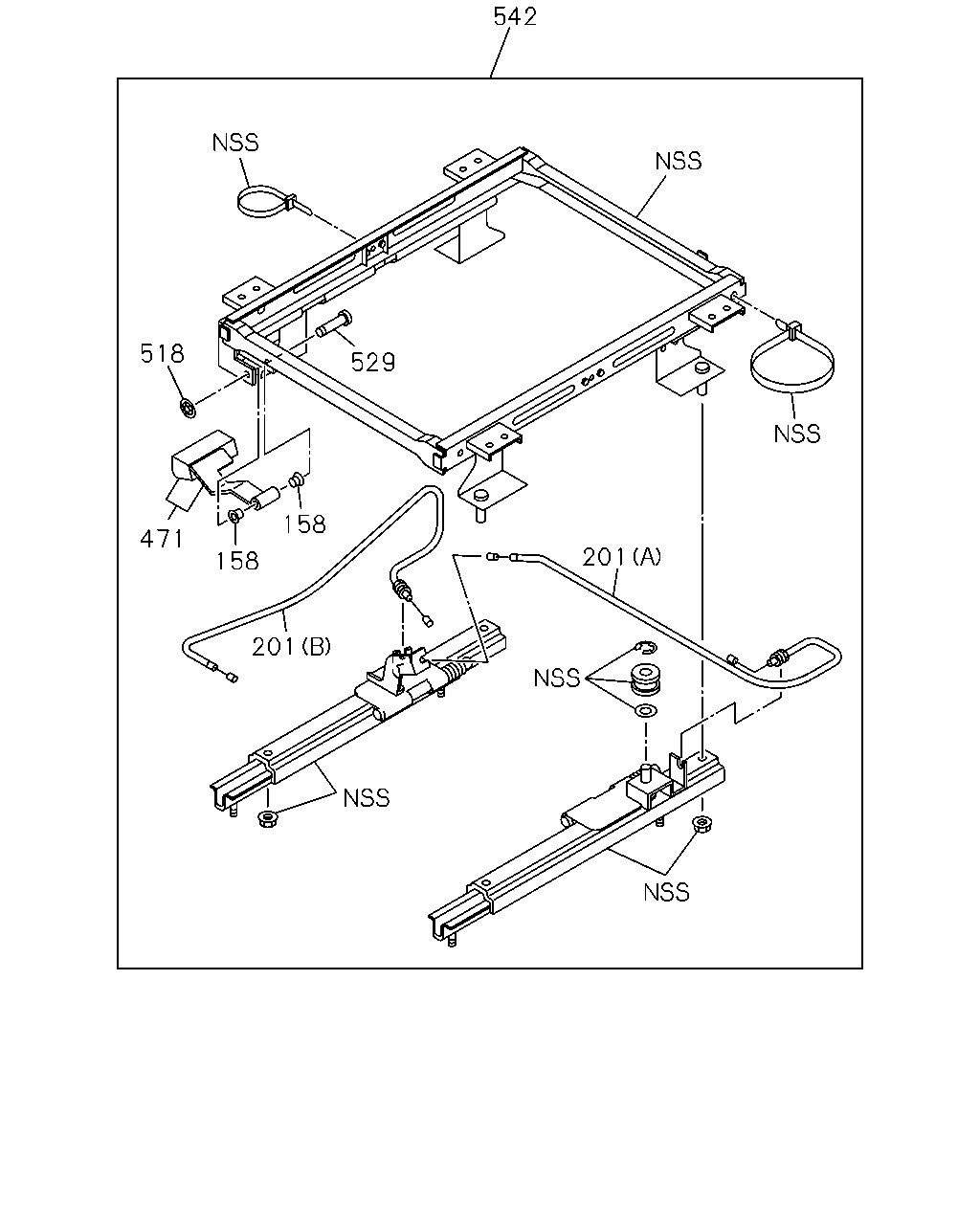

[750A] ADJUSTER ASM;SEAT SLIDE (7 parça)
▶
632
398
42
67
12
13
17
19
24
228
18
2
1
126
542
306
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
THA
8-97924-734-0
01
1
1305-
2
COVER; TRIM,FRT SEAT,BACK
THA
8-97924-750-0
01
1
1305-
12
CUSHION; SEAT,FRT
THA
8-97924-748-1
01
1
1305-
13
COVER; TRIM,FRT SEAT,CUSHION
THA
8-97924-749-0
01
1
1305-
17
BOLT; RECLINING
(A) M10X20 THA
8-98062-661-0
04
1
1305-
17
BOLT; RECLINING
(B) THA
8-98092-334-0
04
1
1305-
18
COVER; RECLINING
GRAY THA
8-97409-332-0
01
1
1305-
19
SCREW; COVER
M5 THA
8-98062-663-0
01
1
1305-
24
KNOB; RECLINING,FRT,SEAT
GRAY THA
8-97409-333-0
01
1
1305-
42
STAND; DRIVER SEAT
THA
1-75558-604-2
01
1
1305-
67
BOLT; FRT SEAT TO BODY
M10X20 FLANGE THA
0-28451-020-0
02
1
1305-
69
NUT; FRT SEAT
M10 FLANGE THA
0-91180-110-0
02
1
1305-
126
BUSHING; HINGE,RECLINING
(A) THA
8-98063-218-0
01
1
1305-
126
BUSHING; HINGE,RECLINING
CENTER SEAT<SA1> (B) THA
8-97917-184-0
01
1
1305-
228
SCREW; KNOB
M4 THA
8-98062-662-0
01
1
1305-
306
NUT; SEAT ADJ
(B) M10 FLANGE THA
0-91180-110-0
02
1
1305-
306
NUT; SEAT ADJ
(A) M8 FLANGE THA
1-75538-207-0
08
1
1305-
398
NUT; STAND
M8 FLANGE THA
1-75538-207-0
04
1
1305-
542
ADJUSTER ASM; SEAT SLIDE
THA
8-98093-310-0
01
1
1305-
632
GROMMET
OD=24
8-94119-796-0
01
1
1305-
113
114
99
630
627
627
116
115
46
306
17
123
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
BOLT; RECLINING
(A) M10X20 THA
8-98062-661-0
04
1
1305-
17
BOLT; RECLINING
(B) THA
8-98092-334-0
04
1
1305-
46
BOLT; STAND TO FLOOR
M10X20 FLANGE THA
0-28451-020-0
02
1
1305-
99
BUSHING; SEAT BACK
THA
8-98063-219-0
01
1
1305-
113
BACK ASM; SEAT
THA
8-97924-737-0
01
1
1305-
114
COVER; TRIM,PASSENGER SEAT,BACK
THA
8-97924-761-0
01
1
1305-
115
CUSHION ASM; PASSENGER SEAT
THA
8-97924-759-0
01
1
1305-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
THA
8-97924-760-0
01
1
1305-
122
COVER; ADJ,RECLINING
GRAY THA
8-97409-967-0
01
1
1305-
123
SCREW; COVER,RECLINING
THA
8-98070-026-0
01
1
1305-
306
NUT; SEAT ADJ
(B) M10 FLANGE THA
0-91180-110-0
02
1
1305-
306
NUT; SEAT ADJ
(A) M8 FLANGE THA
1-75538-207-0
08
1
1305-
627
WASHER; FRT SEAT
(A) THA
8-98063-223-0
01
1
1305-
627
WASHER; FRT SEAT
(B) THA
8-98063-224-0
01
1
1305-
630
NUT; CAP
M8 THA
8-98063-225-0
01
1
1305-
175
188
176
16
126
403
182
179
188
403
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
ADJUSTER ASM; RECLINING
CENTER SEAT<SA1> THA
1-75418-062-1
01
1
1305-
126
BUSHING; HINGE,RECLINING
(A) THA
8-98063-218-0
01
1
1305-
126
BUSHING; HINGE,RECLINING
CENTER SEAT<SA1> (B) THA
8-97917-184-0
01
1
1305-
175
BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT<SA1> THA
8-97925-314-0
01
1
1305-
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT<SA1> THA
8-97925-308-0
01
1
1305-
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT<SA1> THA
8-97924-453-0
01
1
1305-
182
CUSHION ASM; CENTER SEAT
CENTER SEAT<SA1> THA
8-97924-451-0
01
1
1305-
188
BOLT; BACK TO CUSHION
CENTER SEAT<SA1> M10X20 THA
8-97924-820-0
04
1
1305-
403
NUT; CENTER SEAT
CENTER SEAT<SA1> M8 FLANGE THA
0-91180-108-0
04
1
1305-
542
201
201
158
158
471
518
529
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
BUSHING; LINK ARM
THA
1-75518-209-0
02
1
1305-
201
CABLE; ADJ
(A) L=667 THA
1-75518-288-0
01
1
1305-
201
CABLE; ADJ
(B) L=605 THA
1-75518-289-1
01
1
1305-
471
LEVER; SEAT ADJ
THA
8-98107-869-0
01
1
1305-
518
NUT; TILT ADJ
THA
1-75518-263-0
01
1
1305-
529
PIN; LINK
THA
1-75518-262-0
01
1
1305-
542
ADJUSTER ASM; SEAT SLIDE
THA
8-98093-310-0
01
1
1305-
