Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

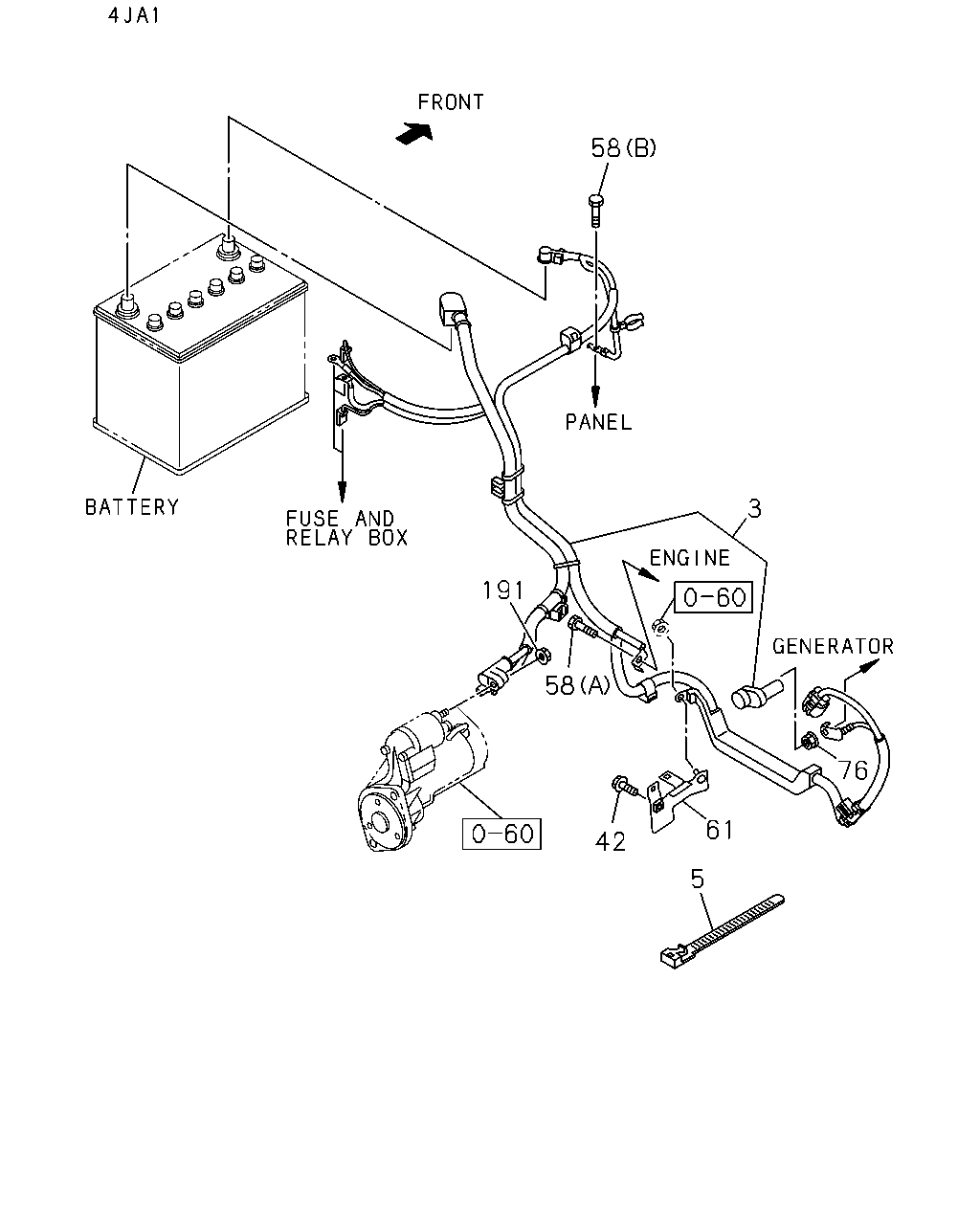

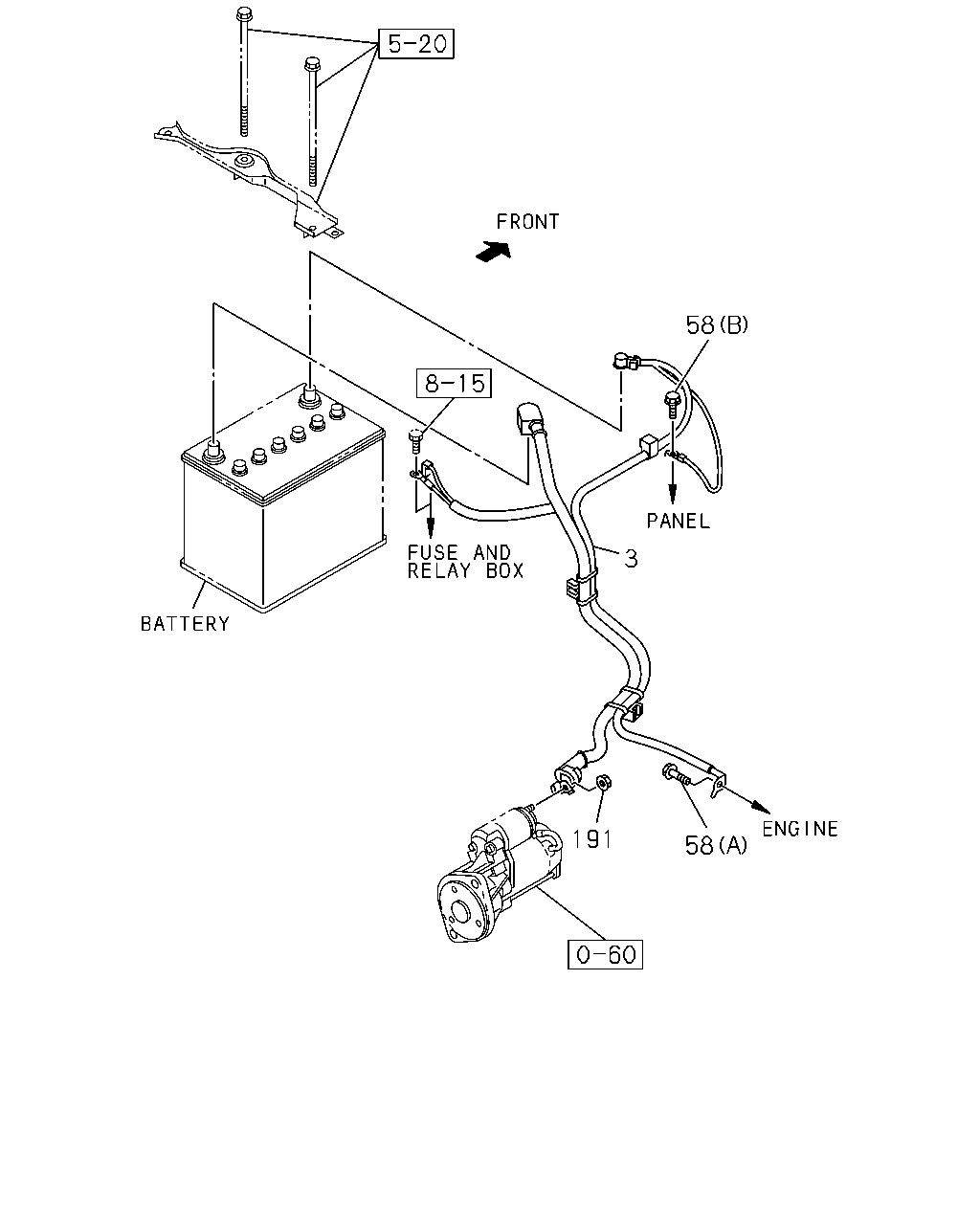

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#120142) — 18 parça

3 58 191 58 42 5 61 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-808-3	01	1	1305-	●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC)	8-98230-233-1	01	1	1305-	●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8)	8-98160-809-3	01	1	1305-		●
5	CLIP; BATTERY CABLE TO BODY HIGH RIDE SUSPENSION(7YC) L=140	5-09707-031-1	01	1	1305-	●
42	BOLT; BRKT,BATTERY CABLE BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M6X16 FLANGE	0-28650-616-0	01	1	1305-	●
58	BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE	0-28651-020-0	01	1	1305-	●	●
58	BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1305-1501	●	●
58	BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●	●
61	BRACKET; BATTERY CABLE BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8)	8-97260-935-2	01	1	1305-	●
76	NUT; BATTERY CABLE BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M8 FLANGE	0-91180-108-0	01	1	1305-	●
191	NUT; STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M8 FLANGE	0-91180-108-0	01	1	1305-	●	●

3 58 191 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) EXC. HIGH RIDE SUSPENSION(7YC)	8-98160-808-3	01	1	1305-	●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) HIGH RIDE SUSPENSION(7YC)	8-98230-233-1	01	1	1305-	●
3	HARNESS; CABLE,BATTERY TO STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8)	8-98160-809-3	01	1	1305-		●
58	BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (A) M10X20 FLANGE	0-28651-020-0	01	1	1305-	●	●
58	BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	1305-1501	●	●
58	BOLT; CABLE,BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) (B) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●	●
191	NUT; STARTER BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) M8 FLANGE	0-91180-108-0	01	1	1305-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
