◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#120138) — 20 parça

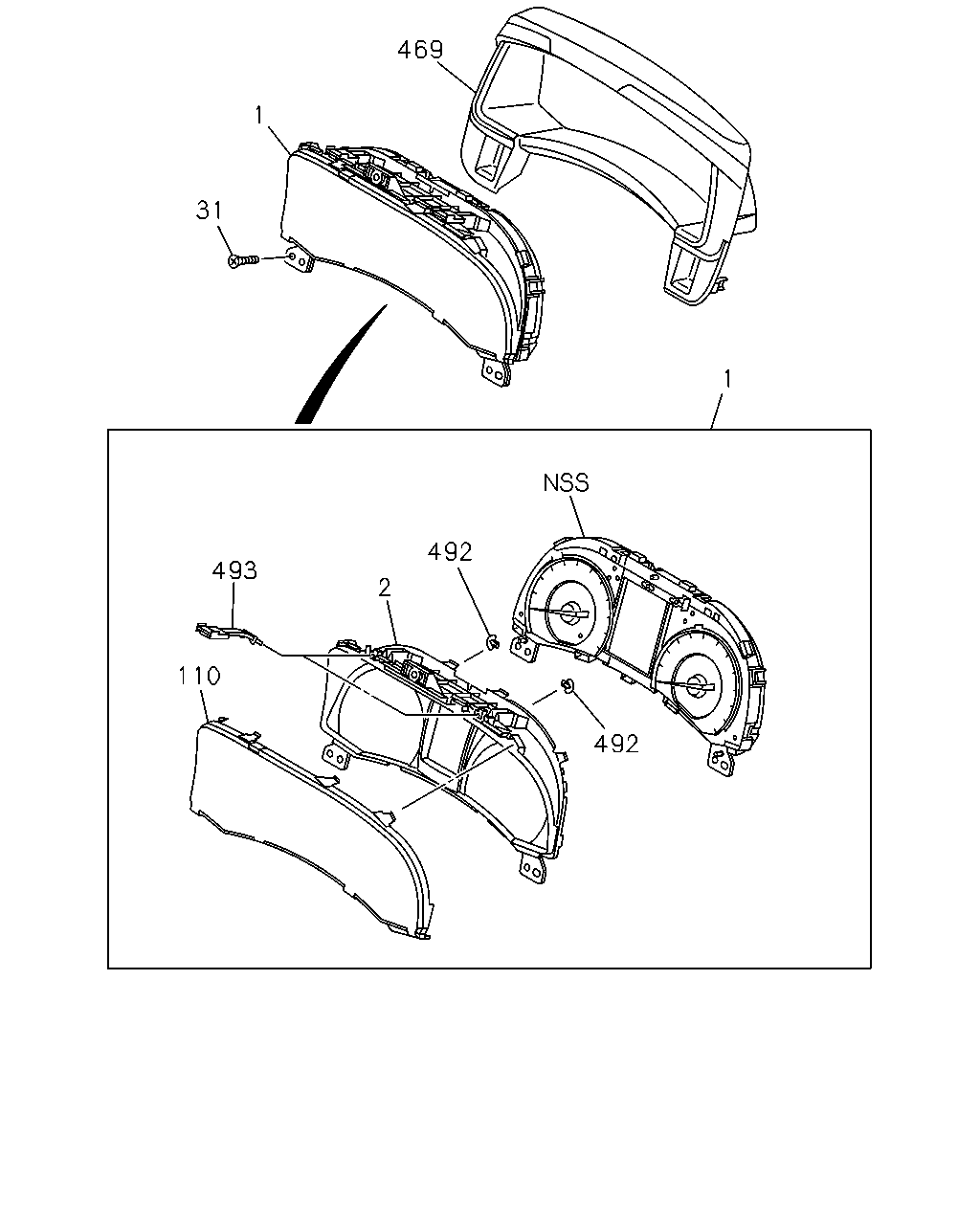

çizim 351660
469 1 492 492 2 493 110 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) 		8-98103-761-8 01 1 1305- ●
1 METER COMPL; CLUSTER
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98103-761-8 01 1 1305- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98185-145-4 01 1 1305- ● ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98198-949-2 01 1 1305- ● ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98198-948-2 01 1 1305- ● ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98198-947-2 01 1 1305- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98198-947-2 01 1 1305- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98198-946-2 01 1 1305- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98198-946-2 01 1 1305- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98103-776-8 01 1 1305- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98103-776-8 01 1 1305- ●
1 METER COMPL; CLUSTER
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98103-776-8 01 1 1305- ●
2 PANEL; CLUSTER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-884-0 01 1 1305- ● ●
2 PANEL; CLUSTER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98163-885-0 01 1 1305- ● ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING 		8-98167-449-0 03 1 1305- ● ● ● ●
110 GLASS; CLUSTER METER
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-882-0 01 1 1305- ● ●
110 GLASS; CLUSTER METER
EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98163-883-0 01 1 1305- ● ● ● ●
469 PLATE; INSTRUMENT PANEL
BLACK 		8-97416-628-1 01 1 1305- ● ● ● ●
492 PANEL; TURN LENS
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-886-0 02 1 1305- ● ●
493 PANEL; TOP LIGHT PRISM
ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98163-887-0 02 1 1305- ● ●
