Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
3 - Brakes, Brake System
▶

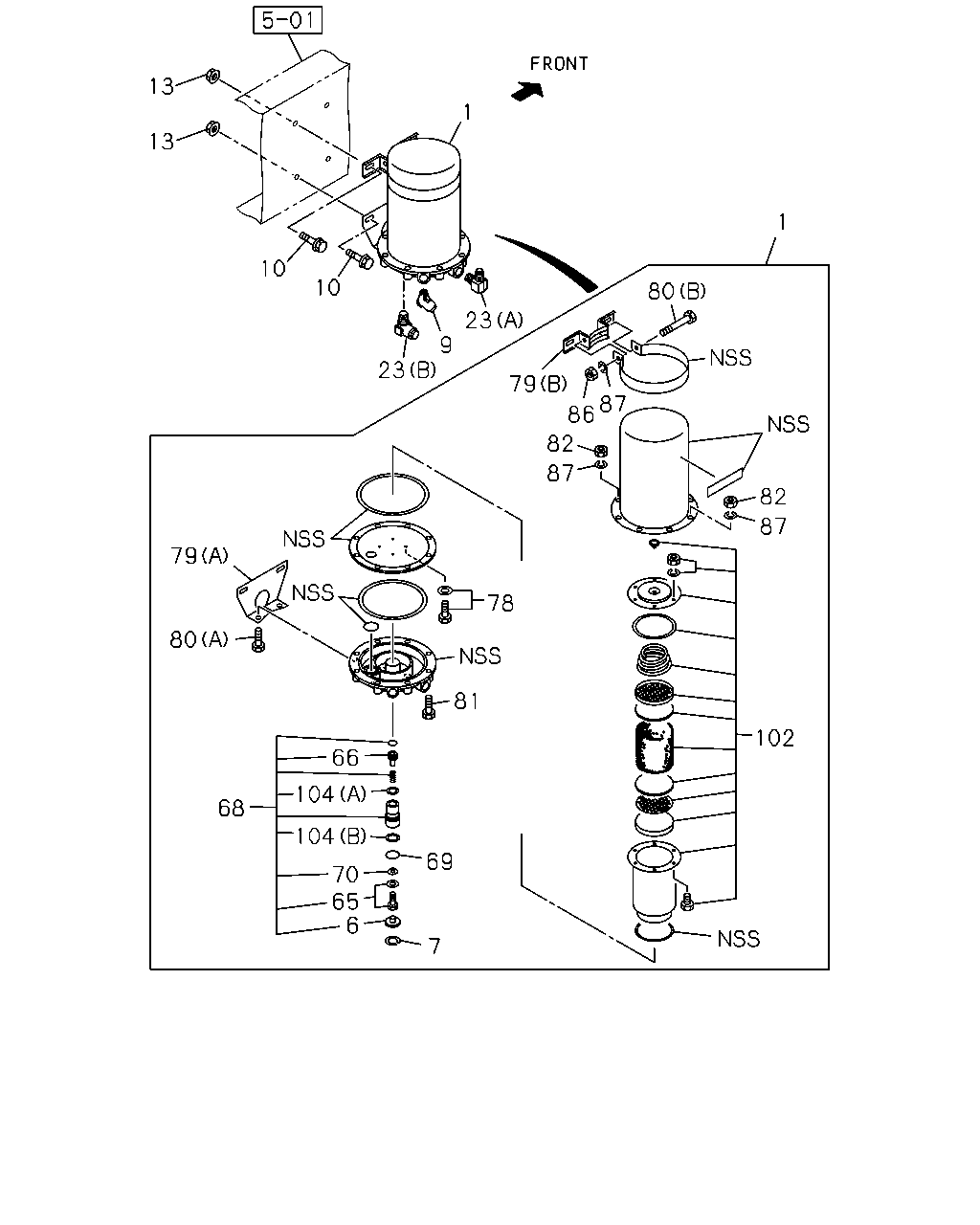

3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#120137) — 36 parça
◀
[346A] COMPONENT (26 parça)
[346A] REPAIR KIT AND PISTON KIT (10 parça)
▶
13
13
10
23
10
1
9
23
79
80
1
82
102
87
87
86
82
87
78
81
69
104
68
66
70
104
65
6
7
80
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
THA
8-98173-025-0
01
1
1305-
6
COVER; EXH,AIR DRYER
THA
1-48199-419-0
01
1
1305-
7
RING; SNAP,AIR DRYER
THA
1-48199-154-0
01
1
1305-
9
CONNECTOR; PIPE,AIR DRYER
DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1305-
10
BOLT; AIR DRYER
M10X30 FLANGE THA
0-28651-030-0
02
1
1305-
10
BOLT; AIR DRYER
M10X40 FLANGE THA
0-28651-040-0
02
1
1305-
13
NUT; AIR DRYER
M10 FLANGE THA
0-91180-210-0
04
1
1305-
23
CONNECTOR; AIR TANK
(A) M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1305-
23
CONNECTOR; AIR TANK
(B) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1305-
65
BOLT; PURGE VLV
THA
1-48199-393-0
01
1
1305-
66
PISTON; AIR DRYER
THA
1-48199-198-0
01
1
1305-
68
BODY; VALVE
THA
1-48199-352-0
01
1
1305-
69
GASKET; EXH COVER
THA
1-48199-153-0
01
1
1305-
70
VALVE; AIR DRYER
THA
1-48199-105-0
01
1
1305-
78
BOLT; OIL FILTER,AIR DRYER
THA
1-48199-494-0
04
1
1305-
79
BRACKET; AIR DRYER
(B) THA
1-48199-336-0
01
1
1305-
79
BRACKET; AIR DRYER
(A) THA
1-48199-354-0
01
1
1305-
80
BOLT; BRKT
(B) THA
1-48199-335-0
01
1
1305-
80
BOLT; BRKT
(A) THA
1-48199-338-0
02
1
1305-
81
BOLT; CASE,AIR DRYER
THA
1-48199-341-0
06
1
1305-
82
NUT; CASE,AIR DRYER
THA
1-48199-421-0
08
1
1305-
86
NUT; BRKT
THA
1-48199-333-0
01
1
1305-
87
WASHER; LK,BRKT
THA
1-48199-334-0
09
1
1305-
102
CARTRIDGE; AIR DRYER
THA
1-48199-493-0
01
1
1305-
104
GASKET
(A) THA
1-48199-108-0
01
1
1305-
104
GASKET
(B) THA
1-48199-109-0
01
1
1305-
2
104
69
104
70
3
68
66
104
104
69
70
65
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
THA
1-85576-379-0
01
1
1305-
3
PISTON KIT; AIR DRYER
THA
1-85576-139-0
01
1
1305-
6
COVER; EXH,AIR DRYER
THA
1-48199-419-0
01
1
1305-
65
BOLT; PURGE VLV
THA
1-48199-393-0
01
1
1305-
66
PISTON; AIR DRYER
THA
1-48199-198-0
01
1
1305-
68
BODY; VALVE
THA
1-48199-352-0
01
1
1305-
69
GASKET; EXH COVER
THA
1-48199-153-0
01
1
1305-
70
VALVE; AIR DRYER
THA
1-48199-105-0
01
1
1305-
104
GASKET
(A) THA
1-48199-108-0
01
1
1305-
104
GASKET
(B) THA
1-48199-109-0
01
1
1305-
