◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#120129) — 25 parça

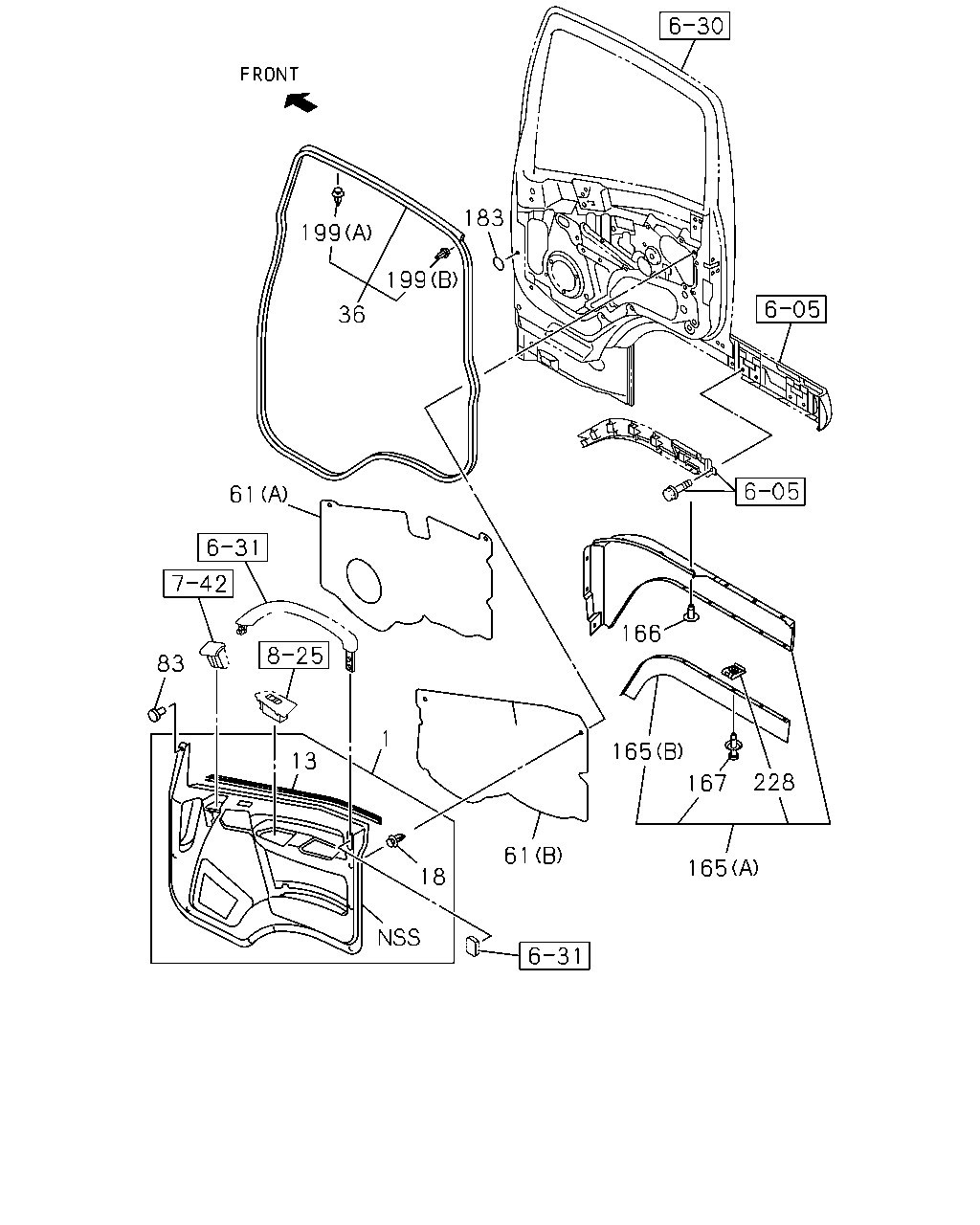

çizim 352345
199 36 199 183 166 165 165 228 167 61 18 1 13 61 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
THA 		8-97923-890-1 01 1 1305- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-889-1 01 1 1305- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-902-1 01 1 1305- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-901-1 01 1 1305- ●
13 SEAL; DOOR TRIM
THA 		8-97923-892-0 01 1 1305- ● ●
13 SEAL; DOOR TRIM
THA 		8-97923-891-0 01 1 1305- ● ●
18 CLIP; DOOR PAD 8-98004-025-0 14 1 1305- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1305- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1305- ● ●
61 SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98029-395-2 01 1 1305-1306 ● ●
61 SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) THA 		8-97948-265-0 01 1 1307- ● ●
61 SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98029-394-2 01 1 1305-1306 ● ●
61 SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) THA 		8-97948-264-0 01 1 1307- ● ●
61 SEAL; WATER,DOOR PAD
EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (B) 		8-98029-396-0 02 1 1305- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1305- ● ●
165 LINER; DOOR LWR
(A) 		8-97617-149-2 01 1 1305- ● ●
165 LINER; DOOR LWR
(B) 		8-98057-720-1 01 1 1305- ● ●
165 LINER; DOOR LWR
(A) 		8-97617-148-2 01 1 1305- ● ●
165 LINER; DOOR LWR
(B) 		8-98057-719-1 01 1 1305- ● ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 09 1 1305- ● ●
167 CLIP; LINER
D8X13.5 		1-09987-248-1 17 1 1305- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK THA 		1-76798-019-0 02 1 1305- ● ●
199 CLIP; SEAL
(A) NATURAL THA 		8-98062-270-0 80 1 1305- ● ●
199 CLIP; SEAL
(B) RED THA 		8-98062-271-0 02 1 1305- ● ●
228 NUT; SPIRE 8-94334-769-0 04 1 1305- ● ●
