Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

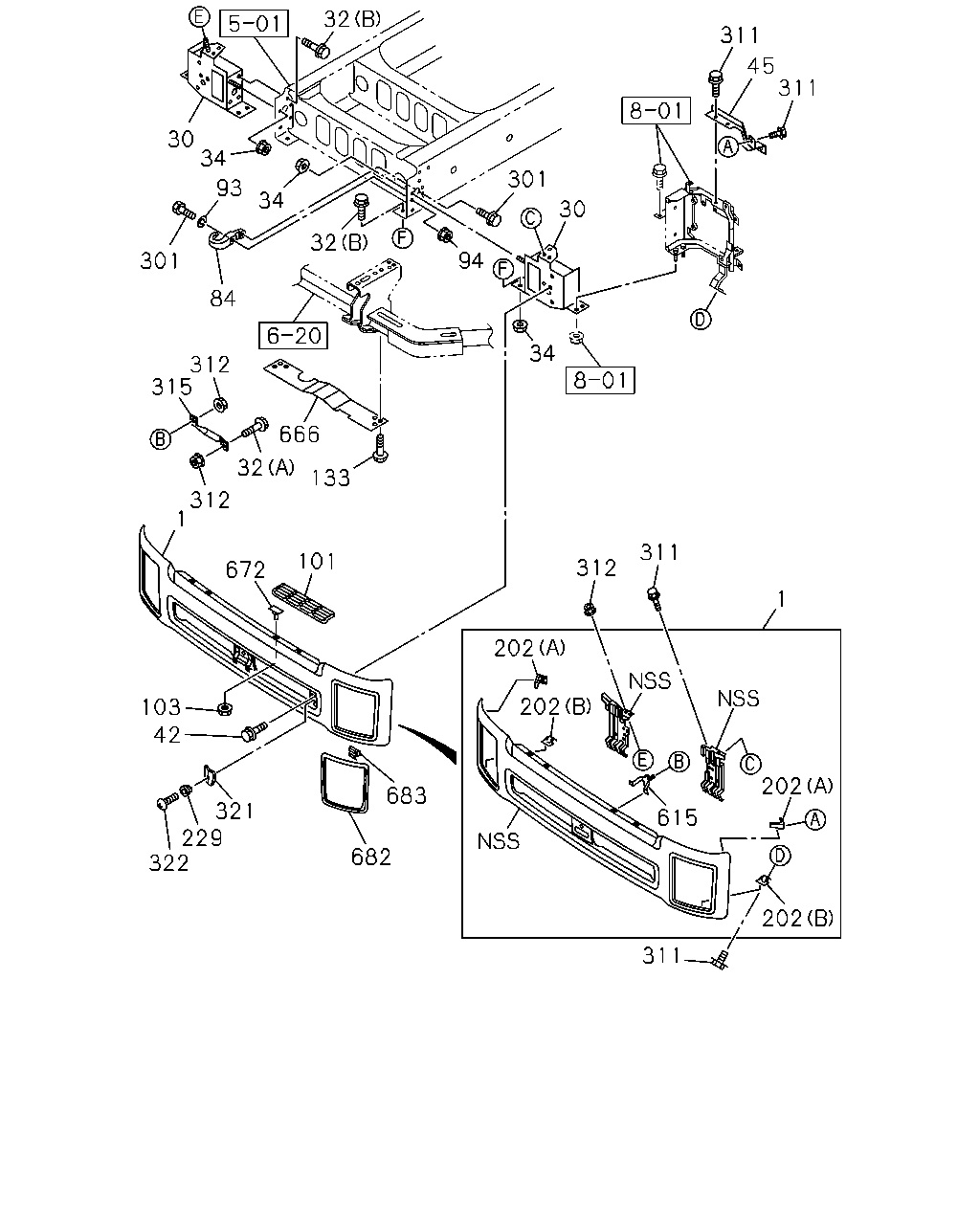

6-01 — FRONT BUMPER
(#120128) — 36 parça
311
45
311
30
301
94
34
32
34
93
34
30
301
312
315
666
133
32
312
1
672
101
312
1
311
202
202
615
202
202
683
682
321
229
322
42
103
32
311
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE THA
8-97425-037-0
01
1
1305-
30
BRACKET; FRT BUMPER
THA
8-98055-264-0
01
1
1305-
30
BRACKET; FRT BUMPER
THA
8-98055-263-0
01
1
1305-
32
BOLT; BRKT,BUMPER
(B) M12X35 FLANGE THA
0-28051-235-0
10
1
1305-
32
BOLT; BRKT,BUMPER
(A) M10X30
8-94324-205-0
01
1
1305-
34
NUT; BRKT,BUMPER
M12 FLANGE THA
0-91180-212-0
06
1
1305-
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1305-
45
BRACKET; BRKT TO BUMPER
8-97613-648-2
01
1
1305-
45
BRACKET; BRKT TO BUMPER
8-97613-647-2
01
1
1305-
84
HOOK
THA
8-97948-025-0
01
1
1305-
93
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
1305-
94
NUT; HOOK
M16 THA
0-91110-516-0
01
1
1305-
101
STEP; BUMPER
8-97611-543-0
01
1
1305-
101
STEP; BUMPER
8-97611-542-0
01
1
1305-
103
NUT; BUMPER STEP
M6 FLANGE THA
0-91180-106-0
04
1
1305-
133
BOLT; PROTECTOR FIX
M12X25 FLANGE THA
0-28661-225-0
06
1
1305-
202
BRACKET; BUMPER SIDE
(A) THA
8-98184-663-0
01
1
1305-
202
BRACKET; BUMPER SIDE
(A) THA
8-98184-664-0
01
1
1305-
202
BRACKET; BUMPER SIDE
(B) THA
8-98184-668-0
01
1
1305-
202
BRACKET; BUMPER SIDE
(B) THA
8-98184-669-0
01
1
1305-
229
GROMMET
D=7X7 L=7.5 THA
5-09983-007-0
02
1
1305-
301
BOLT; HOOK TO FRAME
M16X60
0-10861-660-0
01
1
1305-
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
01
1
1305-
311
BOLT; BRKT
M10X25 FLANGE THA
0-28651-025-0
04
1
1305-
311
BOLT; BRKT
M10X30
8-94324-205-0
07
1
1305-
312
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1305-
315
STAY; BUMPER
8-97617-115-0
01
1
1305-
321
COVER; BUMPER FRT SIDE
8-97616-297-1
01
1
1305-
321
COVER; BUMPER FRT SIDE
8-97616-296-1
01
1
1305-
322
SCREW; COVER FIX
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1305-
615
BRACKET; BUMPER CENTER
THA
8-98184-611-0
01
1
1305-
666
PROTECTOR; UNDER
8-97608-467-1
01
1
1305-
672
STUD; STEP
8-97611-666-0
04
1
1305-
682
BEZEL; BUMPER
8-97611-531-2
01
1
1305-
682
BEZEL; BUMPER
8-97611-530-2
01
1
1305-
683
CLIP; BEZEL,BUMPER
8-98084-293-0
08
1
1305-
