4-31 — STEERING COLUMN AND SHAFT (#120127) — 25 parça

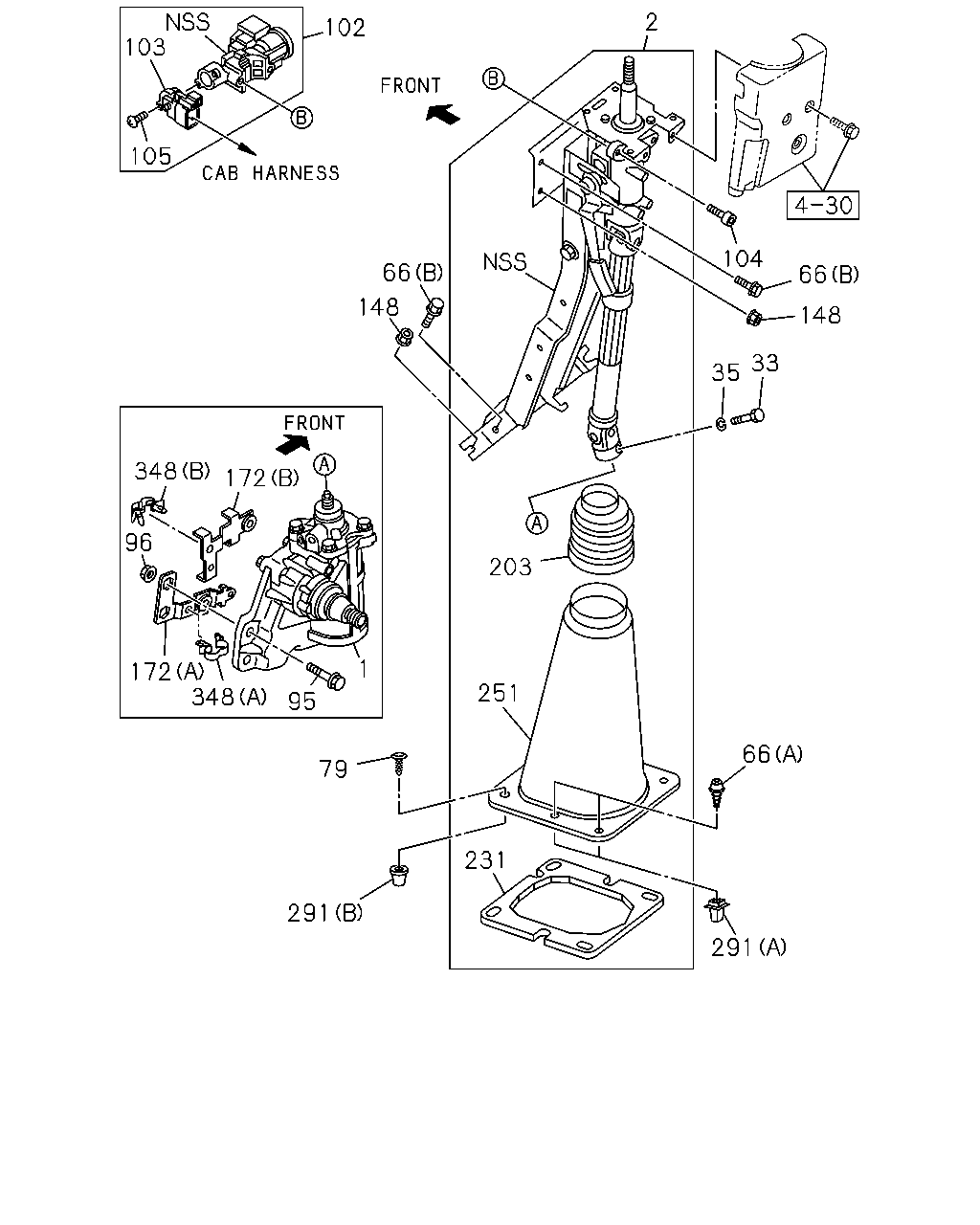

çizim 351064
103 102 105 2 66 148 172 348 96 172 348 95 1 251 79 291 231 291 66 203 35 33 148 66 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98101-297-3 01 1 1304- ● ●
2 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-801-2 01 1 1304- ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 IMA 		8-97359-615-0 01 1 1304- ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 THA 		0-91510-808-0 01 1 1304- ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1304- ● ●
66 BOLT; STRG COLUMN
(A) M5X18 TAPPING IMA 		0-72180-518-0 04 1 1304- ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER IMA 		8-98051-939-0 02 1 1304- ● ●
79 CLIP; STRG COLUMN COVER
L=19 BLACK IMA 		8-94363-776-0 02 1 1304- ● ●
95 BOLT; STRG UNIT
M12X47 FLANGE IMA 		8-98055-055-0 04 1 1304- ● ●
96 NUT; STRG UNIT
M12 FLANGE IMA 		8-97359-618-0 02 1 1304- ● ●
102 LOCK ASM; STRG 8-98006-150-0 01 1 1304-1308 ● ●
102 LOCK ASM; STRG
THA 		8-97948-271-0 01 1 1309- ● ●
103 SWITCH; IGNITION
THA 		8-98045-349-0 01 1 1304- ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT IMA 		8-97321-385-0 02 1 1304- ● ●
105 SCREW; IGN SW
THA 		8-98045-346-0 02 1 1304- ● ●
148 NUT; COLUMN TO BRKT
M8 W/DISHED WASHER IMA 		8-97329-625-0 03 1 1304- ● ●
172 BRACKET; STRG
(B) IMA 		8-98055-061-0 01 1 1304- ● ●
172 BRACKET; STRG
(A) IMA 		8-98078-803-0 01 1 1304- ● ●
203 BOOT; STRG COLUMN LWR
MANUAL TILT CAB<RWZ> 		8-98137-331-0 01 1 1304- ● ●
231 SEAL; RUBBER,STRG COLUMN
MANUAL TILT CAB<RWZ> 		8-98137-329-0 01 1 1304- ● ●
251 COVER; LWR
MANUAL TILT CAB<RWZ> BLACK 		8-97418-804-0 01 1 1304- ● ●
291 GROMMET; STRG SHAFT COVER
(A) H=15 IMA 		8-94463-268-1 04 1 1304- ● ●
291 GROMMET; STRG SHAFT COVER
(B) IMA 		8-98029-442-1 02 1 1304- ● ●
348 CLIP; BRKT,STRG
(A) ID=5-12 L=18 IMA 		1-09709-287-0 01 1 1304- ● ●
348 CLIP; BRKT,STRG
(B) ID=5-12 L=22 IMA 		1-09709-288-0 01 1 1304- ● ●
