Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#120126) — 27 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

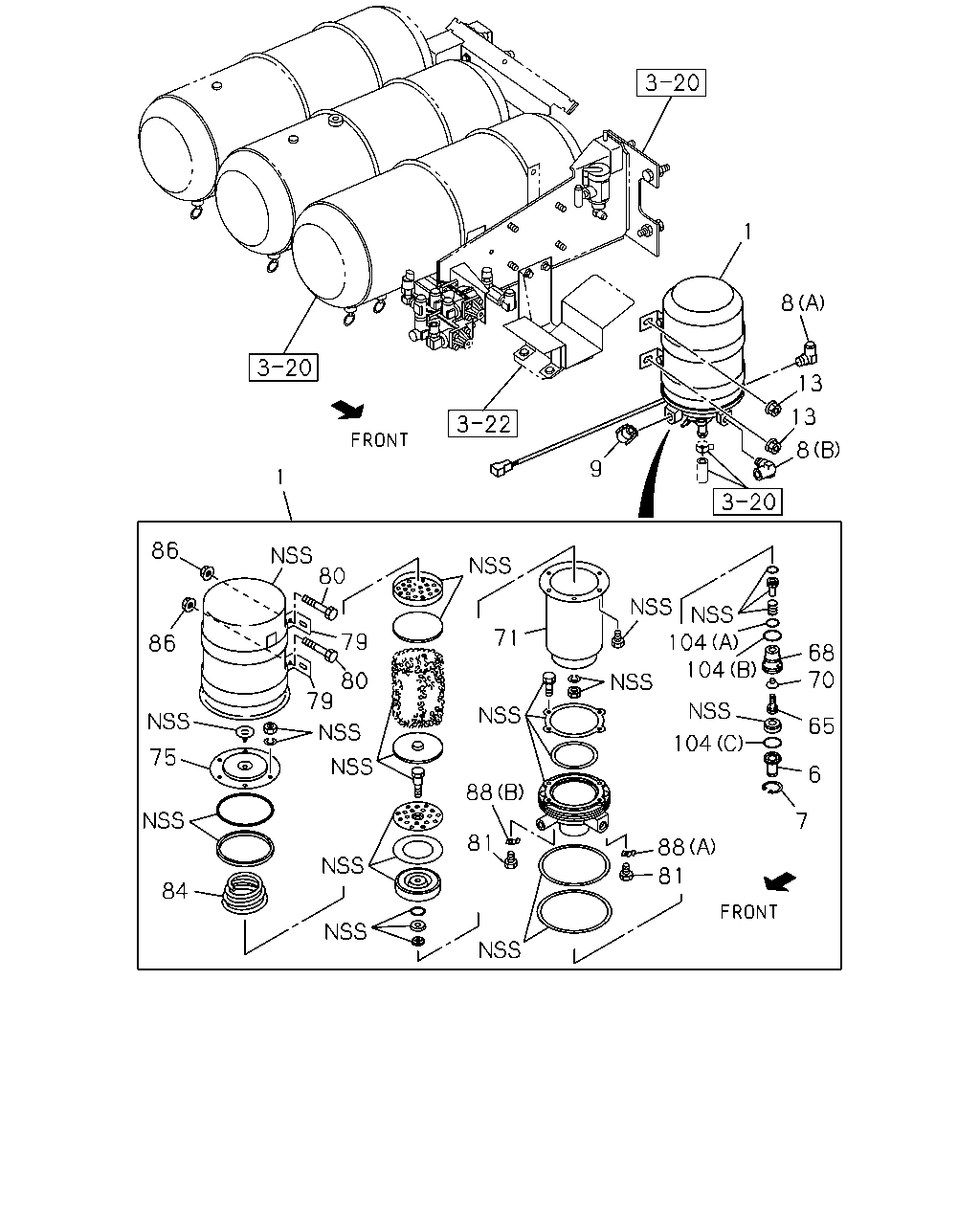

[346A] FIXING AND COMPONENT (22 parça)

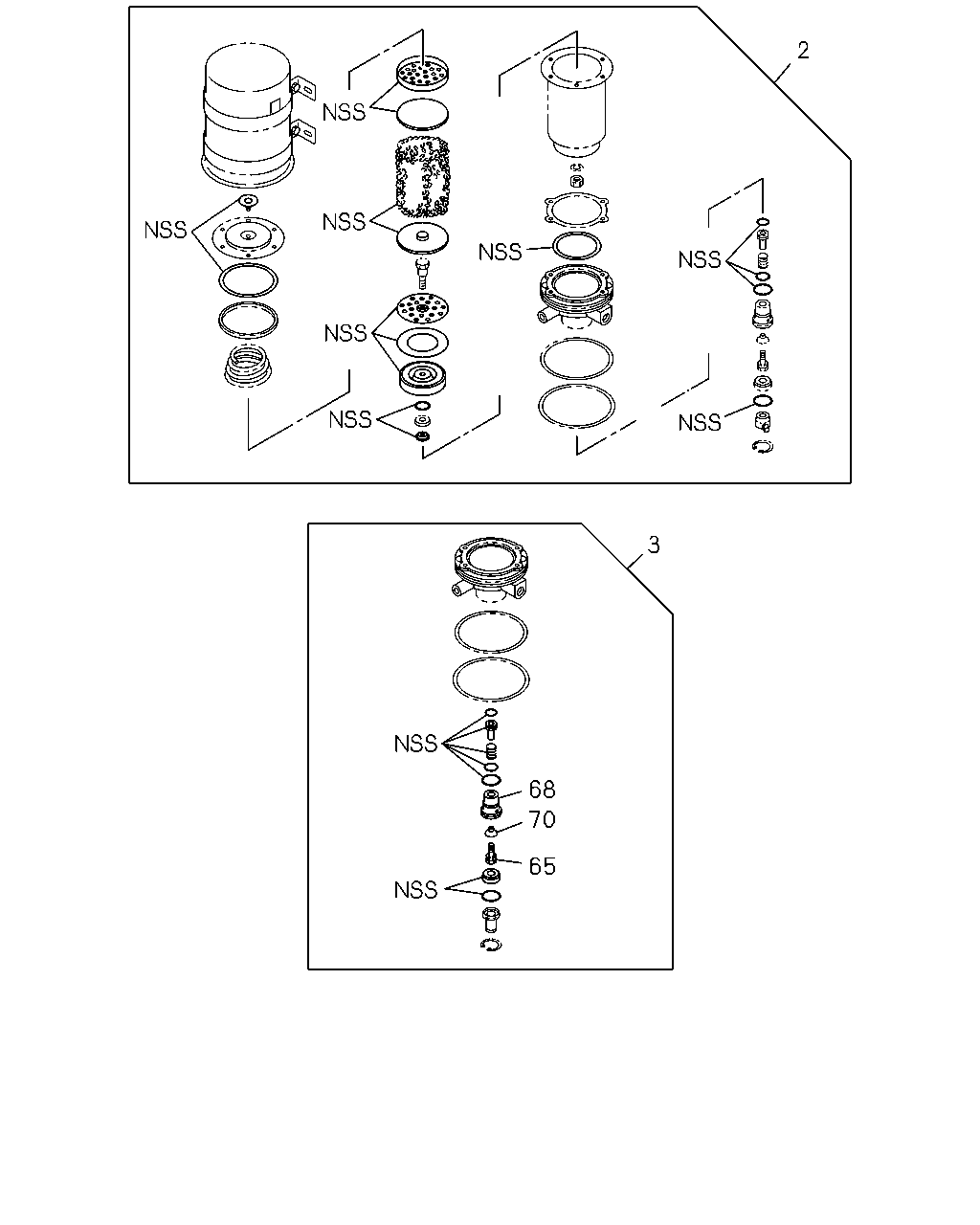

[346A] REPAIR KIT AND PISTON KIT (5 parça)
▶
1
8
13
13
8
9
71
79
80
86
86
80
79
75
88
81
84
88
81
7
6
65
68
70
104
104
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
THA
1-48190-374-1
01
1
1305-
●
●
6
COVER; EXH,AIR DRYER
THA
1-48199-101-0
01
1
1305-
●
●
7
RING; SNAP,AIR DRYER
THA
1-48199-154-0
01
1
1305-
●
●
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1305-
●
●
8
CONNECTOR; OUT,AIR DRYER
(B) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1305-
●
●
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1305-
●
●
13
NUT; AIR DRYER
M10 FLANGE THA
0-91180-210-0
04
1
1305-
●
●
65
BOLT; PURGE VLV
THA
1-48199-393-0
01
1
1305-
●
●
68
BODY; VALVE
THA
1-48199-216-0
01
1
1305-
●
●
70
VALVE; AIR DRYER
THA
1-48199-105-0
01
1
1305-
●
●
71
CASE; INNER,AIR DRYER
THA
1-48199-156-1
01
1
1305-
●
●
75
COVER; CASE,AIR DRYER
THA
1-48199-167-0
01
1
1305-
●
●
79
BRACKET; AIR DRYER
THA
1-48199-189-0
02
1
1305-
●
●
80
BOLT; BRKT
THA
1-48199-190-0
02
1
1305-
●
●
81
BOLT; CASE,AIR DRYER
THA
1-48199-177-0
02
1
1305-
●
●
84
SPRING; AIR DRYER
THA
1-48199-166-0
01
1
1305-
●
●
86
NUT; BRKT
THA
1-48199-320-0
02
1
1305-
●
●
88
PLATE; STOPPER
(A) THA
1-48199-178-0
01
1
1305-
●
●
88
PLATE; STOPPER
(B) THA
1-48199-179-0
01
1
1305-
●
●
104
GASKET
(A) THA
1-48199-108-0
01
1
1305-
●
●
104
GASKET
(B) THA
1-48199-109-0
01
1
1305-
●
●
104
GASKET
(C) THA
1-48199-153-0
01
1
1305-
●
●
3
68
70
65
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; AIR DRYER
THA
1-85576-463-0
01
1
1305-
●
●
3
PISTON KIT; AIR DRYER
THA
1-85576-057-1
01
1
1305-
●
●
65
BOLT; PURGE VLV
THA
1-48199-393-0
01
1
1305-
●
●
68
BODY; VALVE
THA
1-48199-216-0
01
1
1305-
●
●
70
VALVE; AIR DRYER
THA
1-48199-105-0
01
1
1305-
●
●
