2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#120124) — 26 parça

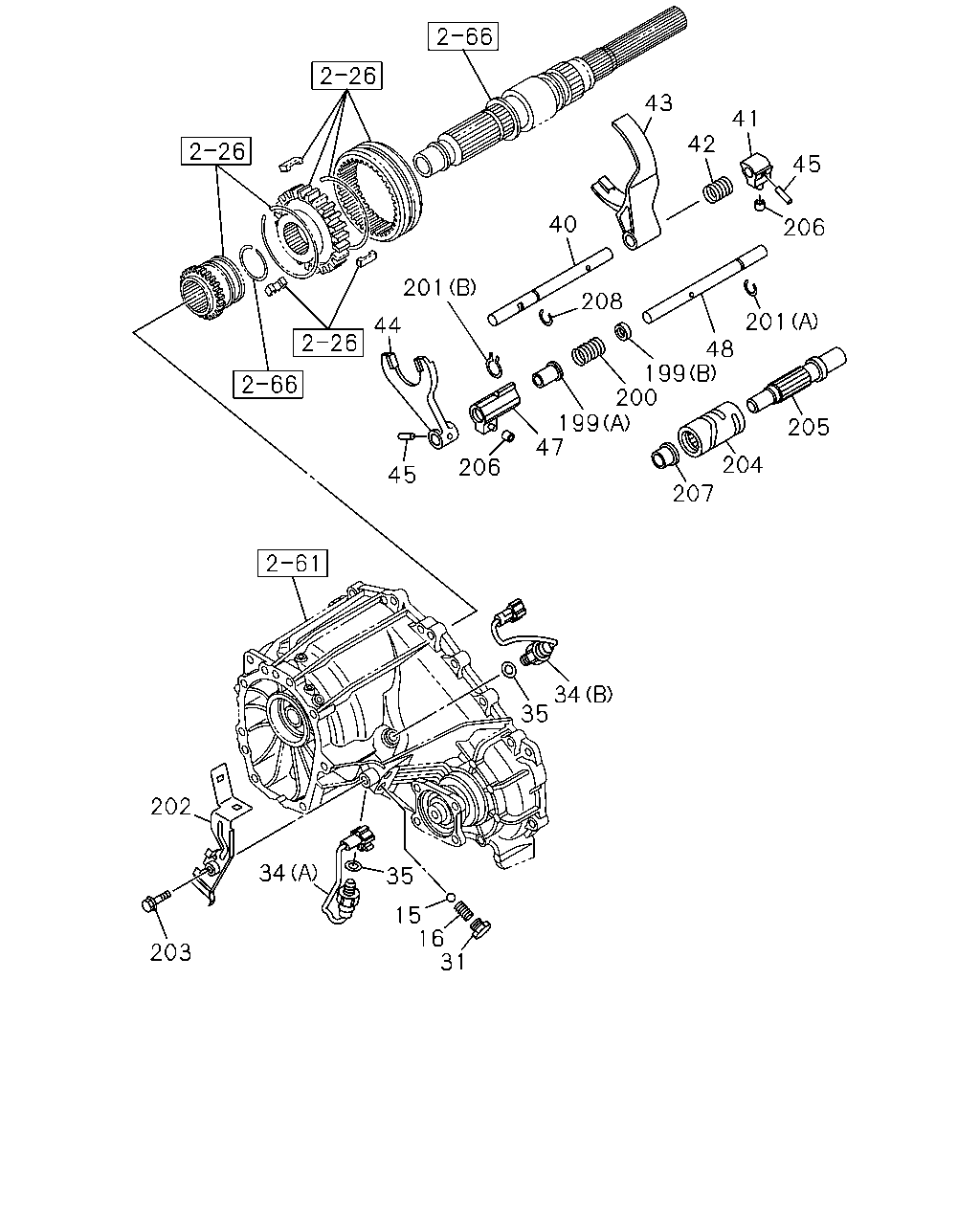

çizim 350745
204 207 205 201 206 45 41 42 43 40 208 48 199 200 199 47 206 45 44 201 34 35 31 16 15 34 35 202 203
BalonParca AdiParca NoAdetTipApplied Date A B
15 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 1305- ● ●
16 SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4 		8-97145-374-0 02 1 1305- ● ●
31 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 1305- ● ●
34 SWITCH; TRANSFER INDICATOR
(A) 		8-98181-233-0 01 1 1305- ● ●
34 SWITCH; TRANSFER INDICATOR
(B) 		8-98181-234-0 01 1 1305- ● ●
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 02 1 1305- ● ●
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 1305- ● ●
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 1305- ● ●
42 SPRING; GEAR LOCK RELEASE,TRANSFER 8-97239-010-1 01 1 1305- ● ●
43 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 1305- ● ●
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 1305- ● ●
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 1305- ● ●
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1305- ● ●
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 1305- ● ●
199 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 1305- ● ●
199 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 1305- ● ●
200 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 1305- ● ●
201 RING; SNAP,SHIFT
(A) ID=12 		8-94460-357-0 01 1 1305- ● ●
201 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 1305- ● ●
202 BRACKET; SWITCH 8-98118-922-1 01 1 1305- ● ●
203 BOLT; BRACKET,SWITCH
M8X25 FLANGE 		0-28650-825-0 01 1 1305- ● ●
204 DRUM; SHIFT 8-98158-123-0 01 1 1305- ● ●
205 SHAFT; SHIFT DRUM 8-98063-364-1 01 1 1305- ● ●
206 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 1305- ● ●
207 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1305- ● ●
208 RING; SNAP,SHIFT
ID=12 		8-94460-357-0 01 1 1305- ● ●
