0-14 — CAMSHAFT AND VALVE (#120122) — 54 parça

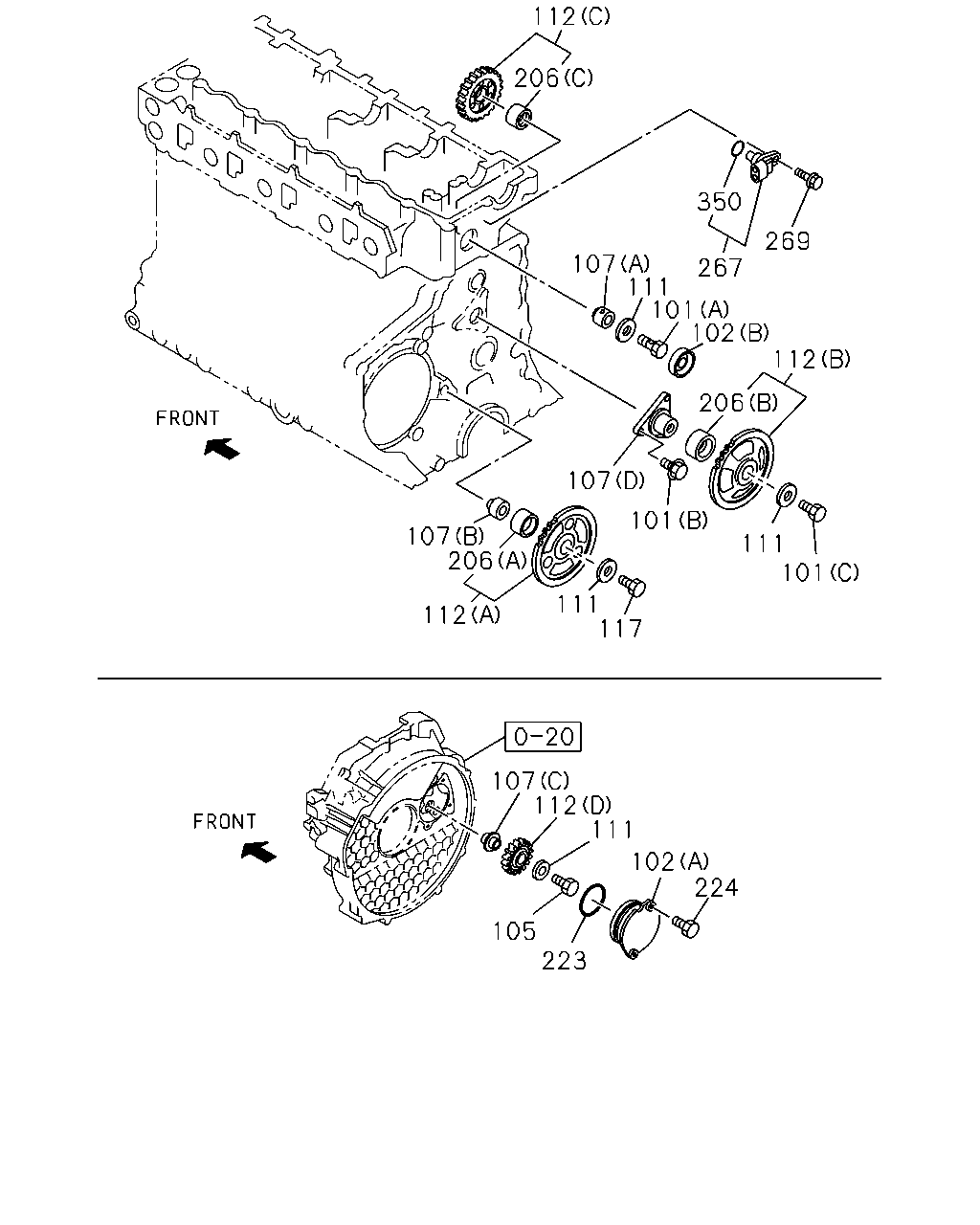

112 206 350 107 269 267 111 112 102 101 206 107 101 111 101 117 111 112 107 206 224 102 111 112 107 105 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE IMA	0-28060-816-0	03	1	1304-
101	BOLT; THRUST COLLAR (A) M14X36.5 IMA	8-94372-221-1	01	1	1304-
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	1304-1310
101	BOLT; THRUST COLLAR (C) M14X25 IMA	0-23951-425-0	01	1	1311-
102	COVER; IDLE GEAR (A) IMA	8-94334-681-1	01	1	1304-
102	COVER; IDLE GEAR (B) OD=51 IMA	8-97096-826-0	01	1	1304-
105	BOLT; IDLE GEAR SHAFT M14X60 IMA	0-16956-460-0	01	1	1304-
107	SHAFT; IDLE GEAR (C) IMA	8-94334-682-1	01	1	1304-
107	SHAFT; IDLE GEAR (A) IMA	8-97186-398-1	01	1	1304-
107	SHAFT; IDLE GEAR (D) IMA	8-97350-021-0	01	1	1304-
107	SHAFT; IDLE GEAR (B) IMA	8-98060-780-0	01	1	1304-
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46 IMA	8-97209-728-2	04	1	1304-
112	GEAR; IDLE (D) Z=34 IMA	8-97120-005-1	01	1	1304-
112	GEAR; IDLE (A) Z=72-60-30	8-97600-586-1	01	1	1304-1402
112	GEAR; IDLE (A) Z=72-60-30 IMA	8-98254-970-0	01	1	1403-
112	GEAR; IDLE (B) Z=61 IMA	8-97606-767-0	01	1	1304-
112	GEAR; IDLE (C) Z=41 IMA	8-97606-929-0	01	1	1304-
117	BOLT; FLANGE M14X65 FLANGE IMA	8-97113-167-0	01	1	1304-
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	1304-1402
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT. IMA	8-98255-899-0	01	1	1403-
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT. IMA	8-97606-768-0	01	1	1304-
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT. IMA	8-97606-770-0	01	1	1304-
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6 IMA	1-09623-423-0	01	1	1304-
224	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	1304-
267	SENSOR; CAM ANGLE IMA	8-98019-024-0	01	1	1304-
269	BOLT; SENSOR M6X12 FLANGE THA	0-28050-612-0	01	1	1304-
350	GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8 IMA	8-97369-404-0	01	1	1304-

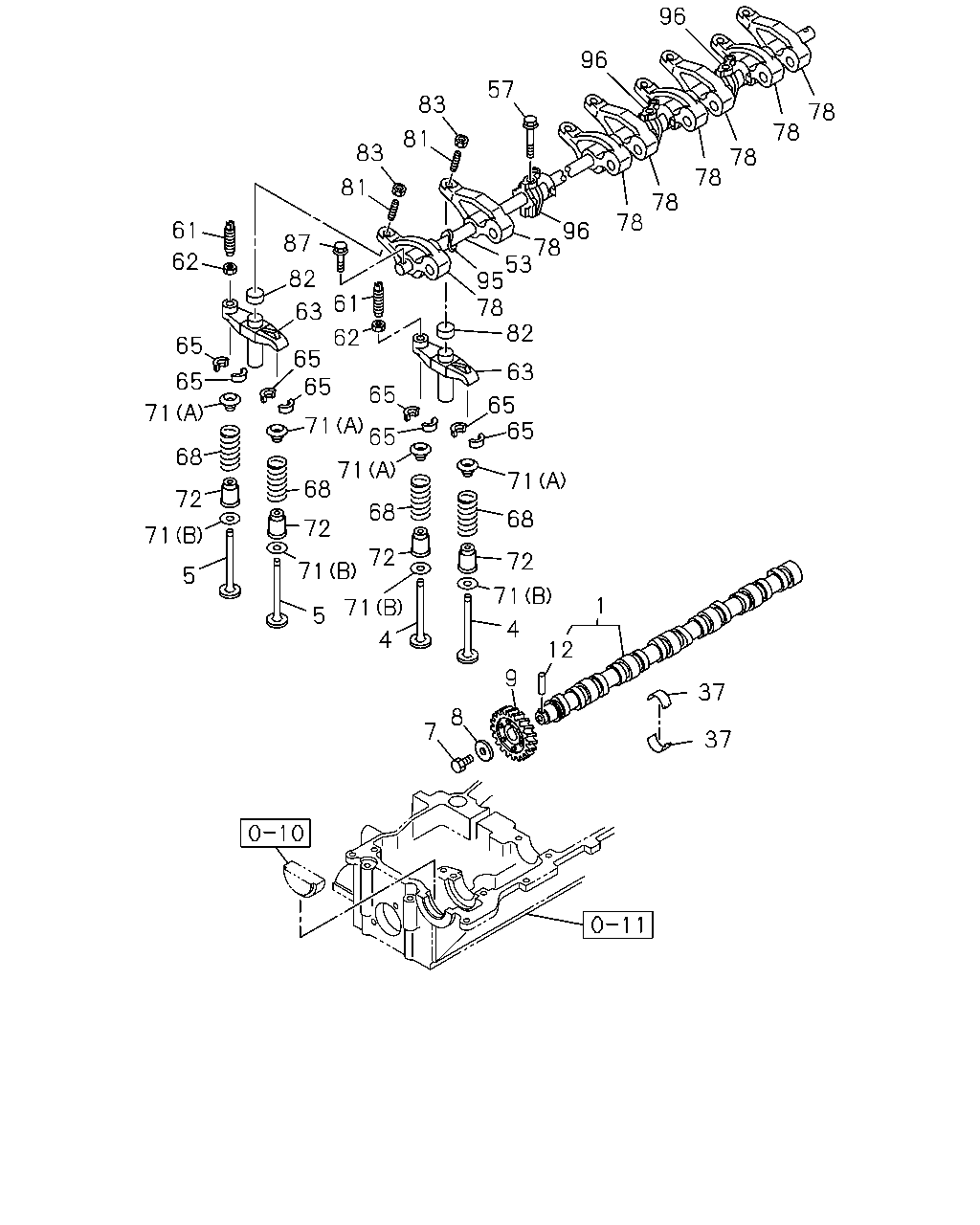

78 78 78 78 78 78 96 96 57 83 81 83 81 96 78 53 95 63 82 78 65 71 65 68 71 4 12 37 37 72 4 71 68 71 72 65 65 62 61 87 65 63 82 65 68 71 5 72 5 71 68 71 65 65 62 61 72 7 9 8 71 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAMSHAFT IMA	8-97262-166-0	01	1	1304-
4	VALVE; INL IMA	8-94395-882-2	08	1	1304-
5	VALVE; EXH	8-97209-876-4	08	1	1304-
7	BOLT; CM/SHF GEAR M14X40 IMA	8-94396-439-0	01	1	1304-
8	WASHER; CM/SHF GEAR ID=14.5 IMA	9-09851-850-3	01	1	1304-
9	GEAR; CM/SHF Z=35 IMA	8-98018-935-3	01	1	1304-
12	KEY; CAM GEAR SET OD=7 L=7.5 IMA	8-94399-487-0	02	1	1304-
37	METAL; CM/SHF B=16 IMA	8-97386-189-0	10	1	1304-
53	SHAFT; ROCKER ARM IMA	8-97389-921-0	01	1	1304-
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE IMA	8-94393-131-0	03	1	1304-
61	SCREW; ADJ,BRIDGE M8X21 IMA	8-94394-803-0	08	1	1304-
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE IMA	9-09844-574-0	08	1	1304-
63	BRIDGE IMA	8-94392-002-3	08	1	1304-
65	COLLAR; SPLIT IMA	5-12565-004-0	32	1	1304-
68	SPRING; VLV EXHAUST MARK RED IMA	8-97210-682-0	08	1	1304-
68	SPRING; VLV INLET MARK BLUE IMA	8-97352-888-0	08	1	1304-
71	SEAT; SPR (A) OD=32.8 T=12.75 IMA	8-94390-783-2	16	1	1304-
71	SEAT; SPR (B) ID=14.3 T=1.0 IMA	8-94391-468-0	16	1	1304-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA	8-97376-720-0	16	1	1304-
78	ARM; ROCKER INLET IMA	8-97306-421-3	04	1	1304-
78	ARM; ROCKER EXHAUST IMA	8-97306-424-3	04	1	1304-
81	SCREW; ADJ,ROCKER ARM M10 L=32 IMA	8-94395-024-0	08	1	1304-
82	CAP; ROCKER SHAFT IMA	8-94396-015-2	08	1	1304-
83	NUT; ADJ SCREW,LK M10 IMA	0-91111-510-0	08	1	1304-
87	BOLT; ROCKER SHAFT M8X40 FLANGE THA	0-28050-840-0	02	1	1304-
95	SPRING; ROCKER SHAFT IMA	8-94392-999-0	04	1	1304-
96	BRACKET; ROCKER ARM SHAFT IMA	8-97334-414-0	03	1	1304-
