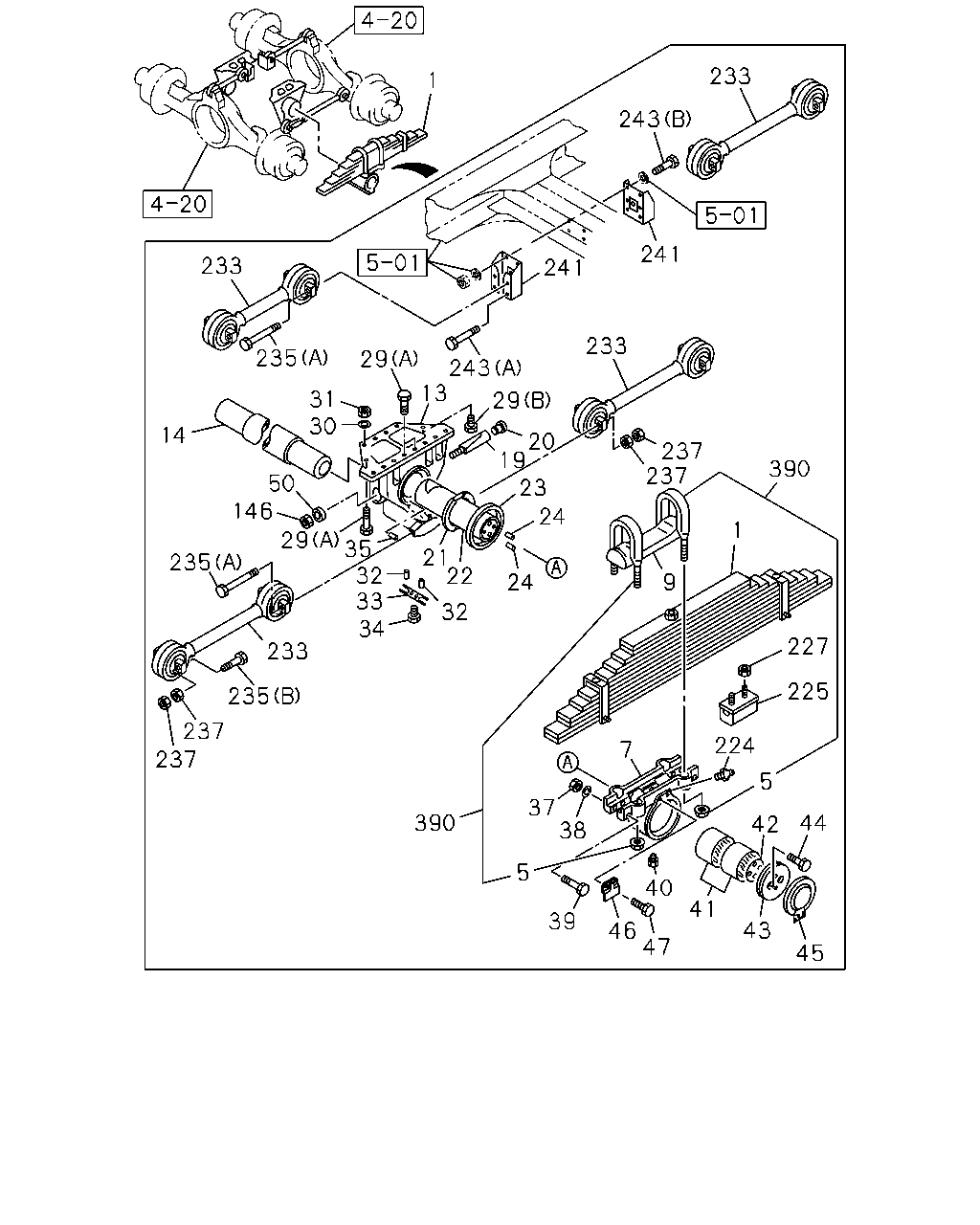

4-60 — REAR SUSPENSION (#12012) — 65 parça

1 243 233 241 241 233 237 237 390 1 9 227 225 224 5 42 44 45 43 41 40 47 46 39 5 38 7 37 390 24 24 23 19 20 29 243 13 29 233 235 31 30 50 14 146 29 235 237 237 235 233 34 33 32 35 21 22 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 10-LEAF	1-51410-150-0	02	1	0105-
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 12-LEAF	1-51310-436-2	02	1	0105-
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	0105-
7	SEAT; SPR,LWR	1-51385-091-2	02	1	0105-0604
7	SEAT; SPR,LWR	8-97614-049-0	02	1	0605-
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	0105-
13	BRACKET; TRUNNION SHAFT NEW ZEALAND EQUIPMENT(PK5)	1-53361-079-0	02	1	0105-
13	BRACKET; TRUNNION SHAFT EXC. NEW ZEALAND EQUIPMENT(PK5)	1-53361-065-0	02	1	0105-
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	0105-
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	0105-
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	0105-
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	0105-
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	0105-
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	0105-
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	0105-
29	BOLT; BRKT TO FRAME (A) M18X75	1-09000-221-2	24	1	0105-
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	0105-
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	0105-
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	0105-0512
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	0601-
32	PIN; STRAIGHT	1-09740-027-0	04	1	0105-
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	0105-
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	0105-0512
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	0601-
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	0105-
37	NUT; SPR SETTING M22	9-09110-522-0	04	1	0105-0512
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	0601-
38	WASHER; LK,SPR SETTING ID=22.5	9-09150-622-0	04	1	0105-0603
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	0604-
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	0105-
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	0105-
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	0105-
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	0105-
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	0105-
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	0105-
45	COVER; SPR SEAT	1-51387-013-2	02	1	0105-
46	BRACKET; COVER	1-51387-015-2	02	1	0105-
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	0105-0512
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	0601-
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	0105-
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	0105-0512
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	0601-
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0512
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
225	RUBBER; CUSHION,RR SPR FORWARD RH, REARWARD LH	1-53366-045-0	02	1	0105-
225	RUBBER; CUSHION,RR SPR FORWARD LH, REARWARD RH	1-53366-046-0	02	1	0105-
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	08	1	0105-0602
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	0603-
233	ROD ASM; TORQUE,RR SUSP FORWARD L=525	1-51511-656-0	03	1	0105-
233	ROD ASM; TORQUE,RR SUSP REARWARD L=550	1-51511-659-0	03	1	0105-
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	0105-
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	0105-
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	0105-
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	0105-
243	BOLT; BRKT,TORQUE ROD (A) M14X205	1-09000-147-0	02	1	0105-
243	BOLT; BRKT,TORQUE ROD (B) M14X50	9-92061-450-0	02	1	0105-0512
243	BOLT; BRKT,TORQUE ROD (B) M14X50	0-20951-450-0	02	1	0601-
390	U-BOLT SET; RR SPRING L=350	1-87870-392-1	04	1	0105-

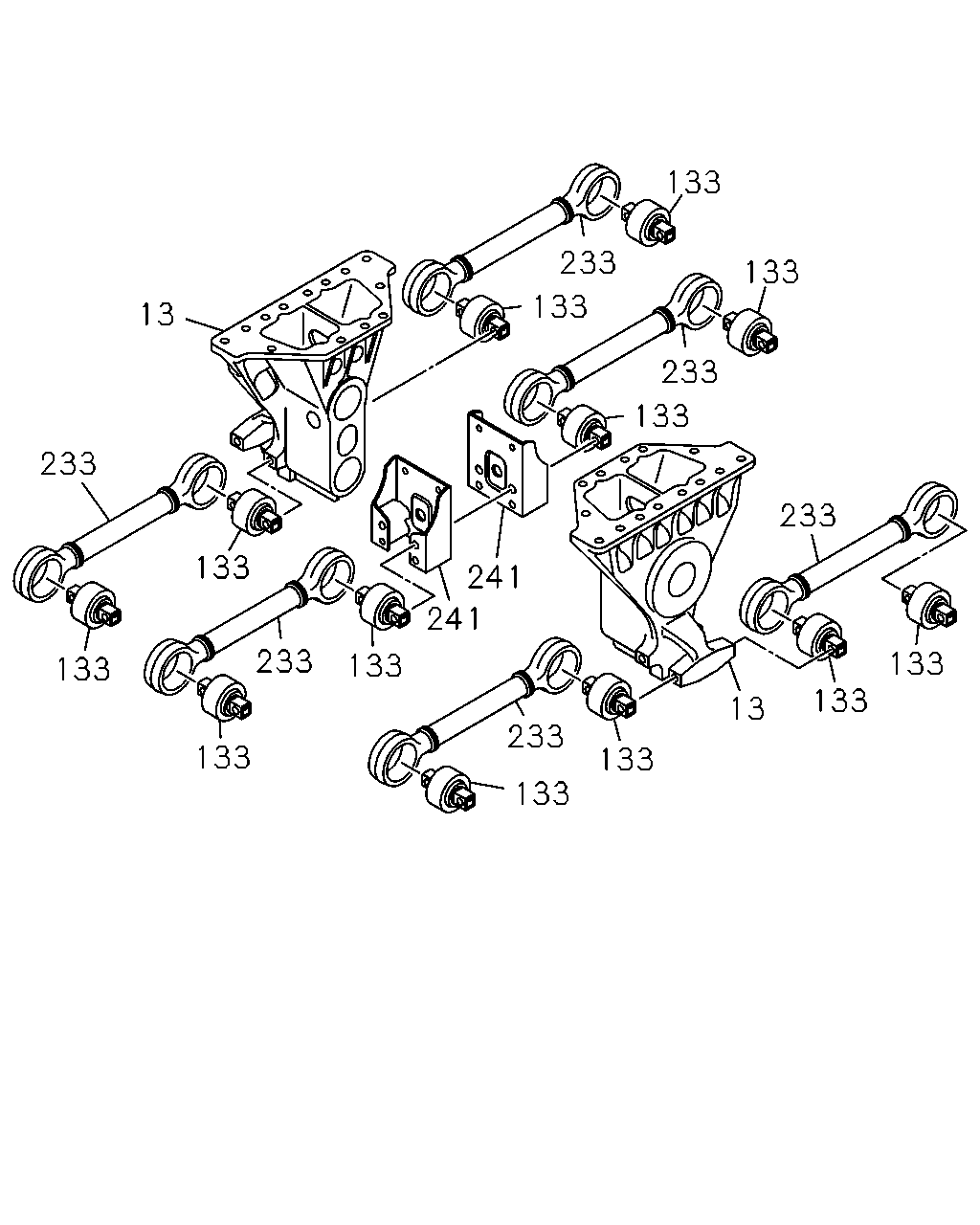

133 133 233 133 233 133 133 13 133 233 133 133 133 233 133 241 241 133 233 13 133 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	BRACKET; TRUNNION SHAFT NEW ZEALAND EQUIPMENT(PK5)	1-53361-079-0	02	1	0105-
13	BRACKET; TRUNNION SHAFT EXC. NEW ZEALAND EQUIPMENT(PK5)	1-53361-065-0	02	1	0105-
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0105-
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0105-
233	ROD ASM; TORQUE,RR SUSP FORWARD L=525	1-51511-656-0	03	1	0105-
233	ROD ASM; TORQUE,RR SUSP REARWARD L=550	1-51511-659-0	03	1	0105-
241	BRACKET; TORQUE ROD	1-53363-031-2	02	1	0105-
