Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-11 - CYLINDER HEAD
▶
0-11 — CYLINDER HEAD
(#120116) — 40 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
◀
[011A] NO.2 (12 parça)

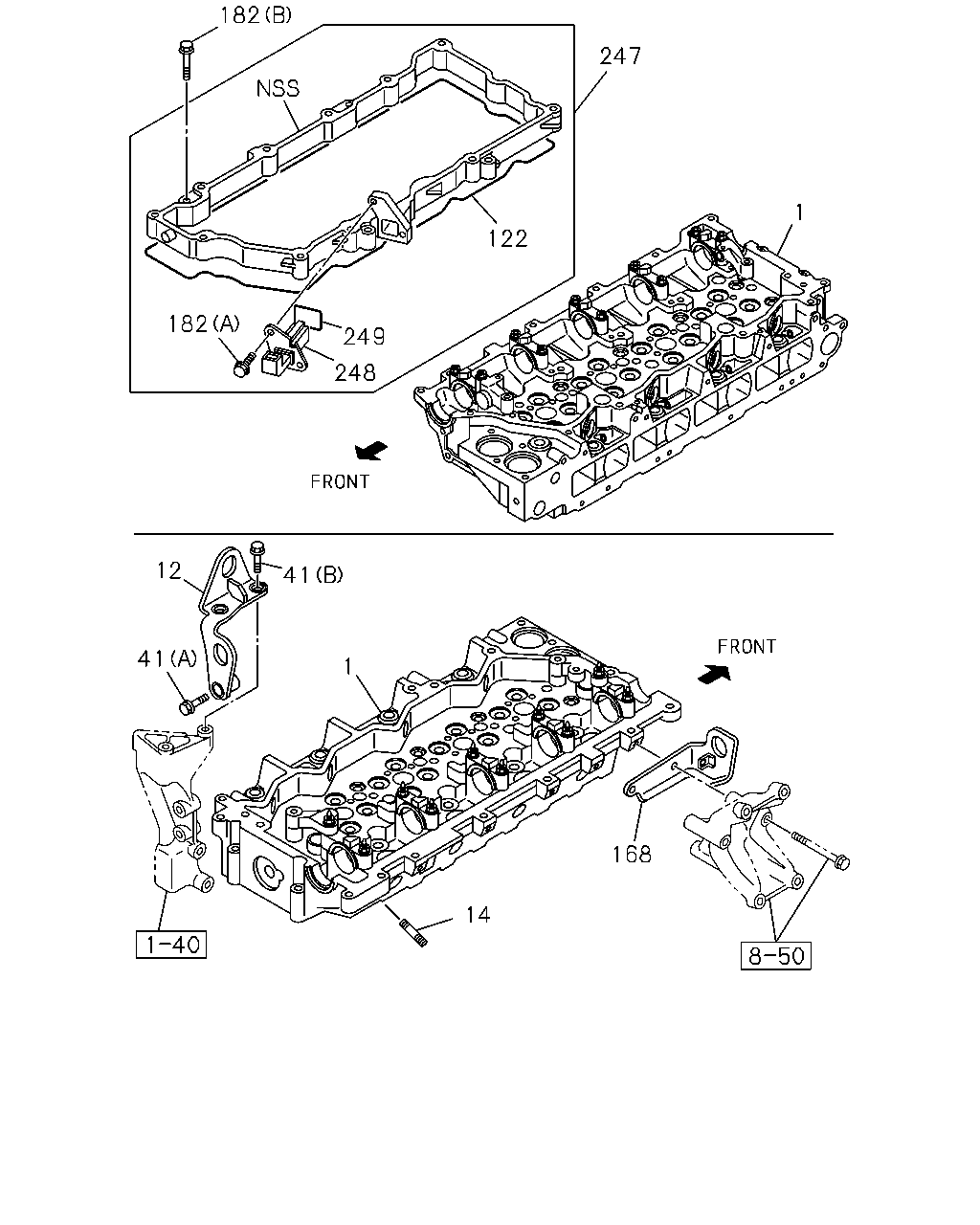

[011A] NO.1 (28 parça)
▶
182
182
247
122
249
41
12
41
1
14
168
248
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HEAD ASM; CYL
IMA
8-98170-619-0
01
1
1304-
●
●
12
HANGER; ENG,RR
IMA
8-98074-691-1
01
1
1304-
●
●
14
STUD; EXH MANIF
M10X60 L=75 IMA
8-94397-286-0
02
1
1304-
●
●
41
BOLT; ENG HANGER
(B) M12X20 FLANGE IMA
0-28151-220-0
02
1
1304-
●
●
41
BOLT; ENG HANGER
(A) M12X80 IMA
0-28151-280-0
01
1
1304-
●
●
122
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) IMA
8-97331-360-1
01
1
1304-
●
●
168
HANGER; ENG,FRT
IMA
8-98032-250-1
01
1
1304-
●
●
182
BOLT; CASE
(A) M8X12 FLANGE THA
0-28050-812-0
02
1
1304-
●
●
182
BOLT; CASE
(B) M8X45 FLANGE THA
0-28050-845-0
04
1
1304-
●
●
247
CASE; CYL HEAD,C/H COVER
IMA
8-97331-362-1
01
1
1304-
●
●
248
CONNECTOR
IMA
8-94390-858-1
01
1
1304-
●
●
249
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). IMA
8-94391-310-0
01
1
1304-
●
●
10
2
192
11
201
7
7
7
5
5
25
4
24
23
3
3
23
59
24
24
1
7
7
23
266
58
24
23
23
24
71
47
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HEAD ASM; CYL
IMA
8-98170-619-0
01
1
1304-
●
●
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE IMA
8-98055-540-0
01
1
1304-
●
●
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE IMA
8-98055-541-0
01
1
1304-
●
●
2
GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE IMA
8-98055-542-0
01
1
1304-
●
●
3
BOLT; CYL HD TO BLOCK
(A) M10X73 IMA
8-94399-554-0
01
1
1304-
●
●
3
BOLT; CYL HD TO BLOCK
(B) M10X43 IMA
8-94399-555-0
01
1
1304-
●
●
3
BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE IMA
8-97077-638-0
18
1
1304-1503
●
●
3
BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE IMA
8-98260-005-0
18
1
1504-
●
●
4
GUIDE; VLV
L=57 IMA
8-97376-719-2
16
1
1304-
●
●
5
SEAT; VLV INSERT
(A) INLET ID=32 OD=38 IMA
8-98028-874-0
08
1
1304-
●
●
5
SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 IMA
8-98028-875-0
08
1
1304-
●
●
7
CUP; SEALING,CYL HEAD
(D) OD=25 IMA
1-09600-016-0
04
1
1304-
●
●
7
CUP; SEALING,CYL HEAD
(A) OD=16 IMA
5-11129-006-0
05
1
1304-
●
●
7
CUP; SEALING,CYL HEAD
(B) OD=32 IMA
8-97096-821-0
05
1
1304-
●
●
7
CUP; SEALING,CYL HEAD
(C) OD=20 IMA
9-11129-128-0
07
1
1304-
●
●
10
PLUG; GLOW
NGK IMA
8-94390-777-6
04
1
1304-
●
●
11
CONNECTOR; GLOW PLUG
IMA
8-97332-358-2
01
1
1304-
●
●
23
NUT; CAM BRKT
M8 FLANGE THA
0-91180-208-0
10
1
1304-
●
●
24
STUD; CM/SHF BRKT
(B) M8X54 L=79 IMA
8-94322-512-2
02
1
1304-
●
●
24
STUD; CM/SHF BRKT
(A) M8X41 L=66 IMA
8-94322-513-2
08
1
1304-
●
●
25
PLUG; CYL HD
M8X10 IMA
8-98003-416-0
01
1
1304-
●
●
47
STUD; CYL HD
M8X60 L=72 IMA
0-49140-860-0
02
1
1304-
●
●
58
GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 IMA
8-97604-916-0
04
1
1304-
●
●
59
GUIDE; BRIDGE
IMA
8-97381-603-1
08
1
1304-
●
●
71
BOLT; CAM BRKT
M8X35 FLANGE THA
0-28050-835-0
02
1
1304-
●
●
192
NUT; GLOW PLUG
M4 FLANGE IMA
8-97368-853-0
04
1
1304-
●
●
201
GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 IMA
1-09639-034-0
04
1
1304-
●
●
266
SLEEVE ASM; NOZZLE HOLDER
IMA
8-98018-462-0
04
1
1304-
●
●
