Sayfa 3-58 - Isuzu EPC

3-58 — FIXING PARTS; OIL PIPING (#120102) — 160 parça

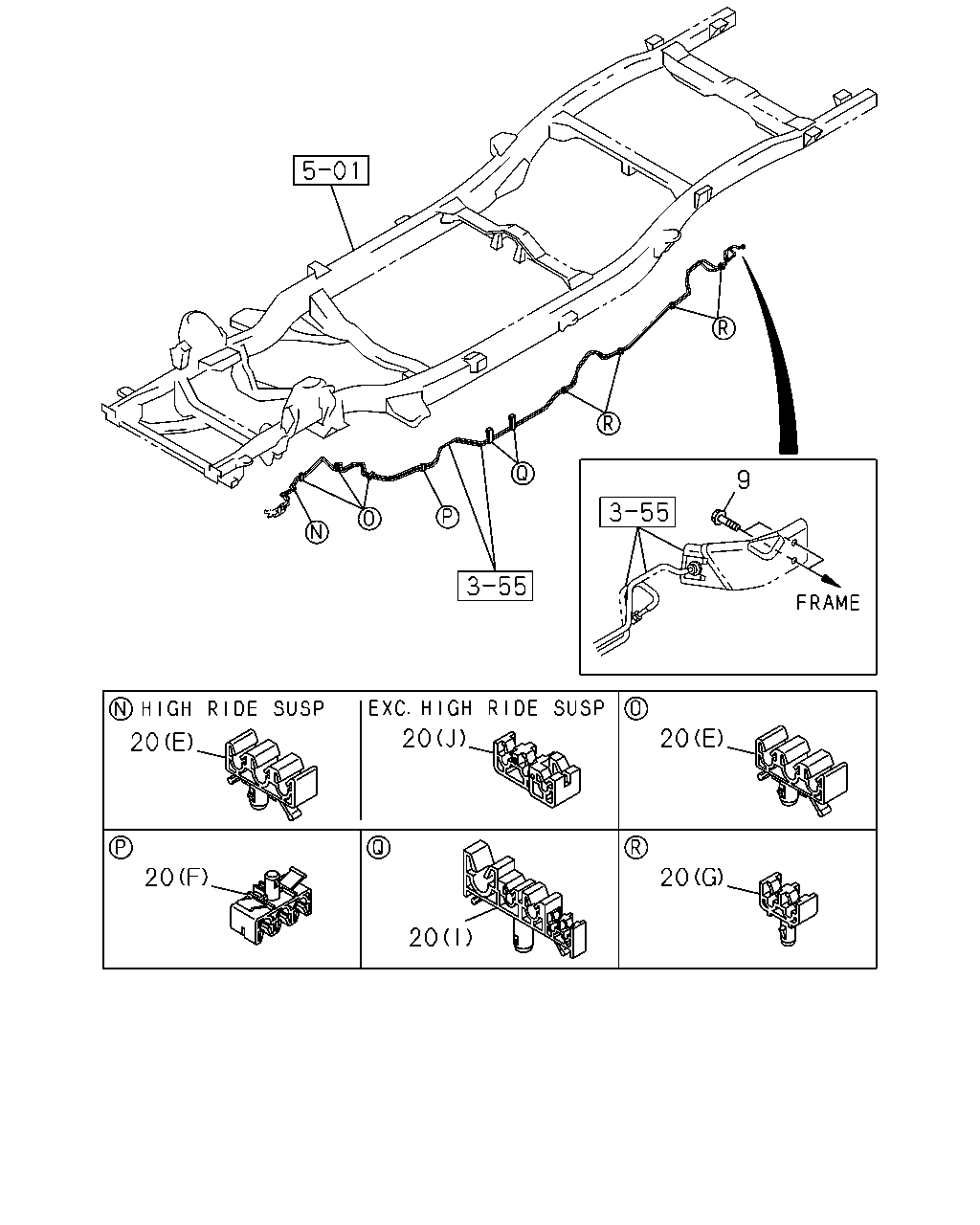

16 20 20 20 20 20 22 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION(7YC) M8X20 FLANGE	0-28650-820-0	04	1	1305-	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	04	1	1305-		●	●
20	CLIP; BRK PIPE (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409	●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409	●		●
20	CLIP; BRK PIPE (N) ID=6.8X2	8-97251-122-0	02	1	1410-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2	8-97251-122-0	02	1	1410-	●		●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (N) ID=6.8X2	8-97251-122-0	02	1	1410-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=6.8X2	8-97251-122-0	02	1	1410-		●	●
20	CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-	●	●	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-	●	●	●
20	CLIP; BRK PIPE (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-				●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-		●	●
20	CLIP; BRK PIPE (K) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1305-				●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1305-1409		●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1410-	●	●	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	02	1	1305-				●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A) ID=4.8X3	8-94487-369-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1305-		●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-		●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (M) ID=4.76X2	8-98113-395-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1305-		●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	03	1	1305-	●	●	●
22	CLIP; PIPE TO FRAME ID=9	5-09707-027-0	02	1	1305-		●	●	●
22	CLIP; PIPE TO FRAME 4JK1-TCX ENG(LR0) ID=9	5-09707-027-0	02	1	1305-	●
22	CLIP; PIPE TO FRAME 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> ID=9	5-09707-027-0	02	1	1305-	●
22	CLIP; PIPE TO FRAME 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) ID=9	5-09707-027-0	02	1	1305-	●

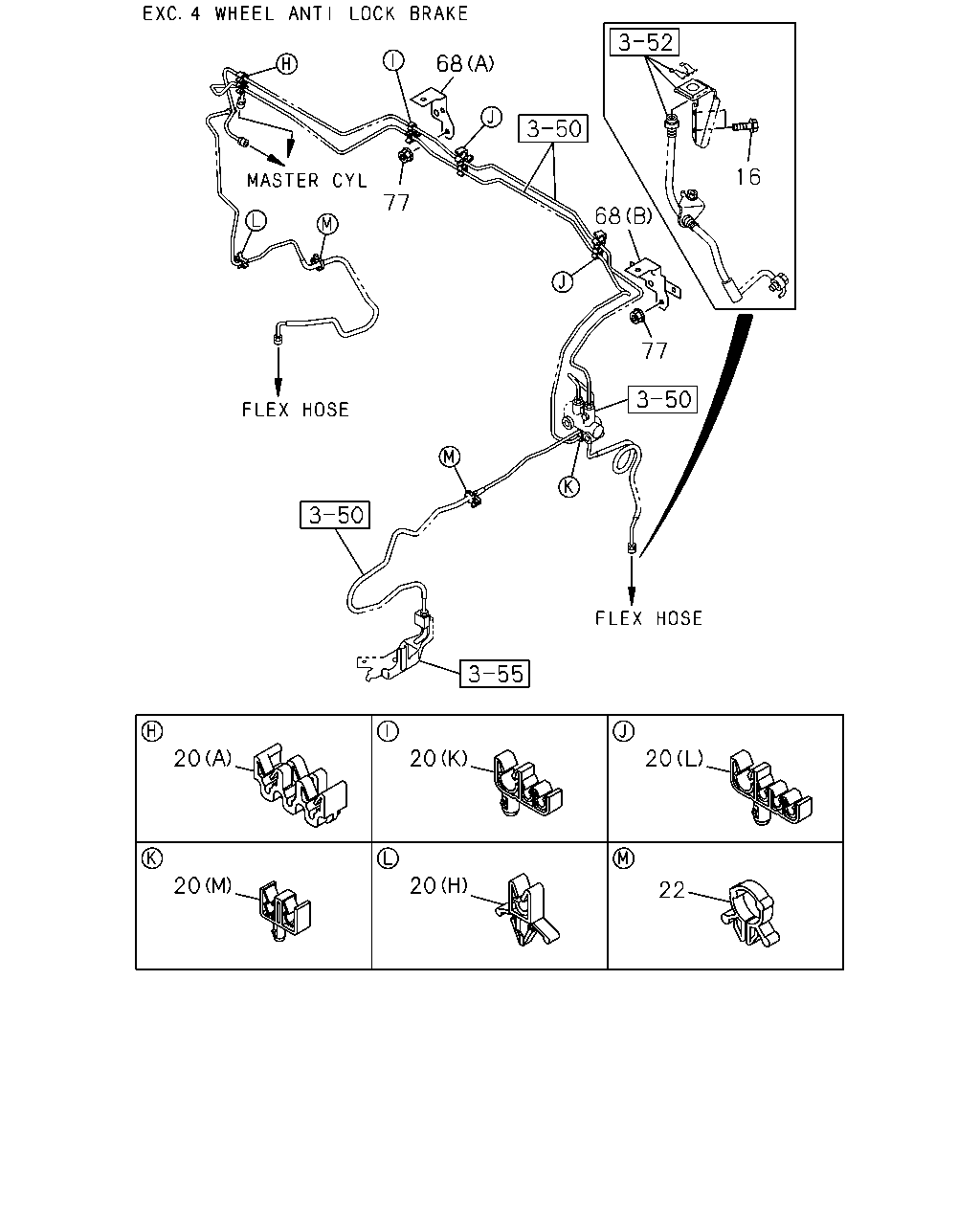

20 20 20 20 20 20 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	BOLT; BRKT ELECTRONIC TRACTION CONTROL<NW9> M8X25 FLANGE	0-28650-825-0	02	1	1305-	●		●
20	CLIP; BRK PIPE (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409	●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409	●		●
20	CLIP; BRK PIPE (N) ID=6.8X2	8-97251-122-0	02	1	1410-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2	8-97251-122-0	02	1	1410-	●		●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (N) ID=6.8X2	8-97251-122-0	02	1	1410-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=6.8X2	8-97251-122-0	02	1	1410-		●	●
20	CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-	●	●	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-	●	●	●
20	CLIP; BRK PIPE (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-				●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-		●	●
20	CLIP; BRK PIPE (K) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1305-				●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1305-1409		●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1410-	●	●	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	02	1	1305-				●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A) ID=4.8X3	8-94487-369-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1305-		●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-		●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (M) ID=4.76X2	8-98113-395-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1305-		●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	03	1	1305-	●	●	●

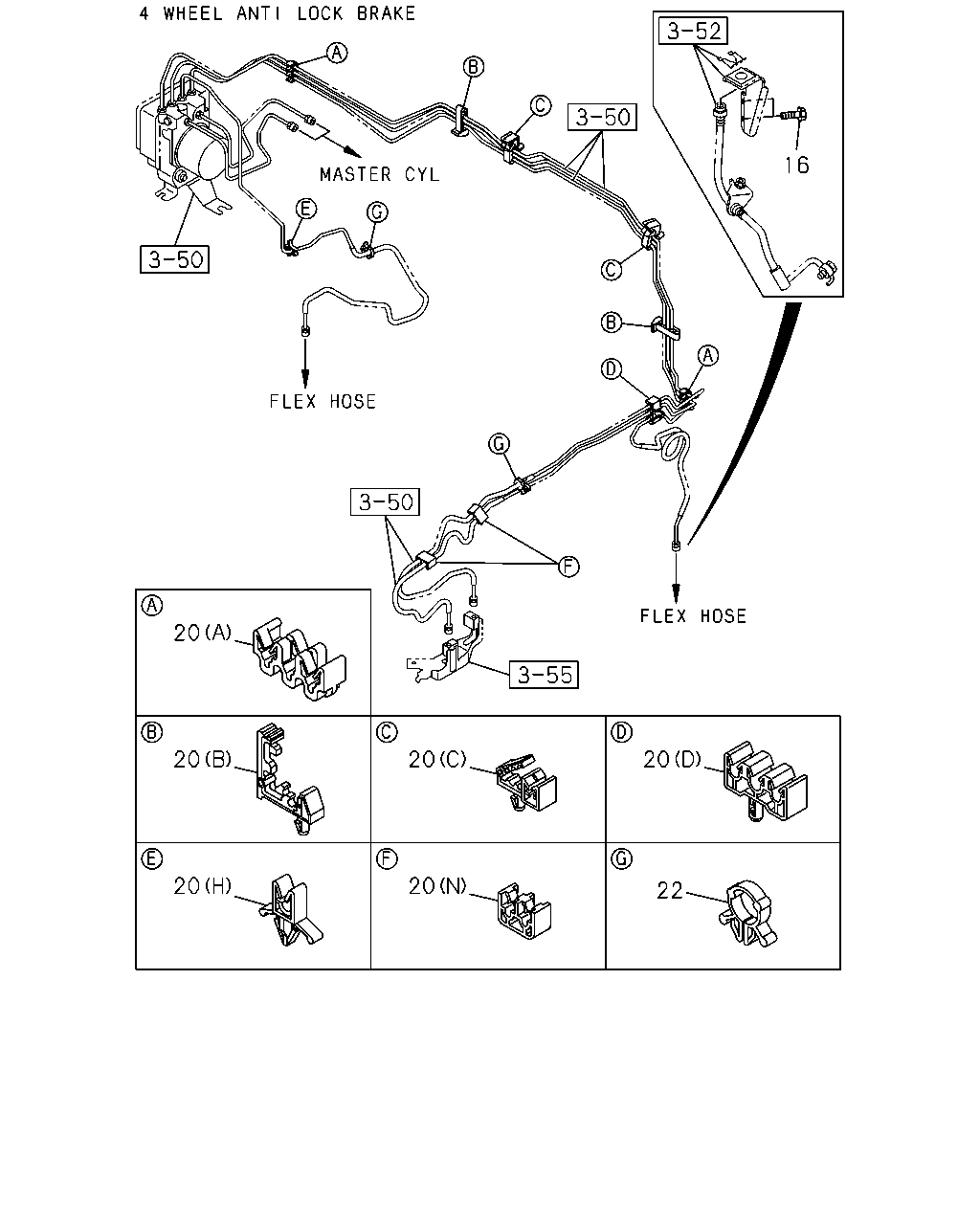

68 16 77 68 77 20 20 20 22 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	BOLT; BRKT TO FRAME HIGH RIDE SUSPENSION(7YC) M8X20 FLANGE	0-28650-820-0	04	1	1305-	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	04	1	1305-		●	●
20	CLIP; BRK PIPE (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409	●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2	8-97251-122-0	02	1	1305-1409	●		●
20	CLIP; BRK PIPE (N) ID=6.8X2	8-97251-122-0	02	1	1410-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (N) ID=6.8X2	8-97251-122-0	02	1	1410-	●		●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (N) ID=6.8X2	8-97251-122-0	02	1	1410-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=6.8X2	8-97251-122-0	02	1	1410-		●	●
20	CLIP; BRK PIPE (A) ID=4.8X3	8-94487-369-0	02	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-	●	●	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (D) ID=4.76 OR 6.8X3	8-98113-396-0	01	1	1305-	●	●	●
20	CLIP; BRK PIPE (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-				●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=4.76X3 & 6.35 OR 10X1	8-98113-391-0	02	1	1305-		●	●
20	CLIP; BRK PIPE (K) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1305-				●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-				●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> EXC. HIGH RIDE SUSPENSION(7YC) (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-	●
20	CLIP; BRK PIPE BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) ID=8.4 & 6.8X2	8-97251-127-0	01	1	1305-	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1305-1409		●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) ID=4.76	8-97300-443-0	01	1	1305-1409	●
20	CLIP; BRK PIPE (H) ID=4.76	8-97300-443-0	01	1	1410-	●	●	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	02	1	1305-				●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) ID=4.76X3	8-97216-721-1	02	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3	8-98113-388-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76X3 & 6.35X1 OR 10X1	8-98113-389-0	02	1	1305-	●	●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A) ID=4.8X3	8-94487-369-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (A) ID=4.8X3	8-94487-369-0	01	1	1305-		●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (K) ID=4.76X2 & 6.35X1	8-98113-390-0	01	1	1305-		●	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (M) ID=4.76X2	8-98113-395-0	01	1	1305-	●
20	CLIP; BRK PIPE 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1305-	●
20	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9> (M) ID=4.76X2	8-98113-395-0	01	1	1305-		●	●
20	CLIP; BRK PIPE (F) ID=10 & 6.8X2 OR 8.4X3	8-97249-906-1	01	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (G) ID=6.8X2	8-97251-124-0	04	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (I) ID=6.8X2 & 8.4 OR 10X2 & 12 OR 14X1	8-98113-394-0	02	1	1305-	●	●	●	●
20	CLIP; BRK PIPE (E) ID=4.76X3	8-97216-721-1	03	1	1305-	●	●	●
22	CLIP; PIPE TO FRAME ID=9	5-09707-027-0	02	1	1305-		●	●	●
22	CLIP; PIPE TO FRAME 4JK1-TCX ENG(LR0) ID=9	5-09707-027-0	02	1	1305-	●
22	CLIP; PIPE TO FRAME 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> ID=9	5-09707-027-0	02	1	1305-	●
22	CLIP; PIPE TO FRAME 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) ID=9	5-09707-027-0	02	1	1305-	●
68	BRACKET; CLIP (A)	8-98099-790-0	01	1	1305-				●
68	BRACKET; CLIP 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (A)	8-98099-790-0	01	1	1305-	●
68	BRACKET; CLIP 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (A)	8-98099-790-0	01	1	1305-	●
68	BRACKET; CLIP (B)	8-98099-791-0	01	1	1305-				●
68	BRACKET; CLIP 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> (B)	8-98099-791-0	01	1	1305-	●
68	BRACKET; CLIP 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) (B)	8-98099-791-0	01	1	1305-	●
77	NUT; BRKT,OIL PIPE M6 FLANGE	0-91180-106-0	02	1	1305-				●
77	NUT; BRKT,OIL PIPE 4JA1-T ENG(LP0) BRK WHL LK CONT LSPV<JR9> M6 FLANGE	0-91180-106-0	02	1	1305-	●
77	NUT; BRKT,OIL PIPE 4JA1-T ENG(LP0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) M6 FLANGE	0-91180-106-0	02	1	1305-	●
