Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#120100) — 292 parça

128 16 16 48 16 235 48 223 48 16 16 16 16 16 16 16 16 16 16 16 470 16 16 16 16 48 48 16 16 128 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

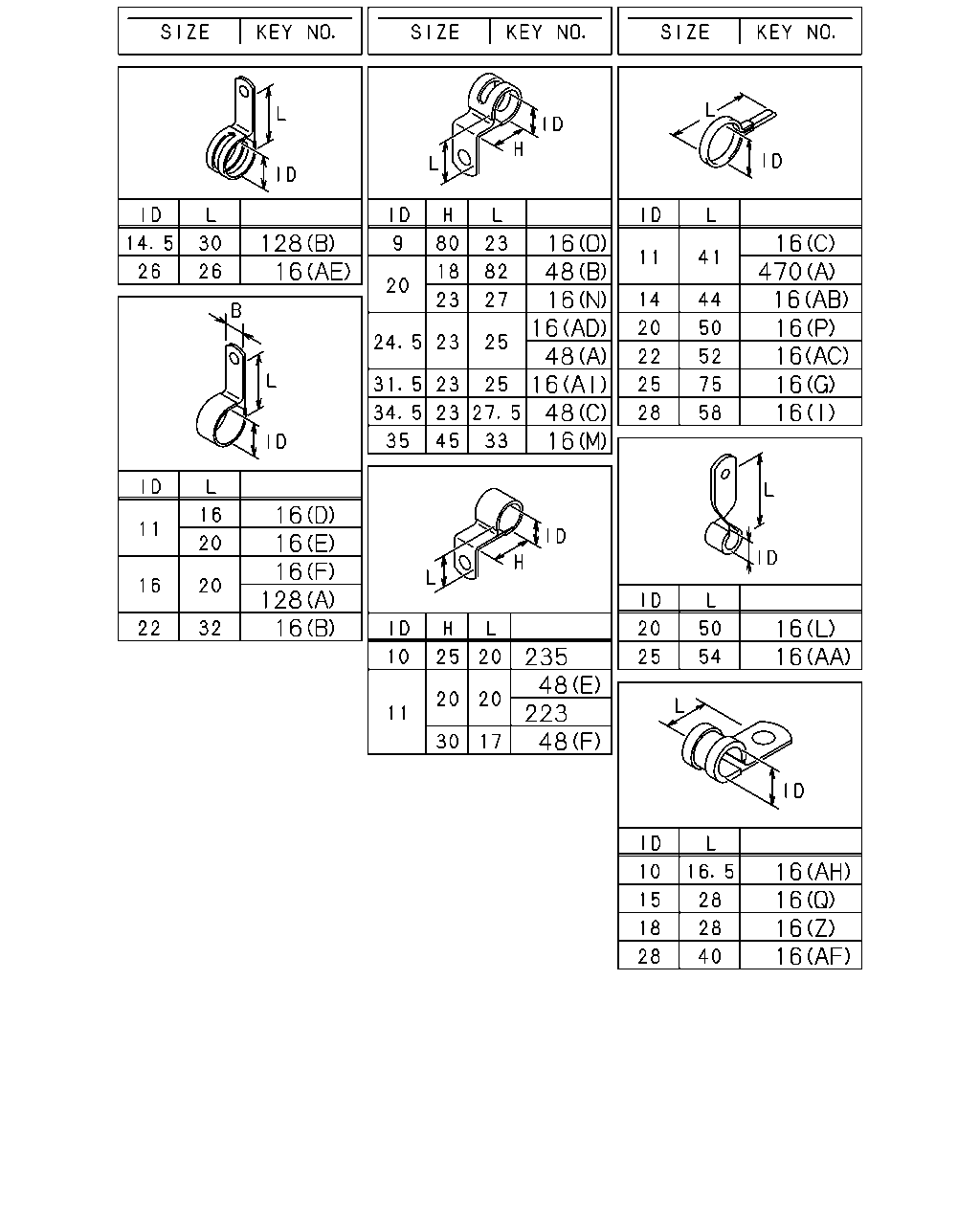

16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1305-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1305-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1305-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1305-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1305-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS (M) ID=35 H=45 L=33	1-09700-947-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (O) ID=9 H=80 L=23	1-09701-061-0	01	1	1305-
16	CLIP; HARNESS (Z) ID=18 L=28	1-09701-067-0	04	1	1305-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1305-
16	CLIP; HARNESS (AF) ID=28 L=40	1-09701-261-0	01	1	1305-
16	CLIP; HARNESS (G) ID=25 L=75	1-09701-275-0	03	1	1305-

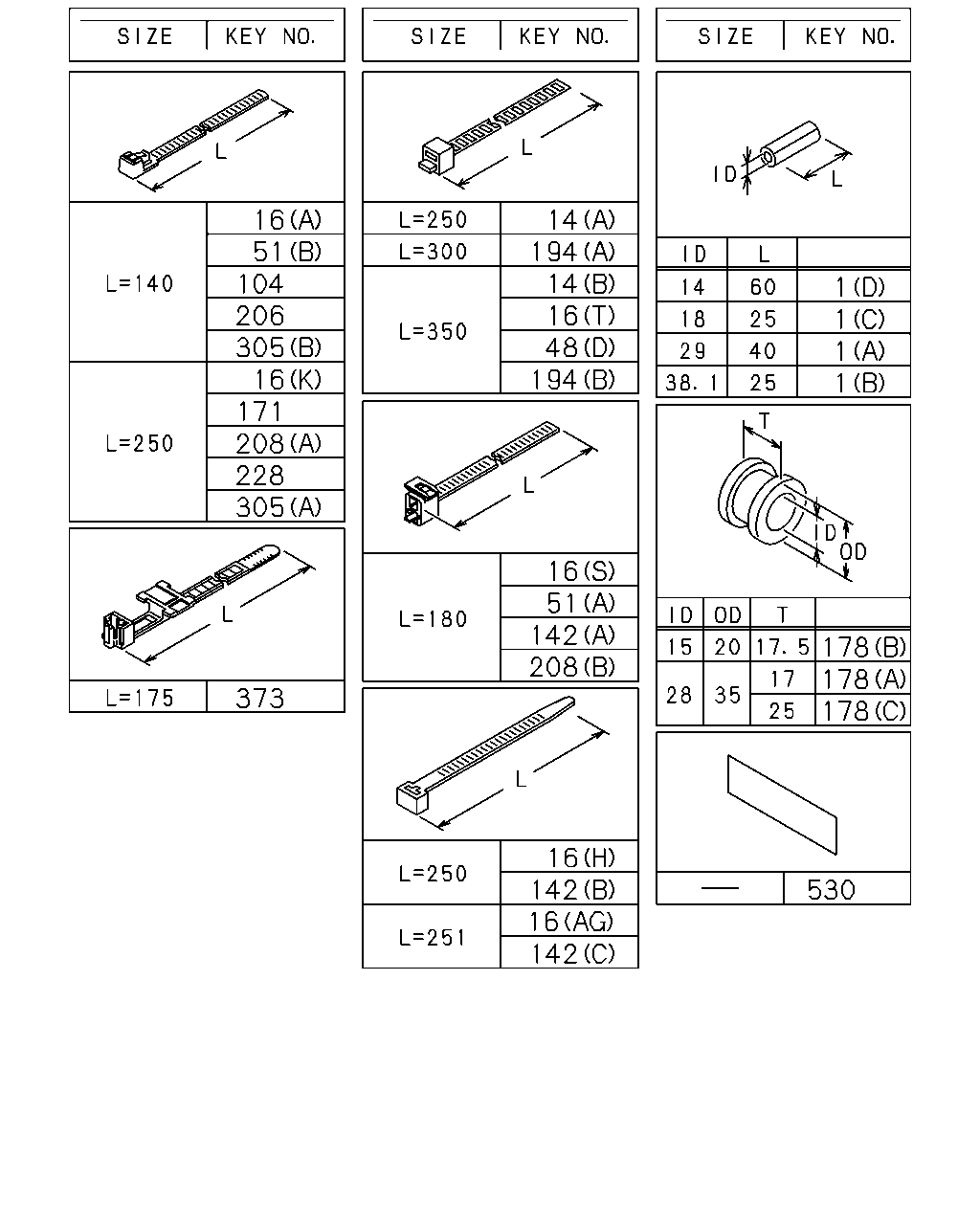

16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1305-
16	CLIP; HARNESS (J) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (J) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1305-
16	CLIP; HARNESS (AH) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-
16	CLIP; HARNESS (AJ) ID=13-18 L=18	1-09709-291-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	04	1	1305-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1305-
16	CLIP; HARNESS (R) L=36	8-94224-891-1	01	1	1305-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1305-
16	CLIP; HARNESS (AG) L=251	8-97619-917-0	01	1	1305-
16	CLIP; HARNESS (AH) ID=10 L=16.5	8-98082-034-0	02	1	1305-
16	CLIP; HARNESS (H) L=250	8-98216-430-0	10	1	1305-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1305-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	09	1	1305-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=25 L=54	1-09700-392-1	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AE) ID=26 L=26	1-09701-236-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1305-
48	CLIP; FRAME HARNESS (F) ID=11 H=30 L=17	1-09700-113-0	01	1	1305-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
48	CLIP; FRAME HARNESS (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1305-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1305-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	09	1	1305-
48	CLIP; FRAME HARNESS (E) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1305-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1305-
223	CLIP; AIR TANK HARNESS ID=11 H=20 L=20	8-98033-780-0	03	1	1305-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=10 H=25 L=20	1-09700-519-0	01	1	1305-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1305-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1305-

16 162 470 16 16 16 16 16 16 16 16 218 116 168 148 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1305-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1305-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1305-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1305-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1305-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS (M) ID=35 H=45 L=33	1-09700-947-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (O) ID=9 H=80 L=23	1-09701-061-0	01	1	1305-
16	CLIP; HARNESS (Z) ID=18 L=28	1-09701-067-0	04	1	1305-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1305-
16	CLIP; HARNESS (AF) ID=28 L=40	1-09701-261-0	01	1	1305-
16	CLIP; HARNESS (G) ID=25 L=75	1-09701-275-0	03	1	1305-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1305-
16	CLIP; HARNESS (J) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (J) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1305-
16	CLIP; HARNESS (AH) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-
16	CLIP; HARNESS (AJ) ID=13-18 L=18	1-09709-291-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	04	1	1305-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1305-
16	CLIP; HARNESS (R) L=36	8-94224-891-1	01	1	1305-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1305-
16	CLIP; HARNESS (AG) L=251	8-97619-917-0	01	1	1305-
16	CLIP; HARNESS (AH) ID=10 L=16.5	8-98082-034-0	02	1	1305-
16	CLIP; HARNESS (H) L=250	8-98216-430-0	10	1	1305-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1305-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	09	1	1305-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=25 L=54	1-09700-392-1	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AE) ID=26 L=26	1-09701-236-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1305-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	1305-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	1305-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1305-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	1305-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	1305-
218	CLIP; BAND,RR COMB ID=13-18 L=18	1-09709-291-0	06	1	1305-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1305-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1305-

119 294 219 524 294 552 515 515 423 515 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	01	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	02	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	04	1	1305-
219	NUT M8 FLANGE	0-91180-108-0	06	1	1305-
294	NUT (B) M6 FLANGE	0-91180-106-0	02	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1305-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	1305-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1305-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1305-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	07	1	1305-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1305-
515	NUT; BRKT (C) M8 CUTTING NUT W/FLANGE	1-09985-340-0	06	1	1305-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	1305-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	1305-

211 312 312 312 312 312 312 312 334 335 335 342 375 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

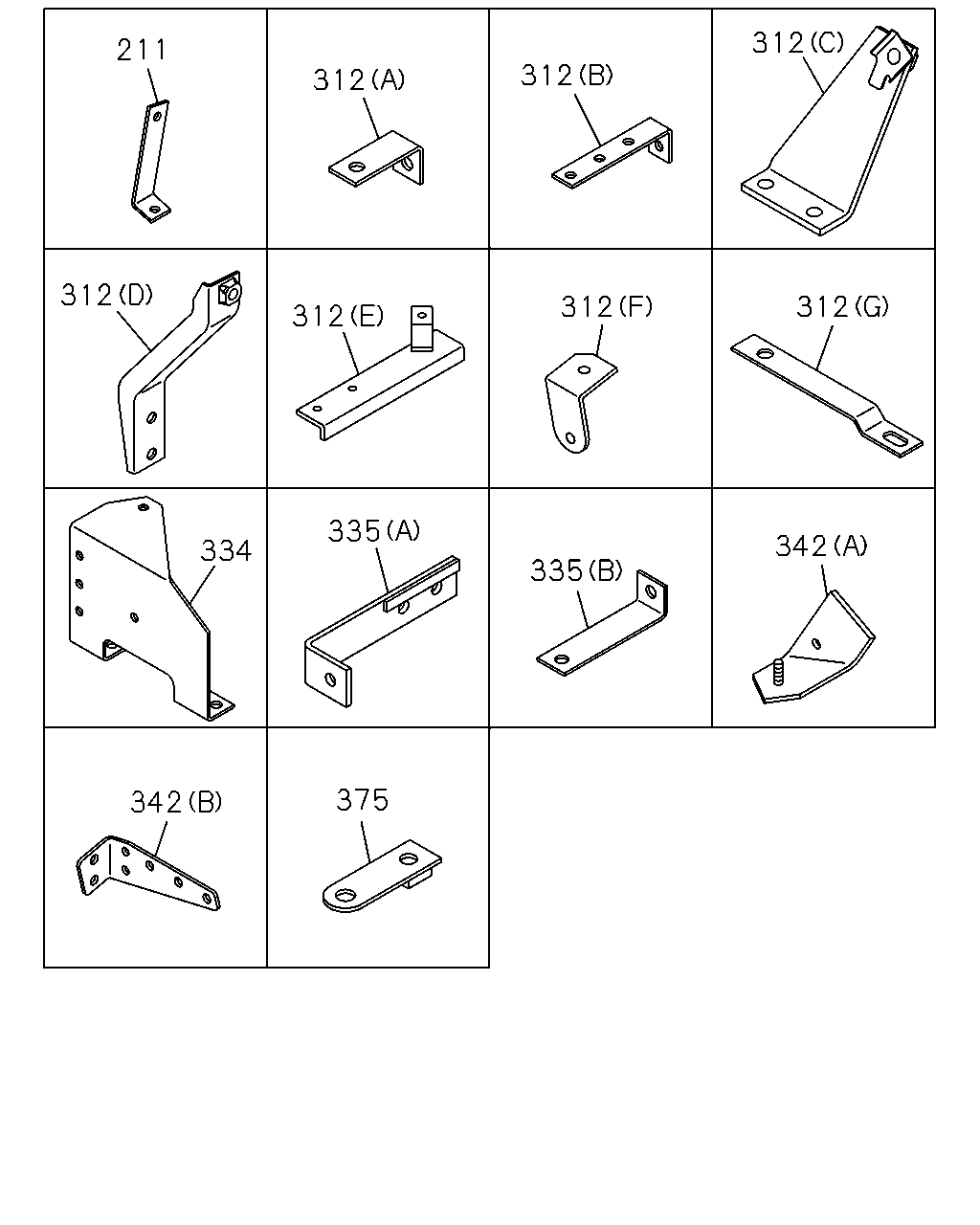

211	BRACKET; AXLE HARNESS L=95	1-82699-085-0	02	1	1305-
312	BRACKET; CLIP HARNESS (A)	1-47477-694-0	02	1	1305-
312	BRACKET; CLIP HARNESS (A) L=75	1-47478-323-0	01	1	1305-
312	BRACKET; CLIP HARNESS (B) L=120 H=35	1-82698-088-0	01	1	1305-
312	BRACKET; CLIP HARNESS (A) L=95	1-82699-085-0	01	1	1305-
312	BRACKET; CLIP HARNESS (C)	8-97636-337-0	01	1	1305-
312	BRACKET; CLIP HARNESS (D)	8-97636-868-1	02	1	1305-
312	BRACKET; CLIP HARNESS (E)	8-98201-133-0	01	1	1305-
312	BRACKET; CLIP HARNESS (F)	8-98201-134-0	01	1	1305-
312	BRACKET; CLIP HARNESS (G)	8-98201-136-0	01	1	1305-
334	BRACKET	8-98212-895-0	01	1	1305-
335	BRACKET; CONNECTOR (B) L=105 B=25	1-47476-161-0	01	1	1305-
335	BRACKET; CONNECTOR (A)	1-82698-663-0	01	1	1305-
342	BRACKET; HARNESS CAB MTG (B)	1-82699-625-0	01	1	1305-
342	BRACKET; HARNESS CAB MTG (A)	8-98240-938-0	01	1	1305-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1305-

19 27 53 53 53 53 53 53 53 53 53 53 53 53 53 53 53 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

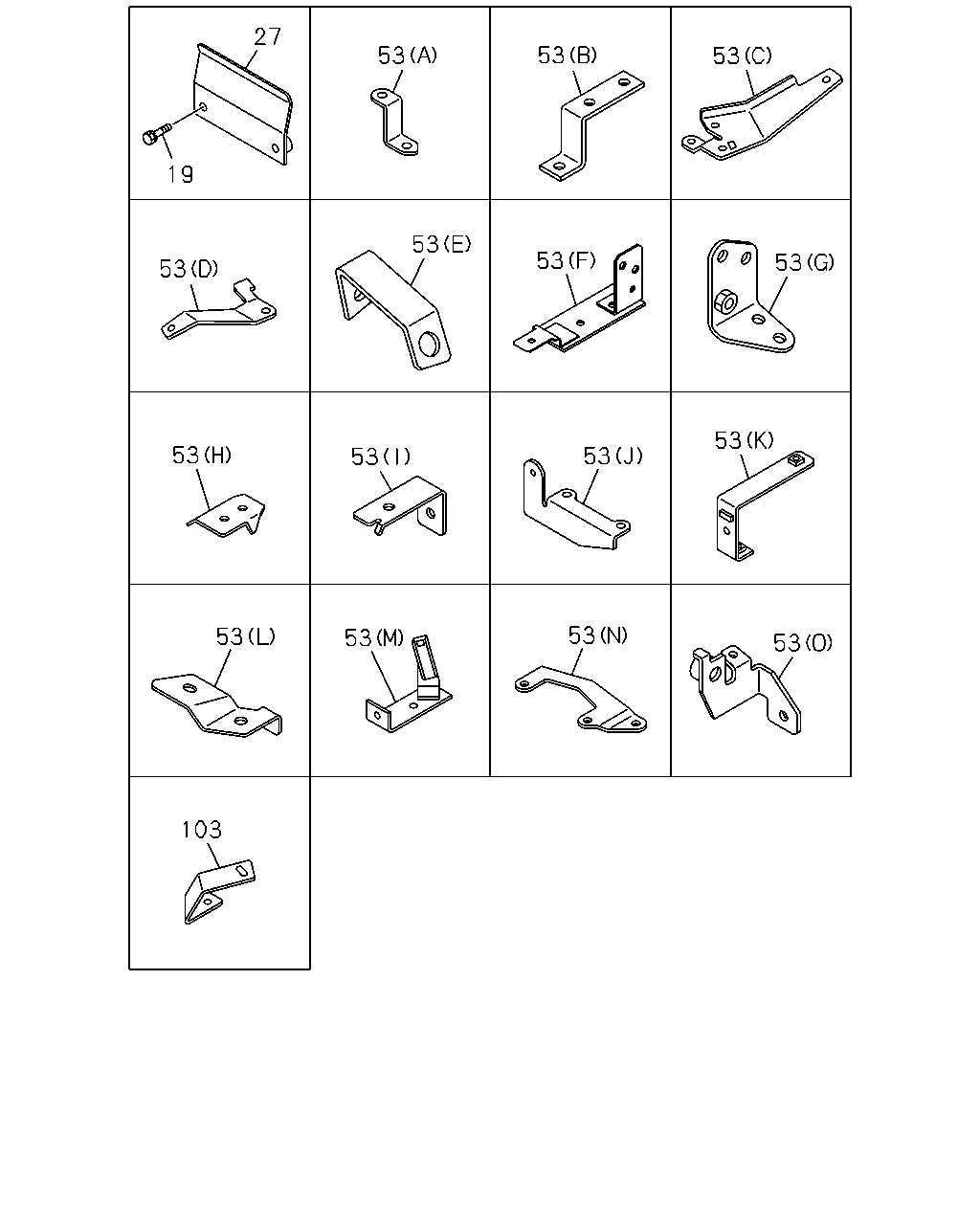

19	BOLT; PROTECTOR M8X50 W/LK&PL WASHER	0-50640-850-0	02	1	1305-
27	PROTECTOR; EDGE	8-98201-145-0	01	1	1305-
53	BRACKET; HARNESS (E)	1-47479-537-0	07	1	1305-
53	BRACKET; HARNESS (G)	8-97610-339-1	01	1	1305-
53	BRACKET; HARNESS (H)	8-97625-412-0	02	1	1305-
53	BRACKET; HARNESS (I)	8-97625-794-0	01	1	1305-
53	BRACKET; HARNESS (L)	8-97630-437-0	01	1	1305-
53	BRACKET; HARNESS (F)	8-97638-190-0	01	1	1305-
53	BRACKET; HARNESS (A)	8-97640-913-0	01	1	1305-
53	BRACKET; HARNESS (N)	8-98123-474-0	01	1	1305-
53	BRACKET; HARNESS (J)	8-98123-475-0	01	1	1305-
53	BRACKET; HARNESS (B)	8-98124-778-0	01	1	1305-
53	BRACKET; HARNESS (C)	8-98190-688-0	01	1	1305-
53	BRACKET; HARNESS (D)	8-98190-689-0	01	1	1305-
53	BRACKET; HARNESS (O)	8-98194-068-0	01	1	1305-
53	BRACKET; HARNESS (K)	8-98212-499-0	01	1	1305-
53	BRACKET; HARNESS (M)	8-98212-500-1	01	1	1305-
103	BRACKET; HD LAMP HARNESS	8-98211-939-1	01	1	1305-
103	BRACKET; HD LAMP HARNESS	8-98211-940-1	01	1	1305-

38 150 242 242 150 139 38 242 242 38 139 239 38 88 386 377 358 139 38 313 139 242 242 139 86 38 480 313 38 480 242 38 516 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

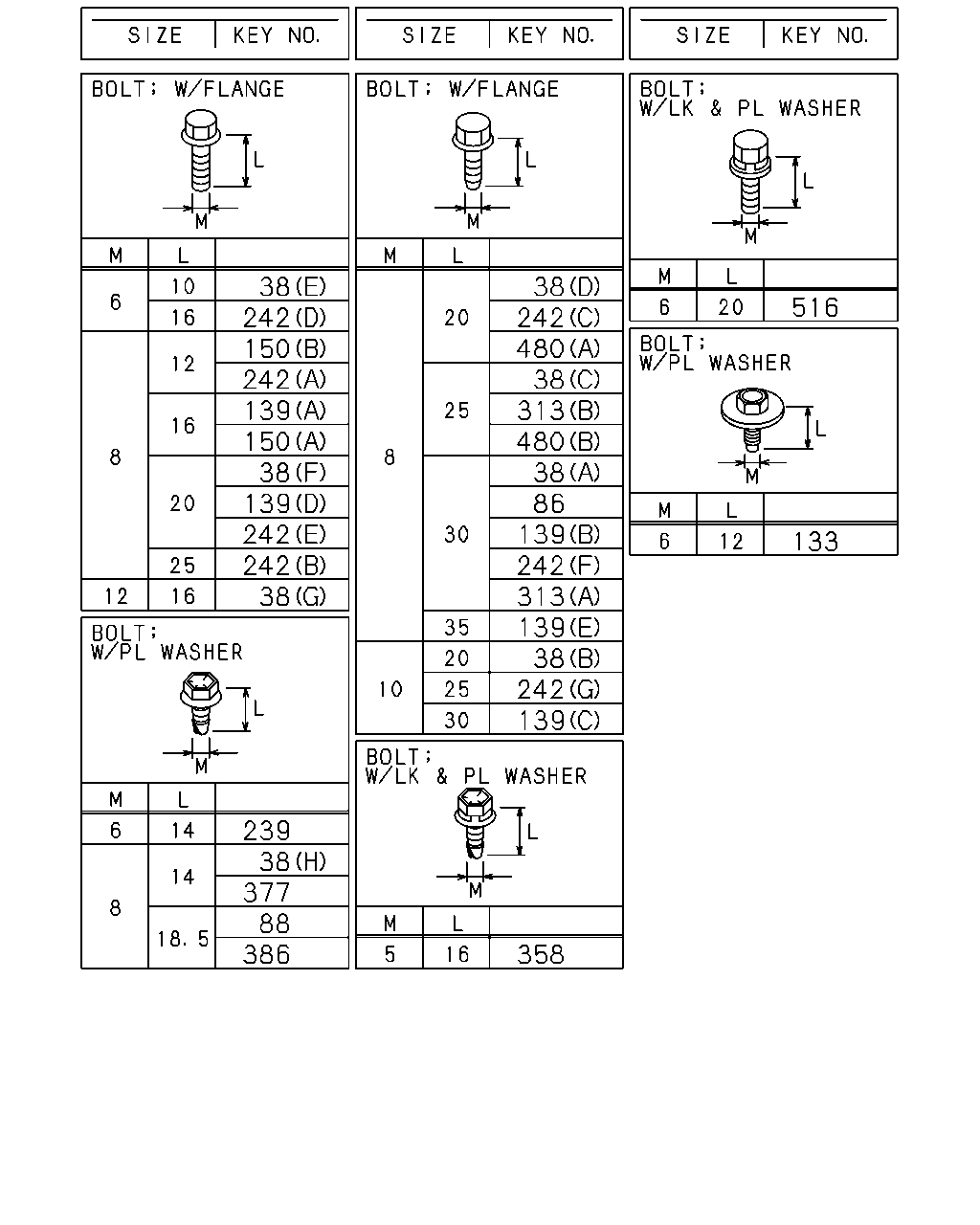

38	BOLT; CLIP,HARNESS (F) M8X20 FLANGE	0-28050-820-0	02	1	1305-
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1305-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	04	1	1305-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1305-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1305-
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	02	1	1305-
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28650-830-0	04	1	1305-
38	BOLT; CLIP,HARNESS (B) M10X20 FLANGE	0-28751-020-0	01	1	1305-
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	03	1	1305-
38	BOLT; CLIP,HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (E) M6X10 FLANGE	0-28050-610-0	01	1	1305-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1305-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1305-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1305-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1305-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	1305-
139	BOLT; BRKT (C) M10X30 FLANGE	0-28151-030-0	01	1	1305-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1305-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1305-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1305-
139	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	1305-
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	05	1	1305-
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	09	1	1305-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1305-
242	BOLT; BRKT,HARNESS (D) M6X16 FLANGE	0-28650-616-0	02	1	1305-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1305-
242	BOLT; BRKT,HARNESS (E) M8X20 FLANGE	0-28050-820-0	02	1	1305-
242	BOLT; BRKT,HARNESS (B) M8X25 FLANGE	0-28050-825-0	01	1	1305-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	1305-
242	BOLT; BRKT,HARNESS (F) M8X30 FLANGE	0-28650-830-0	02	1	1305-
242	BOLT; BRKT,HARNESS (G) M10X25 FLANGE	0-28651-025-0	01	1	1305-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1305-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	03	1	1305-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1305-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1305-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1305-
377	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	01	1	1305-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1305-
480	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	06	1	1305-
480	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	1305-
516	BOLT; HARNESS M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	1305-

16 305 228 208 171 16 305 206 104 51 373 208 16 142 51 178 178 178 530 142 16 142 16 1 1 1 1 194 48 16 14 194 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=29 OD=39 L=40	1-09337-013-0	01	1	1305-
1	SLEEVE; RUBBER (D) ID=14 OD=18 L=60	1-09337-030-0	01	1	1305-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	02	1	1305-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 OD=48.1 L=25	1-09337-052-0	01	1	1305-
1	SLEEVE; RUBBER (B) ID=38.1 OD=48.1 L=25	1-09337-052-0	01	1	1305-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1305-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1305-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	02	1	1305-
16	CLIP; HARNESS (F) T=0.8 ID=16 L=20	0-95235-535-0	01	1	1305-
16	CLIP; HARNESS (F) T=1.2 ID=16 L=20	0-95235-536-0	02	1	1305-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	03	1	1305-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	08	1	1305-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1305-
16	CLIP; HARNESS (M) ID=35 H=45 L=33	1-09700-947-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (AI) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1305-
16	CLIP; HARNESS (O) ID=9 H=80 L=23	1-09701-061-0	01	1	1305-
16	CLIP; HARNESS (Z) ID=18 L=28	1-09701-067-0	04	1	1305-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1305-
16	CLIP; HARNESS (AF) ID=28 L=40	1-09701-261-0	01	1	1305-
16	CLIP; HARNESS (G) ID=25 L=75	1-09701-275-0	03	1	1305-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	01	1	1305-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	01	1	1305-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1305-
16	CLIP; HARNESS (J) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (J) ID=5-12 L=18	1-09709-287-0	01	1	1305-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	01	1	1305-
16	CLIP; HARNESS (AH) ID=13-18 L=14.5	1-09709-290-0	01	1	1305-
16	CLIP; HARNESS (AJ) ID=13-18 L=18	1-09709-291-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	01	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	02	1	1305-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	04	1	1305-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	03	1	1305-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	1305-
16	CLIP; HARNESS (R) L=36	8-94224-891-1	01	1	1305-
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	02	1	1305-
16	CLIP; HARNESS (AG) L=251	8-97619-917-0	01	1	1305-
16	CLIP; HARNESS (AH) ID=10 L=16.5	8-98082-034-0	02	1	1305-
16	CLIP; HARNESS (H) L=250	8-98216-430-0	10	1	1305-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	06	1	1305-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	09	1	1305-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AA) ID=25 L=54	1-09700-392-1	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AD) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (AE) ID=26 L=26	1-09701-236-0	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1305-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1305-
48	CLIP; FRAME HARNESS (F) ID=11 H=30 L=17	1-09700-113-0	01	1	1305-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1305-
48	CLIP; FRAME HARNESS (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1305-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1305-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	09	1	1305-
48	CLIP; FRAME HARNESS (E) ID=11 H=20 L=20	8-98033-780-0	01	1	1305-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1305-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1305-
104	CLIP; HEADLAMP HARNESS L=140	5-09707-031-1	04	1	1305-
142	CLIP; HARNESS,ENG (C) L=251	8-97619-917-0	01	1	1305-
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1305-
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	02	1	1305-
171	CLIP; STARTER HARNESS L=250	5-09707-030-1	02	1	1305-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1305-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	02	1	1305-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1305-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1305-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1305-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1305-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1305-
194	CLIP; BAND (B) L=350	1-09707-183-0	02	1	1305-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1305-
208	CLIP; HARNESS,MAG VLV (A) L=250	5-09707-030-1	01	1	1305-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180	1-09707-162-1	01	1	1305-
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1305-
305	CLIP; ENG HARNESS (A) L=250	5-09707-030-1	04	1	1305-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	01	1	1305-
373	CLIP; BAND,GEN HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=175	1-09707-176-1	01	1	1305-
530	SEAL; HARNESS 180X40	1-72498-019-1	04	1	1305-
530	SEAL; HARNESS 180X40	1-72498-019-1	08	1	1305-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1305-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
