8-75 — CONDENSER (#120099) — 12 parça

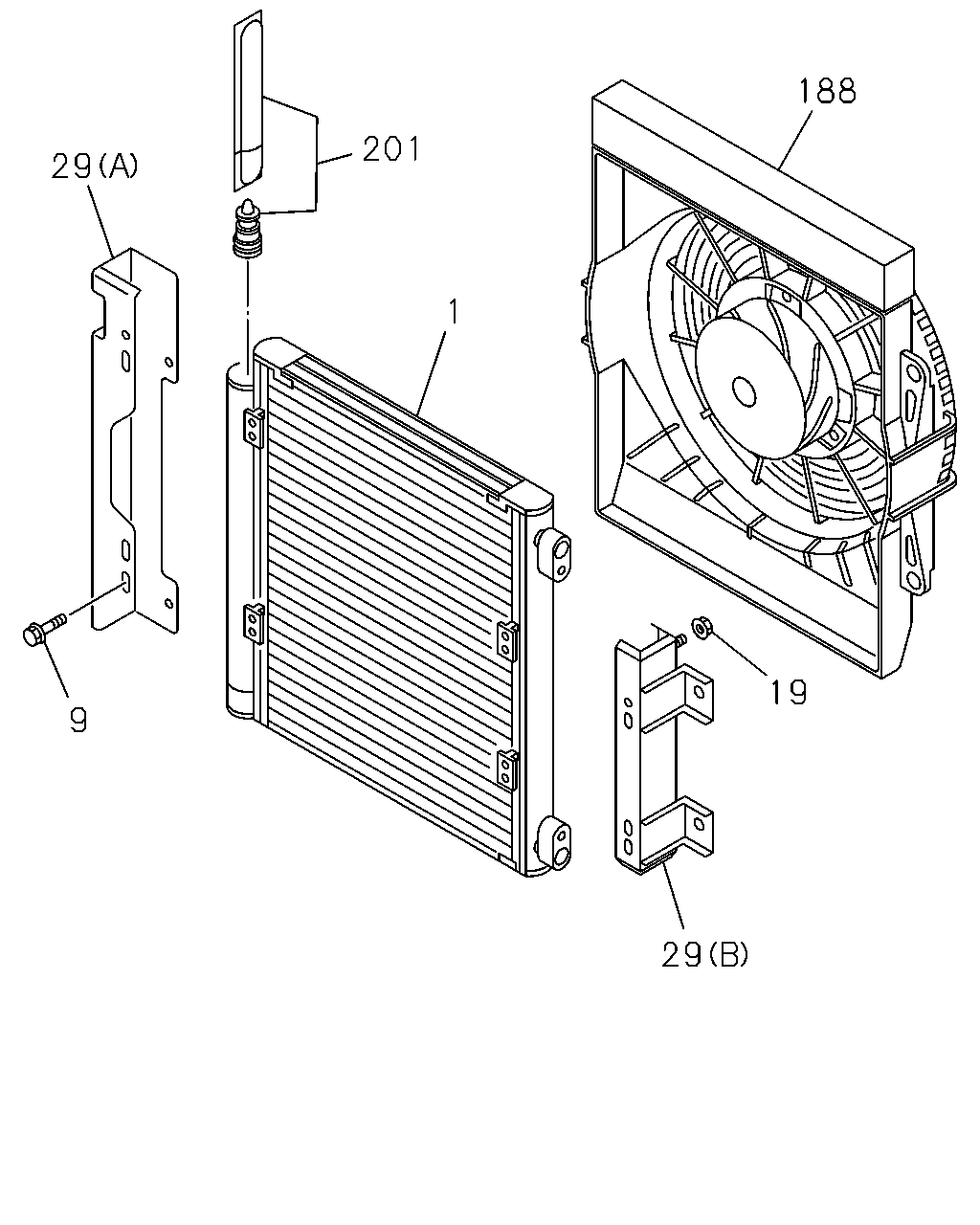

çizim 351801
29 201 1 9 29 19 188
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
COOLER WO/HEATER<C65> 		8-98042-456-1 01 1 1304- ● ●
9 BOLT; BRKT
COOLER WO/HEATER<C65> M6X14 THA 		1-83539-382-0 08 1 1304- ● ●
19 NUT; BRKT
COOLER WO/HEATER<C65> M6 THA 		1-83539-354-0 04 1 1304- ● ●
29 BRACKET; SIDE
COOLER WO/HEATER<C65> (A) THA 		8-98042-466-0 01 1 1304- ● ●
29 BRACKET; SIDE
COOLER WO/HEATER<C65> (B) THA 		8-98042-467-0 01 1 1304- ● ●
188 BLOWER ASM; SHROUD
COOLER WO/HEATER<C65> THA 		8-98042-461-0 01 1 1304- ● ●
201 DRYER ASM; CONDENSER
COOLER WO/HEATER<C65> THA 		1-83535-097-0 01 1 1304-1409 ● ●
201 DRYER ASM; CONDENSER
COOLER WO/HEATER<C65> 		8-98282-482-0 01 1 1410- ● ●

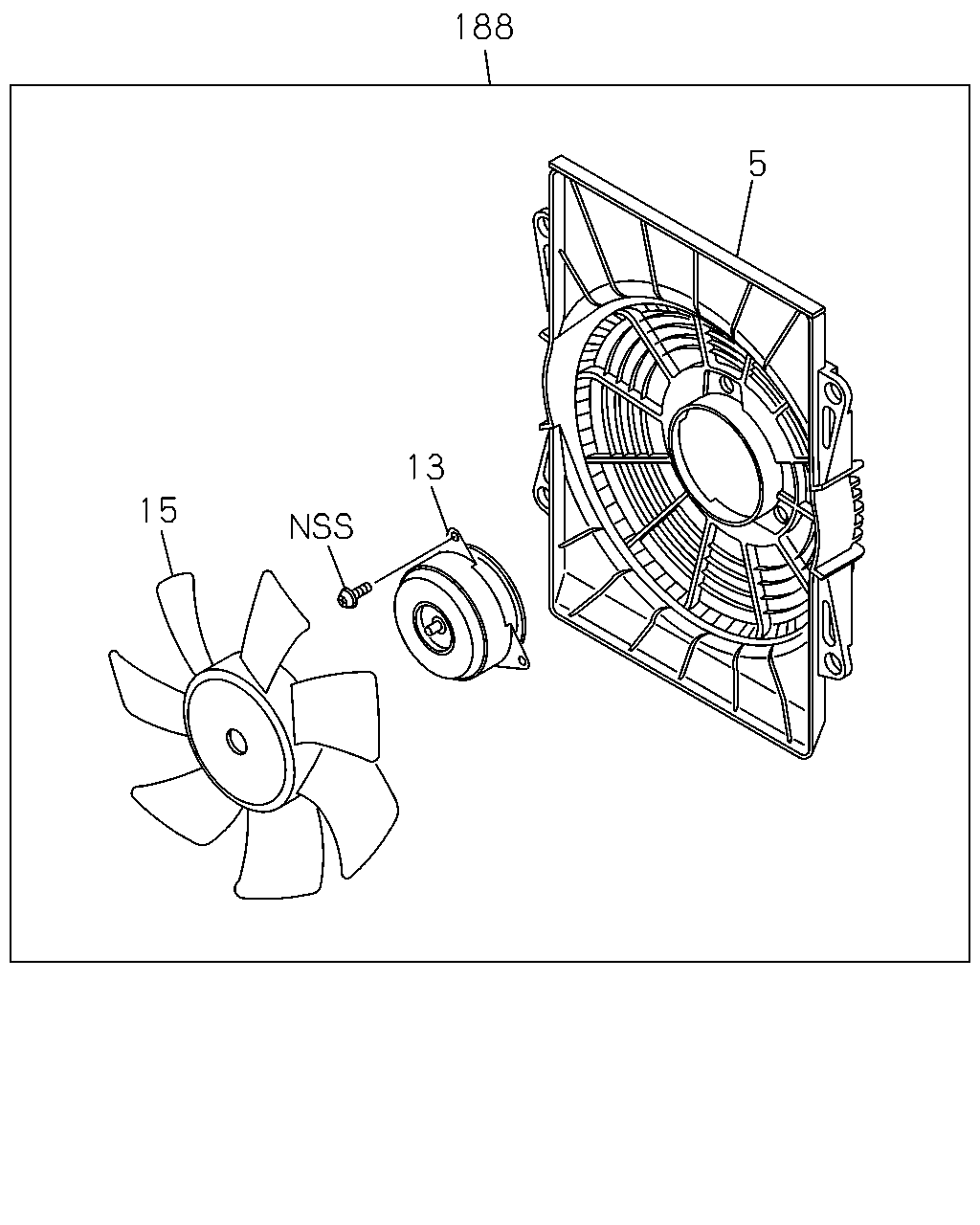

çizim 351818
188 5 13 15
BalonParca AdiParca NoAdetTipApplied Date A B
5 SHROUD; FAN MOTOR
COOLER WO/HEATER<C65> IMA 		8-98152-866-0 01 1 1304- ● ●
13 MOTOR; FAN
COOLER WO/HEATER<C65> IMA 		8-98157-045-0 01 1 1304- ● ●
15 FAN; MOTOR
COOLER WO/HEATER<C65> THA 		8-98152-861-0 01 1 1304- ● ●
188 BLOWER ASM; SHROUD
COOLER WO/HEATER<C65> THA 		8-98042-461-0 01 1 1304- ● ●
