Sayfa 1-41 - Isuzu EPC

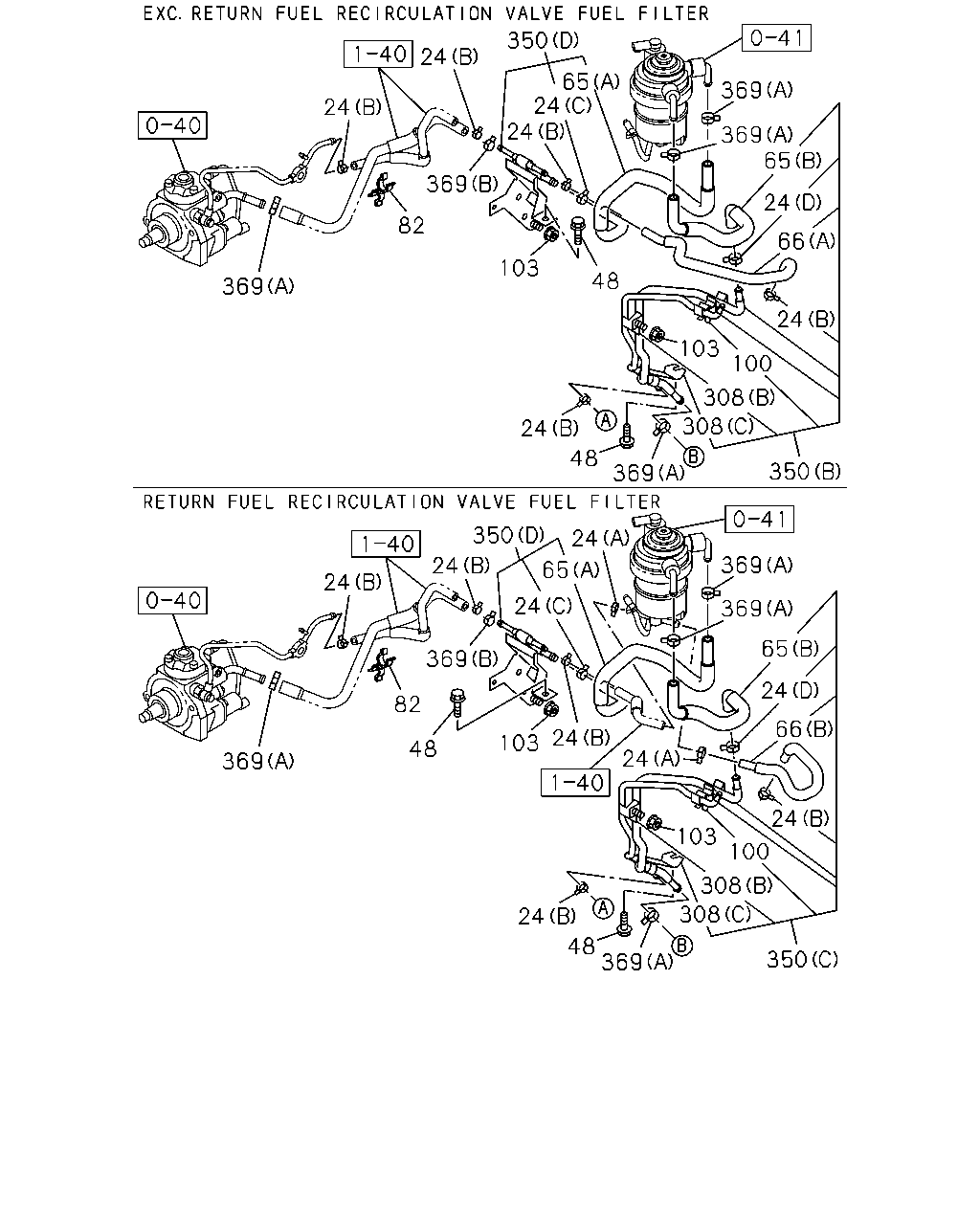

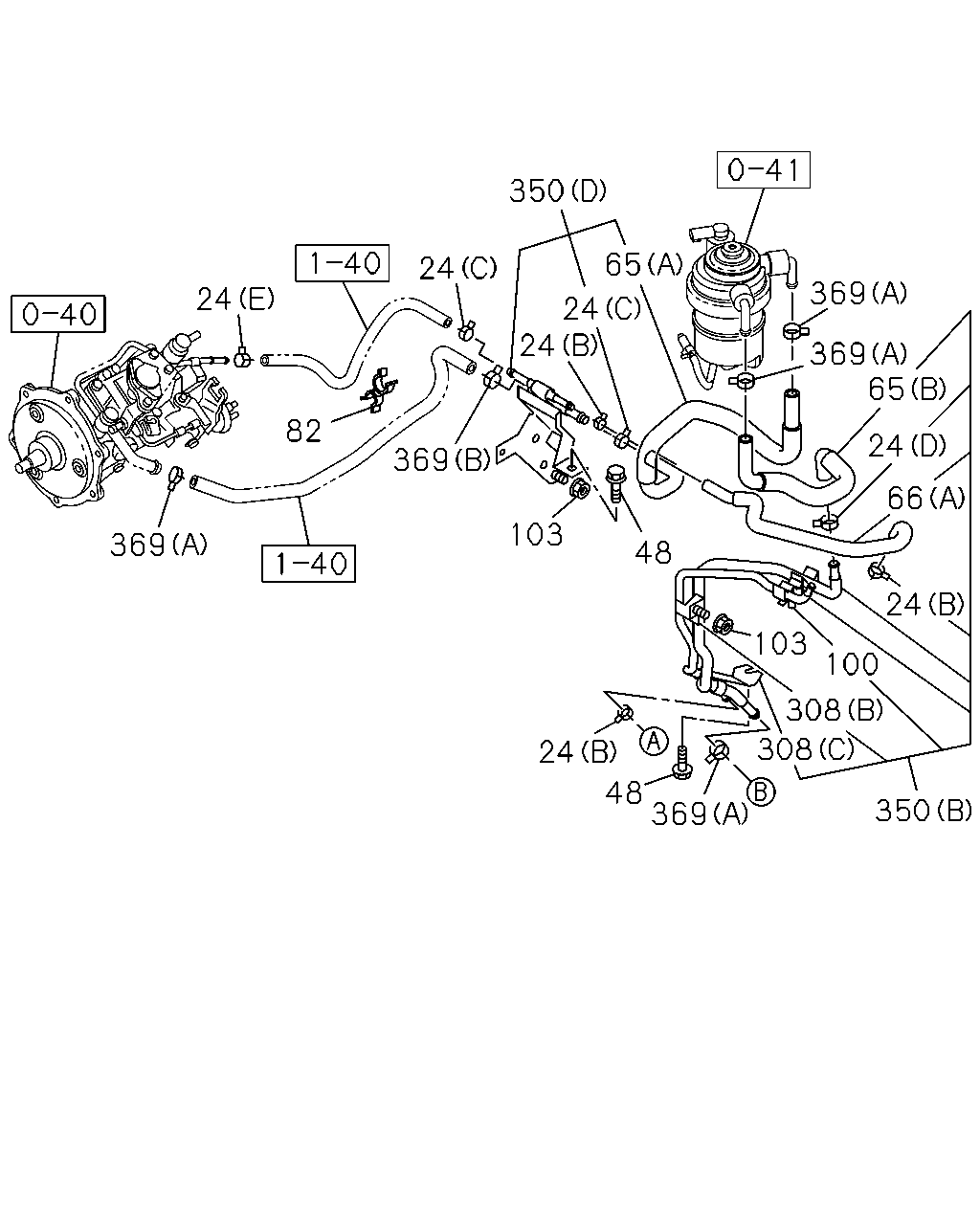

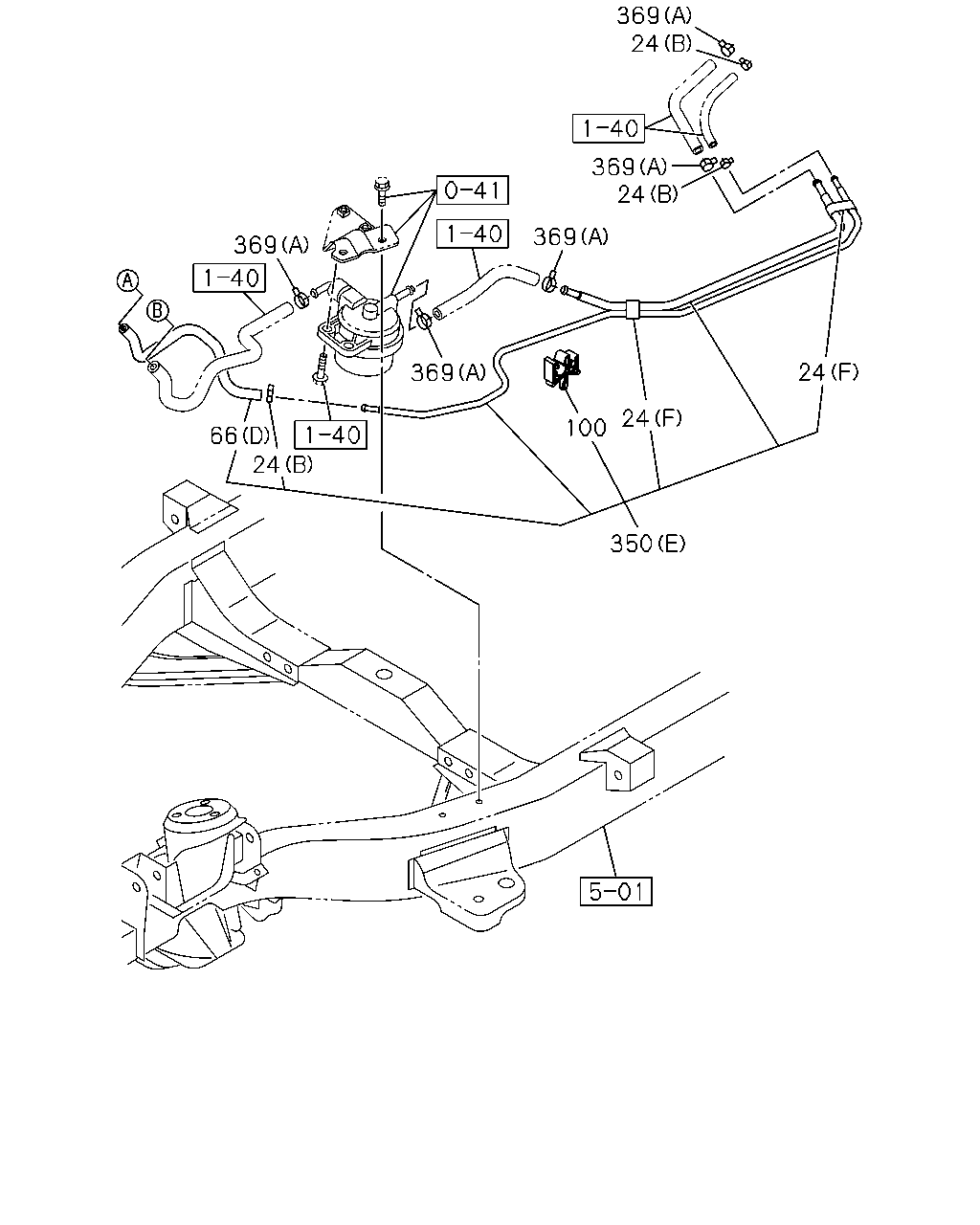

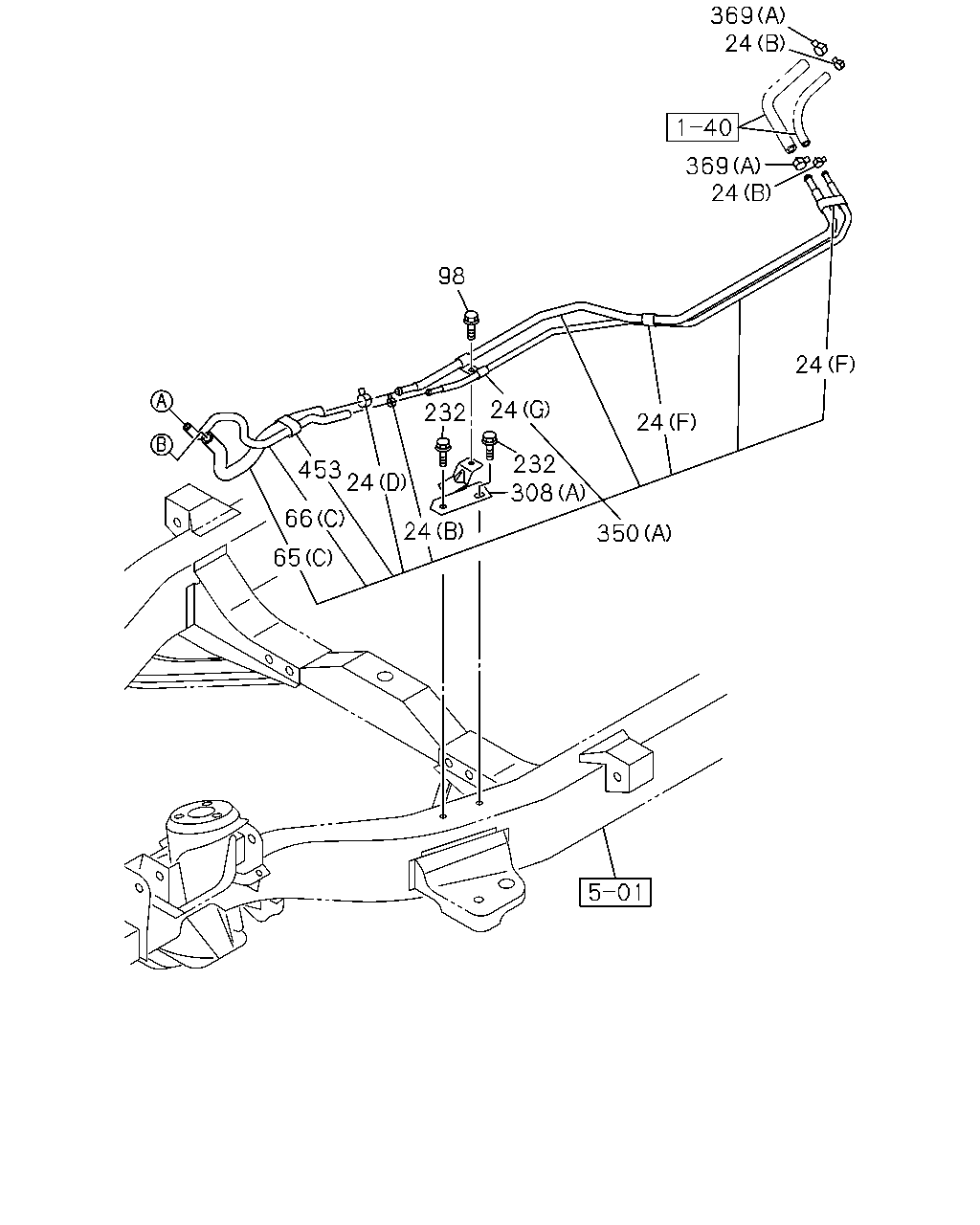

1-41 — FUEL PIPING; CHASSIS (#120098) — 410 parça

369 369 24 24 98 24 232 24 24 350 308 24 66 65 453 232 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1403-		●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1403-	●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE (E) ID=11.5	8-98008-096-0	01	1	1305-	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	05	1	1305-	●
24	CLIP; FUEL HOSE (G)	8-98233-887-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (G)	8-98233-887-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (G)	8-98233-887-0	01	1	1403-		●
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (C) ID=16	8-98030-682-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	1403-	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) ID=16	8-98030-682-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) ID=16	8-98030-682-0	01	1	1403-		●
24	CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1305-1402		●
24	CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1305-1402		●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1403-	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13	8-98150-357-0	02	1	1305-1402		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13	8-98150-357-0	02	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98204-517-0	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98204-517-0	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98204-517-0	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) DELIVERY	8-98100-729-4	01	1	1305-1402		●
65	HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1305-1402		●
65	HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1403-		●
66	HOSE; FUEL,RETURN PIPE (C) RETURN	8-98113-330-2	01	1	1305-1402	●
66	HOSE; FUEL,RETURN PIPE (C) RETURN	8-98113-330-2	01	1	1403-	●
66	HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C) RETURN	8-98113-330-2	01	1	1403-		●
66	HOSE; FUEL,RETURN PIPE (A) RETURN	8-98100-720-2	01	1	1305-	●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1305-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-771-0	01	1	1305-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-725-2	01	1	1305-1402		●
66	HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-725-2	01	1	1403-		●
98	BOLT; BRKT,FUEL PIPE M6X16 FLANGE	0-28650-616-0	01	1	1305-1402	●
98	BOLT; BRKT,FUEL PIPE M6X16 FLANGE	0-28650-616-0	01	1	1403-	●
98	BOLT; BRKT,FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> M6X16 FLANGE	0-28650-616-0	01	1	1403-		●
232	BOLT; CLIP,PIPE M10X25 FLANGE	0-28061-025-0	02	1	1305-1402	●
232	BOLT; CLIP,PIPE M10X25 FLANGE	0-28061-025-0	02	1	1403-	●
232	BOLT; CLIP,PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> M10X25 FLANGE	0-28061-025-0	02	1	1403-		●
308	BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1403-		●
308	BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1305-1402		●
308	BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1403-		●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1403-		●
308	BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1305-1402		●
308	BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1403-		●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (A)	8-98204-495-1	01	1	1305-1402	●
350	PIPE; FUEL,DEL & RET (A)	8-98204-495-1	01	1	1403-	●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98204-495-1	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (D)	8-98113-293-6	01	1	1305-1402	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (D)	8-98113-293-6	01	1	1305-1402		●
350	PIPE; FUEL,DEL & RET (D)	8-98113-293-6	01	1	1403-	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98113-293-6	01	1	1403-		●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98113-293-6	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (B)	8-98100-202-5	01	1	1305-	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-202-5	01	1	1305-		●
350	PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-760-1	01	1	1305-		●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-203-5	01	1	1305-1402		●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-203-5	01	1	1403-		●
350	PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-762-1	01	1	1305-		●
369	CLAMP; HOSE,FUEL (A) ID=17.2	8-98052-395-0	06	1	1305-1402	●
369	CLAMP; HOSE,FUEL (A) ID=17.2	8-98052-395-0	06	1	1403-	●
369	CLAMP; HOSE,FUEL RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=17.2	8-98052-395-0	06	1	1403-		●
369	CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1305-1402	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1305-1402		●
369	CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1403-	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1403-		●
369	CLAMP; HOSE,FUEL RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1403-		●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (A) ID=17.2	8-98052-395-0	09	1	1305-		●
453	BAND; FLEX HOSE	8-98233-888-0	01	1	1305-1402	●
453	BAND; FLEX HOSE	8-98233-888-0	01	1	1403-	●
453	BAND; FLEX HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0>	8-98233-888-0	01	1	1403-		●

369 48 24 350 308 103 308 24 100 66 24 65 369 369 65 24 24 350 24 369 103 48 82 24 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1403-		●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1403-	●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE (E) ID=11.5	8-98008-096-0	01	1	1305-	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	05	1	1305-	●
24	CLIP; FUEL HOSE (G)	8-98233-887-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (G)	8-98233-887-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (G)	8-98233-887-0	01	1	1403-		●
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (C) ID=16	8-98030-682-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	1403-	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) ID=16	8-98030-682-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) ID=16	8-98030-682-0	01	1	1403-		●
24	CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1305-1402		●
24	CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1305-1402		●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1403-	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13	8-98150-357-0	02	1	1305-1402		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13	8-98150-357-0	02	1	1403-		●
48	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	1305-1402	●
48	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M6X16 FLANGE	0-28650-616-0	02	1	1305-1402		●
48	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	1403-	●
48	BOLT; BRKT RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> M6X16 FLANGE	0-28650-616-0	02	1	1403-		●
48	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M6X16 FLANGE	0-28650-616-0	02	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98204-517-0	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98204-517-0	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98204-517-0	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) DELIVERY	8-98100-729-4	01	1	1305-1402		●
65	HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1305-1402		●
65	HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1403-		●
66	HOSE; FUEL,RETURN PIPE (C) RETURN	8-98113-330-2	01	1	1305-1402	●
66	HOSE; FUEL,RETURN PIPE (C) RETURN	8-98113-330-2	01	1	1403-	●
66	HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C) RETURN	8-98113-330-2	01	1	1403-		●
66	HOSE; FUEL,RETURN PIPE (A) RETURN	8-98100-720-2	01	1	1305-	●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1305-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-771-0	01	1	1305-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-725-2	01	1	1305-1402		●
66	HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-725-2	01	1	1403-		●
82	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> ID=13 & 16.5	8-98192-457-0	01	1	1305-1402		●
82	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> ID=13 & 16.5	8-98192-457-0	01	1	1403-		●
82	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> ID=13 & 16.5	8-98192-457-0	01	1	1403-		●
100	CLIP; FUEL PIPE	8-98113-581-0	01	1	1305-1402	●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1305-1402		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1305-1402		●
100	CLIP; FUEL PIPE	8-98113-581-0	01	1	1403-	●
100	CLIP; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1403-		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1403-		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1403-		●
103	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1305-1402	●
103	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE	0-91180-106-0	02	1	1305-1402		●
103	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1403-	●
103	NUT; BRKT RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE	0-91180-106-0	02	1	1403-		●
103	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE	0-91180-106-0	02	1	1403-		●
308	BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1403-		●
308	BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1305-1402		●
308	BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1403-		●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1403-		●
308	BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1305-1402		●
308	BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1403-		●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (A)	8-98204-495-1	01	1	1305-1402	●
350	PIPE; FUEL,DEL & RET (A)	8-98204-495-1	01	1	1403-	●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98204-495-1	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (D)	8-98113-293-6	01	1	1305-1402	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (D)	8-98113-293-6	01	1	1305-1402		●
350	PIPE; FUEL,DEL & RET (D)	8-98113-293-6	01	1	1403-	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98113-293-6	01	1	1403-		●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98113-293-6	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (B)	8-98100-202-5	01	1	1305-	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-202-5	01	1	1305-		●
350	PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-760-1	01	1	1305-		●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-203-5	01	1	1305-1402		●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-203-5	01	1	1403-		●
350	PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-762-1	01	1	1305-		●
369	CLAMP; HOSE,FUEL (A) ID=17.2	8-98052-395-0	06	1	1305-1402	●
369	CLAMP; HOSE,FUEL (A) ID=17.2	8-98052-395-0	06	1	1403-	●
369	CLAMP; HOSE,FUEL RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=17.2	8-98052-395-0	06	1	1403-		●
369	CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1305-1402	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1305-1402		●
369	CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1403-	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1403-		●
369	CLAMP; HOSE,FUEL RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1403-		●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (A) ID=17.2	8-98052-395-0	09	1	1305-		●

24 24 350 100 369 24 369 24 369 369 24 66 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1403-		●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1403-	●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE (E) ID=11.5	8-98008-096-0	01	1	1305-	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	05	1	1305-	●
24	CLIP; FUEL HOSE (G)	8-98233-887-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (G)	8-98233-887-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (G)	8-98233-887-0	01	1	1403-		●
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (C) ID=16	8-98030-682-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	1403-	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) ID=16	8-98030-682-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) ID=16	8-98030-682-0	01	1	1403-		●
24	CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1305-1402		●
24	CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1305-1402		●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1403-	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13	8-98150-357-0	02	1	1305-1402		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13	8-98150-357-0	02	1	1403-		●
66	HOSE; FUEL,RETURN PIPE (C) RETURN	8-98113-330-2	01	1	1305-1402	●
66	HOSE; FUEL,RETURN PIPE (C) RETURN	8-98113-330-2	01	1	1403-	●
66	HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C) RETURN	8-98113-330-2	01	1	1403-		●
66	HOSE; FUEL,RETURN PIPE (A) RETURN	8-98100-720-2	01	1	1305-	●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1305-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-771-0	01	1	1305-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-725-2	01	1	1305-1402		●
66	HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-725-2	01	1	1403-		●
100	CLIP; FUEL PIPE	8-98113-581-0	01	1	1305-1402	●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1305-1402		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1305-1402		●
100	CLIP; FUEL PIPE	8-98113-581-0	01	1	1403-	●
100	CLIP; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1403-		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1403-		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (A)	8-98204-495-1	01	1	1305-1402	●
350	PIPE; FUEL,DEL & RET (A)	8-98204-495-1	01	1	1403-	●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98204-495-1	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (D)	8-98113-293-6	01	1	1305-1402	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (D)	8-98113-293-6	01	1	1305-1402		●
350	PIPE; FUEL,DEL & RET (D)	8-98113-293-6	01	1	1403-	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98113-293-6	01	1	1403-		●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98113-293-6	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (B)	8-98100-202-5	01	1	1305-	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-202-5	01	1	1305-		●
350	PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-760-1	01	1	1305-		●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-203-5	01	1	1305-1402		●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-203-5	01	1	1403-		●
350	PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-762-1	01	1	1305-		●
369	CLAMP; HOSE,FUEL (A) ID=17.2	8-98052-395-0	06	1	1305-1402	●
369	CLAMP; HOSE,FUEL (A) ID=17.2	8-98052-395-0	06	1	1403-	●
369	CLAMP; HOSE,FUEL RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=17.2	8-98052-395-0	06	1	1403-		●
369	CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1305-1402	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1305-1402		●
369	CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1403-	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1403-		●
369	CLAMP; HOSE,FUEL RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1403-		●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (A) ID=17.2	8-98052-395-0	09	1	1305-		●

24 82 369 24 350 24 24 65 103 369 48 103 24 369 48 308 308 100 24 66 24 65 369 369 350 369 369 65 24 66 24 100 308 103 308 350 369 48 24 103 48 82 24 369 24 24 65 350 24 24 24 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1403-		●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1403-	●
24	CLIP; FUEL HOSE (D) ID=17.2	8-98052-395-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (D) ID=17.2	8-98052-395-0	01	1	1403-		●
24	CLIP; FUEL HOSE (E) ID=11.5	8-98008-096-0	01	1	1305-	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	05	1	1305-	●
24	CLIP; FUEL HOSE (G)	8-98233-887-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE (G)	8-98233-887-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (G)	8-98233-887-0	01	1	1403-		●
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (C) ID=16	8-98030-682-0	01	1	1305-1402		●
24	CLIP; FUEL HOSE (C) ID=16	8-98030-682-0	01	1	1403-	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) ID=16	8-98030-682-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C) ID=16	8-98030-682-0	01	1	1403-		●
24	CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1305-1402	●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1305-1402		●
24	CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (F)	8-98233-886-0	02	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	06	1	1305-1402		●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1403-	●
24	CLIP; FUEL HOSE (B) ID=11.5	8-98051-892-0	01	1	1403-	●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> (B) ID=11.5	8-98051-892-0	01	1	1403-		●
24	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13	8-98150-357-0	02	1	1305-1402		●
24	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) ID=13	8-98150-357-0	02	1	1403-		●
48	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	1305-1402	●
48	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M6X16 FLANGE	0-28650-616-0	02	1	1305-1402		●
48	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	1403-	●
48	BOLT; BRKT RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> M6X16 FLANGE	0-28650-616-0	02	1	1403-		●
48	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M6X16 FLANGE	0-28650-616-0	02	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98204-517-0	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98204-517-0	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98204-517-0	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (A) DELIVERY	8-98100-729-4	01	1	1305-1402		●
65	HOSE; FUEL,DELIVERY PIPE (A) DELIVERY	8-98100-729-4	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) DELIVERY	8-98100-729-4	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1305-1402	●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1305-1402		●
65	HOSE; FUEL,DELIVERY PIPE (B) DELIVERY	8-98100-731-2	01	1	1403-	●
65	HOSE; FUEL,DELIVERY PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1403-		●
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> (B) DELIVERY	8-98100-731-2	01	1	1403-		●
66	HOSE; FUEL,RETURN PIPE (C) RETURN	8-98113-330-2	01	1	1305-1402	●
66	HOSE; FUEL,RETURN PIPE (C) RETURN	8-98113-330-2	01	1	1403-	●
66	HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C) RETURN	8-98113-330-2	01	1	1403-		●
66	HOSE; FUEL,RETURN PIPE (A) RETURN	8-98100-720-2	01	1	1305-	●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A) RETURN	8-98100-720-2	01	1	1305-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> (D)	8-98194-771-0	01	1	1305-		●
66	HOSE; FUEL,RETURN PIPE POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-725-2	01	1	1305-1402		●
66	HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-725-2	01	1	1403-		●
82	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> ID=13 & 16.5	8-98192-457-0	01	1	1305-1402		●
82	CLIP; FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> ID=13 & 16.5	8-98192-457-0	01	1	1403-		●
82	CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> ID=13 & 16.5	8-98192-457-0	01	1	1403-		●
100	CLIP; FUEL PIPE	8-98113-581-0	01	1	1305-1402	●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1305-1402		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1305-1402		●
100	CLIP; FUEL PIPE	8-98113-581-0	01	1	1403-	●
100	CLIP; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1403-		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0>	8-98113-581-0	01	1	1403-		●
100	CLIP; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10)	8-98113-581-0	01	1	1403-		●
103	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1305-1402	●
103	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE	0-91180-106-0	02	1	1305-1402		●
103	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1403-	●
103	NUT; BRKT RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE	0-91180-106-0	02	1	1403-		●
103	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> M6 FLANGE	0-91180-106-0	02	1	1403-		●
308	BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98128-259-0	01	1	1403-		●
308	BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1305-1402		●
308	BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1403-		●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (B)	8-98233-889-0	01	1	1403-		●
308	BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1305-1402	●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1305-1402		●
308	BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1403-	●
308	BRACKET; FUEL PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1403-		●
308	BRACKET; FUEL PIPE POOR QUALITY DIESEL FUEL<KF0> (C)	8-98233-890-0	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (A)	8-98204-495-1	01	1	1305-1402	●
350	PIPE; FUEL,DEL & RET (A)	8-98204-495-1	01	1	1403-	●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	8-98204-495-1	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (D)	8-98113-293-6	01	1	1305-1402	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> (D)	8-98113-293-6	01	1	1305-1402		●
350	PIPE; FUEL,DEL & RET (D)	8-98113-293-6	01	1	1403-	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98113-293-6	01	1	1403-		●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (D)	8-98113-293-6	01	1	1403-		●
350	PIPE; FUEL,DEL & RET (B)	8-98100-202-5	01	1	1305-	●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98100-202-5	01	1	1305-		●
350	PIPE; FUEL,DEL & RET 4X2(TFB***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-760-1	01	1	1305-		●
350	PIPE; FUEL,DEL & RET POOR QUALITY DIESEL FUEL<KF0> RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-203-5	01	1	1305-1402		●
350	PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (C)	8-98100-203-5	01	1	1403-		●
350	PIPE; FUEL,DEL & RET 4X4(TFS***) POOR QUALITY DIESEL FUEL<KF0> (E)	8-98194-762-1	01	1	1305-		●
369	CLAMP; HOSE,FUEL (A) ID=17.2	8-98052-395-0	06	1	1305-1402	●
369	CLAMP; HOSE,FUEL (A) ID=17.2	8-98052-395-0	06	1	1403-	●
369	CLAMP; HOSE,FUEL RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=17.2	8-98052-395-0	06	1	1403-		●
369	CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1305-1402	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1305-1402		●
369	CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1403-	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1403-		●
369	CLAMP; HOSE,FUEL RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) ID=15.2	8-98186-048-0	01	1	1403-		●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> (A) ID=17.2	8-98052-395-0	09	1	1305-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
