Isuzu WW
▶
TRUCKS
▶
NLR
▶
51479 - NLR/NMR(THAILAND)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶

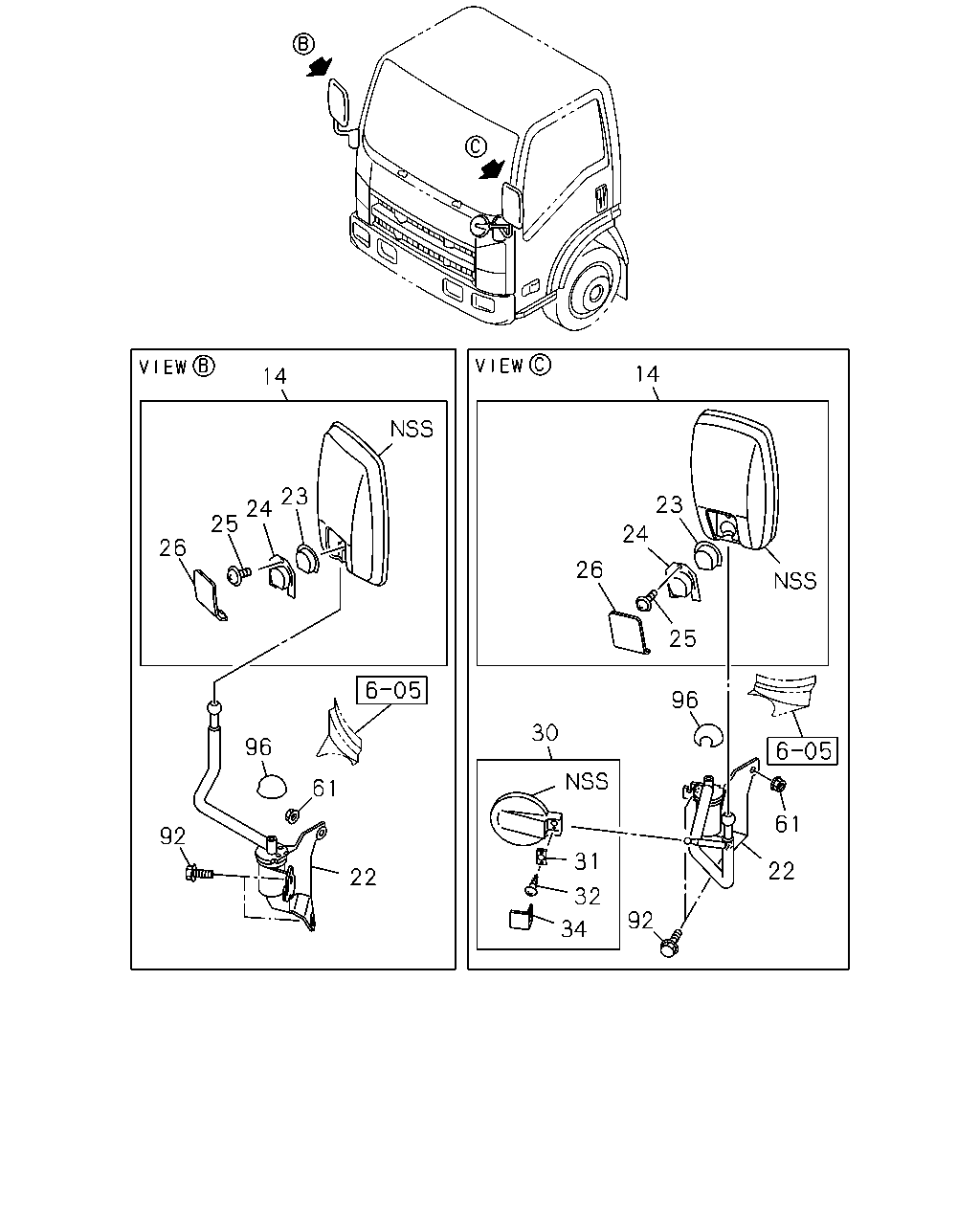

7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#120095) — 28 parça
Tümü
A - NMR5SE
B - NMR5SN
◀
[720A] OUTSIDE MIRROR (25 parça)
[720A] ROOM MIRROR (3 parça)
▶
14
14
23
24
26
25
23
24
25
26
96
61
22
92
30
96
61
22
31
32
34
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
MIRROR ASM; OUTSIDE
IMA
8-94262-542-3
01
1
1304-
●
●
14
MIRROR ASM; OUTSIDE
IMA
8-94262-542-3
01
1
1304-
●
●
22
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9>
8-98070-507-0
01
1
1304-
●
●
22
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9>
8-98070-505-0
01
1
1304-
●
●
22
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>
8-98038-224-1
01
1
1304-
●
●
22
STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>
8-98027-519-0
01
1
1304-
●
●
22
STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> IMA
8-98147-079-0
01
1
1304-
●
●
22
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9>
8-98070-509-0
01
1
1304-
●
●
22
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> IMA
8-98147-082-0
01
1
1304-
●
●
22
STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9>
8-98147-080-0
01
1
1304-
●
●
23
WASHER; OUTSIDE MIRROR
T=2.0 IMA
8-94262-545-0
01
1
1304-
●
●
23
WASHER; OUTSIDE MIRROR
T=2.0 IMA
8-94262-545-0
01
1
1304-
●
●
24
HOLDER; OUTSIDE MIRROR
T=1.6 IMA
8-94262-546-1
01
1
1304-
●
●
24
HOLDER; OUTSIDE MIRROR
T=1.6 IMA
8-94262-546-1
01
1
1304-
●
●
25
SCREW; OUTSIDE MIRROR
M6X30 IMA
8-94279-365-0
01
1
1304-
●
●
25
SCREW; OUTSIDE MIRROR
M6X30 IMA
8-94279-365-0
01
1
1304-
●
●
26
COVER; OUTSIDE MIRROR
T=2.3 IMA
8-94262-547-2
01
1
1304-
●
●
26
COVER; OUTSIDE MIRROR
T=2.3 IMA
8-94262-547-2
01
1
1304-
●
●
30
MIRROR; UNDER
UNDER MIRROR<RR9> IMA
8-94262-625-2
01
1
1304-
●
●
31
PLATE; MIRROR
UNDER MIRROR<RR9> IMA
8-94262-631-0
01
1
1304-
●
●
32
SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 IMA
8-94279-372-0
02
1
1304-
●
●
34
CAP; MIRROR
UNDER MIRROR<RR9> IMA
8-94262-629-0
01
1
1304-
●
●
61
NUT; STAY,OUTSIDE MIRROR
M8 FLANGE THA
0-91180-108-0
02
1
1304-
●
●
92
BOLT; STAY BRKT,MIRROR
M8X25 FLANGE THA
0-28650-825-0
04
1
1304-
●
●
96
CAP; MIRROR STAY
IMA
8-98027-552-2
02
1
1304-
●
●
18
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MIRROR; ROOM
THA
8-97924-058-2
01
1
1304-
●
●
2
SCREW; MIRROR TO BODY
M6X26 IMA
8-98033-674-0
02
1
1304-
●
●
18
CLIP; MIRROR
DARK GRAY IMA
8-97408-241-0
01
1
1304-
●
●
