◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-81 - GOVERNOR; INJECTION PUMP ▶

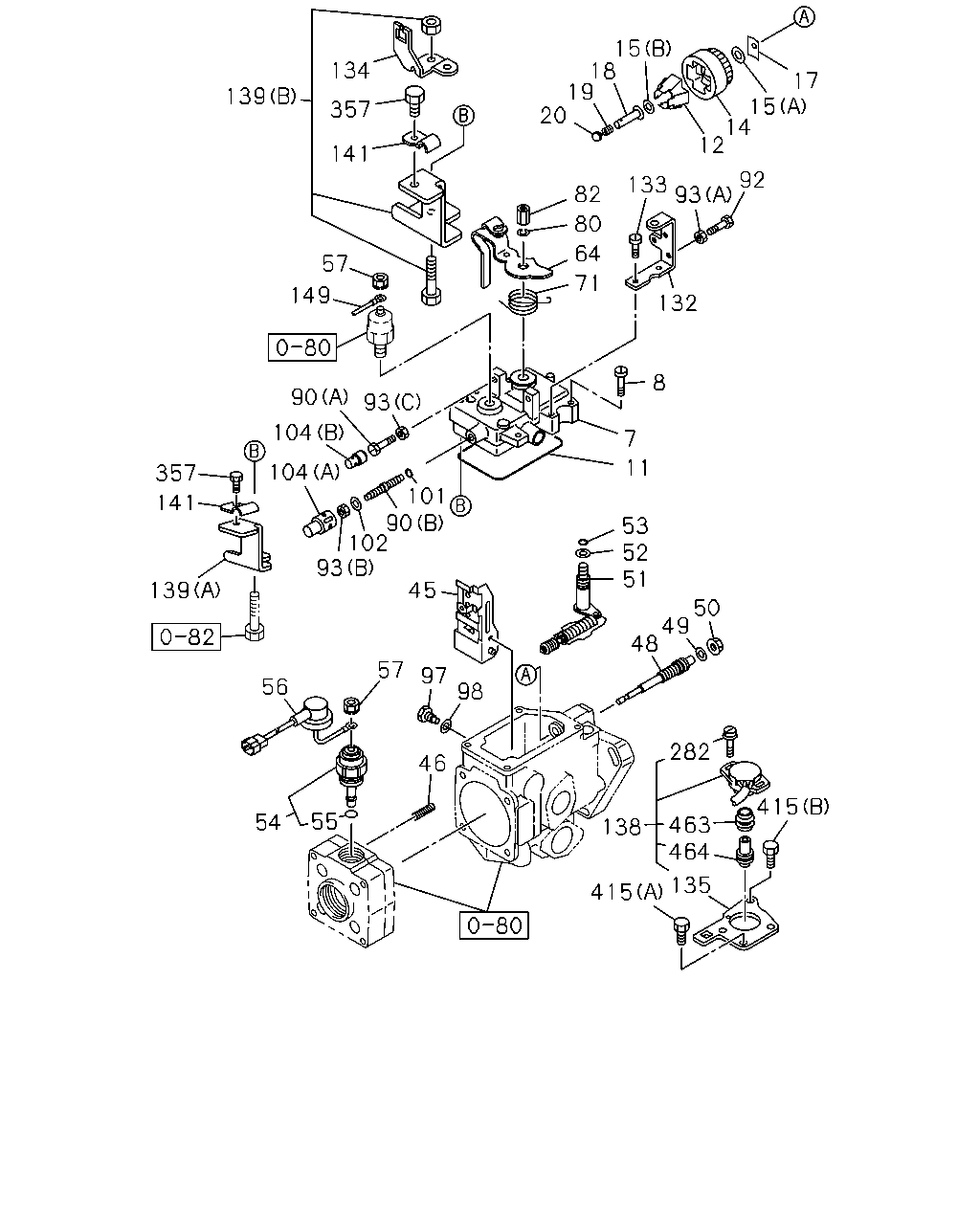

0-81 — GOVERNOR; INJECTION PUMP (#120092) — 125 parça
çizim 352235
134 357 139 141 57 149 20 19 18 15 12 14 15 17 92 93 133 132 71 64 80 82 90 104 104 357 141 139 56 93 102 101 93 7 11 53 52 51 48 49 50 98 97 57 54 55 46 138 282 415 463 464 135 415 45 8 90
BalonParca AdiParca NoAdetTipApplied Date
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97368-267-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-636-0 04 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97136-413-0 01 1 -
12 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97328-711-0 01 1 -
14 HOLDER; GOV FLYWEIGHT,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-613-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(A) ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-612-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-517-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.05 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-607-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.25 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-608-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.45 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-609-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.65 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-610-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.85 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-611-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.15 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94231-123-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.35 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94231-124-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.55 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94231-125-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.75 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94231-126-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97214-475-0 01 1 -
19 CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-519-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94372-499-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94372-500-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94372-501-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94372-502-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.10 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-520-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.30 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-521-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.50 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-522-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.70 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-523-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.90 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-524-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.10 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-525-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.30 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-526-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.50 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-527-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.70 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-528-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.90 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-529-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.10 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-530-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.30 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-531-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.50 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-532-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.70 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-533-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.90 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-534-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94408-535-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.20 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-868-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.40 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-869-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.60 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-870-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.80 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-871-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.00 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-872-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.20 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-873-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.40 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-874-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.60 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-875-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.80 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-876-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.00 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-877-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.20 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-878-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.40 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-879-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.60 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-880-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.80 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-881-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94428-882-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.60 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97163-167-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.70 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97163-168-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.80 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97163-169-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.90 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97163-170-0 01 1 -
45 LEVER ASM; GOV,INJ PUMP
ASM PART: B = 8-97350-398-3 		8-97096-689-0 01 1 -
45 LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-97350-396-4 		8-97332-036-0 01 1 -
46 SPRING; GOV,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94473-128-0 02 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94248-002-0 01 1 -
49 GASKET; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-606-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94473-129-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: B = 8-97350-398-3 		8-97328-706-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97350-396-4 		8-98050-923-0 01 1 -
52 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-590-0 01 1 -
53 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-585-0 01 1 -
54 VALVE; MAG,ENG STOP,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94242-275-0 01 1 -
55 GASKET; MAG VLV,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94239-373-0 01 1 -
56 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94470-582-0 01 1 -
57 NUT; VLV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97138-042-1 02 1 -
64 LEVER; LOAD CONT,GOV
STAMP 118 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97119-200-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 119 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97119-201-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 280 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97328-707-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 279 ASM PART: A = 8-97350-396-4 		8-98050-935-0 01 1 -
71 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94313-218-0 01 1 -
80 WASHER; LK,CONT LEVER,GOV
ID=6.1 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		9-09150-506-0 01 1 -
82 NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		1-15729-006-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), L=53.0 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-274-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), L=55.0 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-275-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B), L=57.0 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-276-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A) ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94426-049-0 01 1 -
92 BOLT; FULL LOAD STOPPER,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94426-049-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		1-15729-006-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-277-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94426-047-1 01 1 -
97 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-601-0 02 1 -
98 GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-602-0 02 1 -
101 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-598-0 01 1 -
102 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94227-593-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(A), L=16.5 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-262-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-263-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-264-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-265-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-266-0 01 1 -
132 BRACKET; ADJ SCREW,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97328-705-0 01 1 -
133 BOLT; BRKT FIX,GOV
M6X12 ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94313-267-0 02 1 -
134 BRACKET; CONT CABLE,GOV
ASM PART: B = 8-97350-398-3 		8-97322-854-0 01 1 -
135 BRACKET; POTENTIO METER
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97368-270-0 01 1 -
138 POTENTIO METER
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97368-269-0 01 1 -
139 BRACKET; INJ PUMP
(B) ASM PART: A = 8-97350-396-4 		8-97263-483-0 01 1 -
139 BRACKET; INJ PUMP
(A) ASM PART: B = 8-97350-398-3 		8-97368-179-0 01 1 -
141 PLATE ASM; PIPE BRKT
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97182-233-0 01 1 -
149 WIRE; VLV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94316-278-0 01 1 -
282 SCREW; POTENTIO METER
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97148-143-0 02 1 -
357 BOLT; PLATE,GOV
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94174-987-0 01 1 -
415 BOLT; BRKT TO HOUSING
(A) ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-94313-203-0 02 1 -
415 BOLT; BRKT TO HOUSING
(B) ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97020-720-0 01 1 -
463 BOOT; POTENTIO METER
ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97148-144-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=15 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97168-229-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=30 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97168-230-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=45 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97168-231-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=60 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97168-232-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=75 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97168-233-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=52.5 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97168-234-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=48.5 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97168-235-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=37.5 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97168-236-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=90 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97214-514-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=105 DEGREES ASM PART: B = 8-97350-398-3 		8-97214-515-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=120 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97214-516-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=135 DEGREES ASM PART: B = 8-97350-398-3 		8-97214-517-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=150 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97214-518-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=165 DEGREES ASM PART: B = 8-97350-398-3 		8-97214-519-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=0 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97214-520-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=7.5 DEGREES ASM PART: A = 8-97350-396-4, B = 8-97350-398-3 		8-97368-271-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
