2-53 — TRANSMISSION OIL COOLER SYSTEM (#120085) — 18 parça

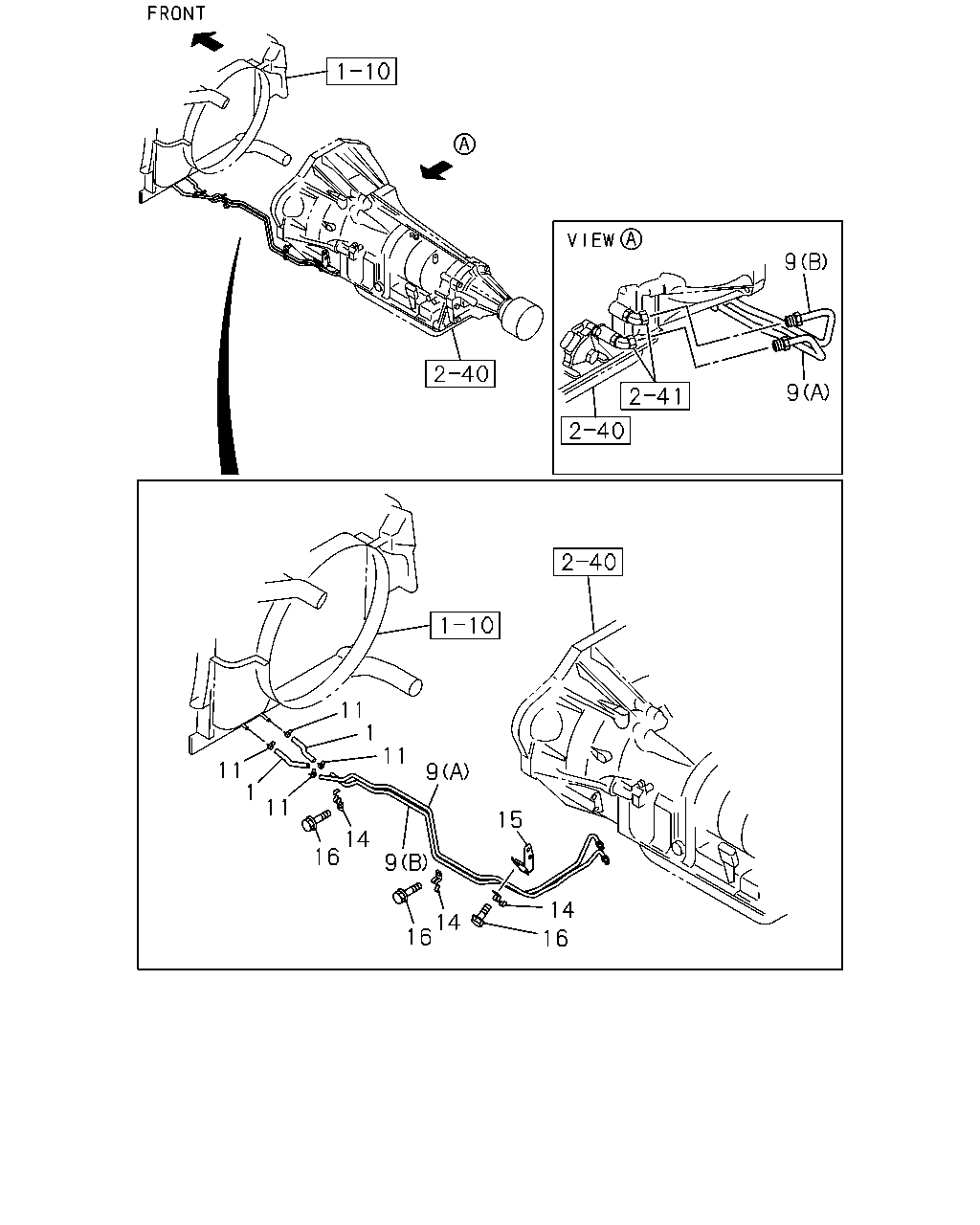

çizim 350737

9 9 11 1 11 16 11 1 11 9 9 14 16 15 14 14 16

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	HOSE; ATF 4JK1-TCX ENG(LR0) L=180 SERVICED BY L=3000	0-02259-300-0	02	1	1305-
	9	PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCX ENG(LR0) (A) INLET	8-98100-272-2	01	1	1305-
	9	PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCX ENG(LR0) (B) RETURN	8-98100-274-2	01	1	1305-
	9	PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCX ENG(LR0) (C) INLET	8-98100-273-3	01	1	1305-
	9	PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCX ENG(LR0) (D) RETURN	8-98100-275-3	01	1	1305-
	11	CLIP; PIPE 4JK1-TCX ENG(LR0)	8-98008-165-0	04	1	1305-
	14	CLIP; PIPE TO ENG SIDE 4JK1-TCX ENG(LR0)	8-98008-163-0	03	1	1305-
	15	BRACKET; ATF PIPE 4JK1-TCX ENG(LR0)	8-98100-277-0	01	1	1305-
	16	BOLT; CLIP,ENG SIDE 4JK1-TCX ENG(LR0) M8X16 FLANGE	0-28050-816-0	03	1	1305-

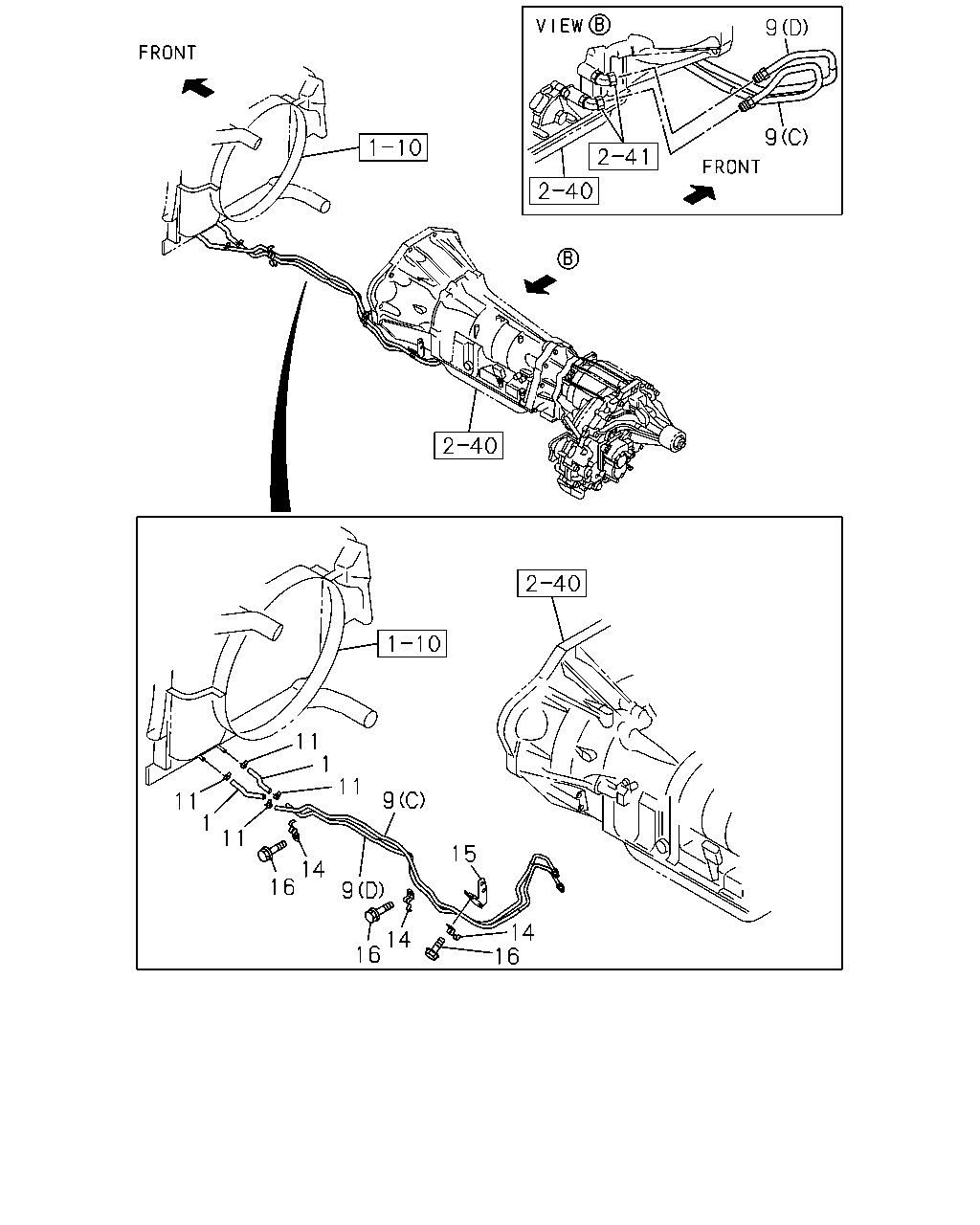

çizim 350739

9 9 16 15 11 1 11 16 11 1 11 9 9 14 14 14 16

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	HOSE; ATF 4JK1-TCX ENG(LR0) L=180 SERVICED BY L=3000	0-02259-300-0	02	1	1305-
	9	PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCX ENG(LR0) (A) INLET	8-98100-272-2	01	1	1305-
	9	PIPE; ATF,INL,A/T 4X2(TFB***) 4JK1-TCX ENG(LR0) (B) RETURN	8-98100-274-2	01	1	1305-
	9	PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCX ENG(LR0) (C) INLET	8-98100-273-3	01	1	1305-
	9	PIPE; ATF,INL,A/T 4X4(TFS***) 4JK1-TCX ENG(LR0) (D) RETURN	8-98100-275-3	01	1	1305-
	11	CLIP; PIPE 4JK1-TCX ENG(LR0)	8-98008-165-0	04	1	1305-
	14	CLIP; PIPE TO ENG SIDE 4JK1-TCX ENG(LR0)	8-98008-163-0	03	1	1305-
	15	BRACKET; ATF PIPE 4JK1-TCX ENG(LR0)	8-98100-277-0	01	1	1305-
	16	BOLT; CLIP,ENG SIDE 4JK1-TCX ENG(LR0) M8X16 FLANGE	0-28050-816-0	03	1	1305-
