7-55 — REAR SEAT (#120082) — 95 parça

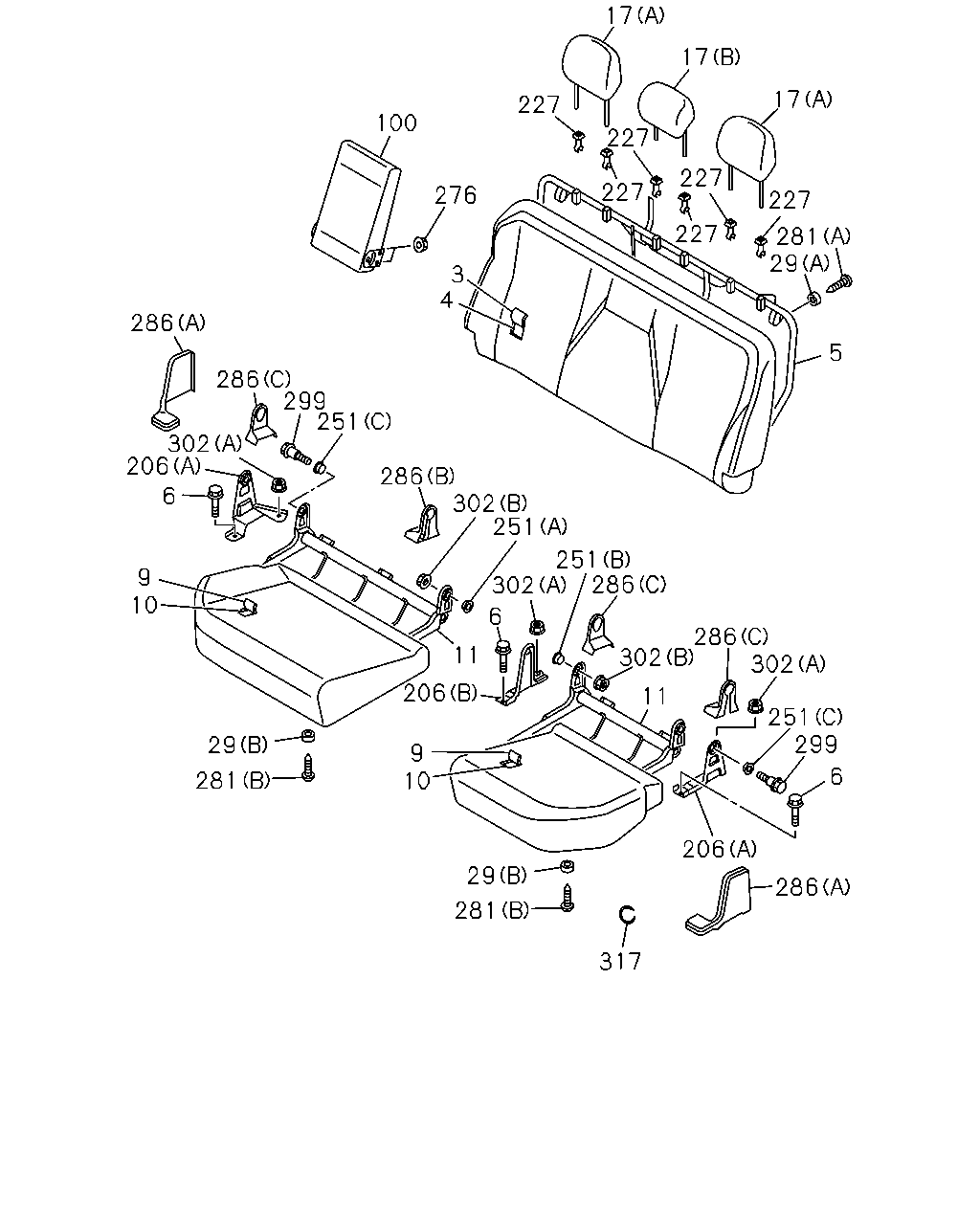

çizim 352627
17 17 17 227 227 227 227 227 227 281 29 5 100 276 3 4 286 286 299 251 286 302 251 251 286 286 302 302 206 6 302 302 251 11 299 6 9 10 11 6 206 29 281 9 10 206 286 29 281 317
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY 		8-97423-410-0 01 1 1305-1409 ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-410-0 01 1 1410- ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-393-0 01 1 1305-1409 ●
3 COVER; TRIM,RR SEAT BACK
BLACK 		8-97423-393-0 01 1 1305-1409 ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-393-0 01 1 1410-1507 ●
3 COVER; TRIM,RR SEAT BACK
RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-393-0 01 1 1410-1507 ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-302-0 01 1 1508- ●
3 COVER; TRIM,RR SEAT BACK
RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-302-0 01 1 1508- ●
4 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK> 		8-98196-181-0 01 1 1305-1409 ●
4 PAD; RR,SEAT BACK
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-181-0 01 1 1410- ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-183-0 01 1 1305-1409 ●
4 PAD; RR,SEAT BACK 8-98196-183-0 01 1 1305-1409 ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-183-0 01 1 1410-1507 ●
4 PAD; RR,SEAT BACK
RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-183-0 01 1 1410-1507 ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-432-0 01 1 1508- ●
4 PAD; RR,SEAT BACK
RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-432-0 01 1 1508- ●
5 FRAME ASM; RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> BLACK MAL 		8-97427-752-0 01 1 1309-1409 ●
5 FRAME ASM; RR SEAT BACK
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> BLACK MAL 		8-97427-752-0 01 1 1410- ●
5 FRAME ASM; RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK MAL 		8-97427-756-0 01 1 1309-1409 ●
5 FRAME ASM; RR SEAT BACK
BLACK MAL 		8-97427-756-0 01 1 1309-1409 ●
5 FRAME ASM; RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> BLACK MAL 		8-97427-756-0 01 1 1410- ●
5 FRAME ASM; RR SEAT BACK
RESTRAINT PROVISIONS CHILD<AN4> BLACK MAL 		8-97427-756-0 01 1 1410- ●
6 BOLT; RR SEAT
M12X27.5 W/PL WASHER 		8-98050-319-0 03 1 1305- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY 		8-97423-407-0 01 1 1305-1409 ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-407-0 01 1 1410- ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> LIGHT GRAY 		8-97423-408-0 01 1 1305-1409 ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97423-408-0 01 1 1410- ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-394-0 01 1 1305-1409 ●
9 COVER ASM; TRIM,RR,CUSHION
BLACK 		8-97423-394-0 01 1 1305-1409 ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-394-0 01 1 1410-1507 ●
9 COVER ASM; TRIM,RR,CUSHION
RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-394-0 01 1 1410-1507 ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-304-0 01 1 1508- ●
9 COVER ASM; TRIM,RR,CUSHION
RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-304-0 01 1 1508- ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-395-0 01 1 1305-1409 ●
9 COVER ASM; TRIM,RR,CUSHION
BLACK 		8-97423-395-0 01 1 1305-1409 ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-395-0 01 1 1410-1507 ●
9 COVER ASM; TRIM,RR,CUSHION
RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97423-395-0 01 1 1410-1507 ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-306-0 01 1 1508- ●
9 COVER ASM; TRIM,RR,CUSHION
RESTRAINT PROVISIONS CHILD<AN4> BLACK 		8-97460-306-0 01 1 1508- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK> 		8-98200-494-1 01 1 1305-1409 ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> 		8-98200-494-1 01 1 1410- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK> 		8-98200-498-1 01 1 1305-1409 ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> 		8-98200-498-1 01 1 1410- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-199-0 01 1 1305-1409 ●
10 PAD; CUSHION,RR SEAT 8-98196-199-0 01 1 1305-1409 ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-199-0 01 1 1410-1507 ●
10 PAD; CUSHION,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-199-0 01 1 1410-1507 ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-436-0 01 1 1508- ●
10 PAD; CUSHION,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-436-0 01 1 1508- ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98196-213-0 01 1 1305-1409 ●
10 PAD; CUSHION,RR SEAT 8-98196-213-0 01 1 1305-1409 ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-213-0 01 1 1410-1507 ●
10 PAD; CUSHION,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> 		8-98196-213-0 01 1 1410-1507 ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-440-0 01 1 1508- ●
10 PAD; CUSHION,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> 		8-98300-440-0 01 1 1508- ●
11 FRAME ASM; CUSHION,RR SEAT
BLACK 		8-97427-778-1 01 1 1309- ● ●
11 FRAME ASM; CUSHION,RR SEAT
BLACK 		8-97427-781-1 01 1 1309- ● ●
17 REST; HD,RR SEAT
(A) LIGHT GRAY 		8-97424-713-0 02 1 1305- ● ●
17 REST; HD,RR SEAT
(B) LIGHT GRAY 		8-97424-714-0 01 1 1305- ● ●
29 RUBBER; RR SEAT
(A) 		8-98224-609-0 02 1 1305- ● ●
29 RUBBER; RR SEAT
(B) 		8-98224-621-0 05 1 1305- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY 		8-97424-694-0 01 1 1305-1409 ●
100 REST; ARM,RR SEAT
LIGHT GRAY 		8-97424-694-0 01 1 1305-1409 ●
100 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97424-694-0 01 1 1410- ●
100 REST; ARM,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> LIGHT GRAY 		8-97424-694-0 01 1 1410- ●
206 BRACKET ASM; LEG,RR SEAT
(A) 		8-98224-625-0 01 1 1305- ● ●
206 BRACKET ASM; LEG,RR SEAT
(B) 		8-98224-695-0 01 1 1305- ● ●
206 BRACKET ASM; LEG,RR SEAT
(A) 		8-98224-697-0 01 1 1305- ● ●
227 HOLDER; GUIDE,RR HD REST
LOCK BLACK 		8-97424-499-0 03 1 1305- ● ●
227 HOLDER; GUIDE,RR HD REST
FREE BLACK 		8-97424-500-0 03 1 1305- ● ●
251 BUSHING; HINGE PIN
(A) 		8-98224-622-0 01 1 1305- ● ●
251 BUSHING; HINGE PIN
(B) 		8-98224-623-0 01 1 1305- ● ●
251 BUSHING; HINGE PIN
(C) 		8-98224-624-0 02 1 1305- ● ●
276 NUT; ARM REST
SEAT TRIM HIGH GRADE CLOTH<8LM> M6 FLANGE 		8-98224-604-0 04 1 1305-1409 ●
276 NUT; ARM REST
M6 FLANGE 		8-98224-604-0 04 1 1305-1409 ●
276 NUT; ARM REST
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> M6 FLANGE 		8-98224-604-0 04 1 1410- ●
276 NUT; ARM REST
RESTRAINT PROVISIONS CHILD<AN4> M6 FLANGE 		8-98224-604-0 04 1 1410- ●
281 SCREW
(A) M4X14 		8-98224-611-0 02 1 1305- ● ●
281 SCREW
(B) M5X18 		8-98233-169-0 05 1 1305- ● ●
286 COVER; HINGE
(B) BLACK 		8-97424-699-1 01 1 1305- ● ●
286 COVER; HINGE
(C) BLACK 		8-97424-700-0 03 1 1305- ● ●
286 COVER; HINGE
(A) BLACK 		8-97416-997-2 01 1 1305- ● ●
286 COVER; HINGE
(A) BLACK 		8-97416-999-2 01 1 1305- ● ●
299 BOLT; LEG
M8X26 		8-98224-698-0 02 1 1305- ● ●
302 NUT; RR SEAT
(B) M6 FLANGE 		8-98225-096-0 02 1 1305- ● ●
302 NUT; RR SEAT
(A) M12 FLANGE 		0-91180-212-0 03 1 1305- ● ●
317 RING; BACK,RR SEAT
SEAT TRIM BASE CLOTH<8LK> 		8-98220-068-0 35 1 1305-1409 ●
317 RING; BACK,RR SEAT
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> 		8-98220-068-0 35 1 1410-1507 ●
317 RING; BACK,RR SEAT
SEAT TRIM BASE CLOTH<8LK> RESTRAINT PROVISIONS CHILD<AN4> 		8-98220-068-0 27 1 1508- ●
317 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> 		8-98220-068-0 38 1 1305-1409 ●
317 RING; BACK,RR SEAT 8-98220-068-0 38 1 1305-1409 ●
317 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> 		8-98220-068-0 38 1 1410-1507 ●
317 RING; BACK,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> 		8-98220-068-0 38 1 1410-1507 ●
317 RING; BACK,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> RESTRAINT PROVISIONS CHILD<AN4> 		8-98220-068-0 48 1 1508- ●
317 RING; BACK,RR SEAT
RESTRAINT PROVISIONS CHILD<AN4> 		8-98220-068-0 48 1 1508- ●
