◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10878 - EXZ RHD FUEL TANK 400L ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#12008) — 101 parça
çizim 21085
35 73 56 44 58 46 54 72 77 46 47 48 47 46 47 46 47 46 47 75 75 77 51 52 50 47 42 12 11 7 132 9 9 13 8 14 12 23 24 27 30 30 32 11 22 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-902-0, D = 1-44000-903-0 		1-44240-148-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-863-1, D = 1-44000-903-0 		1-44321-035-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1 		1-44321-037-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-902-0 		1-44321-038-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, C = 1-44000-902-0 		1-44150-057-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-863-1, D = 1-44000-903-0 		1-44150-085-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-227-0 01 1 -

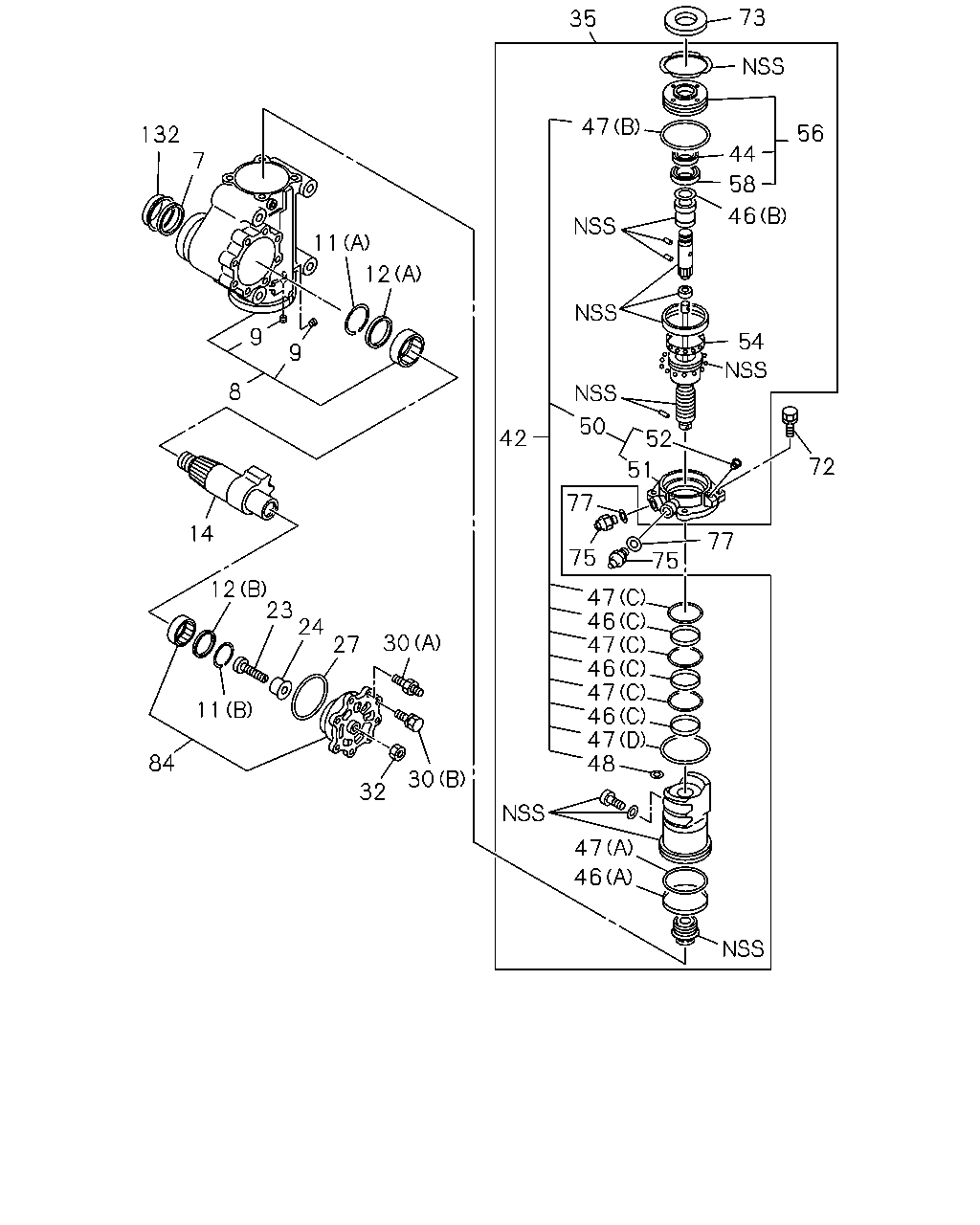

çizim 23820
35 73 56 44 58 46 54 72 77 52 50 51 77 75 75 47 46 47 46 46 47 48 47 46 30 32 11 84 30 27 24 23 12 14 42 8 9 9 12 11 7 132
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1 		1-44240-102-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-902-0, D = 1-44000-903-0 		1-44240-148-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-863-1, D = 1-44000-903-0 		1-44321-035-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1 		1-44321-037-1 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-902-0 		1-44321-038-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, C = 1-44000-902-0 		1-44150-057-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-863-1, D = 1-44000-903-0 		1-44150-085-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
M22X1.5 ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		9-89970-787-0 02 1 -
84 COVER ASM; STRG UNIT
ASM PART: C = 1-44000-902-0, D = 1-44000-903-0 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-227-0 01 1 -

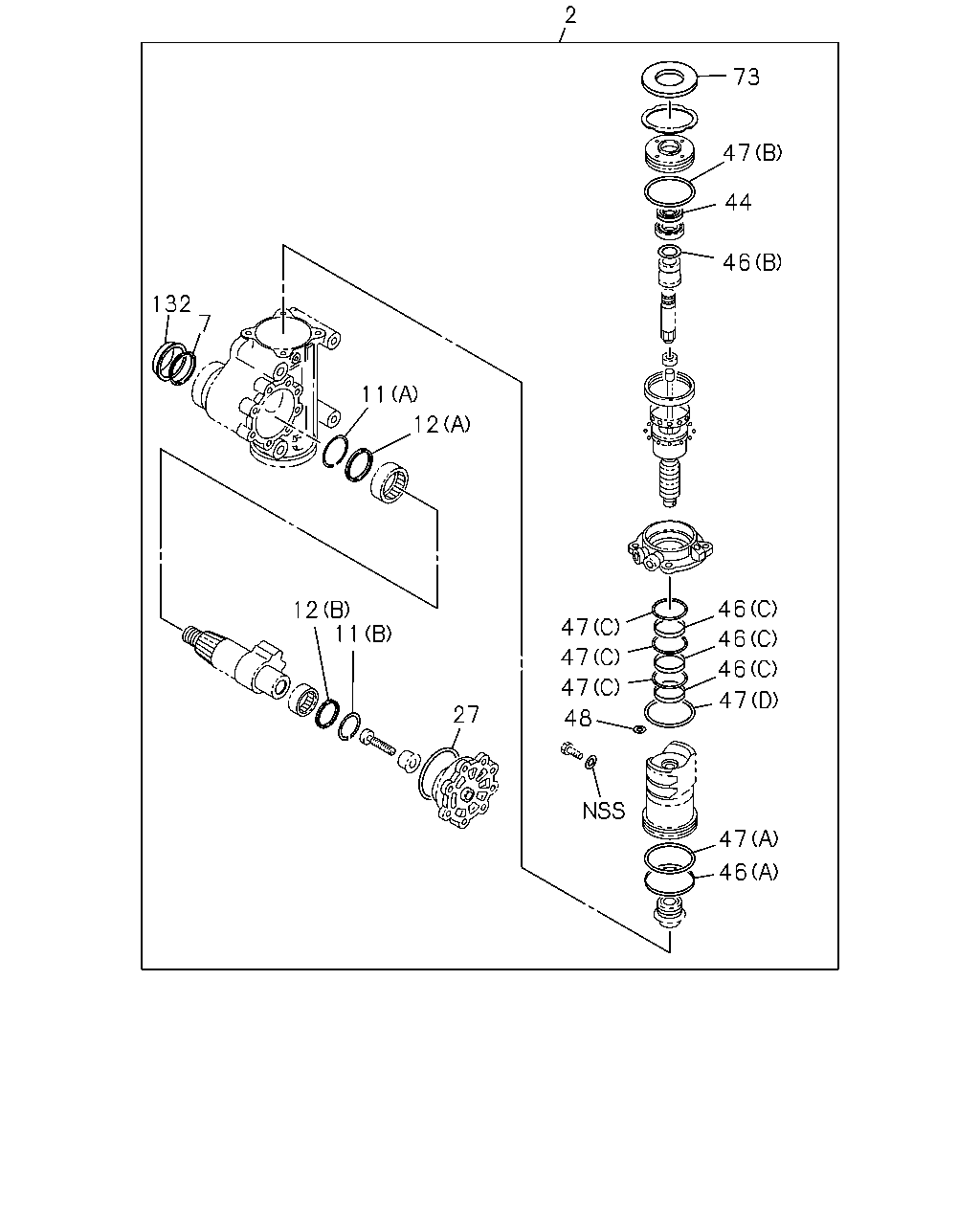

çizim 81437
2 73 47 44 46 46 46 46 47 47 46 48 47 47 47 27 11 12 12 11 132
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-85574-052-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-858-1, B = 1-44000-863-1, C = 1-44000-902-0, D = 1-44000-903-0 		1-44519-227-0 01 1 -
