2-30 — GEAR SHIFTER AND QUADRANT BOX (#120078) — 87 parça

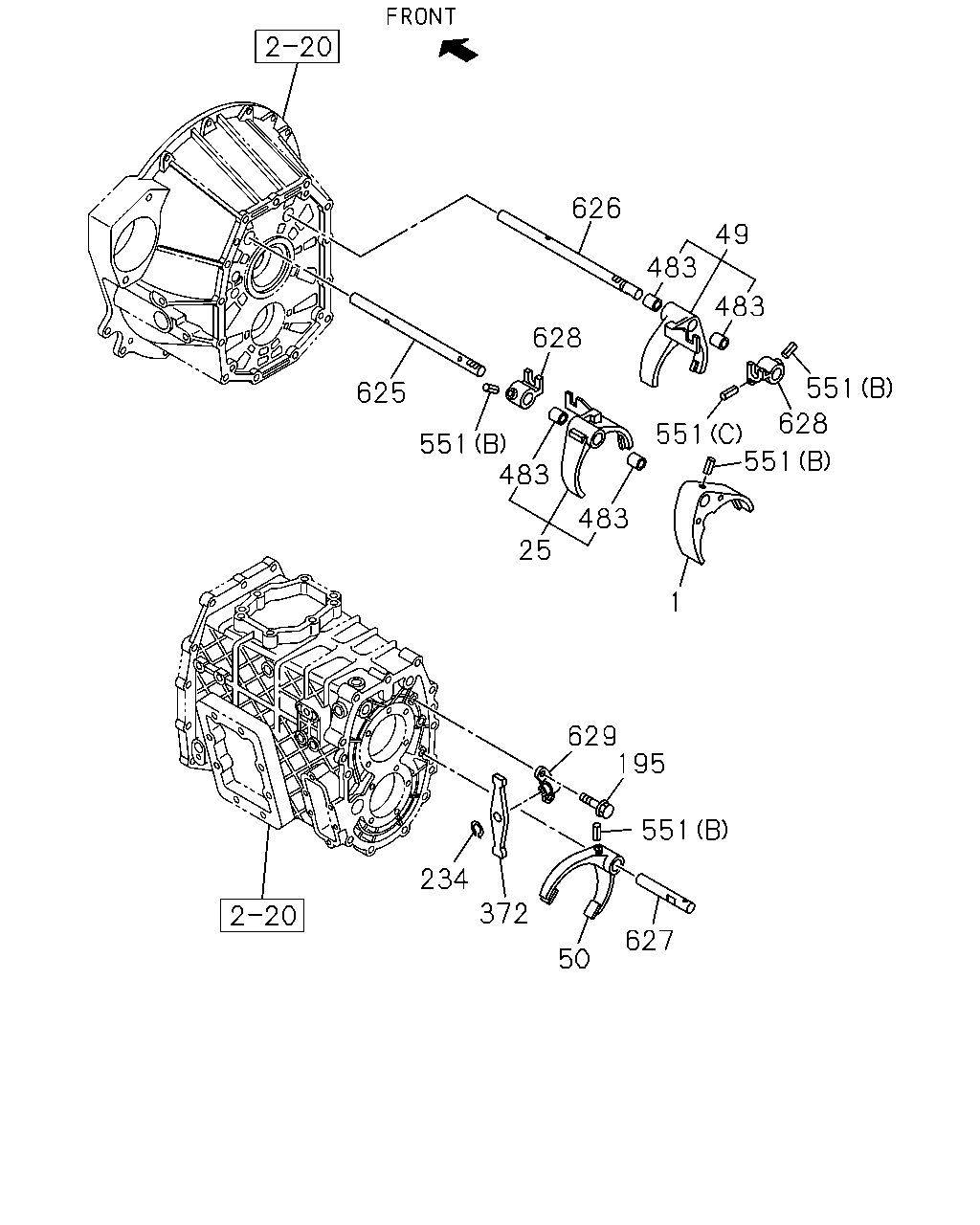

çizim 350652
627 551 195 629 234 372 50 25 483 551 625 628 551 551 628 551 483 483 49 626 483 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
IMA 		8-97241-320-2 01 1 1304- ● ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1304-1407 ● ●
25 ARM; SHIFT,2ND & 3RD
IMA 		8-98255-926-1 01 1 1408- ● ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97258-716-0 01 1 1304- ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97362-732-1 01 1 1304- ●
50 ARM; SHIFT,6TH
IMA 		8-97241-325-1 01 1 1304- ●
195 BOLT
M10X28 FLANGE REAMER IMA 		8-97365-375-0 02 1 1304- ● ●
234 RING; SNAP
ID=12 IMA 		8-94460-357-0 01 1 1304- ●
234 RING; SNAP
ID=16.5 IMA 		0-91800-618-0 01 1 1304- ●
372 LEVER; RELAY,6TH
IMA 		8-97241-343-0 01 1 1304- ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 02 1 1304- ● ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 02 1 1304- ● ●
551 PIN; SPRING
(A) L=25 OD=5 IMA 		1-09748-032-0 01 1 1304- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 04 1 1304- ● ●
551 PIN; SPRING
(C) L=20 IMA 		8-97241-340-0 01 1 1304- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 01 1 1304- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
IMA 		8-97362-741-0 01 1 1304- ● ●
626 ROD; GEAR SHIFT,4TH,5TH & 6TH
IMA 		8-97366-024-1 01 1 1304- ●
627 ROD; GEAR SHIFT,6TH SUB
IMA 		8-98119-293-0 01 1 1304- ●
628 BLOCK; SHIFT,LOW,REV & 6TH
IMA 		8-97241-327-1 02 1 1304- ●
629 BRIDGE; LEVER
IMA 		8-97237-107-1 01 1 1304- ●
629 BRIDGE; LEVER
IMA 		8-97241-345-1 01 1 1304- ●

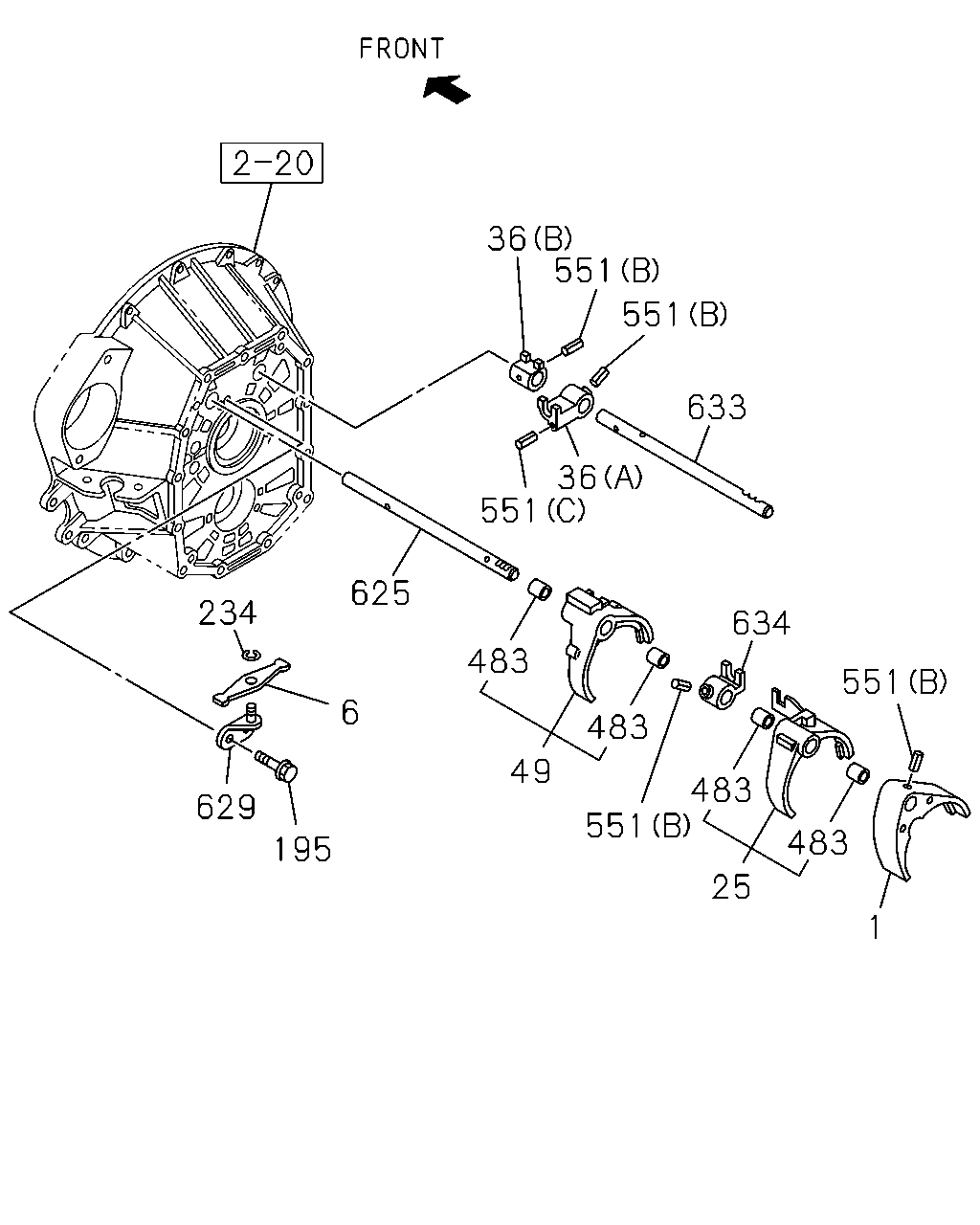

çizim 350656
483 551 551 634 483 483 49 195 234 629 6 625 551 36 633 551 551 36 483 25 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
IMA 		8-97241-320-2 01 1 1304- ● ●
6 LEVER; RELAY
IMA 		8-97241-344-0 01 1 1304- ●
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1304-1407 ● ●
25 ARM; SHIFT,2ND & 3RD
IMA 		8-98255-926-1 01 1 1408- ● ●
36 BLOCK; SHIFT,4TH & 5TH
(A) IMA 		8-97241-329-1 01 1 1304- ●
36 BLOCK; SHIFT,4TH & 5TH
(B) IMA 		8-97241-330-0 01 1 1304- ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97258-716-0 01 1 1304- ●
49 ARM; SHIFT,4TH & 5TH
IMA 		8-97362-732-1 01 1 1304- ●
195 BOLT
M10X28 FLANGE REAMER IMA 		8-97365-375-0 02 1 1304- ● ●
234 RING; SNAP
ID=12 IMA 		8-94460-357-0 01 1 1304- ●
234 RING; SNAP
ID=16.5 IMA 		0-91800-618-0 01 1 1304- ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 02 1 1304- ● ●
483 BUSHING; SHIFT ARM
IMA 		8-97241-326-2 02 1 1304- ● ●
551 PIN; SPRING
(A) L=25 OD=5 IMA 		1-09748-032-0 01 1 1304- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 04 1 1304- ● ●
551 PIN; SPRING
(C) L=20 IMA 		8-97241-340-0 01 1 1304- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 01 1 1304- ●
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
IMA 		8-97362-741-0 01 1 1304- ● ●
629 BRIDGE; LEVER
IMA 		8-97237-107-1 01 1 1304- ●
629 BRIDGE; LEVER
IMA 		8-97241-345-1 01 1 1304- ●
633 ROD; GEAR SHIFT,4TH,5TH
IMA 		8-97362-743-0 01 1 1304- ●
634 BLOCK; SHIFT,LOW,REV
IMA 		8-97241-327-1 01 1 1304- ●

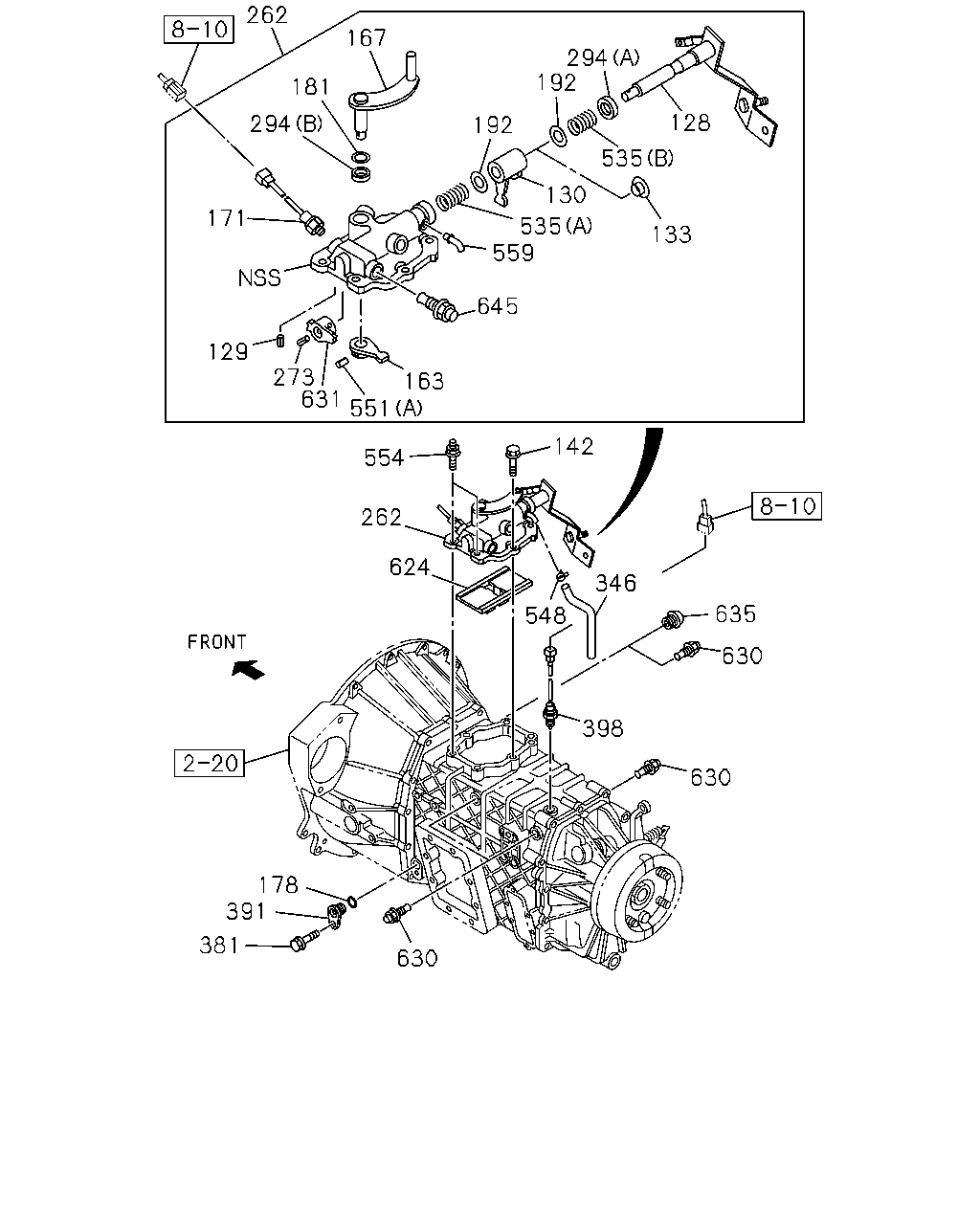

çizim 352022
630 630 398 630 635 346 548 624 262 178 391 381 142 554 163 551 631 273 129 171 559 645 535 133 535 128 294 192 192 130 294 181 167 262
BalonParca AdiParca NoAdetTipApplied Date A B
128 LEVER; SHIFT,EXTERNAL
IMA 		8-97305-725-0 01 1 1304- ●
128 LEVER; SHIFT,EXTERNAL
IMA 		8-97363-226-0 01 1 1304- ●
129 PIN; SPR,SHIFT
L=30 OD=4 IMA 		1-09748-031-0 01 1 1304- ● ●
130 LEVER; SHIFT,INTERNAL
IMA 		8-97306-647-0 01 1 1304- ● ●
133 SEAT; SPR
IMA 		8-97305-667-0 01 1 1304- ●
142 BOLT; QUAD BOX
M8X22 FLANGE IMA 		8-97365-376-0 04 1 1304- ● ●
163 LEVER; SELECT,INTERNAL
IMA 		8-97305-663-0 01 1 1304- ● ●
167 LEVER; SELECT,EXTERNAL
IMA 		8-98039-436-0 01 1 1304- ● ●
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1304-1312 ● ●
171 SWITCH; NEUTRAL
IMA 		8-98242-172-1 01 1 1401- ● ●
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). IMA 		9-09567-113-0 01 1 1304- ● ●
181 WASHER; PL,SELECT LEVER
IMA 		8-97367-327-0 01 1 1304- ● ●
192 WASHER; PL
IMA 		8-97305-661-0 01 1 1304- ●
192 WASHER; PL
IMA 		8-97305-661-0 02 1 1304- ●
262 BOX ASM; SHIFT CONT 8-97362-753-2 01 1 1304-1312 ●
262 BOX ASM; SHIFT CONT
IMA 		8-98241-002-1 01 1 1401- ●
262 BOX ASM; SHIFT CONT 8-98021-591-1 01 1 1304-1312 ●
262 BOX ASM; SHIFT CONT
IMA 		8-98240-993-1 01 1 1401- ●
273 PIN; SPR,STOPPER
D=4.2 L=25 IMA 		8-97103-142-0 01 1 1304- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) IMA 		8-97305-662-0 01 1 1304- ● ●
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) IMA 		8-97363-225-0 01 1 1304- ● ●
346 HOSE; AIR
IMA 		8-97309-855-0 01 1 1304- ● ●
381 BOLT
M6X16 FLANGE THA 		0-28650-616-0 01 1 1304- ● ●
391 PLUG; SW HOLE
IMA 		8-97300-273-1 01 1 1304- ● ●
398 SWITCH; REV LAMP 8-98186-003-0 01 1 1304-1311 ● ●
398 SWITCH; REV LAMP
IMA 		8-98256-418-0 01 1 1312- ● ●
535 SPRING; LEVER
(A) IMA 		8-97323-771-0 01 1 1304- ●
535 SPRING; LEVER
(B) IMA 		8-97323-772-0 01 1 1304- ●
535 SPRING; LEVER
(A) IMA 		8-97305-659-0 01 1 1304- ●
535 SPRING; LEVER
(B) IMA 		8-97305-660-0 01 1 1304- ●
548 CLIP; HOSE
IMA 		8-97031-674-0 01 1 1304- ● ●
551 PIN; SPRING
(A) L=25 OD=5 IMA 		1-09748-032-0 01 1 1304- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 04 1 1304- ● ●
551 PIN; SPRING
(C) L=20 IMA 		8-97241-340-0 01 1 1304- ● ●
551 PIN; SPRING
(B) L=32 IMA 		8-97011-596-2 01 1 1304- ●
554 STUD; CONT BOX
M8X15,M8X25 L=49 IMA 		8-97365-378-0 02 1 1304- ● ●
559 PIPE; BREATHER
IMA 		8-97358-318-0 01 1 1304- ● ●
624 PLATE; INTER LOCK
IMA 		8-97241-317-3 01 1 1304- ● ●
630 DETENT ASM
IMA 		8-98019-536-0 03 1 1304- ●
630 DETENT ASM
IMA 		8-98019-536-0 04 1 1304- ●
631 STOPPER; SPRING
IMA 		8-97305-666-0 01 1 1304- ● ●
635 PLUG; DETENT
IMA 		8-97380-892-0 01 1 1304- ●
645 DETENT ASM
IMA 		8-98019-536-0 01 1 1304- ● ●
