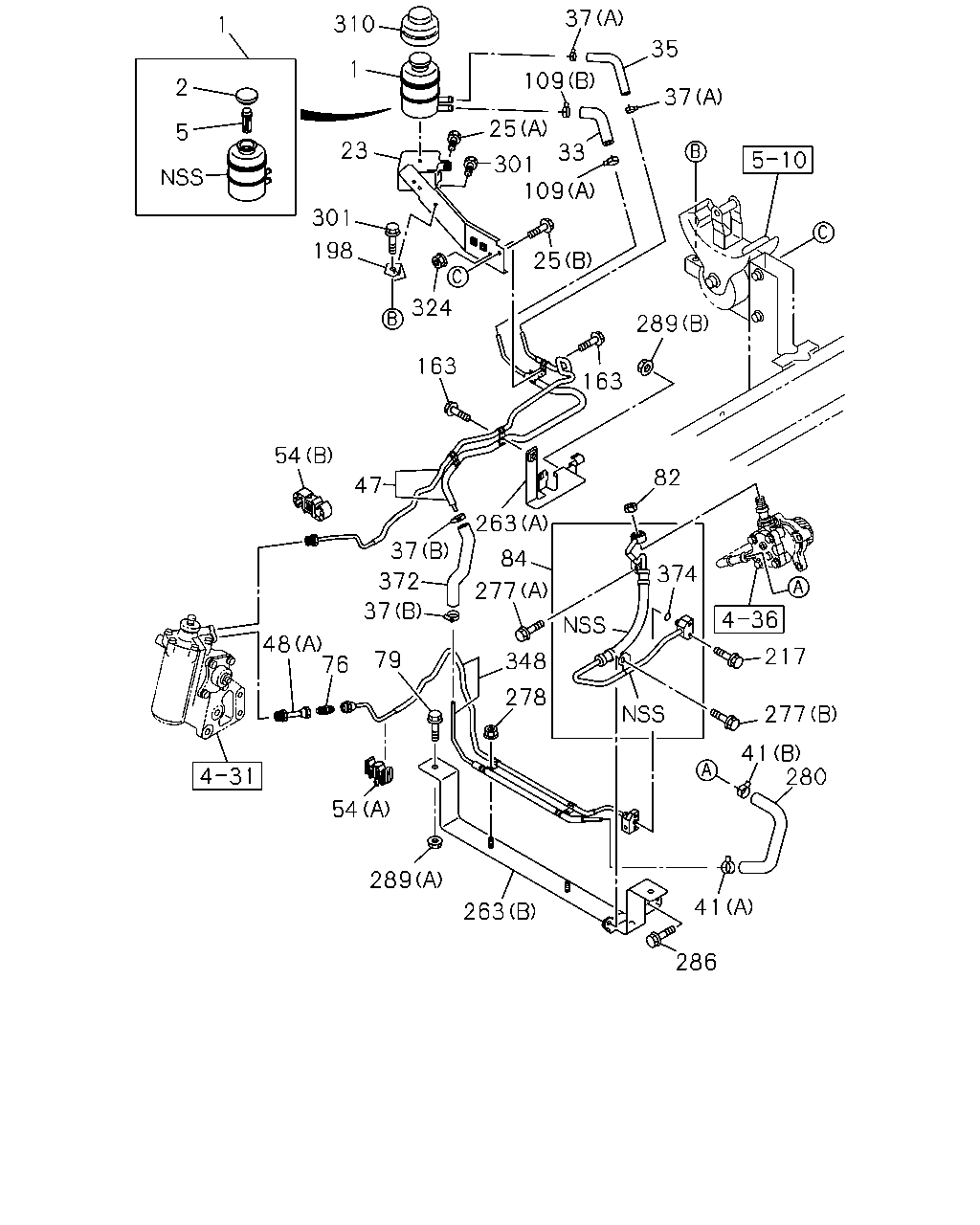

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#120071) — 89 parça

1 2 5 310 1 23 301 198 324 163 47 54 37 372 37 48 76 79 54 289 263 278 348 277 84 263 286 41 41 280 277 217 374 82 163 25 301 33 109 25 109 37 35 37 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S IMA	8-97107-987-0	01	1	1304-	●	●
2	CAP; OIL TANK,P/S IMA	8-94146-153-2	01	1	1304-	●	●
5	STRAINER; OIL TANK,P/S IMA	8-97094-732-0	01	1	1304-	●	●
23	BRACKET; OIL TANK,P/S IMA	8-98053-625-2	01	1	1304-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE IMA	0-28450-620-0	01	1	1304-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
33	HOSE; RUBBER,POWER STRG THA	8-98054-267-0	01	1	1304-	●	●
35	HOSE; RETURN,P/S TANK IMA	8-98054-265-0	01	1	1304-	●	●
37	CLIP; HOSE,P/S (A) ID=16 IMA	8-98008-098-0	02	1	1304-	●	●
37	CLIP; HOSE,P/S (B) ID=21 IMA	8-98150-355-0	02	1	1304-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7 IMA	8-97203-074-0	01	1	1304-	●	●
41	CLIP; HOSE,P/S (B) ID=21 IMA	8-98150-355-0	01	1	1304-	●	●
47	PIPE; RETURN THA	8-98173-325-0	01	1	1304-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) THA	8-98041-027-0	01	1	1304-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B) THA	8-98250-105-0	01	1	1401-	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12 IMA	1-09709-280-1	01	1	1304-	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5 IMA	8-97018-546-0	01	1	1304-	●	●
76	UNION; OIL PIPE M16 L=42 IMA	0-92123-010-0	01	1	1304-	●	●
79	BOLT; BRKT M12X30 FLANGE THA	0-28651-230-0	02	1	1304-	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK IMA	8-97028-390-1	01	1	1304-	●	●
84	HOSE; FLEX,P/S	8-98032-376-4	01	1	1304-1312	●	●
84	HOSE; FLEX,P/S THA	8-98250-111-0	01	1	1401-	●	●
109	CLIP; RUBBER HOSE (B) ID=22 IMA	8-97359-141-0	01	1	1304-	●	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-98150-355-0	01	1	1304-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
198	STAY; OIL TANK,POWER STEERING IMA	8-98011-885-1	01	1	1304-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE THA	0-28650-635-0	02	1	1304-	●	●
263	BRACKET; P/S PIPE (A) IMA	8-98008-078-0	01	1	1304-	●	●
263	BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1304-1312	●	●
263	BRACKET; P/S PIPE (C) IMA	8-98250-108-0	01	1	1401-	●	●
277	BOLT; HOSE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	01	1	1304-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1304-1312	●	●
278	NUT; HOSE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1304-	●	●
280	HOSE; P/S OIL PUMP,INL THA	8-98041-245-2	01	1	1304-	●	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE THA	0-28650-830-0	01	1	1304-	●	●
289	NUT; BRKT,POWER STRG (B) M8 FLANGE THA	0-91180-108-0	01	1	1304-	●	●
289	NUT; BRKT,POWER STRG (A) M12 FLANGE THA	0-91180-112-0	01	1	1304-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
310	COVER; OIL TANK IMA	8-97103-394-0	01	1	1304-	●	●
324	NUT; OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1304-	●	●
348	PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1304-1312	●	●
348	PIPE; OIL,P/S PRESS THA	8-98250-107-0	01	1	1401-	●	●
372	HOSE; RUBBER	8-98054-269-0	01	1	1304-1312	●	●
372	HOSE; RUBBER L=180 SERVICED BY L=300 IMA	0-09814-300-0	01	1	1401-	●	●
374	GASKET; HOSE,P/S THA	8-98139-036-0	01	1	1304-	●	●

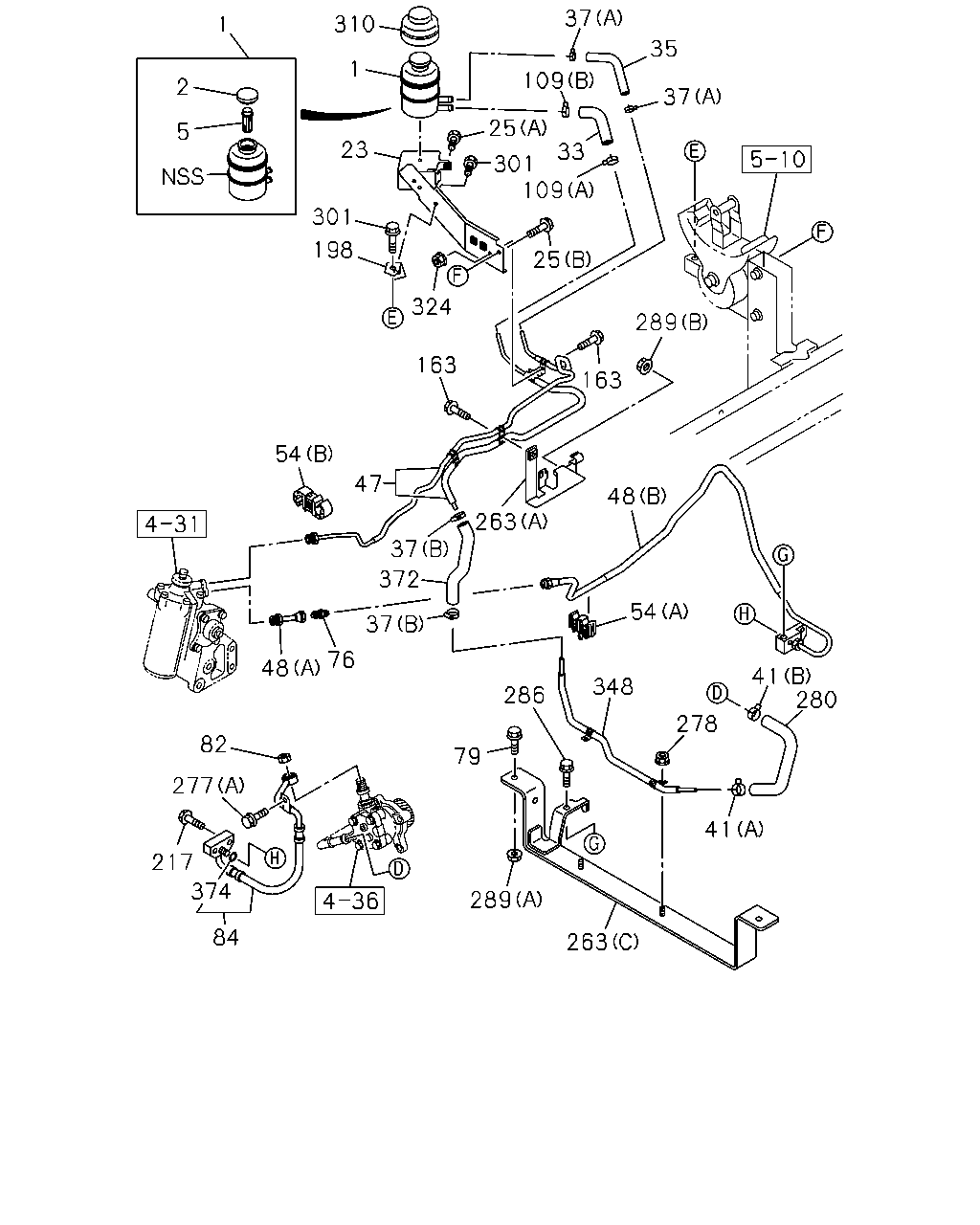

1 2 5 310 1 3 301 324 163 54 47 198 48 37 76 372 37 263 82 277 217 374 84 289 263 79 286 41 278 348 54 41 280 48 163 289 25 109 301 25 33 37 35 37 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S IMA	8-97107-987-0	01	1	1304-	●	●
2	CAP; OIL TANK,P/S IMA	8-94146-153-2	01	1	1304-	●	●
5	STRAINER; OIL TANK,P/S IMA	8-97094-732-0	01	1	1304-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE IMA	0-28450-620-0	01	1	1304-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
33	HOSE; RUBBER,POWER STRG THA	8-98054-267-0	01	1	1304-	●	●
35	HOSE; RETURN,P/S TANK IMA	8-98054-265-0	01	1	1304-	●	●
37	CLIP; HOSE,P/S (A) ID=16 IMA	8-98008-098-0	02	1	1304-	●	●
37	CLIP; HOSE,P/S (B) ID=21 IMA	8-98150-355-0	02	1	1304-	●	●
41	CLIP; HOSE,P/S (A) ID=21.7 IMA	8-97203-074-0	01	1	1304-	●	●
41	CLIP; HOSE,P/S (B) ID=21 IMA	8-98150-355-0	01	1	1304-	●	●
47	PIPE; RETURN THA	8-98173-325-0	01	1	1304-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) THA	8-98041-027-0	01	1	1304-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B) THA	8-98250-105-0	01	1	1401-	●	●
54	CLIP; OIL PIPE (B) ID=12 & 12 IMA	1-09709-280-1	01	1	1304-	●	●
54	CLIP; OIL PIPE (A) ID=10X2 H=37.5 IMA	8-97018-546-0	01	1	1304-	●	●
76	UNION; OIL PIPE M16 L=42 IMA	0-92123-010-0	01	1	1304-	●	●
79	BOLT; BRKT M12X30 FLANGE THA	0-28651-230-0	02	1	1304-	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK IMA	8-97028-390-1	01	1	1304-	●	●
84	HOSE; FLEX,P/S	8-98032-376-4	01	1	1304-1312	●	●
84	HOSE; FLEX,P/S THA	8-98250-111-0	01	1	1401-	●	●
109	CLIP; RUBBER HOSE (B) ID=22 IMA	8-97359-141-0	01	1	1304-	●	●
109	CLIP; RUBBER HOSE (A) ID=21 IMA	8-98150-355-0	01	1	1304-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
198	STAY; OIL TANK,POWER STEERING IMA	8-98011-885-1	01	1	1304-	●	●
217	BOLT; FLEX HOSE,P/S M6X35 FLANGE THA	0-28650-635-0	02	1	1304-	●	●
263	BRACKET; P/S PIPE (A) IMA	8-98008-078-0	01	1	1304-	●	●
263	BRACKET; P/S PIPE (B)	8-98032-325-2	01	1	1304-1312	●	●
263	BRACKET; P/S PIPE (C) IMA	8-98250-108-0	01	1	1401-	●	●
277	BOLT; HOSE CLIP (A) M8X12 FLANGE THA	0-28050-812-0	01	1	1304-	●	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE THA	0-28650-820-0	01	1	1304-1312	●	●
278	NUT; HOSE CLIP M8 FLANGE THA	0-91180-108-0	02	1	1304-	●	●
280	HOSE; P/S OIL PUMP,INL THA	8-98041-245-2	01	1	1304-	●	●
286	BOLT; CLIP,P/S HOSE M8X30 FLANGE THA	0-28650-830-0	01	1	1304-	●	●
289	NUT; BRKT,POWER STRG (B) M8 FLANGE THA	0-91180-108-0	01	1	1304-	●	●
289	NUT; BRKT,POWER STRG (A) M12 FLANGE THA	0-91180-112-0	01	1	1304-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE THA	0-28650-825-0	02	1	1304-	●	●
310	COVER; OIL TANK IMA	8-97103-394-0	01	1	1304-	●	●
324	NUT; OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1304-	●	●
348	PIPE; OIL,P/S PRESS	8-98085-486-1	01	1	1304-1312	●	●
348	PIPE; OIL,P/S PRESS THA	8-98250-107-0	01	1	1401-	●	●
372	HOSE; RUBBER	8-98054-269-0	01	1	1304-1312	●	●
372	HOSE; RUBBER L=180 SERVICED BY L=300 IMA	0-09814-300-0	01	1	1401-	●	●
374	GASKET; HOSE,P/S THA	8-98139-036-0	01	1	1304-	●	●
