◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11500 - FYH(THAILAND)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#120068) — 111 parça

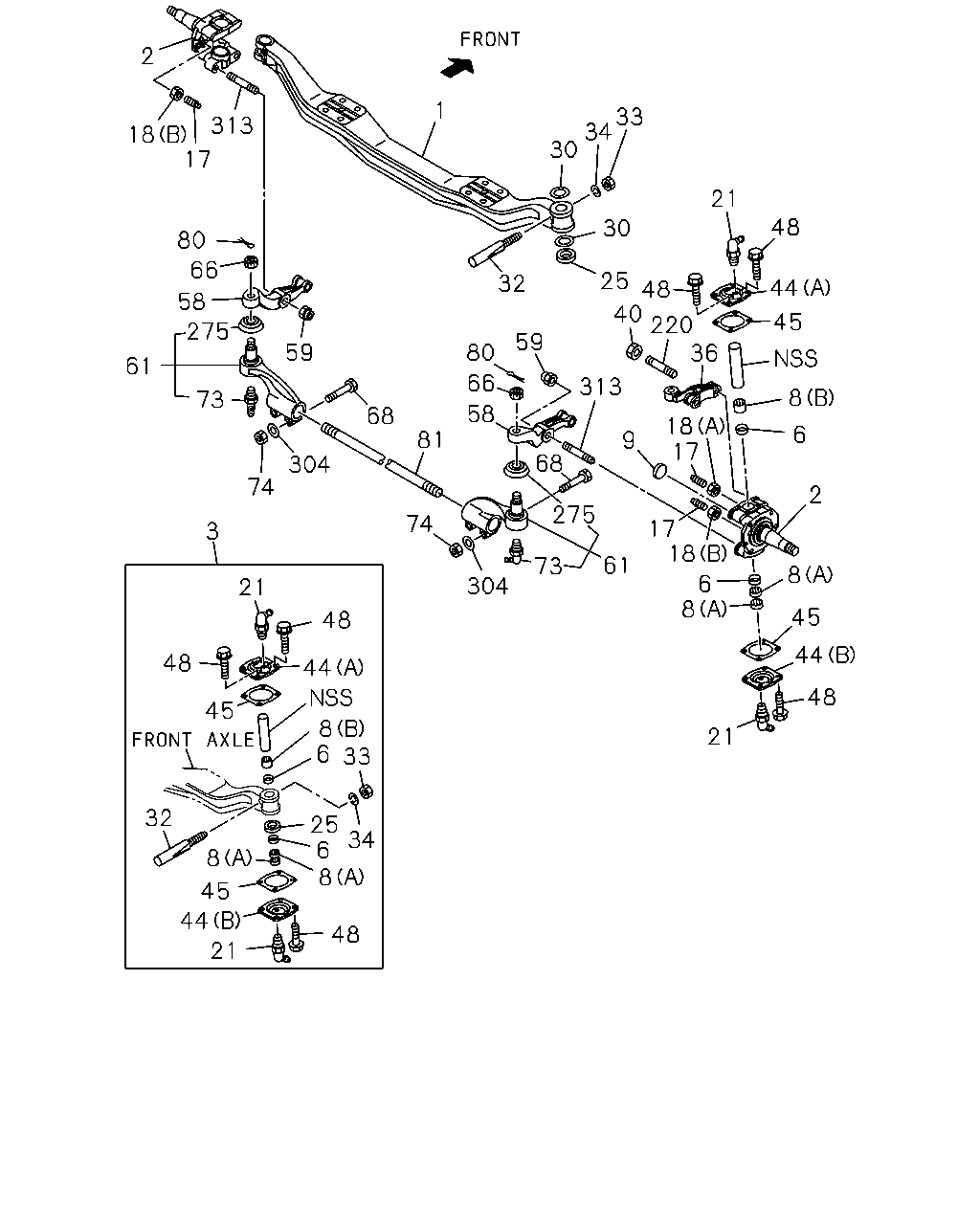

çizim 352708
2 18 313 17 80 33 34 30 30 21 48 66 58 275 61 73 304 68 59 74 32 59 80 66 58 81 313 25 48 40 220 44 45 36 8 6 2 8 45 44 48 21 8 6 18 17 17 18 9 3 74 304 73 61 275 68 21 48 44 48 45 8 6 33 34 25 6 8 48 21 44 45 8 32 1
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-177-4 01 1 1305-
1 AXLE; FRT 1-43111-177-4 01 1 1305-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1305-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1305-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1305-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1305-
3 KING PIN SET 1-87831-353-2 02 1 1305-
3 KING PIN SET 1-87831-353-2 02 1 1305-
6 SEAL; KING PIN 9-09926-024-0 04 1 1305-
6 SEAL; KING PIN 9-09926-024-0 04 1 1305-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1305-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1305-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1305-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1305-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1305-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1305-
17 BOLT; STOPPER KNUCKLE
FORWARD M18X53 		1-09009-066-0 01 1 1305-
17 BOLT; STOPPER KNUCKLE
REARWARD M18X56 		1-09009-108-0 03 1 1305-
17 BOLT; STOPPER KNUCKLE
FORWARD M18X43 		1-09009-190-0 02 1 1305-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 THA 		0-91110-518-0 02 1 1305-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 THA 		0-91110-518-0 02 1 1305-
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		1-09469-011-1 01 1 1305-
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 		1-09469-011-1 01 1 1305-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1305-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1305-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1305-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1305-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 THA 		1-43171-185-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 THA 		1-43171-185-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 THA 		1-43171-186-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 THA 		1-43171-186-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 THA 		1-43171-187-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 THA 		1-43171-187-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 THA 		1-43171-188-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 THA 		1-43171-188-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 THA 		1-43171-193-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 THA 		1-43171-193-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 THA 		1-43171-194-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 THA 		1-43171-194-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 THA 		1-43171-195-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 THA 		1-43171-195-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 THA 		1-43171-196-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 THA 		1-43171-196-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 THA 		1-43171-197-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 THA 		1-43171-197-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 THA 		1-43171-198-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 THA 		1-43171-198-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 THA 		1-43171-199-0 AR 1 1305-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 THA 		1-43171-199-0 AR 1 1305-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 1305-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 1305-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1305-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1305-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1305-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1305-
36 ARM; KNUCKLE 8-98061-893-0 01 1 1305-
36 ARM; KNUCKLE 8-98061-893-0 01 1 1305-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1305-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1305-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1305-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1305-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1305-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1305-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1305-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1305-
48 BOLT; COVER
M10X25 FLANGE THA 		0-28751-025-0 16 1 1305-
48 BOLT; COVER
M10X25 FLANGE THA 		0-28751-025-0 16 1 1305-
58 ARM; TIE ROD
FORWARD 		1-43134-049-4 01 1 1305-
58 ARM; TIE ROD
REARWARD 		1-43134-060-2 01 1 1305-
58 ARM; TIE ROD
FORWARD 		1-43135-049-4 01 1 1305-
58 ARM; TIE ROD
REARWARD 		1-43135-060-2 01 1 1305-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1305-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1305-
61 ROD END; TIE ROD 8-98096-753-0 01 1 1305-1306
61 ROD END; TIE ROD 8-98096-753-0 01 1 1305-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98096-754-0 01 1 1305-1306
61 ROD END; TIE ROD 8-98096-754-0 01 1 1305-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1305-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1305-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1305-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1305-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1305-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1305-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1305-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1305-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1305-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1305-
81 ROD; TIE 8-98105-064-0 01 1 1305-
81 ROD; TIE 8-98105-064-0 01 1 1305-
220 STUD; KNUCKLE ARM 1-09300-127-1 02 1 1305-
220 STUD; KNUCKLE ARM 1-09300-127-1 02 1 1305-
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1305-1306
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1305-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1305-
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1305-
313 STUD; TIE ROD ARM 1-09300-127-1 04 1 1305-
313 STUD; TIE ROD ARM 1-09300-127-1 04 1 1305-
