Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶

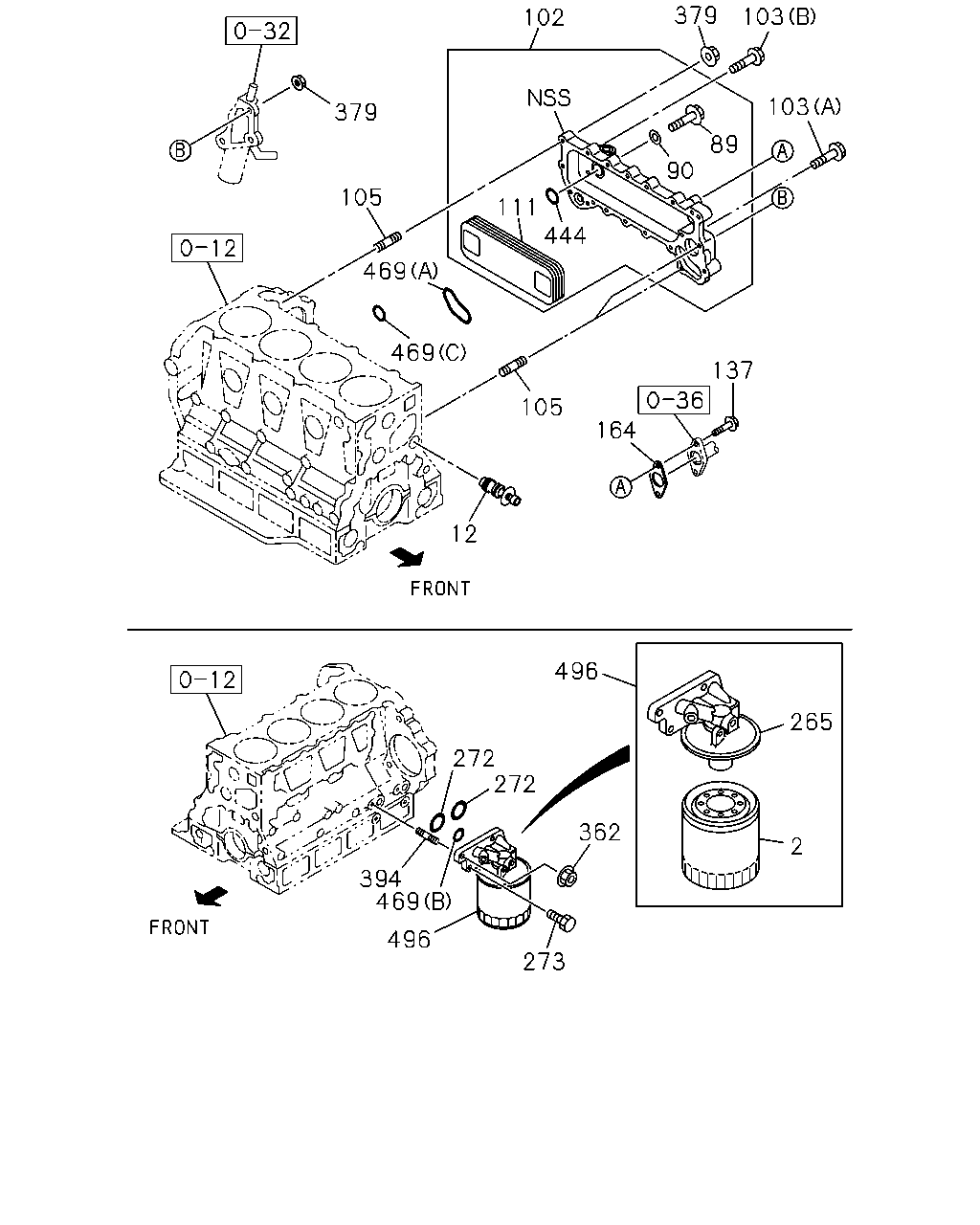

0-50 — OIL COOLER AND OIL FILTER
(#120065) — 23 parça
137
164
105
469
469
105
379
102
379
103
103
90
89
111
444
12
272
496
362
265
2
394
469
496
273
272
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
IMA
8-97148-270-1
01
1
1304-
2
ELEMENT; OIL FILTER
BEST VALUE PARTS IMA
5-87610-031-0
01
1
1304-
12
VALVE ASM; BYPASS
IMA
8-97013-566-2
01
1
1304-
89
BOLT; ELEMENT TO CASE
M8X16 FLANGE THA
0-28050-816-0
04
1
1304-
90
GASKET; BOLT,OIL COOLER
IMA
1-21729-043-0
04
1
1304-
102
COOLER ASM; OIL
IMA
8-98085-312-5
01
1
1304-
103
BOLT; OIL COOLER
(A) M8X20 FLANGE THA
0-28050-820-0
08
1
1304-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE THA
0-28050-835-0
08
1
1304-
105
STUD; OIL COOLER
M8X52 L=63 IMA
8-97016-314-0
03
1
1304-
111
CORE; OIL COOLER
IMA
8-97334-100-2
01
1
1304-
137
BOLT
M8X20 FLANGE THA
0-28650-820-0
02
1
1304-
164
GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). IMA
8-97146-684-0
01
1
1304-
265
BODY; OIL FILTER
IMA
8-97096-677-4
01
1
1304-
272
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 IMA
8-94399-399-0
02
1
1304-
273
BOLT; OIL FILTER
M10X30 IMA
0-59331-030-0
03
1
1304-
362
NUT; OIL FILTER
M10 FLANGE THA
0-91180-110-0
01
1
1304-
379
NUT; OIL COOLER
M8 FLANGE THA
0-91180-108-0
03
1
1304-
394
STUD; OIL FILTER
M10X25 L=48.5 IMA
0-49241-025-0
01
1
1304-
444
GASKET; ELEMENT TO BODY
IMA
8-97384-130-0
02
1
1304-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) IMA
8-94338-878-1
01
1
1304-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 IMA
8-94399-339-0
01
1
1304-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE IMA
8-98045-447-0
01
1
1304-
496
FILTER ASM; OIL
IMA
8-97148-268-4
01
1
1304-
