◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#120063) — 18 parça
çizim 351434
231
BalonParca AdiParca NoAdetTipApplied Date A B C D
231 EMBLEM; ENG
4JK1-TCX ENG(LR0) EXC. ENG SIGHT SHIELD<8LQ> 		8-98221-983-0 01 1 1305- ●

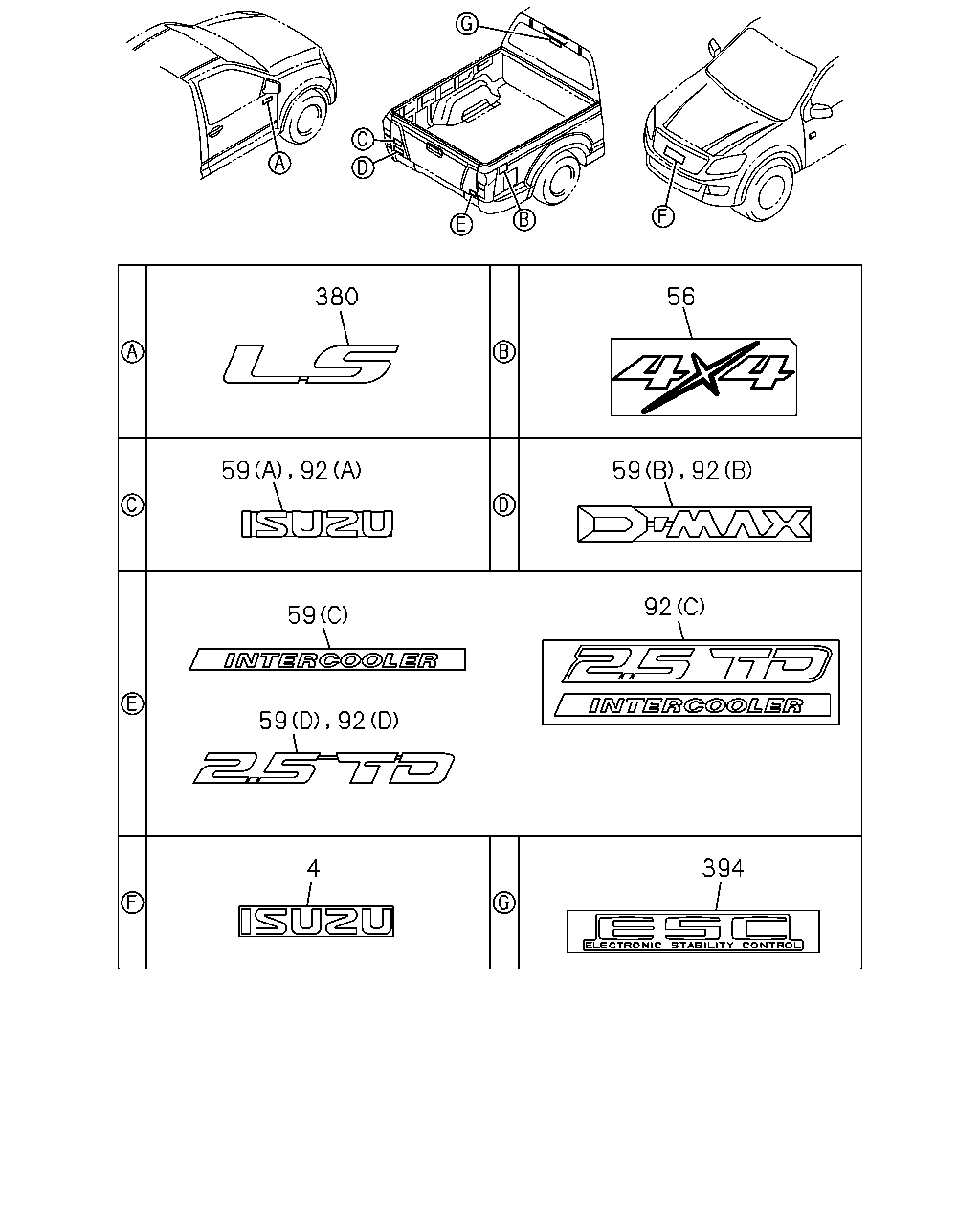

çizim 352205
380 56 59 92 92 394 4 59 92 59 59 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 EMBLEM; RAD GRILLE 8-98164-912-0 01 1 1305- ● ● ● ●
56 DECAL; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR COSMIC BLACK MICA(523),BODY COLOR GARNET RED MICA(528),BODY COLOR MINERAL GRAY MET(530),BODY COLORTUNDRA GREEN MICA(533) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED 		8-97421-195-1 02 1 1305- ● ●
56 DECAL; BODY SIDE
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUMSILVER MET(529),BODY COLOR SOLEIL ORANGE MICA(532),BODY COLOR ASH BEIGE MET(541) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED 		8-97421-196-1 02 1 1305- ● ●
59 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-896-0 01 1 1305- ● ●
59 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98134-860-0 01 1 1305- ● ●
59 DECAL; TAIL GATE
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1305- ●
59 DECAL; TAIL GATE
4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1305- ●
59 DECAL; TAIL GATE
4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98134-871-0 01 1 1305- ●
59 DECAL; TAIL GATE
4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98134-871-0 01 1 1305- ●
92 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-861-0 01 1 1305- ● ●
92 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98129-863-0 01 1 1305- ● ●
92 DECAL; RR END
4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98129-869-0 01 1 1305- ● ●
92 DECAL; RR END
4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-870-0 01 1 1305- ●
92 DECAL; RR END
4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-870-0 01 1 1305- ●
380 PLATE; SIDE
INTERIOR CUSTOM(RBD) 		8-98129-894-0 02 1 1305- ●
380 PLATE; SIDE 8-98129-894-0 02 1 1305- ●
394 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> 		8-98129-857-2 01 1 1305- ● ●
