4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#12006) — 169 parça

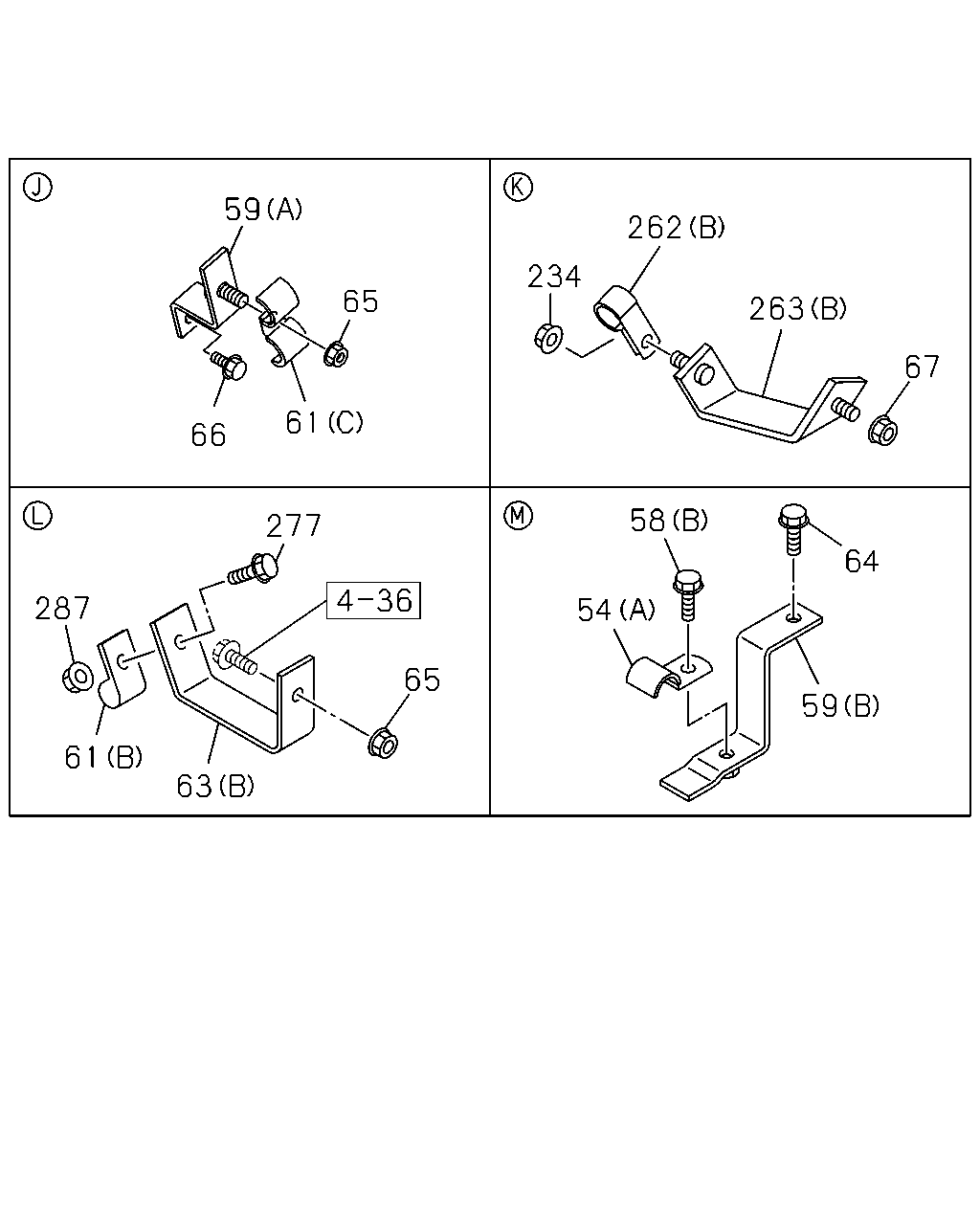

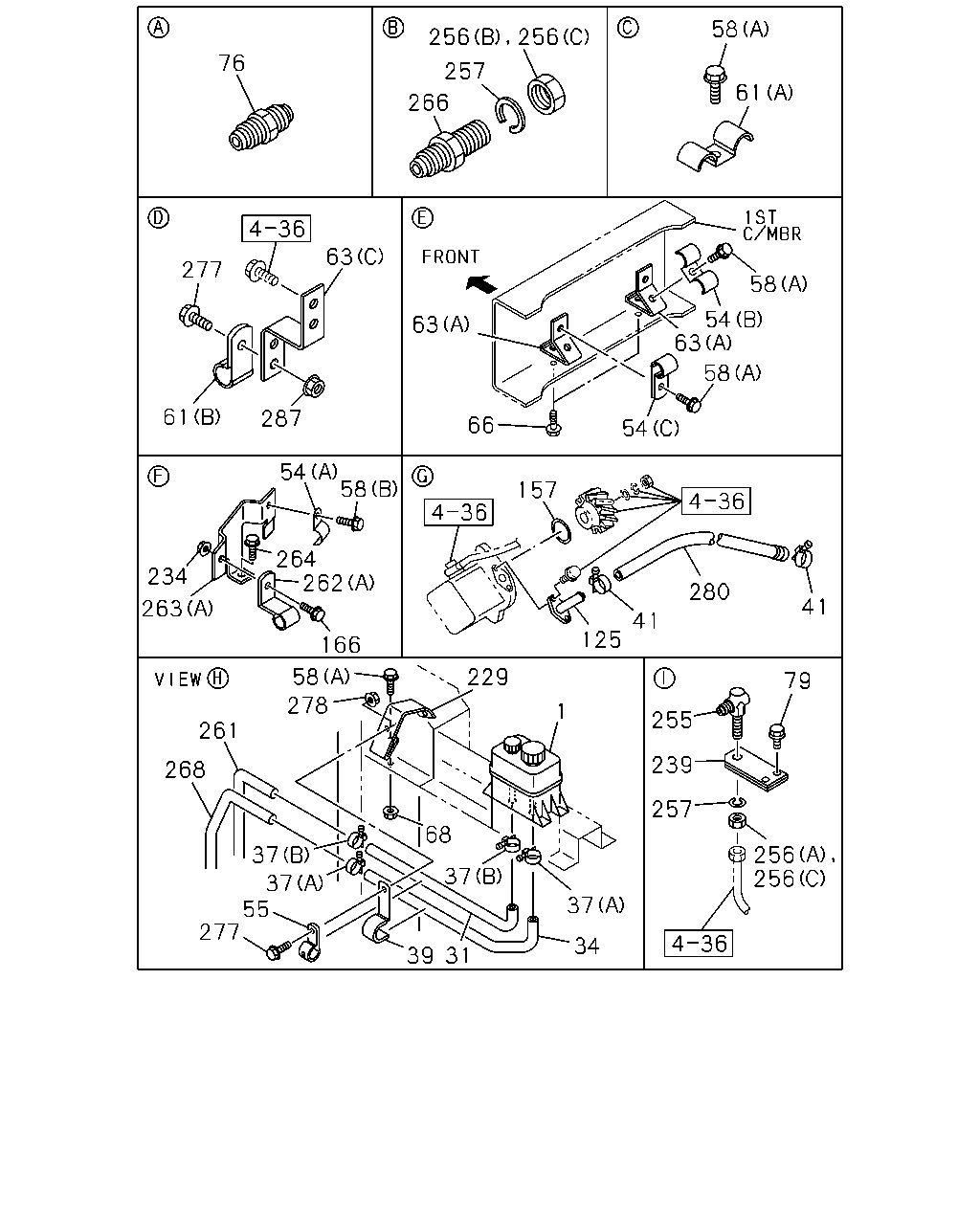

76 256 256 58 61 257 266 58 54 63 58 54 66 63 63 277 61 287 54 58 157 41 280 41 125 166 262 264 234 263 58 229 79 255 239 257 256 256 37 34 31 39 37 68 278 261 268 37 37 55 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0105-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	0105-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	0105-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	0105-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0105-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-0106
54	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
54	CLIP; OIL PIPE FULLER M/T<X9B> (C) ID=16 L=20	9-09525-535-0	01	1	0105-0106
54	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (C) ID=16 L=20	9-09525-535-0	01	1	0107-0606
54	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (C) ID=16 L=20	0-95235-535-0	01	1	0607-
54	CLIP; OIL PIPE MJD7S M/T(Y2Y) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
54	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
63	BRACKET; CLIP,P/S (C)	1-47475-963-1	01	1	0105-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	0105-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0105-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0105-0602
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	0105-0607
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0608-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	0608-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0105-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0105-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	0105-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	0105-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0105-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	0105-0512
256	NUT; UNION (B) M22	9-09111-522-0	01	1	0105-0512
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0601-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	0105-0603
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0604-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-0606
262	CLIP; P/S PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0105-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	0105-0602
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	0603-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-

59 65 234 262 263 67 64 59 54 58 65 63 61 287 277 61 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	0105-
54	CLIP; OIL PIPE (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-0106
54	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0107-
54	CLIP; OIL PIPE FULLER M/T<X9B> (C) ID=16 L=20	9-09525-535-0	01	1	0105-0106
54	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (C) ID=16 L=20	9-09525-535-0	01	1	0107-0606
54	CLIP; OIL PIPE ISUZU M/T<X9A>,FULLER M/T<X9B> (C) ID=16 L=20	0-95235-535-0	01	1	0607-
54	CLIP; OIL PIPE MJD7S M/T(Y2Y) (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
54	CLIP; OIL PIPE ZF M/T<X9E> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0601-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28681-025-0	02	1	0105-0512
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	0105-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-235-0	01	1	0105-0106
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-669-1	01	1	0107-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0105-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	02	1	0105-0606
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	0607-
61	CLIP; OIL PIPE ISUZU M/T<X9A> (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0107-
63	BRACKET; CLIP,P/S (C)	1-47475-963-1	01	1	0105-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	0105-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	0105-
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	0105-0512
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28050-820-0	01	1	0601-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0105-0512
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	0601-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	0105-0602
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0603-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	0105-0606
262	CLIP; P/S PIPE (B) ID=16 L=20	0-95235-535-0	01	1	0607-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	0105-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	0105-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0512
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0105-0602
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-

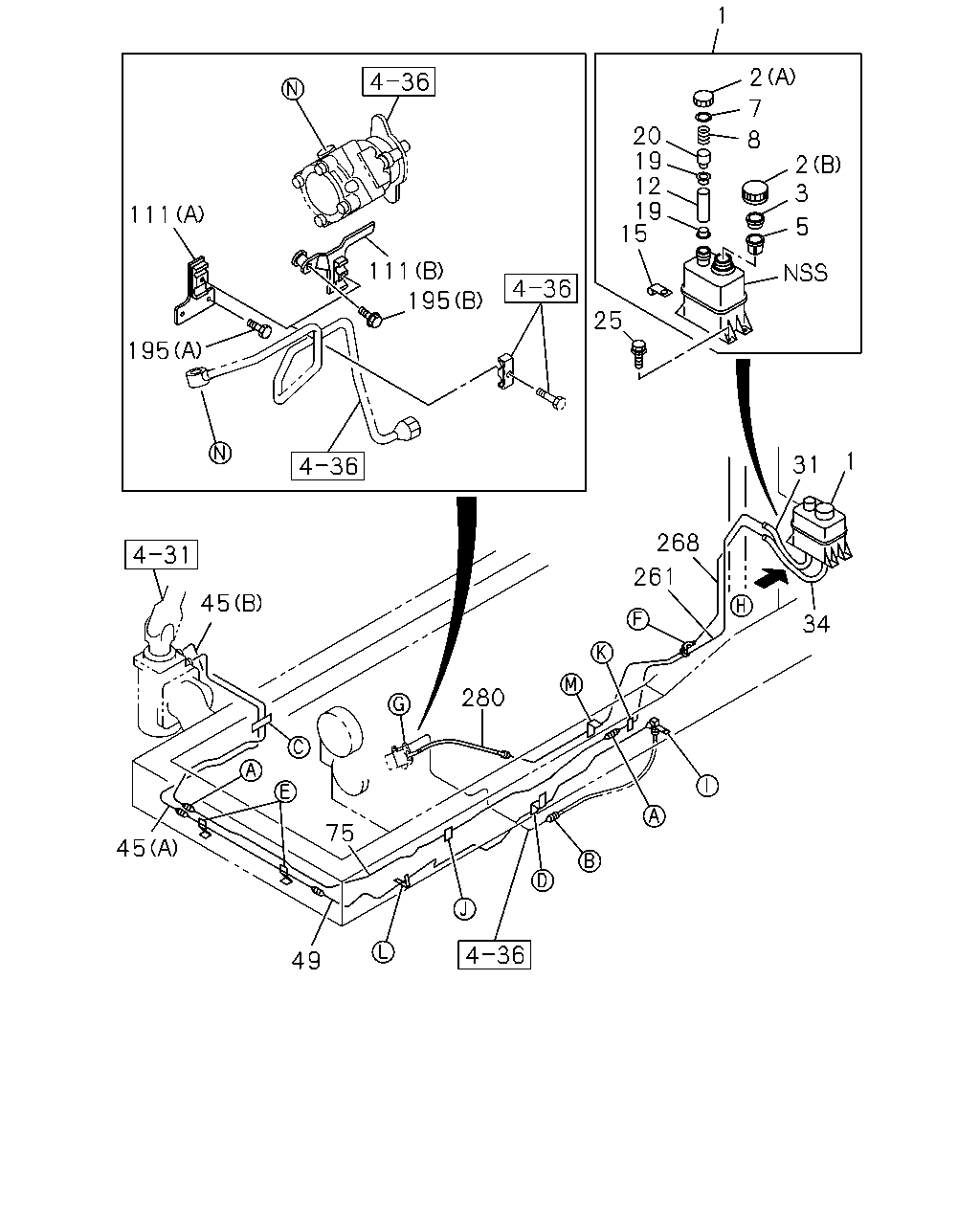

1 2 7 8 2 3 5 20 19 12 19 15 25 195 111 111 195 45 45 75 49 280 261 268 31 1 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	0105-0508
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0509-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0105-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0105-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0105-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0105-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0105-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	0105-0508
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0509-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0105-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0105-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0105-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0105-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	0105-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1234	1-21116-238-0	01	1	0105-
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0105-
49	PIPE; OIL,FLEX HOSE TO UNION L=1663	1-21116-235-0	01	1	0105-0108
49	PIPE; OIL,FLEX HOSE TO UNION L=1672	1-21117-137-0	01	1	0109-0211
49	PIPE; OIL,FLEX HOSE TO UNION L=1662	1-21117-337-0	01	1	0212-
75	PIPE; OIL,P/S,UNION TO UNION L=1807	1-21116-404-0	01	1	0105-0106
75	PIPE; OIL,P/S,UNION TO UNION L=1815	1-21117-076-0	01	1	0107-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0105-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0105-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	0105-0512
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	0601-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	0105-0512
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	0601-
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1315	1-21116-855-0	01	1	0105-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	0105-
