◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51483 - NPR/NQR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#120058) — 44 parça

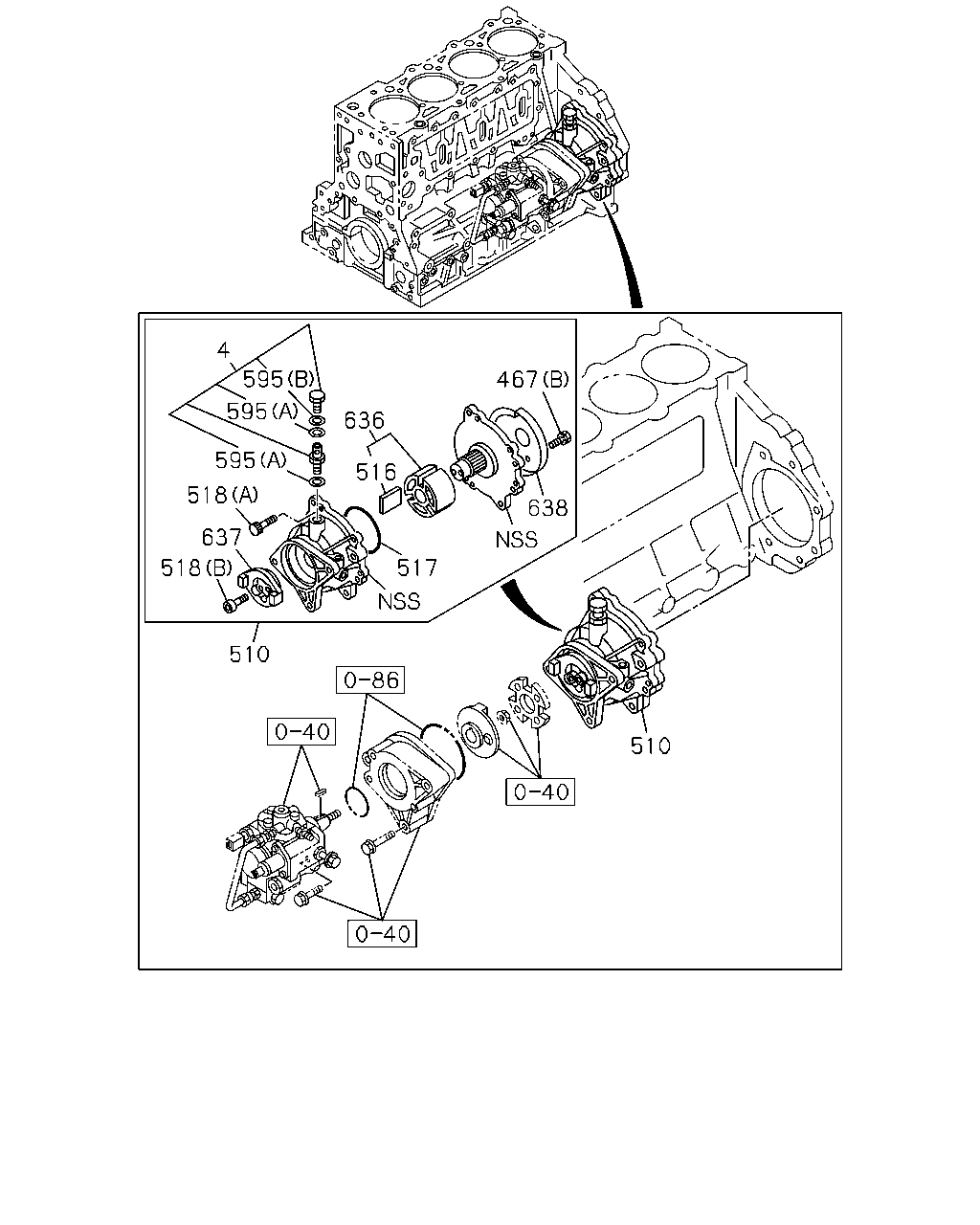

çizim 350009
4 595 595 595 518 637 518 510 517 516 636 467 638 510
BalonParca AdiParca NoAdetTipApplied Date A B
4 VALVE ASM; CHECK
IMA 		8-98049-521-0 01 1 1304- ● ●
467 BOLT; PLATE
(A) M6X10 IMA 		8-98030-649-0 06 1 1304- ● ●
467 BOLT; PLATE
(B) IMA 		8-98049-523-0 02 1 1304- ● ●
510 PUMP ASM; VACUUM
IMA 		8-97388-589-6 01 1 1304- ● ●
516 VANE; VAC PUMP
IMA 		8-98051-279-0 03 1 1304- ● ●
517 GASKET; VAC PUMP
IMA 		8-98051-280-0 01 1 1304- ● ●
518 BOLT; VAC PUMP
(A) M6X25 W/LK&PL WASHER IMA 		0-50640-625-0 03 1 1304- ● ●
518 BOLT; VAC PUMP
(B) M8X20 IMA 		8-98051-277-0 02 1 1304- ● ●
595 GASKET; VLV
(B) ID=12 IMA 		8-98018-518-0 01 1 1304- ● ●
595 GASKET; VLV
(A) ID=18 IMA 		8-98018-519-0 02 1 1304- ● ●
636 ROTOR & VANE ASM; VAC PUMP
IMA 		8-98051-281-0 01 1 1304- ● ●
637 COUPLING; VAC PUMP
IMA 		8-98051-278-0 01 1 1304- ● ●
638 PLATE KIT; VAC PUMP
IMA 		8-98051-276-0 01 1 1304- ● ●

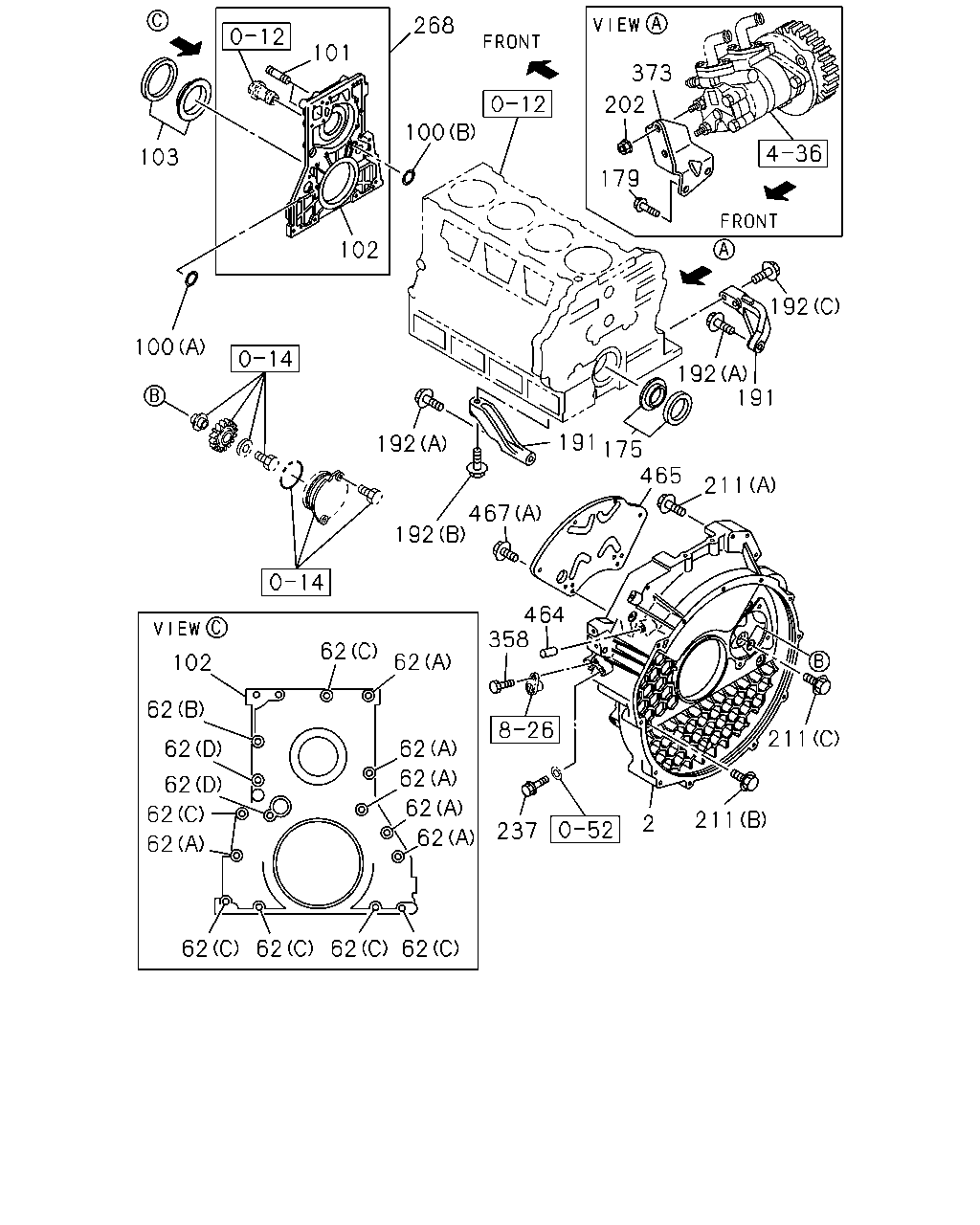

çizim 352757
103 101 268 100 102 100 192 467 192 191 373 202 179 192 192 175 465 191 211 464 358 102 62 237 2 211 211 62 62 62 62 62 62 62 62 62 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL
IMA 		8-97364-901-5 01 1 1304- ● ●
62 BOLT; COVER
(A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1304- ● ●
62 BOLT; COVER
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1304- ● ●
62 BOLT; COVER
(C) M8X35 FLANGE THA 		0-28650-835-0 06 1 1304- ● ●
62 BOLT; COVER
(D) M8X65 FLANGE IMA 		1-09044-072-1 02 1 1304- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 IMA 		8-97028-748-1 01 1 1304- ● ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 IMA 		9-09561-318-0 01 1 1304- ● ●
101 STUD; WATER PUMP
M8X18 L=30 THA 		0-41010-818-0 01 1 1304- ● ●
101 STUD; WATER PUMP
M8X18 L=29 IMA 		8-97028-541-0 01 1 1304- ● ●
102 RETAINER; FRT
IMA 		8-98039-932-2 01 1 1304- ● ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). IMA 		8-97329-780-0 01 1 1304- ● ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 IMA 		8-97602-379-0 01 1 1304- ● ●
179 BOLT; BRKT
M10X20 FLANGE THA 		0-28151-020-0 02 1 1304- ●
191 STAY; FLYWHEEL HSG
IMA 		8-97167-291-0 01 1 1304- ● ●
191 STAY; FLYWHEEL HSG
IMA 		8-97167-292-0 01 1 1304- ● ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE IMA 		0-28151-040-0 02 1 1304- ● ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE IMA 		0-28151-200-0 01 1 1304- ● ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE THA 		0-28151-250-0 02 1 1304- ● ●
202 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1304- ●
211 BOLT; HSG
(A) M10X40 FLANGE IMA 		0-28751-040-0 01 1 1304- ● ●
211 BOLT; HSG
(C) M12X30 FLANGE IMA 		8-97135-419-0 02 1 1304-1412 ● ●
211 BOLT; HSG
(C) M12X30 FLANGE IMA 		8-97135-419-0 01 1 1501- ● ●
211 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER IMA 		8-98179-087-1 11 1 1304- ● ●
237 PLUG; FLYWHEEL HSG
M10X12 FLANGE IMA 		0-28051-012-0 01 1 1304- ● ●
268 COVER; FRT
IMA 		8-97148-937-3 01 1 1304- ● ●
358 BOLT; ADAPTER
M6X16 FLANGE THA 		0-28050-616-0 01 1 1304- ● ●
373 BRACKET; PUMP
IMA 		8-97149-333-0 01 1 1304- ●
464 PIPE; PCV,FLYWHEEL HSG
IMA 		8-94373-246-3 01 1 1304- ● ●
465 PLATE; FLYWHEEL HSG
IMA 		8-97363-823-0 01 1 1304- ● ●
467 BOLT; PLATE
(A) M6X10 IMA 		8-98030-649-0 06 1 1304- ● ●
467 BOLT; PLATE
(B) IMA 		8-98049-523-0 02 1 1304- ● ●
