0-14 — CAMSHAFT AND VALVE (#120043) — 73 parça

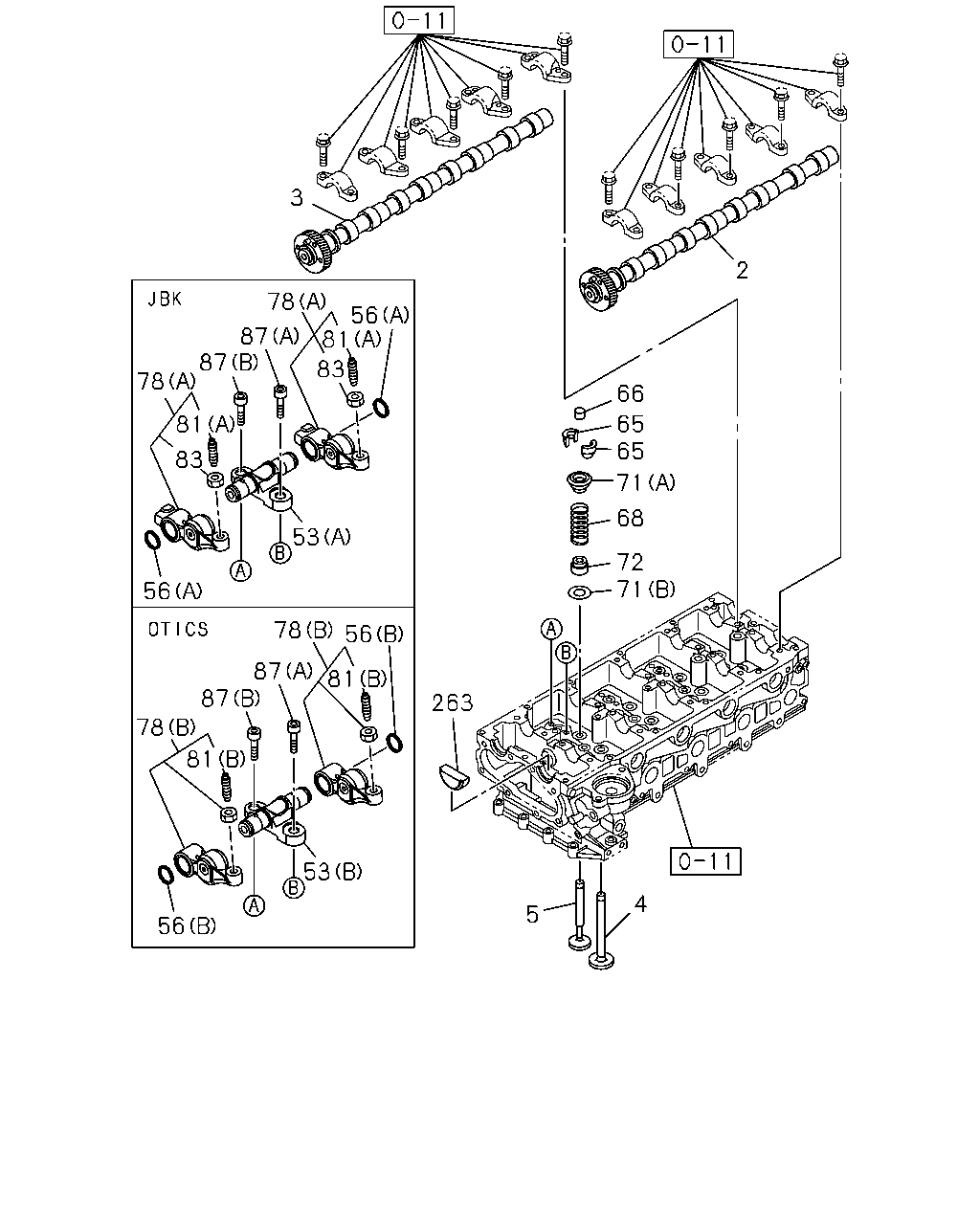

4 5 263 71 71 72 66 68 65 65 2 3 56 81 78 87 87 78 83 81 53 83 56 56 78 81 87 87 78 81 53 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CAMSHAFT; INL ENGINE MADE IN THAILAND<6ZP> TBKK IMA	8-98182-902-1	01	1	1304-
2	CAMSHAFT; INL ENGINE MADE IN THAILAND<6ZP> IEMT IMA	8-98186-004-1	01	1	1304-
2	CAMSHAFT; INL EXC. ENGINE MADE IN THAILAND<6ZP>	8-98003-129-4	01	1	1304-
3	CAMSHAFT; EXH ENGINE MADE IN THAILAND<6ZP> TBKK IMA	8-98182-903-1	01	1	1304-
3	CAMSHAFT; EXH ENGINE MADE IN THAILAND<6ZP> IEMT IMA	8-98186-005-1	01	1	1304-
3	CAMSHAFT; EXH EXC. ENGINE MADE IN THAILAND<6ZP>	8-98003-130-4	01	1	1304-
4	VALVE; INL ENGINE MADE IN THAILAND<6ZP> THA	8-97309-675-1	08	1	1304-
4	VALVE; INL EXC. ENGINE MADE IN THAILAND<6ZP> IMA	8-98016-973-0	08	1	1304-
5	VALVE; EXH ENGINE MADE IN THAILAND<6ZP> THA	8-97309-677-1	08	1	1304-
5	VALVE; EXH EXC. ENGINE MADE IN THAILAND<6ZP> IMA	8-98016-974-1	08	1	1304-
53	SHAFT; ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (B) INLET OTICS IMA	8-97364-809-2	04	1	1304-1309
53	SHAFT; ROCKER ARM (B) INLET OTICS IMA	8-97364-809-2	04	1	1310-
53	SHAFT; ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (B) EXHAUST OTICS IMA	8-97364-811-2	04	1	1304-1309
53	SHAFT; ROCKER ARM (B) EXHAUST OTICS IMA	8-97364-811-2	04	1	1310-
53	SHAFT; ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (A) INLET JBK	8-98025-071-1	04	1	1304-
53	SHAFT; ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (A) EXHAUST JBK	8-98025-074-1	04	1	1304-
56	RING; SNAP,ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (B) IMA	8-98109-470-0	16	1	1304-1309
56	RING; SNAP,ROCKER ARM (B) IMA	8-98109-470-0	16	1	1310-
56	RING; SNAP,ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98025-496-0	16	1	1304-
65	COLLAR; SPLIT IMA	8-94239-501-0	32	1	1304-
66	CAP; VLV STEM END THA	8-98147-945-0	16	1	1304-
68	SPRING; VLV INLET H=49 NATURAL THA	8-97311-669-0	08	1	1304-
68	SPRING; VLV EXHAUST H=57.5 MARK YELLOW IMA	8-97311-675-1	08	1	1304-
71	SEAT; SPR (B) THA	8-97144-584-0	16	1	1304-
71	SEAT; SPR ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97311-668-0	16	1	1304-
71	SEAT; SPR EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98017-067-0	16	1	1304-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97328-647-0	16	1	1304-
78	ARM; ROCKER EXC. ENGINE MADE IN THAILAND<6ZP> (B) OTICS IMA	8-98029-537-6	16	1	1304-1309
78	ARM; ROCKER (B) OTICS IMA	8-98029-537-6	16	1	1310-
78	ARM; ROCKER EXC. ENGINE MADE IN THAILAND<6ZP> (A) JBK	8-98025-059-4	16	1	1304-
81	SCREW; ADJ,ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (B) M8 L=22 IMA	8-98029-893-0	16	1	1304-1309
81	SCREW; ADJ,ROCKER ARM (B) M8 L=22 IMA	8-98029-893-0	16	1	1310-
81	SCREW; ADJ,ROCKER ARM EXC. ENGINE MADE IN THAILAND<6ZP> (A) M8 L=22	8-98025-497-0	16	1	1304-
83	NUT; ADJ SCREW,LK EXC. ENGINE MADE IN THAILAND<6ZP> M8 FLANGE IMA	9-09844-574-0	16	1	1304-
87	BOLT; ROCKER SHAFT (A) M8X25 HEX SOCKET THA	0-58330-825-0	08	1	1304-
87	BOLT; ROCKER SHAFT (B) M8X40 HEX SOCKET THA	0-58330-840-0	08	1	1304-
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA	8-97947-079-0	04	1	1304-
263	GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP>	8-98216-269-0	04	1	1304-

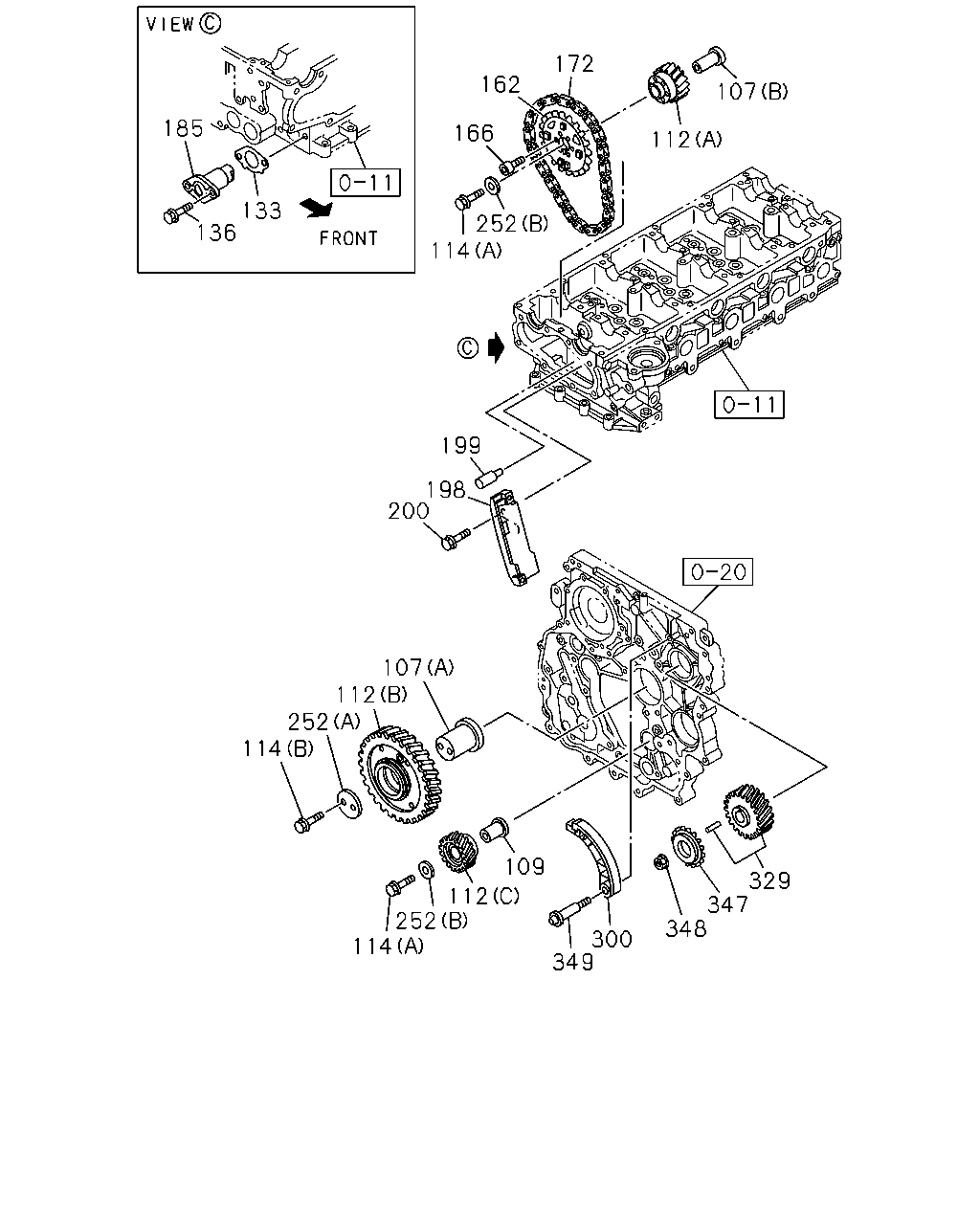

185 136 133 114 252 166 162 172 112 107 199 198 200 107 112 252 114 114 252 109 112 349 300 348 329 347

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	SHAFT; IDLE GEAR (A) THA	8-97312-315-2	01	1	1304-
107	SHAFT; IDLE GEAR (B) THA	8-97312-322-1	01	1	1304-
109	SHAFT; IDLE GEAR THA	8-97312-319-1	01	1	1304-
112	GEAR; IDLE (A) Z=35 IMA	8-97381-520-3	01	1	1304-
112	GEAR; IDLE ENGINE MADE IN THAILAND<6ZP> (B) Z=80 THA	8-98021-050-2	01	1	1304-
112	GEAR; IDLE ENGINE MADE IN THAILAND<6ZP> (C) Z=34 THA	8-98021-052-1	01	1	1304-
112	GEAR; IDLE EXC. ENGINE MADE IN THAILAND<6ZP> (B) Z=80	8-97381-516-1	01	1	1304-1311
112	GEAR; IDLE EXC. ENGINE MADE IN THAILAND<6ZP> (B) Z=80	8-98232-105-1	01	1	1312-
112	GEAR; IDLE EXC. ENGINE MADE IN THAILAND<6ZP> (C) Z=34	8-97381-518-0	01	1	1304-
114	BOLT; IDLE GEAR (B) M10X60 FLANGE THA	0-28061-060-0	02	1	1304-
114	BOLT; IDLE GEAR (A) M12X60 FLANGE THA	0-28161-260-0	02	1	1304-
133	GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97312-336-0	01	1	1304-
136	BOLT; TENSIONER M6X16 FLANGE THA	0-28050-616-0	02	1	1304-
162	SPROCKET; IDLE ENGINE MADE IN THAILAND<6ZP> THA	8-97312-331-1	01	1	1304-
162	SPROCKET; IDLE EXC. ENGINE MADE IN THAILAND<6ZP>	8-98193-179-0	01	1	1304-
166	BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET THA	0-58330-616-0	06	1	1304-
172	CHAIN; TIMING,CM/SHF ENGINE MADE IN THAILAND<6ZP> THA	8-98119-279-1	01	1	1304-
172	CHAIN; TIMING,CM/SHF EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97945-067-0	01	1	1304-
185	TENSIONER; CHAIN IMA	8-98039-754-1	01	1	1304-
198	GUIDE; TIMING CHAIN ENGINE MADE IN THAILAND<6ZP> THA	8-98173-188-0	01	1	1304-
198	GUIDE; TIMING CHAIN EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97945-069-0	01	1	1304-
199	JET; OIL,TIMING CHAIN THA	8-97356-061-1	01	1	1304-
200	BOLT; CHAIN GUIDE,LWR M8X20 THA	1-09070-120-1	02	1	1304-
252	FLANGE; IDLE SHAFT ENGINE MADE IN THAILAND<6ZP> (A) THA	8-97312-316-1	01	1	1304-
252	FLANGE; IDLE SHAFT ENGINE MADE IN THAILAND<6ZP> (B) THA	8-97312-323-1	02	1	1304-
252	FLANGE; IDLE SHAFT EXC. ENGINE MADE IN THAILAND<6ZP> (A)	8-98016-892-0	01	1	1304-
252	FLANGE; IDLE SHAFT EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-98016-893-0	02	1	1304-
300	LEVER; TENSION,TIMING CHAIN ENGINE MADE IN THAILAND<6ZP> THA	8-98119-278-1	01	1	1304-
300	LEVER; TENSION,TIMING CHAIN EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-97945-070-0	01	1	1304-
329	GEAR; INJ PUMP ENGINE MADE IN THAILAND<6ZP> Z=44 THA	8-97312-298-3	01	1	1304-
329	GEAR; INJ PUMP EXC. ENGINE MADE IN THAILAND<6ZP> Z=44	8-98017-539-1	01	1	1304-
347	SPROCKET; I/PUMP ENGINE MADE IN THAILAND<6ZP> THA	8-97312-330-1	01	1	1304-
347	SPROCKET; I/PUMP EXC. ENGINE MADE IN THAILAND<6ZP> IMA	8-98210-266-0	01	1	1304-
348	NUT; SPROCKET M14 FLANGE THA	8-97312-423-2	01	1	1304-
349	PIVOT; CHAIN LEVER THA	8-97312-328-0	01	1	1304-
