8-28 — CHASSIS ELECTRICAL (#120041) — 21 parça

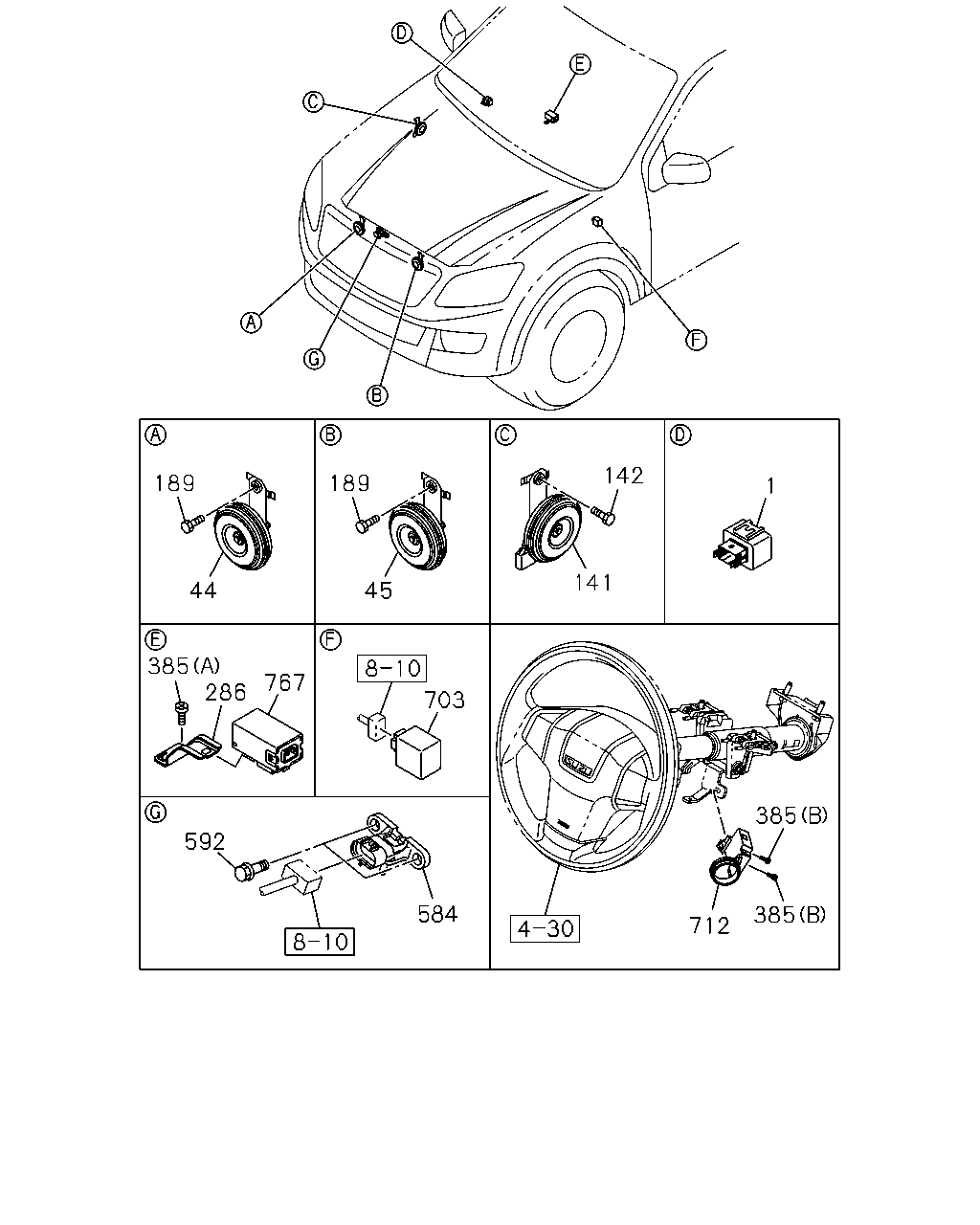

çizim 351701
189 189 45 44 141 142 1 385 286 767 592 584 385 385 712 703
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 UNIT; FLASHER 8-98080-978-0 01 1 1305- ● ● ● ●
44 HORN; HIGH NOTE 8-98219-100-0 01 1 1305- ● ● ● ●
45 HORN; LOW NOTE 8-98219-102-1 01 1 1305- ● ● ● ●
141 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98164-588-0 01 1 1305- ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1305-1501 ● ●
142 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1305-1501 ● ● ● ●
189 BOLT; HORN
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1305-1501 ● ● ● ●
189 BOLT; HORN
M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ●
189 BOLT; HORN
M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ● ● ●
286 BRACKET
REMOTE CONT DOOR LOCK<AP5> 		8-98102-503-0 01 1 1305- ● ●
385 BOLT; CONT UNIT
REMOTE CONT DOOR LOCK<AP5> (A) SCREW M5X16 TAPPING 		8-98167-449-0 01 1 1305- ● ●
385 BOLT; CONT UNIT
4JK1-TCX ENG(LR0) IMMOBILIZER SYSTEM<7KC> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1305- ●
385 BOLT; CONT UNIT
4JK1-TCX ENG(LR0) (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1305- ● ●
584 SENSOR; PRESSURE
4JK1-TCX ENG(LR0) 		8-98020-514-0 01 1 1305- ● ● ●
592 BOLT; SENSOR
4JK1-TCX ENG(LR0) M6X16 FLANGE 		0-28650-616-0 02 1 1305- ● ● ●
703 TIMER; DEFOGGER
REAR DEFOGGER<C49> EXC. REMOTE CONT DOOR LOCK<AP5> 12V 		8-97301-600-0 01 1 1305- ● ●
712 CONTROL UNIT; ANTI THEFT
4JK1-TCX ENG(LR0) IMMOBILIZER SYSTEM<7KC> 		8-98226-205-0 01 1 1305- ●
712 CONTROL UNIT; ANTI THEFT
4JK1-TCX ENG(LR0) 		8-98226-205-0 01 1 1305- ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98226-196-0 01 1 1305-1509 ● ●
767 RECEIVER ASM; KEYLESS ENTRY
REMOTE CONT DOOR LOCK<AP5> 		8-98076-338-1 01 1 1510- ● ●
