Sayfa 7-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

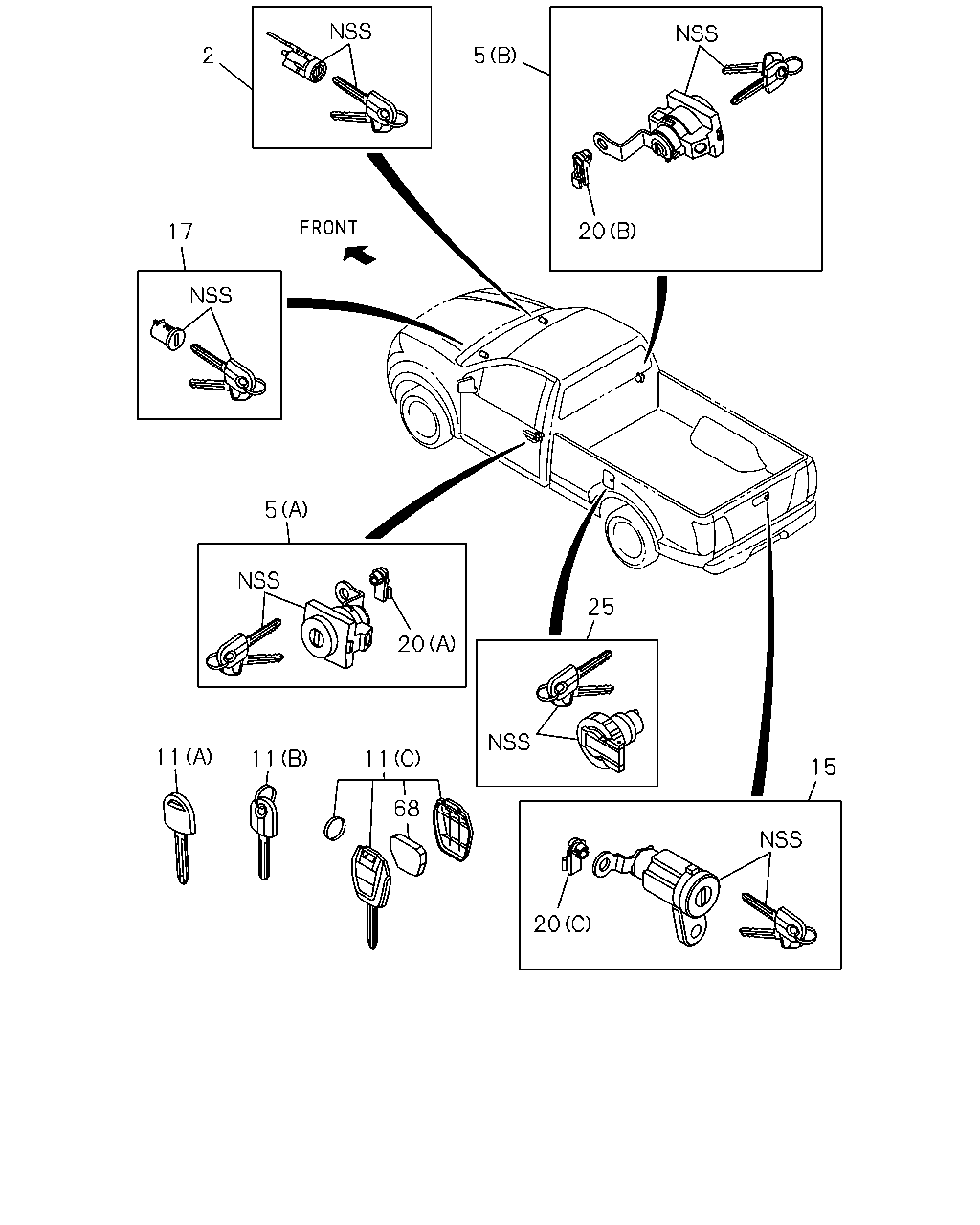

7-30 — LOCK CYLINDER SET (#120036) — 80 parça

20 5 2 17 5 20 25 15 11 11 11 68 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC>	8-98274-647-0	01	1	1412-	●	●
2	BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>	8-98274-646-0	01	1	1412-	●	●	●
2	BARREL ASM; W/KEY,STRG LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98274-646-0	01	1	1412-	●	●	●
2	BARREL ASM; W/KEY,STRG LOCK AUTO DOOR LOCK<AU4> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW>	8-98274-646-0	01	1	1412-	●		●
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98193-734-0	01	1	1305-1411	●	●
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC>	8-98193-734-0	01	1	1412-	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98193-733-0	01	1	1305-1411			●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98193-733-0	01	1	1305-1411	●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98193-733-0	01	1	1412-	●			●
5	CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> (A)	8-98274-650-0	01	1	1412-	●	●	●
5	CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY> (A)	8-98274-650-0	01	1	1412-	●	●	●
5	CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW> (A)	8-98274-650-0	01	1	1412-	●		●
5	CYLINDER ASM; DOOR LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> (B)	8-98274-649-0	01	1	1412-	●	●	●
5	CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99> (B)	8-98274-649-0	01	1	1412-	●	●	●
5	CYLINDER ASM; DOOR LOCK AUTO DOOR LOCK<AU4> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,LOCK END GATE<8CW> (B)	8-98274-649-0	01	1	1412-	●	●	●
5	CYLINDER ASM; DOOR LOCK (B)	8-98193-736-0	01	1	1305-1411	●	●	●	●
5	CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC> (B)	8-98193-736-0	01	1	1412-	●			●
5	CYLINDER ASM; DOOR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> (B)	8-98193-736-0	01	1	1412-	●
5	CYLINDER ASM; DOOR LOCK (A)	8-98193-737-0	01	1	1305-1411			●	●
5	CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5> (A)	8-98193-737-0	01	1	1305-1411	●	●
5	CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A)	8-98193-737-0	01	1	1412-	●			●
11	KEY; BLANK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98274-338-0	AR	1	1412-	●	●
11	KEY; BLANK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER	8-98274-332-0	AR	1	1412-	●	●	●
11	KEY; BLANK IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99> (B) IMMOBILIZER	8-98274-332-0	AR	1	1412-	●	●	●
11	KEY; BLANK AUTO DOOR LOCK<AU4> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,LOCK END GATE<8CW> (B) IMMOBILIZER	8-98274-332-0	AR	1	1412-	●	●	●
11	KEY; BLANK (A)	8-97350-352-0	AR	1	1305-	●	●	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1305-1411	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98136-339-1	AR	1	1412-	●
11	KEY; BLANK (B) IMMOBILIZER	8-98007-939-1	AR	1	1305-1411	●	●	●	●
11	KEY; BLANK EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) IMMOBILIZER	8-98007-939-1	AR	1	1412-	●			●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-653-0	01	1	1412-	●	●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98274-653-0	01	1	1412-	●	●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK LOCK END GATE<8CW>	8-98193-740-0	01	1	1305-1411	●	●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>	8-98193-740-0	01	1	1412-	●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>	8-98193-740-0	01	1	1412-	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC>	8-98274-648-0	01	1	1412-	●	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99>	8-98193-735-0	01	1	1305-1411	●		●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK	8-98193-735-0	01	1	1305-1411		●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99> EXC. IMMOBILIZER SYSTEM<7KC>	8-98193-735-0	01	1	1412-	●			●
20	SNAP; DOOR LOCK CYL LOCK END GATE<8CW> (C)	8-97357-958-0	01	1	1305-	●	●
20	SNAP; DOOR LOCK CYL (B) WHITE	8-97350-044-0	01	1	1305-	●	●	●	●
20	SNAP; DOOR LOCK CYL (A) YELLOW	8-97350-043-0	01	1	1305-			●	●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW	8-97350-043-0	01	1	1305-	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-98060-587-0	01	1	1305-	●	●	●	●
68	TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98102-844-1	01	1	1305-	●	●

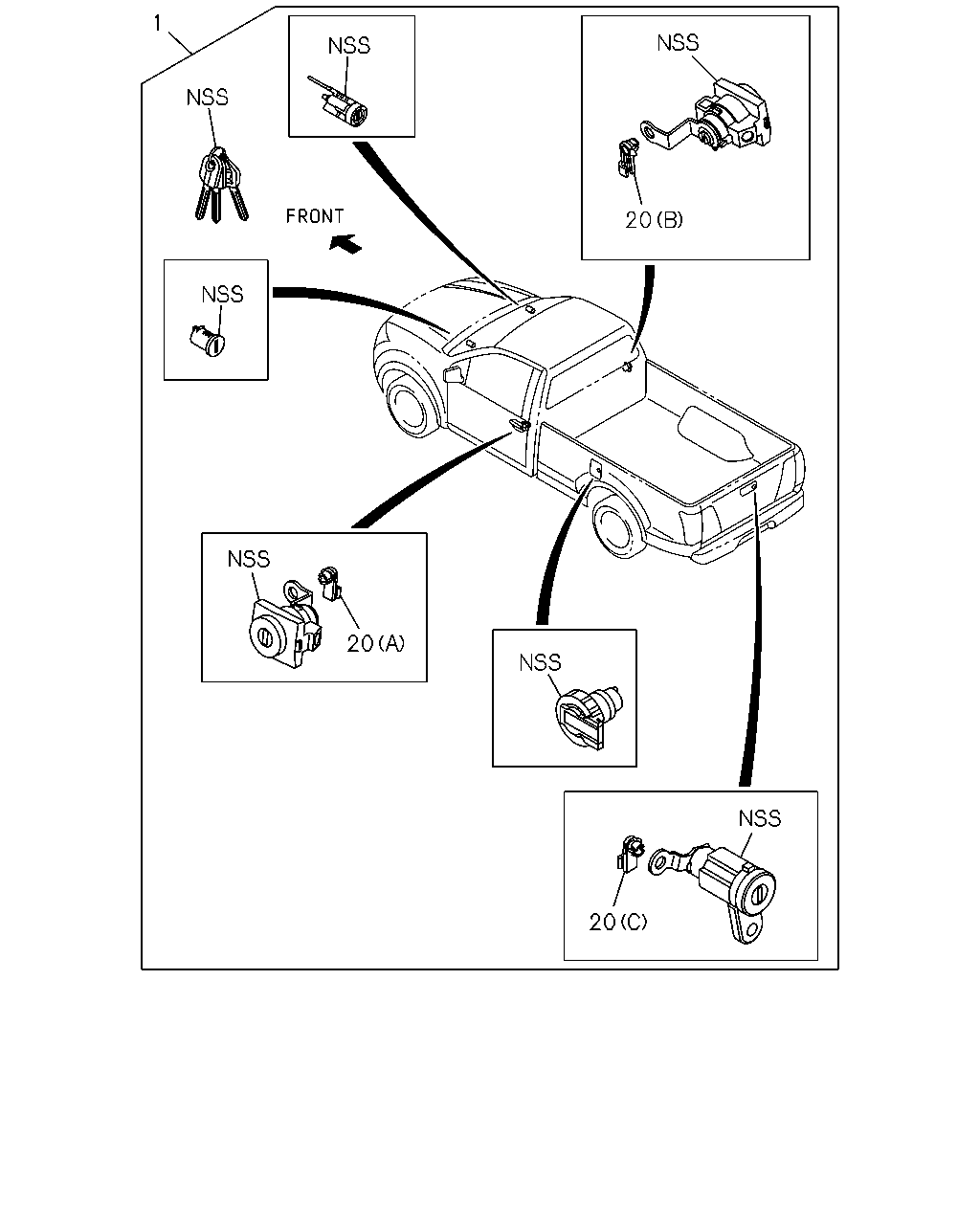

1 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05>	8-98103-043-0	01	1	1305-				●
1	CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW>	8-98103-043-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>	8-98103-042-0	01	1	1305-				●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW>	8-98103-042-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>	8-98103-037-0	01	1	1305-				●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW>	8-98103-037-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98103-036-0	01	1	1305-				●
1	CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW>	8-98103-036-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. LOCK END GATE<8CW>	8-98185-842-0	01	1	1305-1411	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. LOCK END GATE<8CW>	8-98274-603-0	01	1	1412-	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> EXC. IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW>	8-98103-056-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98103-100-0	01	1	1305-1411	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-585-0	01	1	1412-	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-098-0	01	1	1305-1411	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-584-0	01	1	1412-	●	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>	8-98103-058-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>,LOCK END GATE<8CW>	8-98103-054-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK END GATE<8CW>	8-98103-083-0	01	1	1305-1411	●	●	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK END GATE<8CW>	8-98274-576-0	01	1	1412-	●	●	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98103-085-0	01	1	1305-1411	●	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>	8-98274-577-0	01	1	1412-	●	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-082-0	01	1	1305-1411	●	●	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-575-0	01	1	1412-	●	●	●
1	CYLINDER SET; CAR LOCK LOCK GLOVE BOX<A99> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>	8-98103-044-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,LOCK END GATE<8CW>	8-98103-077-0	01	1	1305-1411	●		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,LOCK END GATE<8CW>	8-98274-574-0	01	1	1412-	●		●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98103-076-0	01	1	1305-1411	●		●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-573-0	01	1	1412-	●		●
1	CYLINDER SET; CAR LOCK LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>,IMMOBILIZER SYSTEM<7KC>	8-98103-038-0	01	1	1305-	●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98189-439-0	01	1	1305-1411	●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98274-609-0	01	1	1412-	●
20	SNAP; DOOR LOCK CYL LOCK END GATE<8CW> (C)	8-97357-958-0	01	1	1305-	●	●
20	SNAP; DOOR LOCK CYL (B) WHITE	8-97350-044-0	01	1	1305-	●	●	●	●
20	SNAP; DOOR LOCK CYL (A) YELLOW	8-97350-043-0	01	1	1305-			●	●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW	8-97350-043-0	01	1	1305-	●	●
